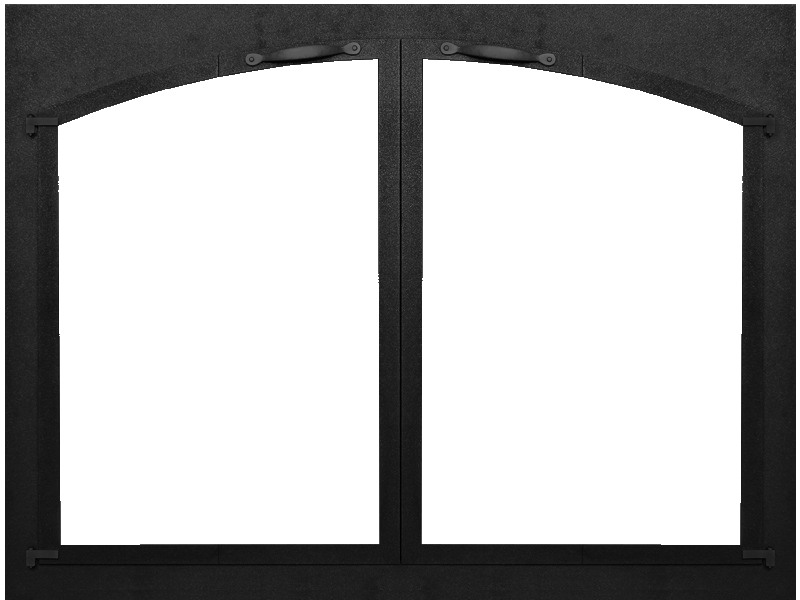

Cascade Arch Conversion Masonry Fireplace Door in Textured Black powder coat with cabinet style doors.

Cascade Arch Conversion Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us Before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on) When the enclosure is larger than the opening of the fireplace.
Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the enclosure will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc.) We need the exact minimum height.



INSIDE FIT; When the enclosure is smaller than the opening of the fireplace.
When the enclosure is smaller than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc.) We need the exact minimum width.

DO NOT make adjustments to sizes, we need the EXACT OPENING size.

in
in

Size Range For Pricing: Up To 38"W and Up To 36"H

=:

$1,673.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on website.
Price in points: 16730 points
Reward points: 502 points
Available
+

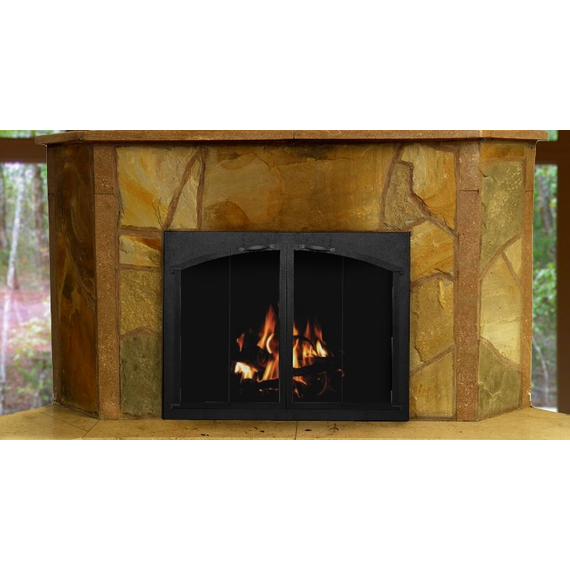

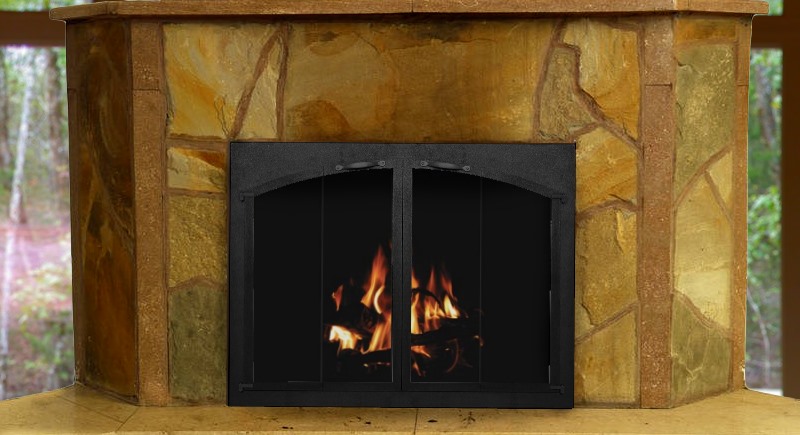

The Cascade Arch Conversion custom fireplace door simulates the look of a arched masonry firebox opening with curved doors resting atop a rectangular main frame. Transform the look of your living space instantly with this enclosure! Submit the measurements of your fireplace opening and choose an overlap or inside fit frame, with or without a damper. Select your favorite powder coat or premium finish and one of nine handle designs. Doors come standard in cabinet style with a center bar, but can be customized as trackless bi-fold. Tempered glass is available in your preference of grey, clear, or bronze. Hardware is included with this wood burning fireplace glass door for an easy installation.


Cascade Arch Conversion Masonry Fireplace Door Features Product Features and Benefits:

  • The Cascade Arch Conversion door is for masonry fireplaces ONLY
  • Fireplace door ships for free; please allow 4 to 6 weeks for production
  • 5 year warranty on workmanship and material only; 1 year glass warranty
  • 7 gauge flat steel frame is 2 inches wide by 3/16 inch deep
  • This custom enclosure is available as an overlap or inside fit frame
  • Hidden or no damper options
  • Check out the videos for an in depth view of finish colors
  • Cabinet or trackless bi-fold doors with a center bar feature 1/4 inch tempered safety glass
  • Choose from clear, bronze, or grey tinted glass
  • Select from 3 different handle designs
  • Mesh protection is available; other upgrades available
  • Door comes fully assembled with included mounting hardware



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Cascade Arch Conversion Masonry Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry
  • Door Fit: Overlap | Inside
  • Door Type: Cabinet Doors with Center Bar | Trackless Bi-Fold Doors with Center Bar
  • Material: 2" Wide x 3/16" Deep 7 Gauge Flat Steel Frame
  • Approximate Overlap: 1"
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: N/A
  • Mesh Screen: Optional
  • Damper: No Damper | Hidden Damper
  • Airtight Option: N/A
  • Assembly: Fully Assembled
  • Handle Style: Square | Wire | Contemporary

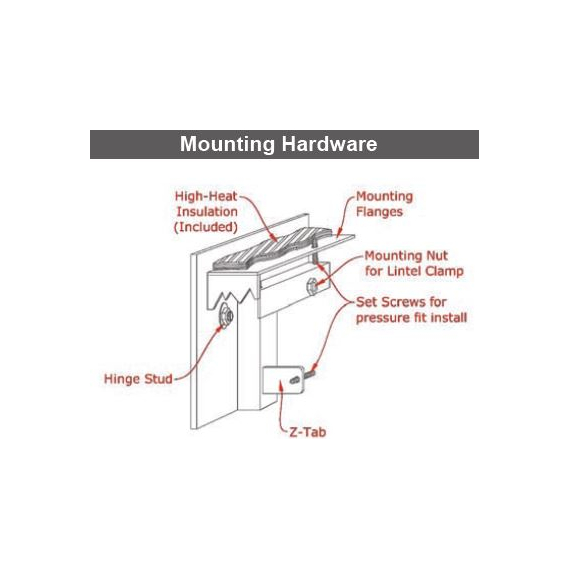

  • Mounting: Hardware Included
  • Enjoy free shipping on this order!
  • Please allow 4 to 6 weeks for production and transit time, unless otherwise specified.
  • In order to offer the best shipping method for our customers, certain fireplace doors are able to ship via transit carrier, such as UPS or FedEx. Heavier and larger doors will be shipped LTL freight.
  • In the event of LTL freight shipping:
    • Upon arrival, please inspect all freight shipments carefully. Note any damages or missing accessories on the delivery receipt.
    • In the event of concealed damage, freight customers MUST add "Pending Inspection" in addition to their signature on the delivery receipt. Failure to do so will void recovery for undiscovered/concealed damage.
Limitations and restrictions on our standard shipping policy regarding LARGER and IRREGULAR-SHAPED items are as follows:
  • Freight shipping is restricted to certain types of standard business addresses or to the motor freight carrier's normal delivery terminal for Customer pick-up at the terminal. A business out of the home is considered to be a residential address and may be subject to lift gate and/or curbside charges. Public schools, fire stations, farms and churches are also considered to be residential addresses. Deliveries to residential addresses are only made weekdays, generally between 8 AM and 5 PM. Deliveries to businesses or carrier terminals may fall outside this window, based on carrier time tables, queue, or other types of discretion. For residential deliveries: the assigned trucking company will contact the residence 24 hours prior to the date of delivery to confirm that someone is available to sign for the product.
  • Freight shipping to the following locations is UNAVAILABLEUnited States military bases, Hawaii, Alaska, Mexico and Canada.
  • Freight charges for the following states are quoted on a case-by-case basis, regardless of the address: Nebraska, North Dakota, South Dakota, Wyoming, Montana and Idaho. This is due to the lack of service available and delivery fees applicable to these areas. Please contact one of our sales representatives for a special shipping quote that accurately reflects this upcharge. "Free Shipping" may not cover all fees and upcharges. A sales representative will contact you prior to shipment, should any additional delivery fees apply.
  • An additional upcharge may be incurred for shipping to addresses within: Long Island including the Five Boroughs of New York, Northern New England including Nantucket and Martha's Vineyard, and other restricted or limited access areas. This is due to the transportation surcharges and/or delivery fees applicable to these areas. Please contact one of our sales representatives for a special shipping quote that accurately reflects this upcharge. "Free Shipping" may not cover all fees and upcharges. A sales representative will contact you prior to shipment, should any additional delivery fees apply.

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
