Bungalow Special Designed Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.


OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.


 DO NOT make adjustments to sizes, we need the EXACT OPENING size

Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4 Weeks Question | Why Buy From Us?


I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.

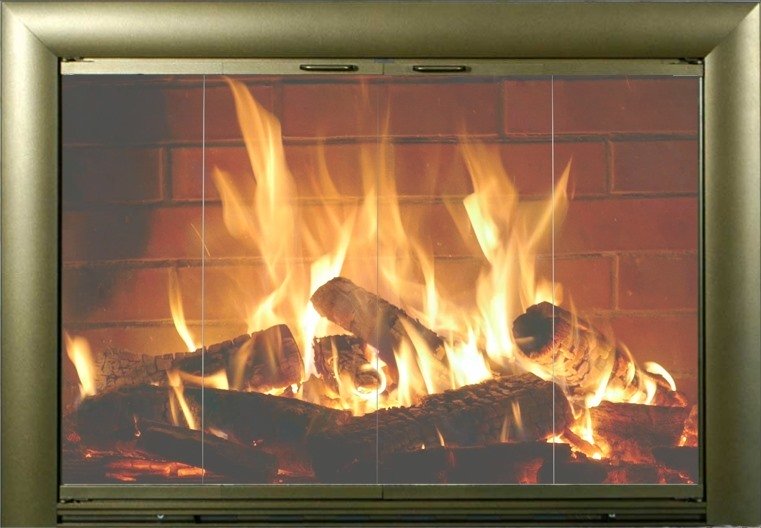

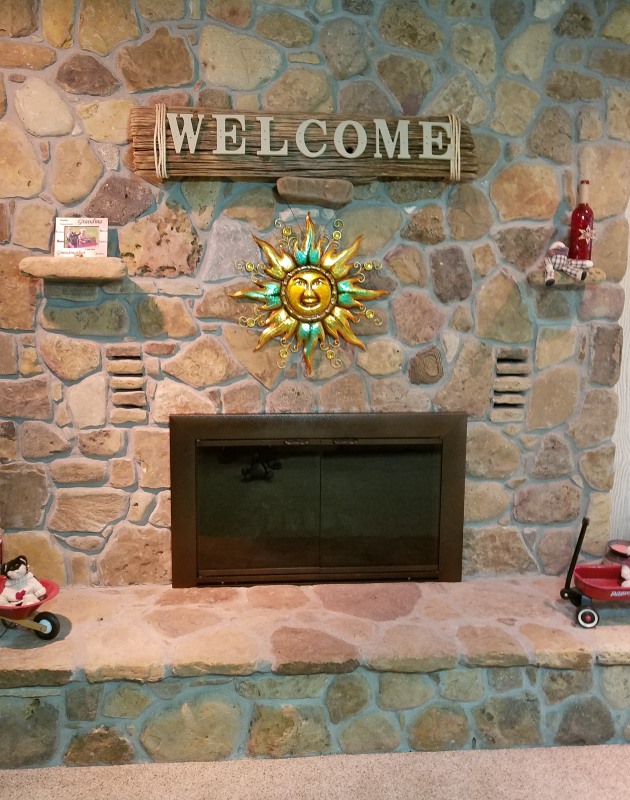

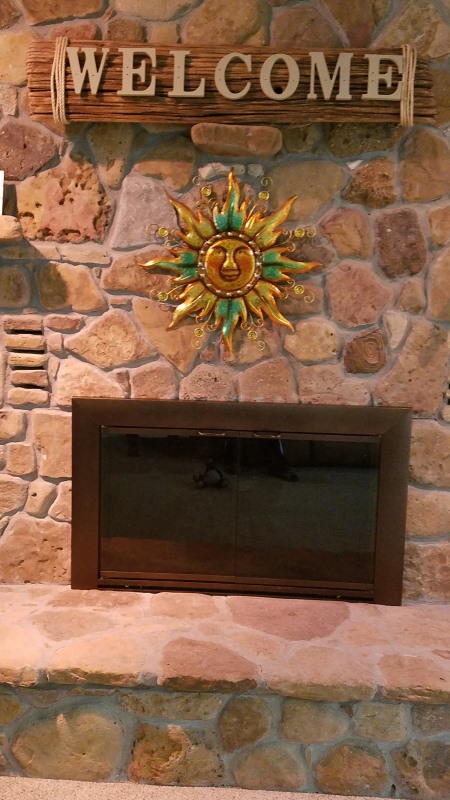

The Bungalow Special Designed Masonry Fireplace Glass Door is the work of Design Specialties, created for masonry wood burning fireplaces, with a projection (shelf or ledge) above the fireplace, and for fireplaces that need an overlap fit on the sides and an inside fit at the top. If you have a projection installed to protect items above the fireplace from the heat, then you most likely understand the term. But, if the rest has you wondering if your fireplace is right for the Bungalow, we have pictures above to help guide your choice.

The Bungalow Fireplace Door not only offers you a functional perfect custom door set to your fireplace specifications, but it also offers a host of included and upgrade options. You can choose between 20 different warm earth tone colors, with two different textures offered.

The Bungalow is designed with one of our widest frames of 3 ½ inches in a slightly rounded design making it a perfect fireplace door to showcase your fireplace setting. We always recommend one of the timeless colors, such as the Matte Black but if you like a bold burst of color there are many great choices, as in the upgrade Copper Fire or the slick Satin Nickel. With its wider than standard frame, the Bungalow is also the perfect fireplace door to add one of the three upgrade door designs offered.

They are the Rectangle with Mission Window Pane, The Rectangle Sunrise Window Pane, or The Rectangle with Window Pane. You have many other included choices with the Bungalow, these options include the door handle design, tempered safety glass colors, and the door opening style. We also offer two choices of an upgrade with the Sliding Black Mesh Curtain or the Cabinet Mesh Doors, both offered for spark protection. We highly recommended adding one of the spark protection options for fireplace security and peace of mind.

Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

Bungalow Custom Masonry Fireplace Door Features Product Features:

  • The Bungalow fireplace door is for masonry fireplaces with projection above opening ONLY
  • Special constructed fireplace door that will overlap the sides and inside fit the top
  • Door ships for free; please allow 4 weeks for production and transit time
  • 1-year warranty on workmanship; 2-year warranty on metalwork (excluding finish)
  • The approximate overlap is 2  1/2 inches
  • Choose from trackless bi-fold or cabinet-style doors

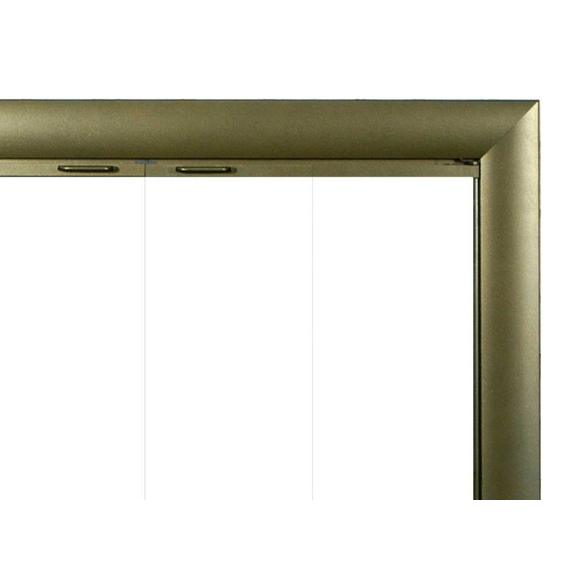

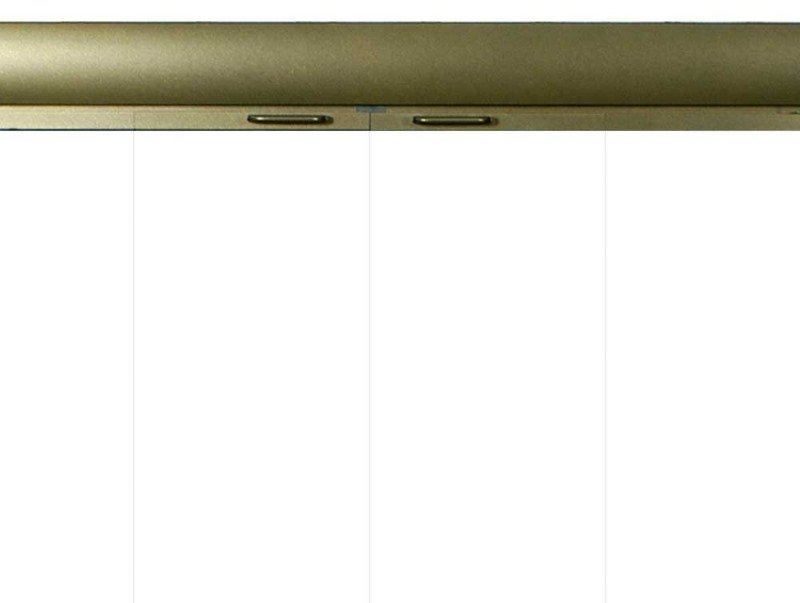

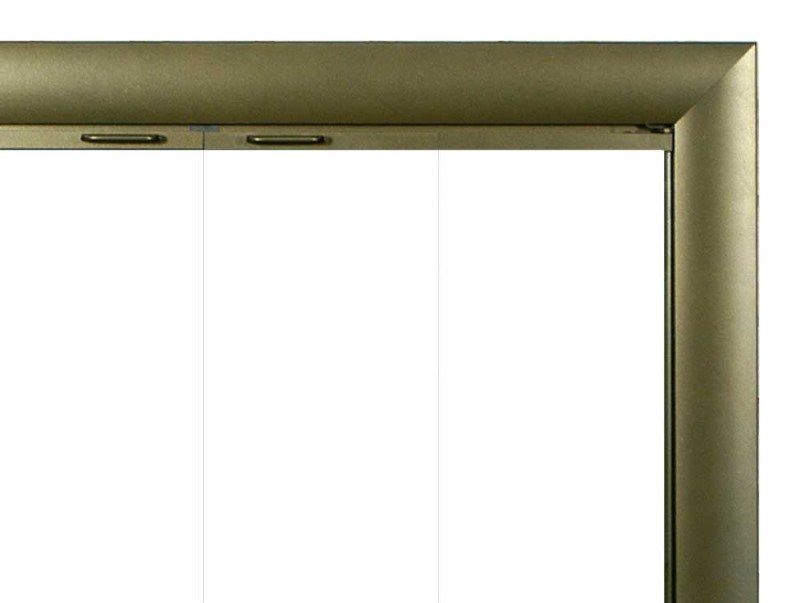

  • The aluminum frame is 3 1/2 inches wide and 1  1/8 inches deep
  • 1/4 inch thick tempered safety glass can be tinted grey, clear, bronze, or black
  • Spark protection not included; sliding curtains or cabinet mesh doors available
  • 2 handle styles include simplicity, square, contour, contemporary, infinity, and classic.
  • The damper is configured into the bottom of the frame
  • Door comes fully assembled with all mounting hardware included


Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.


Bungalow Custom Masonry Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry With Projection Above Firebox Opening
  • Door Fit: Overlap In Sides | Inside On Top
  • Door Type: Cabinet Doors | Trackless Bi-Fold Doors
  • Material: 3 1/2" Wide x 1 1/8" Deep Extruded Aluminum Slightly Rounded Frame
  • Approximate Overlap: 2 1/2" On Sides
  • Glass: 1/4" Clear Tempered Safety Glass (lifetime warranty)
  • Glass Tints: Clear | Grey | Bronze | Black
  • Ceramic Glass: N/A
  • Mesh Screen: Not Included (Optional)
  • Handles: Simplicity | Square
  • Damper: Available
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included
  • Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.
