Window Pane Design Cascade Arch Door With Cabinet Doors

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening before the arch starts. We need the exact minimum width. Next, measure the center height of the opening from the hearth (where the door will sit) to the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening, template required)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening before the arch starts. We need the exact minimum width. Next, measure the center height of the opening from the hearth/floor to the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Size Range For Pricing: Up To 38"W and Up To 36"H

=:

$1,978.90
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 5-8 Weeks Question | Why Buy From Us?

I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
Please stand 6 feet away from your fireplace and take the picture of the front of your fireplace. Head On. Send only jpg,bmp,gif or pdf images!
Available
+

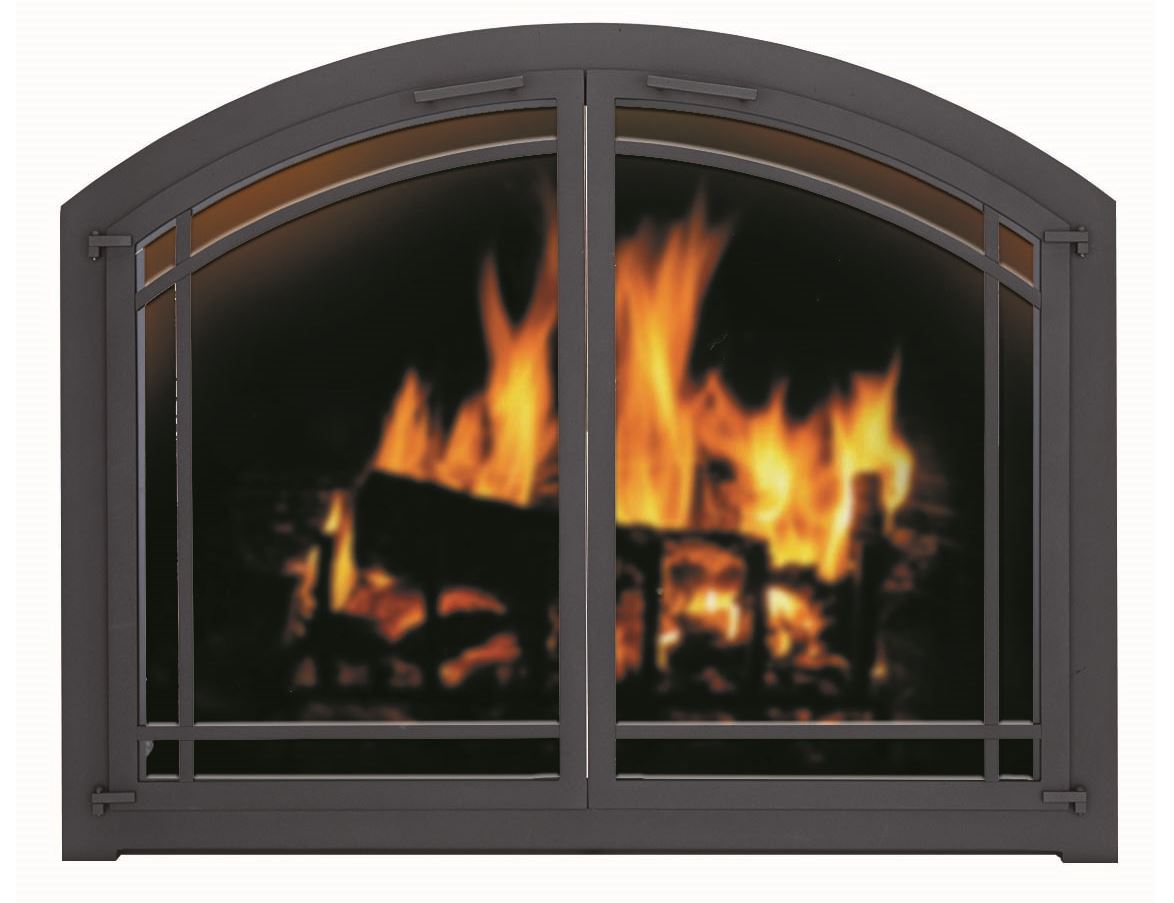

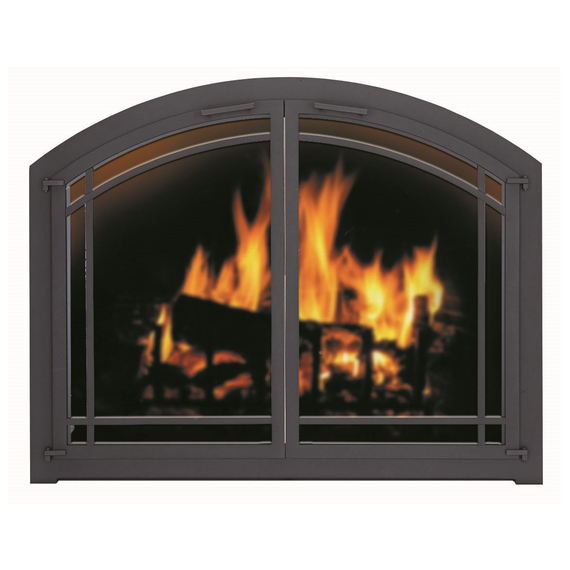

The Cascade Arch Masonry Fireplace Door with cabinet doors and attractive window pane design provides you with he option of airseal and the option for ceramic glass. The high-temperature amber tinted ceramic glass allows you to burn the fire with the center bar cabinet doors closed, and in turn radiates heat back into your living space. Choose from a variety of finish colors to match your decor style. Three premium handle designs are available for you to choose from. Cabinet door spark protection comes with this door, however, you can also choose single cabinet or a curtain rod with hanging mesh to suit your preference. This fireplace door is constructed of heavy duty steel and is guaranteed to last a lifetime! Tell us your fireplace opening measurements and we'll create this custom glass fireplace door to your specifications, with or without a damper.

Please note: overlap fit doors take 4 to 6 weeks for production and transit time. Inside fit doors require a template of your fireplace opening and will take 8 to 12 weeks for production and transit time.


Cascade Arched Air Sealed Masonry Fireplace Door Features Product Features:

  • 5 year warranty on workmanship and material only; 1 year glass warranty
  • Door available as an overlap or inside fit
  • 7 gauge steel frame is 2 inches wide and 3/16 inch deep
  • Check out the videos for finish color options
  • Ceramic glass option allows you to enjoy a fire with the doors closed
  • No damper or optional damper options
  • Decorative Window Pane Design

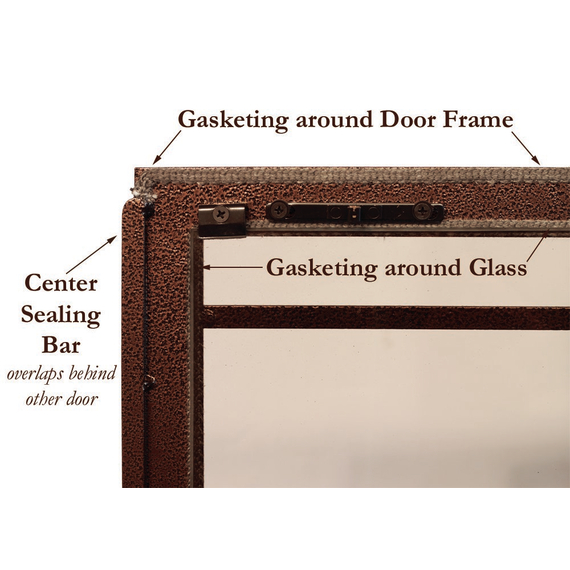

  • Cabinet style doors feature a center sealing bar and gasketing around the door frame and glass
  • Choose from three different handle designs including square, wire and contemporary
  • Cabinet mesh is optional
  • Door comes fully assembled with included mounting hardware



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Cascade Arched Air Sealed Masonry Fireplace Door Specifications Product Specifications:

  • Door Fit: Overlap | Inside

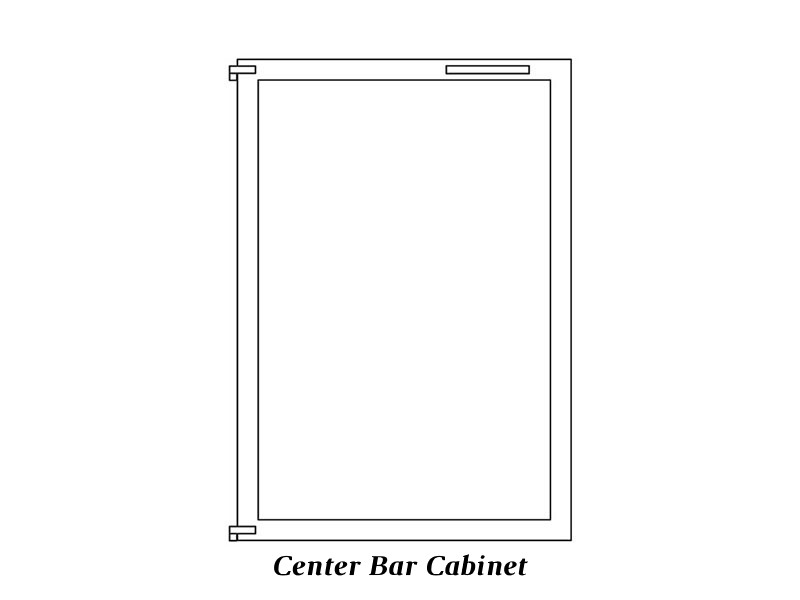

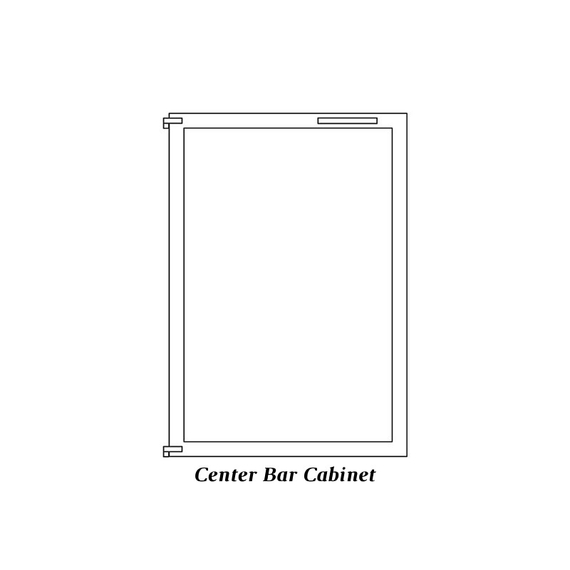

  • Door Type: Cabinet Center Bar Doors
  • Material: 2" Wide x 3/16" Deep 7 Gauge Steel Frame

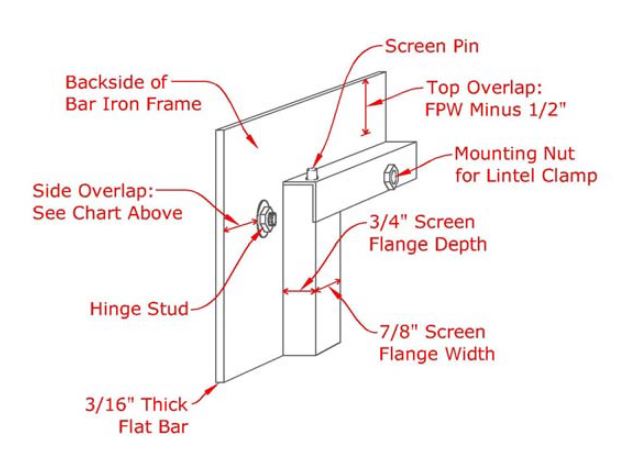

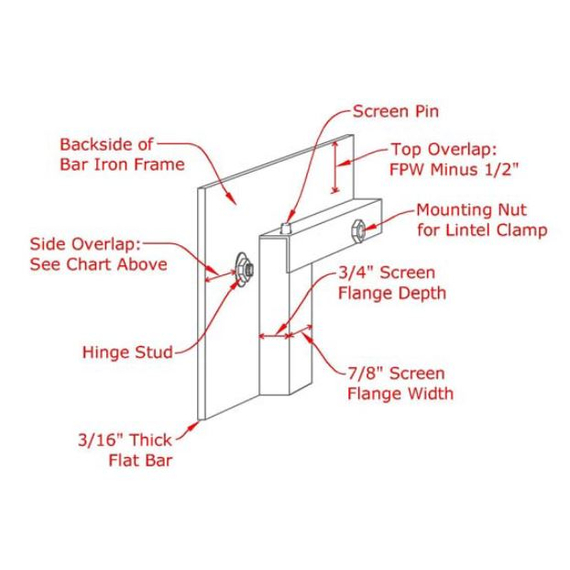

  • Approximate Overlap: 1"
  • Glass Tint: Clear | Bronze | Grey
  • Ceramic Glass: Optional
  • Decorative Door Design: Window Pane
  • Spark Protection: Optional
  • Draft Assembly: Optional
  • Airseal Option: Optional
  • Handle Style: Square | Wire | Contemporary
  • Assembly: Fully Assembled
  • Mounting: Hardware Included

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
