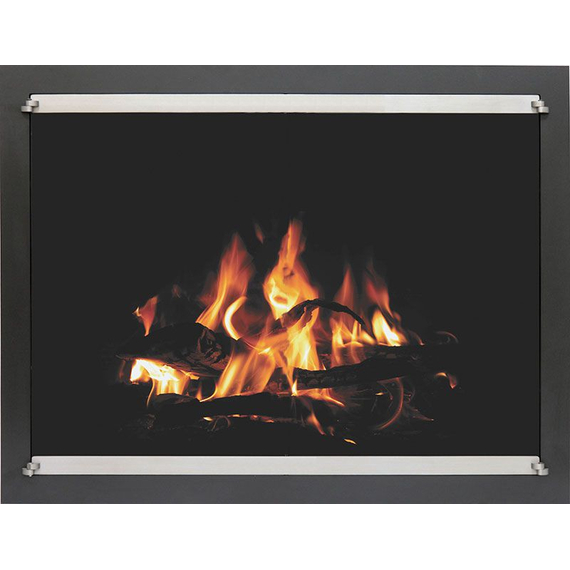

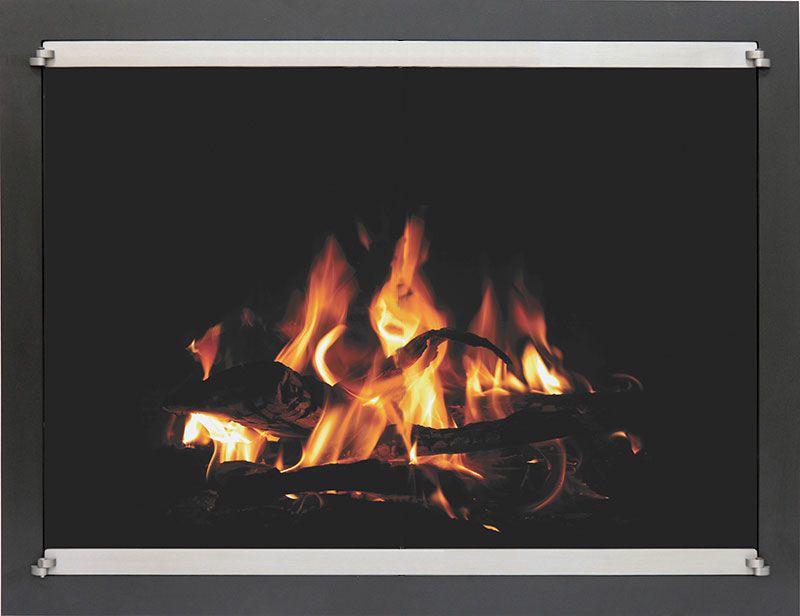

Affinity Inline Fixed Pane Masonry Fireplace Glass Door
The Affinity fixed pane fireplace door is made for wood burning see-thru masonry fireplaces to cover one side! The Affinity is handcrafted from robust, laser-cut steel for a flawless look, while European hinges bring an added touch of sophistication. Designed with a trendy minimalist approach, the flush fit doors give this enclosure a flat appearance while boasting contrasting frames for an eye-catching element of surprise! Choose from many powder coat finishes for the mainframe of the enclosure, while tastefully accenting the door frame with a premium or overlay finish. The frame can be customized with a hidden damper or no damper at all. Select the appropriate hearth position and door fit for your fireplace opening and we'll create a custom product based on all of your specifications!
Product Features:
- The Affinity Fixed Panel door is ONLY for masonry see through wood fireplaces and can only be installed on one side
- Fireplace door ships for free; please allow 4 to 6 weeks for production
- 5-year warranty on workmanship and material only; 1-year glass warranty
- The mainframe is 2 inches wide by 3/16 inch deep and made from laser cut 7 gauge steel
- This custom door is available as an overlap or inside fit frame
- The mainframe is available in powder coat finishes
- The door frame is 1 inch wide and available in premium and overlay finishes
- Flush-fit cabinet or trackless bi-fold doors feature 1/4 inch tempered safety glass
- Choose from grey, clear, or bronze glass
- European hinges offer an elegant look
- Door comes fully assembled with included mounting hardware
Product Specifications |
|
|---|---|
| Fireplace Type | Masonry See-Through Wood Burning (Install on ONE side only!) |
| Door Fit | Overlap | Inside |
| Door Type | Single Fixed Glass Panel |
| Material | 2" Wide x 3/16" Deep 7 Gauge Steel Bar Stock Frame | 1" Door Frame |
| Approximate Overlap | 1 1/2" |
| Glass | 1/4" Tempered Safety Glass (1-Year Warranty) |
| Glass Tints | Grey | Bronze | Clear |
| Ceramic Glass | N/A |
| Damper | No Damper | 1/4" Air Gaps |
| Mesh Protection | N/A |
| Handles | N/A |
| Hinges | European |
| Airtight Option | N/A |
| Assembly | Fully Assembled |
| Mounting | Hardware Included |
Downloads:
- Overlap Fit Masonry Door Installation Guide
- Inside Fit Masonry Door Installation Guide
- How To Measure For Your Masonry Fireplace Door
Manufacturer's Warranty
Limited 5 Year Warranty
Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.
Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).
1. Limited Warranties
1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.
2. Limitations
2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.
3. Warranty Process
If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
