Linear 60" Outdoor Fireplace - Carol Rose Coastal Collection

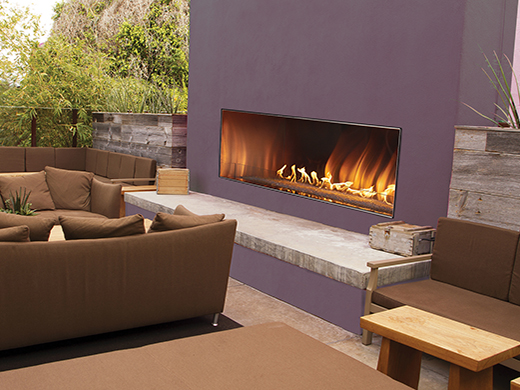

White Mountain Hearth Carol Rose Coastal Collection Linear 60" Outdoor Fireplace can brighten your patio party for any occasion with its stainless steel design, integrated LED lighting system, and 65,000 Btu burner. An alternative is the 48-inch model, which has a 55,000 Btu burner.

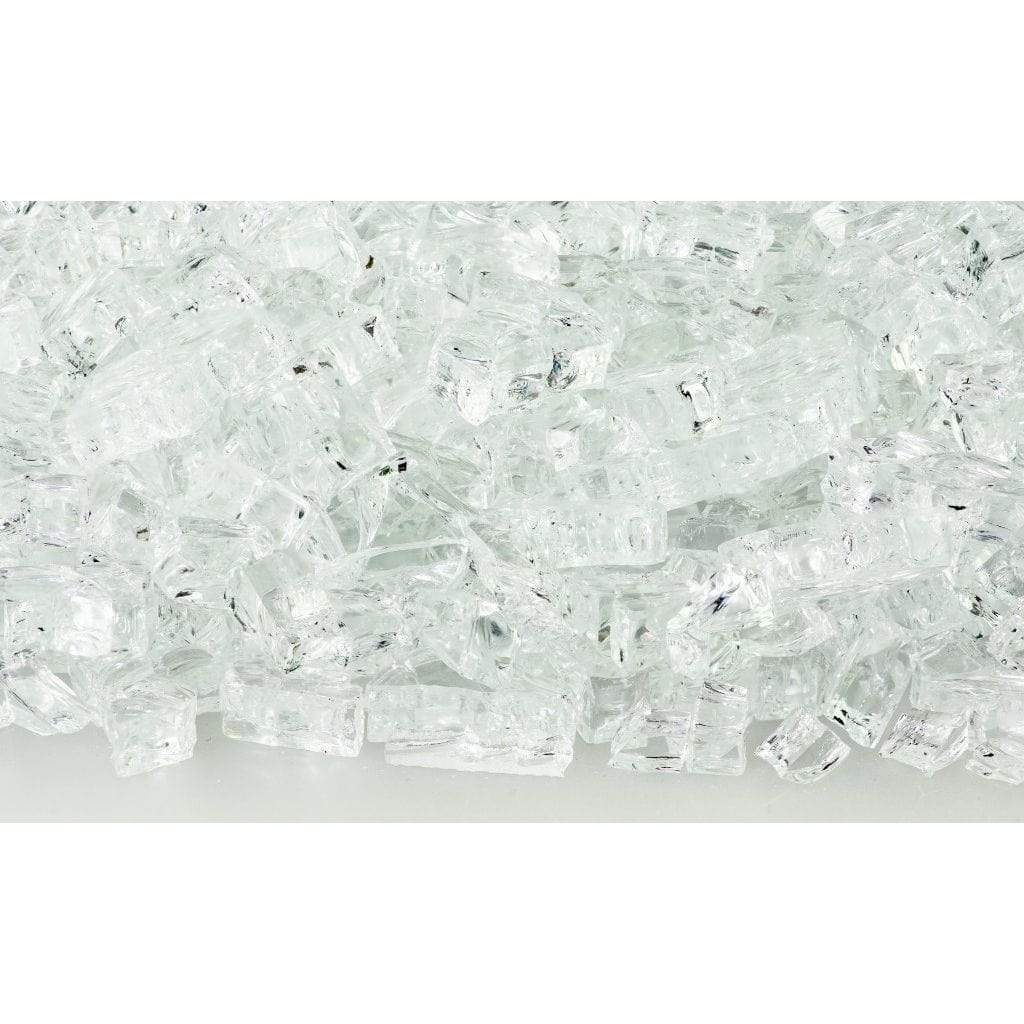

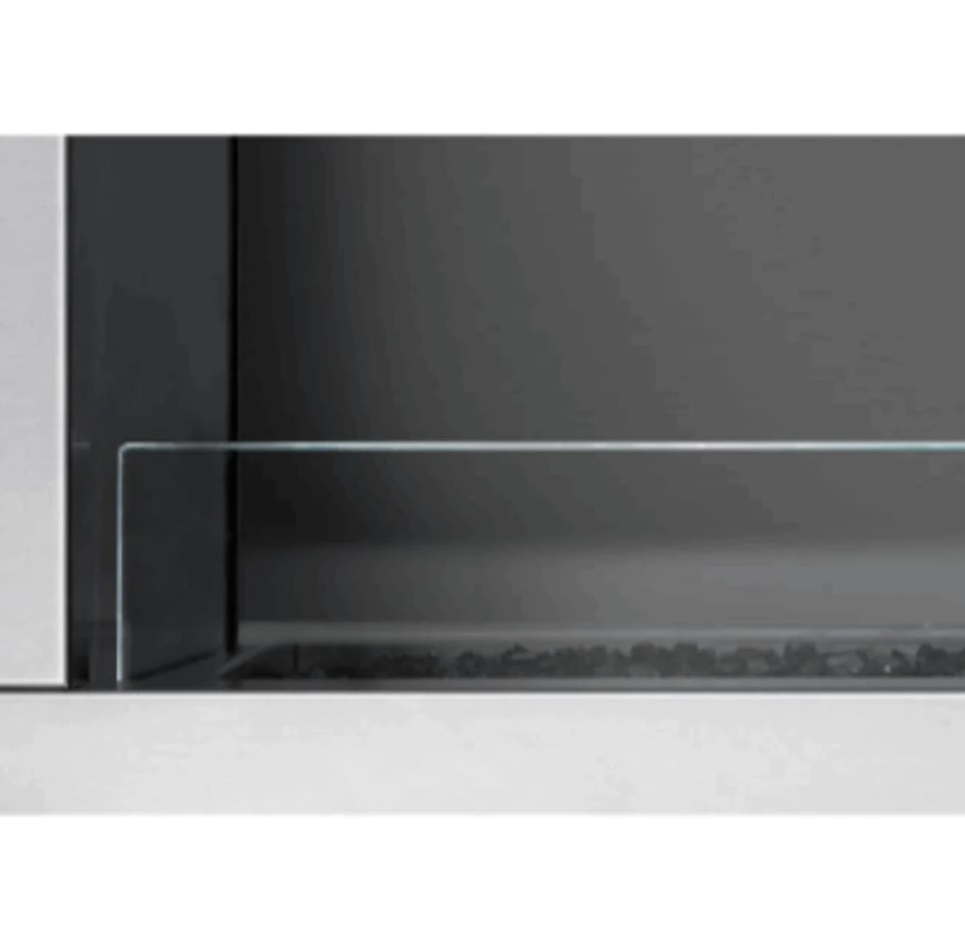

Under a sizable bed of broken clear-frost glass, these one-sided versions hide a gas burner. The lighting system lights the glass from below as the flames dance over the surface of it. The flame is shielded from the wind by a glass deflector shield. For fireplaces placed in windier areas, higher deflectors are an optional feature.
A tilt-up cover covers all controls, including pushbutton ignition and a flame control knob with Hi, Medium, and Low settings, as well as easy buttons for controlling the changing pattern and color of the LED illumination. The controls allow you to choose from seven LED colors - Deep Blue, Royal Violet, Cardinal Red, Sea Green, Forest Green, Tranquil Blue, and White - and adjust the intensity. Two "program" options automatically cycle between the colors, either swiftly or gradually.
VALVES & CONTROLS:
- Manual Control: The burner features a manual control knob that allows the user to light the pilot as well as turn the flame up and down from the burner. This system cannot use a remote control.
- Millivolt: This also allows the user to control and turn the pilot light on and off as well as adjust the flame height from the burner. The millivolt control is a more sophisticated valve system that allows the user to turn the flame with an on-off switch. Optional remotes are available.
- Variable Control: This system includes a remote control that allows the user to adjust the flame up and down from the remote control system. This system also has a standing pilot light.
- Intermittent Pilot: This valve system gives the user complete control of the log set with the included remote. The included remote features a thermostat, up and down flame adjustment, and on/off control. The pilot light on this system only comes on when the log set is on.

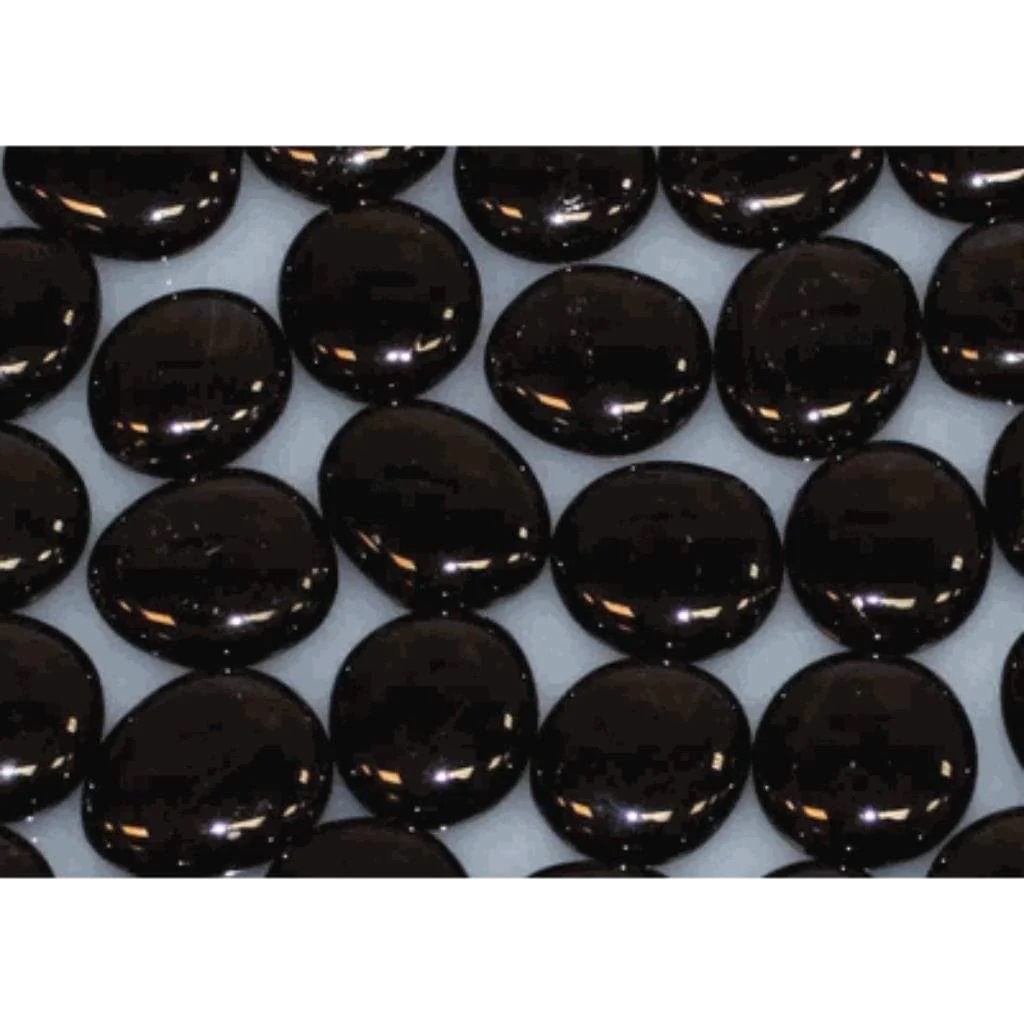

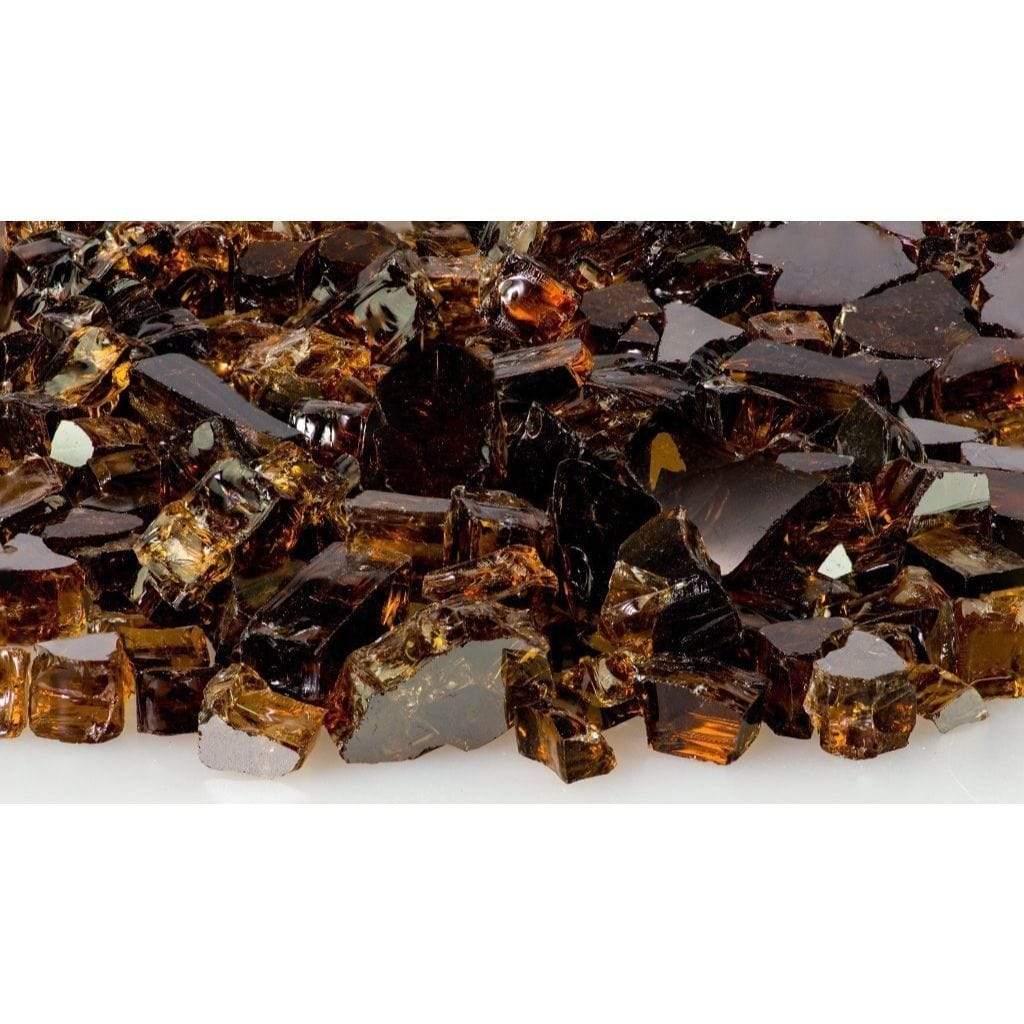

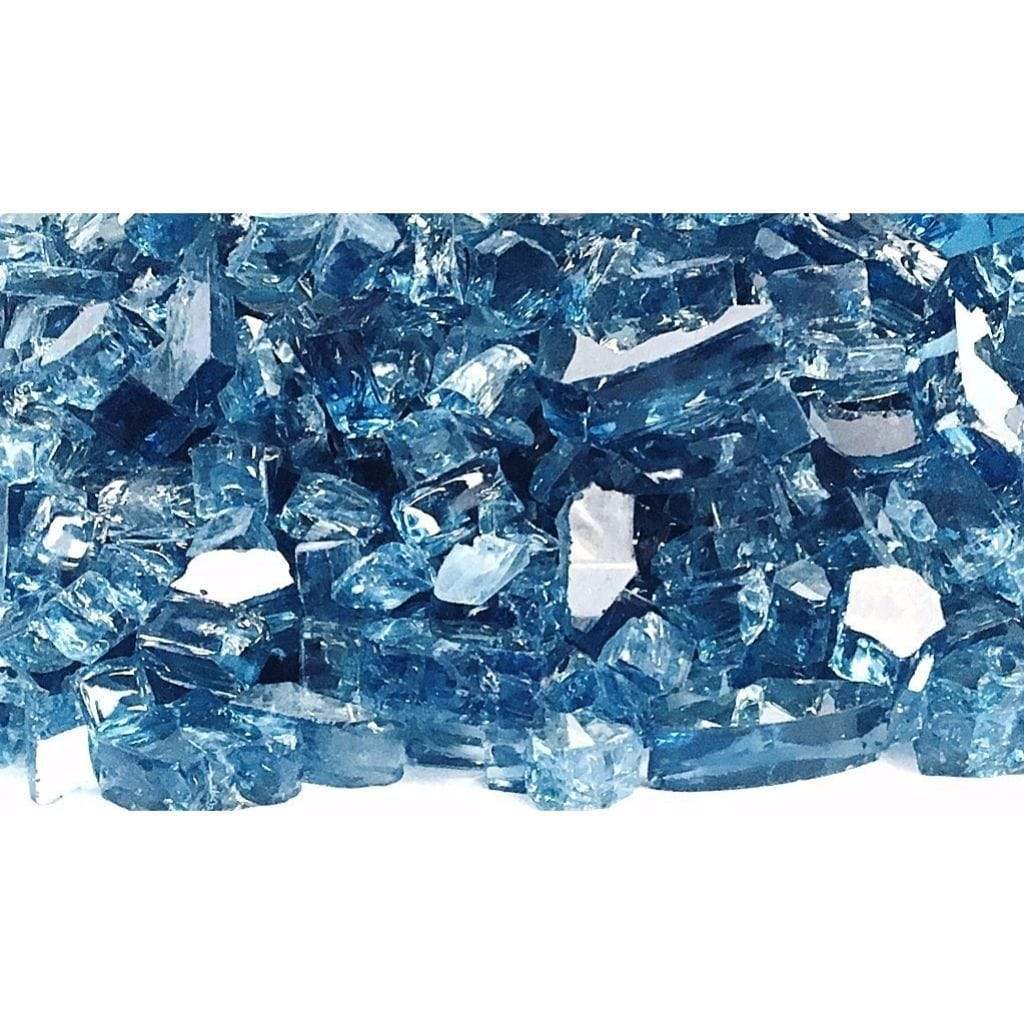

Please Note: Requires 10 sq.ft. Crushed Glass (Glass Drops or Droplets may be added to area surrounding burner)
Features:
- Integraded LED Lighting System
- Lighting System illuminates glass from below flames
- For outdoor use only
- Stainless Steel Construction
- Includes: Pre-Programmed-Color LED lighting beneath burner, Manual Electronic Ignition with AA Battery, 3-Stage Manually Variable Flame Height, Weather Deflector Glass Panels (taller panel available for windy applications)
- Requires: 10 sq.ft. Crushed Glass
Specifications:
- Size: 60 Inches
- Material: Stainless Steel
- Type: Linear Fireplace
- Fuel Type: Natural Gas or Liquid Propane
- Maximum BTU Output: 65,000
- Minimum BTU Output: 39,000
- Max/Min Natural Gas Inlet Pressure: 14" / 4.5" WC
- Max/Min Propanes Inlet Pressure: 14" / 11" WC
- Product Dimensions (W x H x D): 63 11/16" x 30 13/16" x 18 13/16"
- Framing Dimensions (W x H x D): 64" x 31" x 19 1/4"
- Opening Area (W x H): 60" x 16"
Downloads:
- Outdoor Product Guide
- Outdoor Linear 60" Fireplaces Manual
- Carol Rose Coastal Collection Linear 60" Outdoor Fireplace Specification Sheets
SOMETHING TO CONSIDER BEFORE YOU PURCHASE A VENTFREE APPLIANCE:
Vent-Free sets are supplemental zone heaters - They are not intended for continuous use or whole house heating.
Glass doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety controls. With adequate combustion and ventilation air, the damper may be closed for vent-free use. The damper may be opened slightly for reduced venting.
Check local codes and ordinances for permitted uses.
- In Most Cases, Vent Free Appliances Are NOT Approved For Bedrooms Or Bathrooms.
- Select States And/Or Counties Within States May Not Allow Installation Of Vent Free Products.
- This includes but is not limited to: California, Minnesota, Wisconsin.
- Other states may have local restrictions such as Arizona, Nevada, Idaho, Alaska, Wyoming, New Mexico, North Dakota and South Dakota. Please check local codes before purchasing a Vent Free Appliance.
- Ventfree Products Are Not Suitable For People With Allergies Or Breathing Problems
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
