Superior Secure FlexTM 6/12 to 12/12 Vertical Termination for Flex Vent

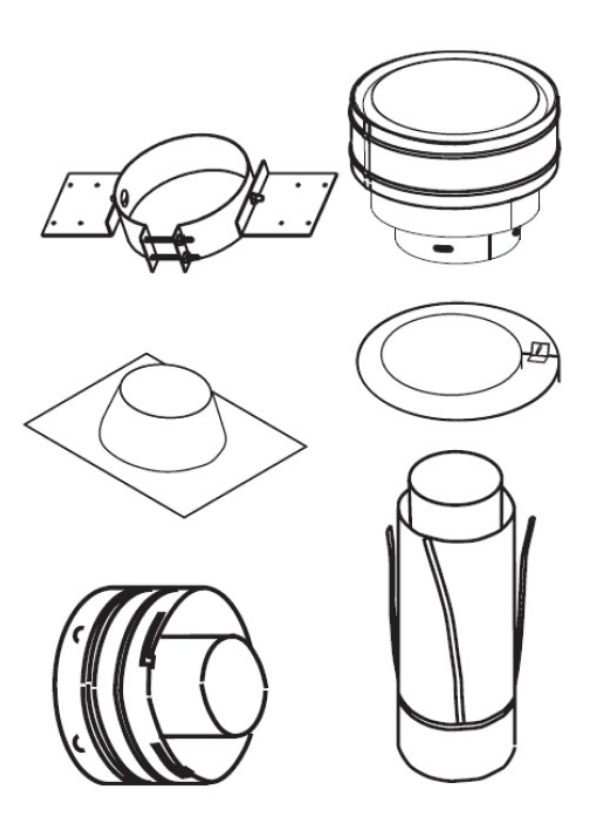

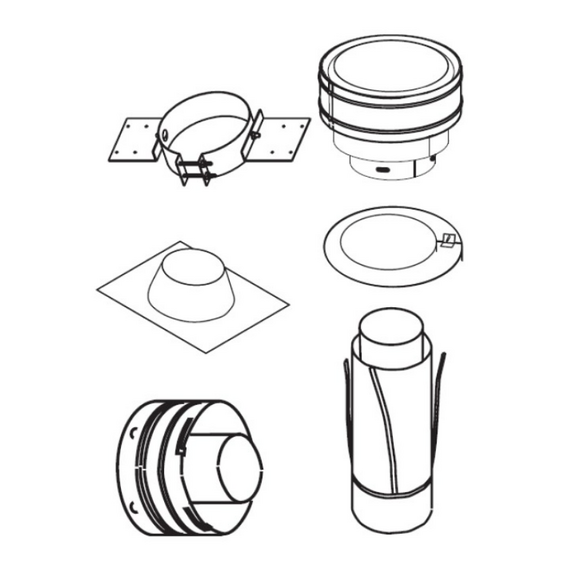

Superior Secure FlexTM Vertical Termination for Flex Vent - 6/12 to 12/12 (SFVT45)

Key Features:

Vertical termination for a flex vent system, typically used in HVAC (Heating, Ventilation, and Air Conditioning) installations, is an essential component that allows for the safe and efficient expulsion of exhaust gases or air from a building. It's essential to ensure appropriate installation and termination when switching from a roof with a 6/12 pitch (a slope of 6 inches of vertical rise for every 12 inches of horizontal run) to a steeper 12/12 pitch roof in order to retain the system's integrity and function.

Here's how you can introduce a vertical termination for a flex vent system from a 6/12 pitch roof to a 12/12 pitch roof:

1. Select the Appropriate Vent Material: First, choose the flex vent material that suits your specific application and complies with local building codes. Common materials include aluminum, stainless steel, or PVC, depending on the type of exhaust or air being vented.
2. Determine the Termination Location: Identify the ideal location on the 6/12 pitch roof where the flex vent will terminate. This should be in compliance with local codes and safety standards, often near the ridge or a designated exhaust vent area.
3. Measure and Cut the Flex Vent: Measure the required length of the flex vent to reach from the termination point on the 6/12 pitch roof to the desired location on the 12/12 pitch roof. Ensure that there is an adequate length to accommodate any necessary bends or turns in the vent system.
4. Install Support Brackets: Install support brackets or hangers along the flex vent's path to provide stability and prevent sagging. These brackets should be securely attached to the roof structure.
5. Create a Proper Seal: At the 6/12 pitch roof penetration point, ensure a proper seal around the flex vent to prevent water infiltration. This can be achieved with the use of flashing or sealant, which should be compatible with the roofing material.
6. Transition to 12/12 Pitch Roof: As you ascend to the 12/12 pitch roof, you may need to use additional support brackets and ensure that the flex vent maintains a secure and sloping path to allow for proper drainage and minimize condensation buildup.
7. Install a Roof Jack or Vent Cap: On the 12/12 pitch roof, install a roof jack or vent cap at the termination point. This component serves to protect the vent opening from weather elements while allowing for the free flow of exhaust gases or air.
8. Seal and Insulate: Seal all connections and joints with appropriate high-temperature sealant to prevent leaks and insulate the vent system to maintain optimal temperature conditions.
9. Inspect and Test: Finally, thoroughly inspect the entire vent system to ensure it is properly installed, secure, and functioning as intended. Perform any necessary testing to confirm that exhaust gases or air are being expelled safely and efficiently.

When constructing a vertical termination for a flex vent system, particularly when switching from a 6/12 to a 12/12 pitch roof, it's important to follow local building laws and manufacturer guidelines to ensure compliance with relevant rules and safety standards. Additionally, consider seeking the assistance of a qualified HVAC professional or roofer to ensure a safe and effective installation.

Specifications:

• Materials: Heavy-duty galvanized steel construction
• Diameters: Designed for 4.5-inch inner diameter and a 7.5-inch outer diameter venting systems
• Limited Lifetime Warranty

---

Key Advantages of Having a Flexible Vent System:

A flexible vent system, often used in various industrial and HVAC (heating, ventilation, and air conditioning) applications, offers several key advantages. These advantages make it a valuable choice for many situations where traditional rigid vent systems may not be as effective or practical. Here are some of the key advantages of having a flexible vent system:

1. Versatility: Flexible vent systems are highly adaptable and can be used in a wide range of applications. They can bend and flex to fit into tight or irregular spaces, making them suitable for installations where rigid ductwork is impractical.
2. Easy Installation: Installing flexible vent systems is often easier and quicker than rigid systems. They can be cut to the desired length on-site, reducing the need for custom fabrication and complex installation procedures.
3. Reduced Labor Costs: The ease of installation translates into reduced labor costs, as less time and effort are required to set up the vent system. This can be particularly beneficial for contractors and building owners looking to save on installation expenses.
4. Enhanced Airflow: Flexible vent systems are designed to minimize airflow resistance, which can help improve the efficiency of HVAC systems. Reduced resistance means better airflow and potentially lower energy consumption.
5. Noise Reduction: Flexible vents can absorb sound and vibrations, leading to quieter operation of HVAC systems. This is especially important in commercial and residential settings where noise control is a concern.
6. Resistance to Stress and Movement: These systems are built to withstand vibrations, temperature fluctuations, and movement without compromising their structural integrity. This makes them suitable for applications in environments where rigid ducts might crack or break.
7. Space Savings: Flexible vents can be routed through smaller openings and tight spaces, allowing for more efficient use of available space in buildings. This is especially valuable in retrofitting or renovation projects.
8. Customization: Flexible vent systems can be easily customized to suit specific requirements. They are available in various diameters, lengths, and materials to meet the needs of different applications.
9. Maintenance and Repairs: When maintenance or repairs are needed, flexible vents are typically easier to access and work on than rigid ductwork. This can reduce downtime and service costs.
10. Resistance to Corrosion: Flexible vent materials are often designed to resist corrosion, which can extend the lifespan of the system and reduce the need for frequent replacements.
11. Cost-Effective: Overall, flexible vent systems can be a cost-effective solution due to their lower installation and maintenance costs, as well as their potential to improve energy efficiency.

It's important to note that while flexible vent systems offer numerous advantages, they may not be suitable for all applications. The choice between flexible and rigid ductwork should be based on factors such as the specific requirements of the project, budget constraints, and local building codes and regulations.

---

Choosing The Perfect Venting System for Your Fireplace

To ensure security, effectiveness, and usefulness, it is crucial to select the ideal venting system for your fireplace. There are several factors to consider when selecting a venting system, including the type of fireplace, fuel source, local building codes, and your personal preferences. Here's a step-by-step guide to help you make the right choice:

Determine the Type of Fireplace:

• Wood-Burning Fireplace: If you have a traditional wood-burning fireplace, you'll need a chimney or venting system designed to handle the combustion byproducts and smoke.
• Gas Fireplace: Gas fireplaces can be vented through either a direct vent or a ventless (vent-free) system. Your choice will depend on local regulations and your heating needs.

Understand Venting Options:

• Chimney: A traditional masonry or metal chimney is suitable for wood-burning fireplaces. Ensure it is in good condition and meets local codes.
• Direct Vent: This system is commonly used for gas fireplaces. It has a sealed combustion chamber and draws fresh air from outside for combustion while expelling exhaust gases outside through a dedicated vent pipe.
• Ventless (Vent-Free): Ventless gas fireplaces don't require a chimney or external venting. They burn gas cleanly and release heat and moisture into the room. However, they are subject to strict regulations in some areas due to air quality concerns.

Check Local Building Codes:

• Before making a decision, check local building codes and regulations. Some areas have strict requirements for venting systems to ensure safety and air quality. Compliance with these codes is crucial.

Consider Efficiency:

• Choose a venting system that maximizes energy efficiency. Direct vent systems are more efficient than traditional chimneys because they minimize heat loss.

Safety Considerations:

• Safety should be a top priority. Ensure that the venting system is correctly installed and maintained to prevent carbon monoxide leaks and other hazards.

Aesthetics and Design:

• The venting system should complement your home's design and aesthetics. It should be as unobtrusive as possible while still performing its function.

Professional Installation:

• It's strongly recommended to have your venting system installed by a qualified professional who is familiar with local codes and regulations.

Maintenance:

• Regular maintenance is essential to keep your venting system working efficiently and safely. Schedule annual inspections and cleanings, especially for wood-burning chimneys.

Budget:

• Consider your budget for both the initial installation and ongoing maintenance. While ventless systems may be cheaper to install initially, they may have higher operating costs due to increased gas consumption.

Environmental Impact:

• If you're concerned about environmental impact, consider the emissions associated with your chosen venting system. Wood-burning fireplaces, for example, can release particulate matter and other pollutants into the air.

Ultimately, your individual circumstances, such as the sort of fireplace you have, your local laws, and your own preferences for aesthetics and efficiency, will determine the ideal venting system for your fireplace. You can make a more informed choice by speaking with our experts at fireplace doors online.

---

A Comprehensive Guide to Buying a Fireplace Venting System

A fireplace venting system is an essential part of your fireplace that makes sure that smoke and combustion byproducts are securely removed from your home while providing a supply of fresh air for burning. Whether you're installing a new fireplace or upgrading an existing one, this comprehensive buyer's guide will help you understand the various venting options and make an informed decision.

1. Types of Fireplace Venting Systems:

There are three main types of fireplace venting systems:

• Chimney Venting: Traditional masonry fireplaces typically have a brick or stone chimney. They rely on natural convection to draw air in and expel smoke out through the chimney. This type of venting is suitable for wood-burning fireplaces.
• Direct Venting: This is a sealed system that draws combustion air from the outside and expels exhaust gases through a vent pipe. Direct vent fireplaces are highly efficient and can be used with various fuel types, including gas and propane.
• Ventless or Vent-Free Venting: These fireplaces do not require a venting system, as they are designed to burn fuel cleanly enough that the combustion byproducts can be safely released into the room. They are typically gas-powered and can be installed almost anywhere.

2. Choosing the Right Type:

• Consider Your Fuel Type: Determine whether you want a wood-burning, gas, or electric fireplace. Your fuel choice will influence the type of venting system you need.
• Efficiency and Convenience: Direct vent and ventless fireplaces are typically more energy-efficient and easier to install than traditional chimneys. Consider your preferences for convenience and energy efficiency.

3. Sizing and Location:

• Calculate Heating Needs: Determine the heating capacity you need based on the size of the room or area you want to heat. This will help you choose an appropriately sized fireplace and venting system.
• Location: Decide where you want to install your fireplace. The location may impact the type of venting system you can use and the venting route.

4. Venting Materials:

• Chimney Materials: If you're using a traditional chimney, consider the type of materials you want for its construction, such as brick, stone, or metal flue liners.
• Vent Pipe Material: For direct vent fireplaces, the vent pipe is typically made of aluminum or stainless steel. Ensure the materials are suitable for your fuel type and meet local building codes.

5. Installation and Safety:

• Professional Installation: Proper installation is crucial for safety and performance. Hire a certified technician or contractor experienced in fireplace venting systems.
• Clearances: Ensure proper clearances to combustibles are maintained as per the manufacturer's guidelines and local building codes.

6. Venting Accessories:

• Termination Caps: These protect the vent opening from weather and pests.
• Chimney Liners: If you have a masonry chimney, consider installing a stainless steel liner to improve efficiency and safety.

7. Maintenance and Cleaning:

• Regular Inspections: Schedule regular inspections and cleaning to ensure your venting system is functioning correctly and free from debris or blockages.

8. Legal and Safety Considerations:

• Local Codes and Regulations: Check with your local authorities to ensure compliance with building codes and regulations regarding fireplace venting.
• Carbon Monoxide Detectors: Install carbon monoxide detectors in your home, especially if you have a gas fireplace.

9. Budget Considerations:

• Initial Cost: Consider both the upfront cost of the fireplace and venting system, as well as the ongoing operating costs (fuel, maintenance, etc.).

10. Aesthetics:

• Design and Style: Choose a venting system that complements your home's aesthetic and blends well with your interior design.

Remember that safety should always be your top priority when selecting and installing a fireplace venting system. Consult with professionals and follow manufacturer guidelines and local regulations to ensure a safe and efficient installation.
