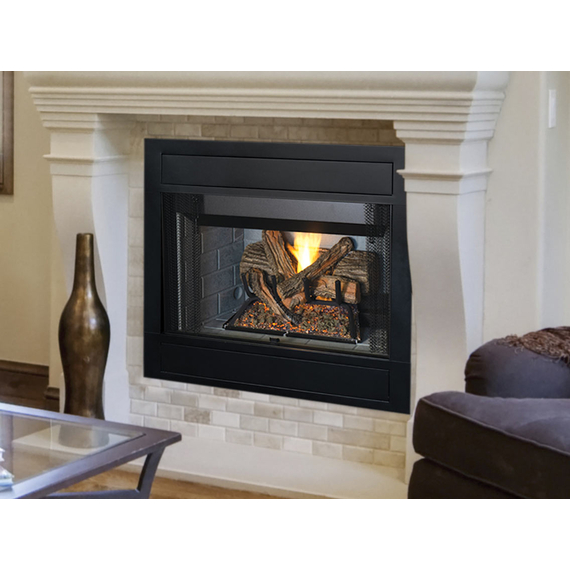

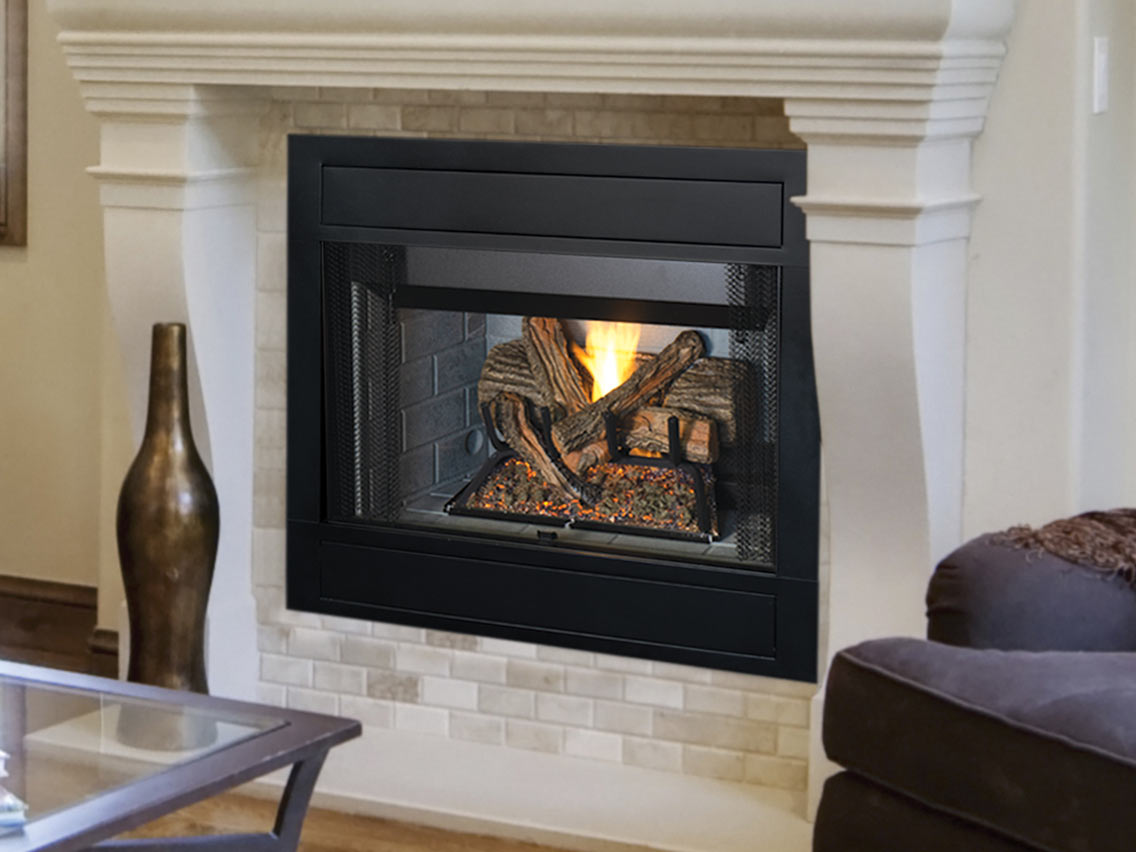

36" Superior BRT4336 B-Vent Gas Fireplace - White Stacked
Superior BRT4336 36" B-Vent Gas Fireplace – Timeless Elegance, Unmatched Warmth
Elevate your home with the timeless elegance and warmth of the Superior BRT4336 36" B-Vent Traditional Gas Fireplace. This model delivers a truly authentic wood-burning experience, featuring a multidimensional refractory log arrangement, a deep glowing ember bed, and a powerful aluminized “U” tube dual burner that generates up to 40,000 BTUs of cozy heat.
Designed for both beauty and functionality, the BRT4336 includes hidden screen pockets for a seamless appearance, an easy-access flue damper with a built-in safety shut-off switch, and sleek white refractory panels. Choose between millivolt (remote-ready) or electronic ignition to suit your needs. The detailed ceramic fiber "split oak" log set, combined with dramatic yellow flames, creates an inviting ambiance that enhances any space.
Built to last, the BRT4336 features a durable textured powder coat finish and is backed by a 20-year limited warranty. For added convenience, optional remote controls and an outside air kit are available to boost performance.
With 40,000 BTUs of heat output, this fireplace offers efficient warmth, while the realistic multidimensional refractory log set and glowing ember bed mimic the charm of a traditional fire. The hidden gas controls with a damper safety switch, along with the dual burner system, ensure both safety and a vibrant, natural-looking flame. Sleekly designed, the BRT4336 is pre-wired with an electrical J-box for easy installation and offers long-lasting durability. Add the Superior BRT4336 to your home for a stunning focal point that combines the charm of a traditional fireplace with the modern convenience of gas.
Ignition System
- A Millivolt control ignition system uses a standing pilot light that remains on continuously. It is powered by a thermocouple, which generates a small voltage from the heat of the pilot flame. This system does not require external electricity and can operate during power outages. It typically requires manual operation through a switch or thermostat.
- An Electronic control ignition system does not have a standing pilot light. It ignites the burner only when needed and requires external electricity to function. It is more energy-efficient since no gas is consumed when idle. This system is often automatic, controlled by a thermostat or remote, and includes safety features like auto-shutoff.
Features:
- 36" radiant clean face design
- Dual "U" shaped aluminized tube burner
- Dancing yellow flames with glowing ember bed
- Includes detailed refractory ceramic fiber logs with log grate
- Mesh screens retract into hidden screen pockets
- Hidden gas controls with damper safety switch and easy access flue damper
- Dual access pre-wired J-box included

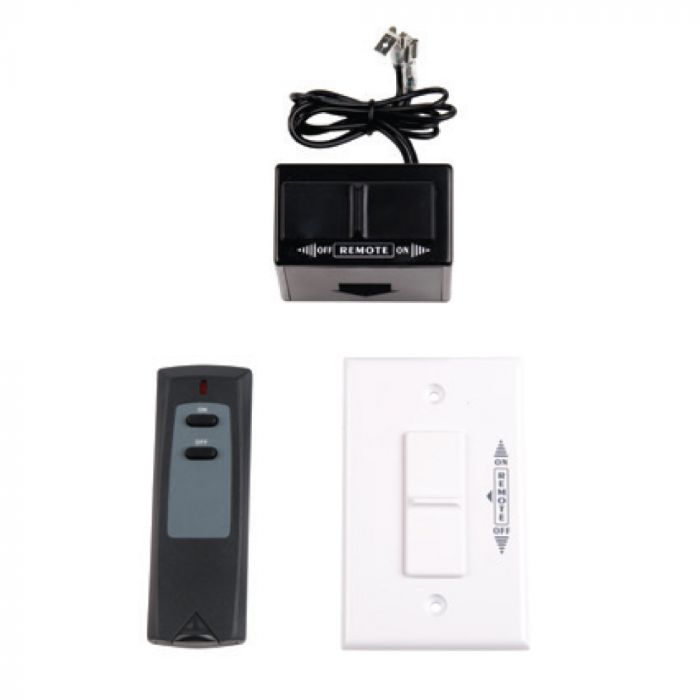

- Millivolt or Electronic ignition with optional remote control
- Optional outside air kit for enhanced performance

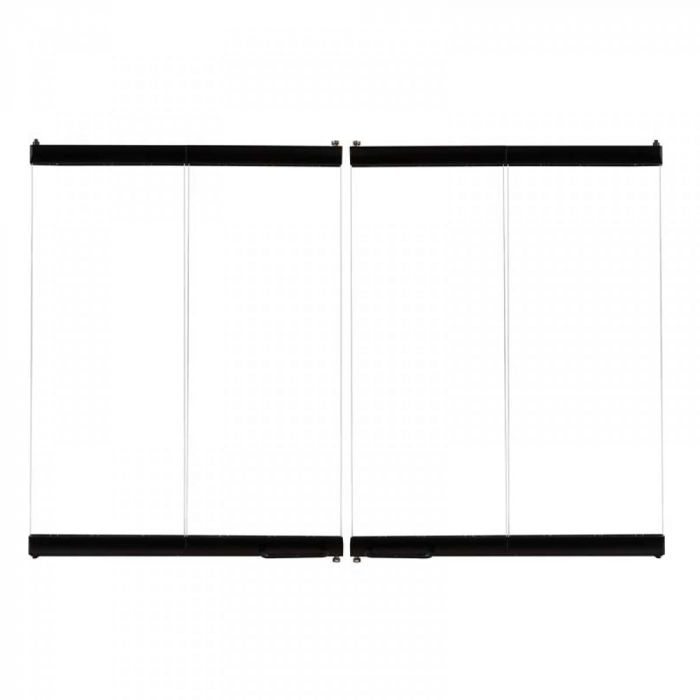

- Optional 36" standard bi-fold glass door

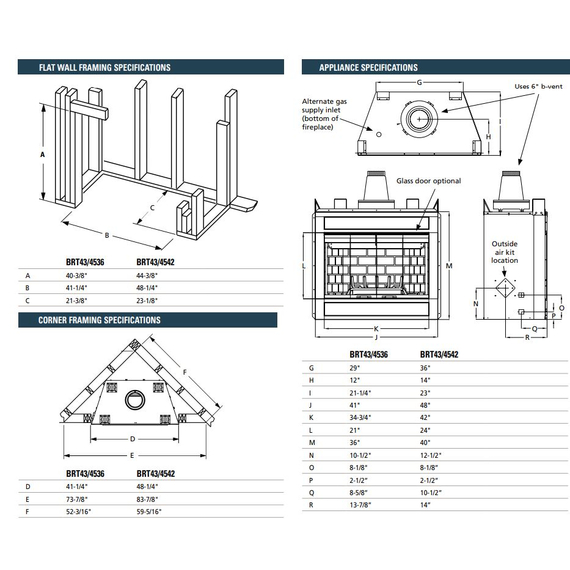

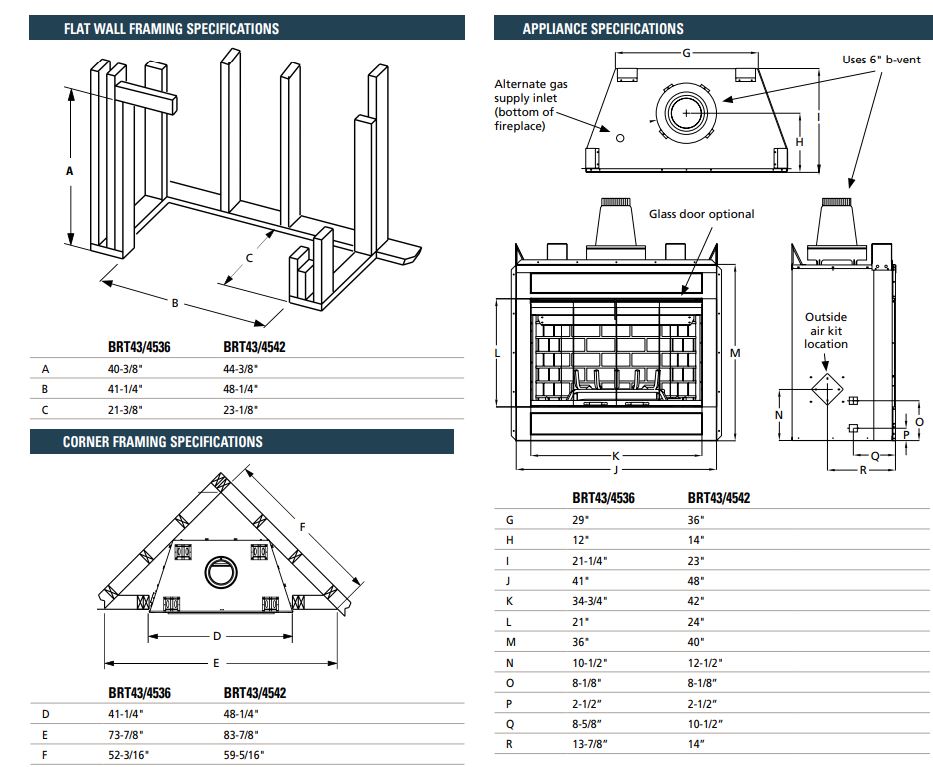

Specifications:
- Fuel Type: Natural Gas | Liquid Propane
- BTUs: Up to 40,000
- Ignition Type: Millivolt | Electronic
- Venting Type: B-Vent
- Firebox Width: 42"
- Firebox Height: 37"
- Firebox Depth: 21 1/4"
- Framing Width: 41 1/4"
- Framing Height: 40 3/8"
- Framing Depth: 31 3/8"
- Facing: Single Face
- Facing Powder Coat Finish: Textured Black
- Flue Location: Top
- Includes: Ceramic Fiber Log Set | Glowing Ember Bed
- B-Vent Requirements: Built to ANSI Z21.50 Standard, CSA 2.22
- Uses: Locally Sourced 6" B-Vent
Venting:
6" B-Vent 48" Length (6BV48) (2 Pieces) – This is a 48-inch long section of the B-Vent pipe. It is crucial because it forms the main structure of the venting system, carrying combustion gases safely out of the building.
6" B-Vent 0/12-6/12 Adjustable Flashing (6BVF) – Flashing is used where the vent passes through the roof to prevent water from leaking into the building. This adjustable flashing is designed for roofs with a pitch of 0/12 to 6/12 (a shallow slope), making it essential for sealing the vent and protecting the roof from weather damage.
6" B-Vent Quick Grip Firestop/Support (6BVFSPU) – This part serves two purposes. First, it acts as a firestop, preventing fire from spreading through gaps where the vent pipe passes through floors or walls. Second, it provides support to the vent pipe, ensuring stability and correct installation, especially in multi-story setups.
6" B-Vent High Wind Cap (6BVVTH) – The wind cap is placed on the top of the vent and is designed to prevent strong winds from disrupting the venting process or causing backdrafts. It also prevents debris, rain, or birds from entering the vent, ensuring safe and efficient vent operation.
Importance of the System
Together, these components are vital for:
- Safe venting of combustion gases, which is critical for preventing carbon monoxide buildup inside the building.
- Weather protection, ensuring that water and wind do not interfere with the vent system or the roof.
- Fire safety, as the firestop prevents the spread of fire.
- System stability, ensuring that the vent remains properly aligned and functional over time.
Downloads:
- BRT4336 Millivolt Installation and Operation Manual
- BRT4336 Electronic Ignition Installation and Operation Manual
- BRT4336 Specs Sheet
Make Your Gas Fireplace Complete
When you invest in a high-quality gas fireplace, you deserve a venting system that ensures optimal performance and peace of mind. Don’t settle for incomplete setups or makeshift parts – our Vertical Vent Kit is tailor-made to match the efficiency and beauty of the fireplace you’re purchasing.
Not only does this kit enhance the safety of your home, but it also improves airflow, ensuring your fireplace heats efficiently and reliably. With our easy-to-install components, you can have a professionally vented fireplace in no time!
Bundle and Save when you buy the fireplace and venting kit together – get the perfect combination of warmth, safety, and convenience all in one package. Transform your living space today with this unbeatable offer!
How to Install the Vertical Vent Kit
- Measure and Plan: Start by measuring the vertical path from your fireplace to the roof. This ensures you have the correct pipe length and components for your installation.
- Install the Pipe Sections: Begin at the fireplace and work upward, connecting each section of B-Vent pipe using the quick-lock system. This twist-lock mechanism ensures a tight, secure fit with minimal effort.
- Install Firestop/Support: At each floor or ceiling penetration, install the firestop bracket to maintain fire safety standards and provide structural support for the vent pipe.
- Add Roof Flashing: As the pipe exits the roof, install the adjustable flashing to create a watertight seal and prevent leaks. This flashing adapts to your roof’s pitch for a snug, protective fit.
- Complete with the Wind Cap: Top off the vent system with the high-wind cap, designed to prevent backdrafts and protect against rain, debris, and animals entering the vent.
When installing a gas fireplace, proper venting is critical for safety and efficiency. Our vertical vent kit ensures safe removal of combustion gases, while protecting your home from backdrafts, water intrusion, and fire hazards. With premium components, you can rest easy knowing your venting system is built to last and meet the highest safety standards.
Innovative Hearth Products
Superior Brand Gas Fireplaces, Stoves and Inserts
20 Year Limited Warranty
THE WARRANTY
Innovatice Hearth Products (IHP) 20 Year Limited Warranty warrants your Superior Brand gas fireplace, Stove or Insert (Product) to be free from defects in materials and workmanship at the time of manufacture. The Product body and firebox carry the 20 Year Limited Warranty. Ceramic glass carries the 20 Year Limited Warranty against thermal breakage only. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the 20 Year Limited Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to five years. THERE ARE EXCLUSIONS AND LIMITATIONS TO THIS 20 YEAR lIMITED WARRANTY AS DESCRIBED HEREIN.
COVERAGE COMMENCEMENT DATE
Warranty coverage begins on the date of installation. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the Product by an independent IHP dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from IHP, regardless of the installation or occupancy date.
EXCLUSIONS AND LIMITATIONS
This 20 Year Limited Warranty applies only if the Product is installed in the United States or Canada and only if operated and maintained in accordance with the printed instructions accompanying the Product and in compliance with all applicable installation and building codes and good trade practices.This warranty is non-transferable and extends to the original owner only. The Product must be purchased through a listed supplier of IHP and proof of purchase must be provided. The Product body and firebox carry the 20 Year Limited Warranty from the date of installation. Vent components, trim components and paint are excluded from this 20 Year Limited Warranty. The following do not carry the 20 Year Limited Warranty but are warranted as follows:
- Burner - Repair or replacement for 1 year from date of installation
- Gas Components - Repair or replacement for 1 year from date of installation
- Gaskets - Repair or replacement for 1 year from date of installation
- Logs - Replacement for 1 year from date of installation against thermal breakage only
- Optional Blowers & Remote Controls - Repair or replacement for 90 days from date of installation
- Optional Glass Doors - Repair or replacement for 90 days from date of installation
- Tempered Glass - Replacement for 1 year from date of installation
- Labor Coverage - Prevailing IHP labor rates apply for the warranty period of component.
Parts not otherwise listed carry a 90 day warranty from the date of installation.
Whenever practicable, IHP will provide replacement parts, if available, for a period of 10 years from the last date of manufacture of the Product.
IHP will not be responsible: (a) damages caused by normal wear and tear, accident, riot, fire , flood or acts of God; (B) damages caused by abuse, negligence, misuse or unauthorized alteration or repair of the Product affecting its stability or performance. (The Product must be subjected to normal use. The Product is designed to burn either natural or propane gas only. Burning conventional fuels such as wood, coal or any other solid fuel will cause damage to the Product, will provide excessive temperatures and could result in a fire hazard); (C) damages caused by failing to provide proper maintenance and service in accordance with the instructions provided with the Product; (D) damages, repairs or ineffciency resulting from faulty installation or application of Product.
IHP is not responsible for inadequate fireplace system draft caused by air conditioning and heating systems, mechanical ventilation systems, or general construction conditions which may generate negative pressure in the room in which the appliance is installed. Additionally, IHP assumes no responsibility for drafting conditions caused by venting configurations, adjoining trees or buildings, adverse wind conditions or unusual environmental factors and conditions that affect the operation of the unit.
This 20 Year Limited Warranty covers only parts and labors as provided herein. In no case shall IHP be responsible for materials, components or construction. Additional utility bills incurred due to any malfunction or defect in equipment are not covered by this warranty. All replacement of repair components will be shipped F.O.B. from the nearest stocking IHP factory.
LIMITATION ON LIABILITY
It is expressly agreed and understood that IHP's sole obligation and the purchaser's exclusive remedy under this warranty, under any other warranty, expressed or implied or in contact, tort or otherwise, shall be limited to replacement, repair or refund, as specified herein.
In no event shall IHP be liable for any incidental or consequential damages caused by defects in the Product, whether such damage occurs or is discovered before or after repair or replacement, and whether such damage is caused by IHP's negligence. IHP has not made and does not make any representation or warranty of fitness for a particular use or purpose, and there is no implied condition of fitness for a particular use or purpose.
IHP makes no expressed warranties except as stated in this 20 Year Limited Warranty. The duration of any implied warranty is limited to the duration of this expressed warranty.
No one is authorized to change this 20 Year Limited Warranty or to create for IHP any other obligation or liability in connection with the Product. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. The provisions of the 20 Year Limited Warranty are in addition to and not a modification of or subtraction from any statutory warranties and other rights and remedies provided by law.
INVESTIGATION OF CLAIMS AGAINST WARRANTY
IHP reserves the right to investigate any and all claims against this 20 Year Limited Warranty and to decide, in its sole discretion, upon the method of settlement.
To receive the benefits and advantages described in this 20 Year Limited Warranty, the appliance must be installed and repaired by a licensed contractor approved by IHP.
Contact IHP at the address provided herein to obtain a listing of approved dealers/distributors. IHP shall in no event be responsible for any warranty work done by a contractor that is not approved without first obtaining IHP's prior written consent.
HOW TO REGISTER A CLAIM AGAINST WARRANTY
In order for any claim under this warranty to be valid, you must contact the IHP dealer/distributor from which you purchased the product. If you cannot locate the dealer/distributor, then you must be notified of the claimed defect in writing within 90 days of the date of failure. Notices should be directed to the IHP Warranty Department at 1508 Elm Hill Pike, Suite 108, Nashville, TN, 37210 or visit our website at WWW.SUPERIORFIREPLACES.US.COM.
