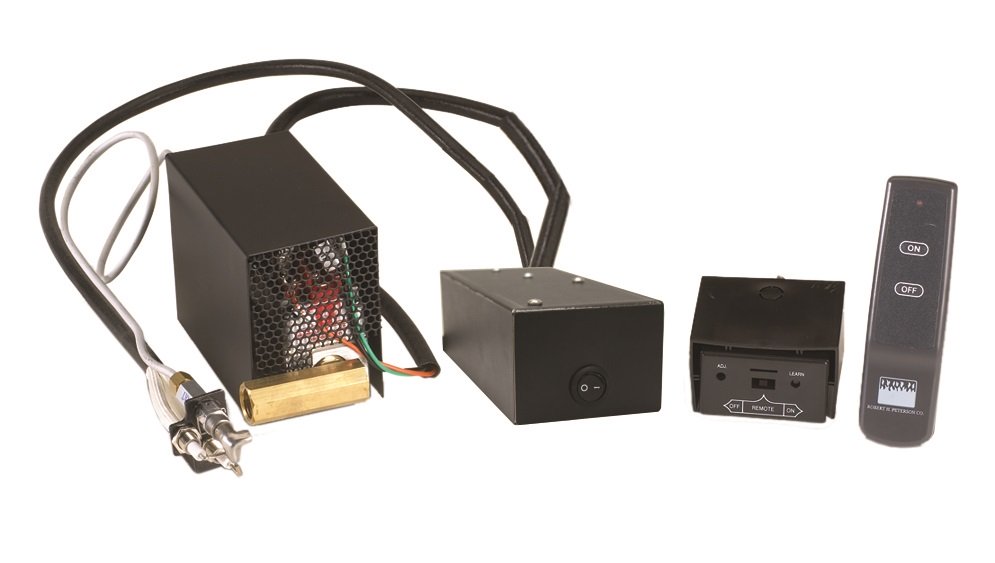

(In Stock) Real Fyre EPK-1 Electronic Ignition - Natural Gas
The EPK-1 electronic pilot ignition by RH Peterson Real Fyre operates with a convenient fireplace remote control without the need for a standing pilot! With the help from an electronic spark, an intermittent pilot ignites to heat up the thermocouple, which then releases gas to the entire burner. You have the choice to start your fire with the manual On/Off switch, however, everything can be operated with just the push of a button on your remote! This remote controlled fireplace gas valve control kit has a transmitter that is powered by two D-cell batteries (not included). The system is temperature rated at 175°F, delivering up to 88,000 BTUs with natural gas. Recommended for us with the vented gas burners by Real Fyre listed in the specs below. Hardwire this kit to the optional WS-1 wall switch! It comes with a 15-foot wire harness and a rocker switch for easy operation.
Please Note: For use only with specified Real Fyre vented burner systems listed in the specs below. Vented burners must be used in a fireplace that is vented from the firebox through the chimney. The fireplace damper must be kept open during use to allow for appropriate airflow. For your safety, the burner pan and valve must be assembled by a certified gas professional.
Product Specifications:
- Ignition: Electronic
- Operation: Manual Switch | Remote Control | Wall Switch (optional)
- RR-1A Remote: On/Off Control
- Remote Battery: 12 Volt (1 - included)
- Receiver Batteries: AA (4 - included)
- Pilot: Flame Sensing | Non-Standing Intermittent Pilot
- Batteries: 2 D-Cells (not included)
- Flame Control: Non-Variable
- Temperature Rating: 175º
- Fuel: Natural Gas
- BTU Volume: Standard Capacity
- BTUs: 88,000 NG
- Certification: CSA Certified
- Optional: WS-1 Wall Switch
- Recommended Real Fyre Vented Burners: G4 | G45 | PB | P45 (12-30" NG | 12-60" LP)
- Recommended Real Fyre See Thru Burners: G45-2 (16/19" to 2-18" NG | 2-12" to 2-60" LP)
- Warranty: 1 Year (see warranty tab for more details)
Product Manuals: EPK-1 Electronic Pilot Kit with Transmitter | EPK-1 Dos and Don'ts Sheet | RR-1A Remote Manual
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
