(In Stock) HPC Side Inlet 90K BTU Valve Gas Fireplace Safety Pilot Kit With Quick Mount Swivel Flare Connector

The 72PKNQM gas valve for fireplaces by Hearth Products Controls is a quick-mounting safety pilot system featuring a side inlet gas valve. Easily connect to your fireplace burner with the 3-inch swivel flare connector. The fireplace or gas log valve comes with a heat shield and carries a 300° rating. It is designed for natural gas and is capable of producing up to 90,000 BTUs.

This safety pilot kit includes assorted fittings for various burner threads, making it convenient to assemble. The Copreci valve is designed for gas log valves that have a 3/8 inch or 1/2 inch male thread, or a 3/8 inch female thread. The kit also includes an 18-inch pilot assembly that comes with a mounting bracket and a black control knob with a 4-inch extension.

Propane users can also enjoy the convenience of this safety pilot valve! We offer the option to upgrade to liquid propane with a conversion kit that includes an air mixer, 2 pilot orifices, and an 8 oz bag of vermiculite to help with gas dispersion.

Specifications:

• Valve: Copreci Safety Pilot Valve
• Gas Inlet: Side
• Operation: Safety Pilot
• Pilot Assembly: 18 inch
• Valve to Burner Connection: 3-inch Swivel Flare Connector
• Temperature Rating: 300°
• Fuel: Natural Gas | Liquid Propane (conversion kit required)
• BTUs: 90,000
• Ignition: Manual

Kit Information:

Compatible with:

• Burner Threads: 3/8 inch female, 3/8 inch male, or 1/2 inch male
• LP Conversion Kit: 70LPK-QM

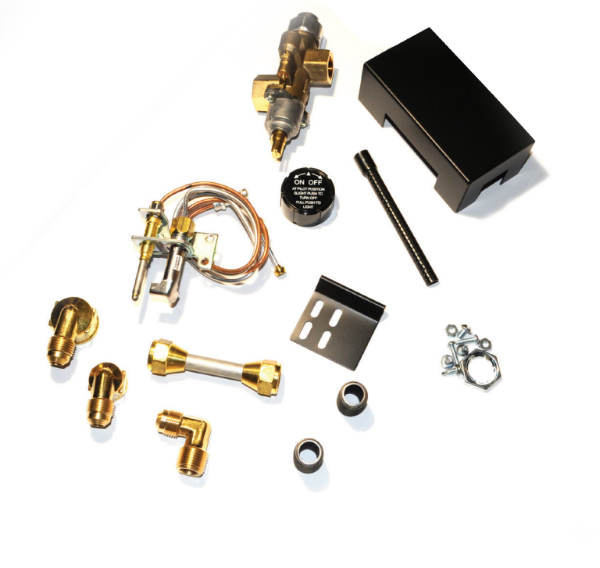

Includes:

• Copreci safety pilot valve (#110): side gas inlet, 90K BTU, 300° rating
• 18-inch pilot assembly with mounting bracket
• 3-inch swivel flare connector for an easy valve-to-burner connection
• Heatshield for valve
• Black control knob with 4-inch stem extension
• Assorted fittings for various burner threads

Downloads:

• 72PKN Owner Manual

Ensuring Hearth Safety: Unveiling the Components of Indoor Fireplace Safety Pilot Kits

As the temperatures drop, the allure of a crackling fire in the indoor fireplace becomes irresistible. However, ensuring the safety of this cozy pastime is paramount. This is where Safety Pilot Kits for indoor fireplaces step in, providing a range of components designed to enhance safety and control. In this article, we will explore the key elements of these kits and how they contribute to a secure and enjoyable fireplace experience.

Understanding Safety Pilot Kits for Indoor Fireplaces

Safety Pilot Kits for indoor fireplaces are comprehensive systems designed to manage the ignition, flame control, and shutdown processes of gas fireplaces. These kits are particularly popular for homes using gas logs or inserts, offering users increased control over their fireplaces while maintaining safety as the top priority.

Key Components of Safety Pilot Kits

Pilot Assembly:

The pilot assembly is the ignition source for the fireplace. It typically includes a pilot burner and a thermocouple or thermopile. The thermocouple generates an electric current when heated, ensuring the gas valve stays open and the pilot flame remains lit.

Gas Control Valve:

The gas control valve regulates the flow of gas to the fireplace burner. Safety Pilot Kits often feature a manual valve that allows users to control the flame height and turn the fireplace on or off easily.

Remote Control or Wall Switch:

Many modern Safety Pilot Kits come equipped with remote controls or wall switches for added convenience. This feature allows users to adjust the flame height or turn the fireplace on and off from a distance, enhancing ease of use and safety.

Flame Sensor:

The flame sensor is a crucial safety feature that detects the presence of the flame. If the sensor does not register a flame, it sends a signal to the gas valve to shut off the gas supply, preventing the release of unburned gas into the home.

Thermocouple or Thermopile:

These components are responsible for generating the electric current necessary to keep the gas valve open. They serve as a safety mechanism, ensuring that gas is only released when there is a flame to burn it.

Benefits of Safety Pilot Kits for Indoor Fireplaces

Enhanced Safety:

The primary purpose of Safety Pilot Kits is to enhance the safety of indoor fireplaces. With features like flame sensors and manual control valves, users have greater control over the fireplace, reducing the risk of accidents or gas leaks.

Convenience and Control:

Remote controls and wall switches provided with Safety Pilot Kits add convenience to the fireplace experience. Users can easily start or stop the fire, adjust flame height, and manage the ambiance without the need to reach into the fireplace.

Energy Efficiency:

Safety Pilot Kits contribute to energy efficiency by ensuring that gas is only consumed when there is a flame present. This prevents the wasteful release of gas into the atmosphere when the fireplace is not in use.

Compliance with Regulations:

Installing Safety Pilot Kits helps homeowners comply with safety regulations and codes related to indoor fireplace use. This not only ensures the well-being of occupants but also maintains adherence to local building standards.

Safety Pilot Kits for indoor fireplaces are indispensable components for those seeking a secure and enjoyable heating experience. By combining advanced technology with essential safety features, these kits provide users with control, convenience, and peace of mind as they bask in the warmth of a carefully managed flame. As homeowners continue to prioritize safety and comfort, the role of Safety Pilot Kits in indoor fireplaces remains pivotal in creating a harmonious and secure living environment.
