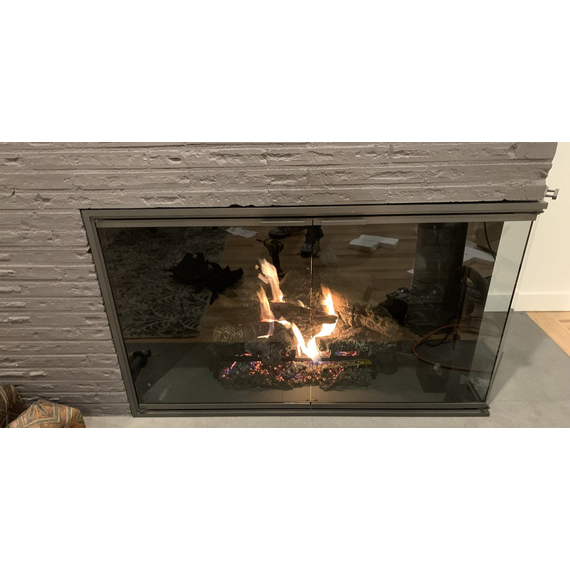

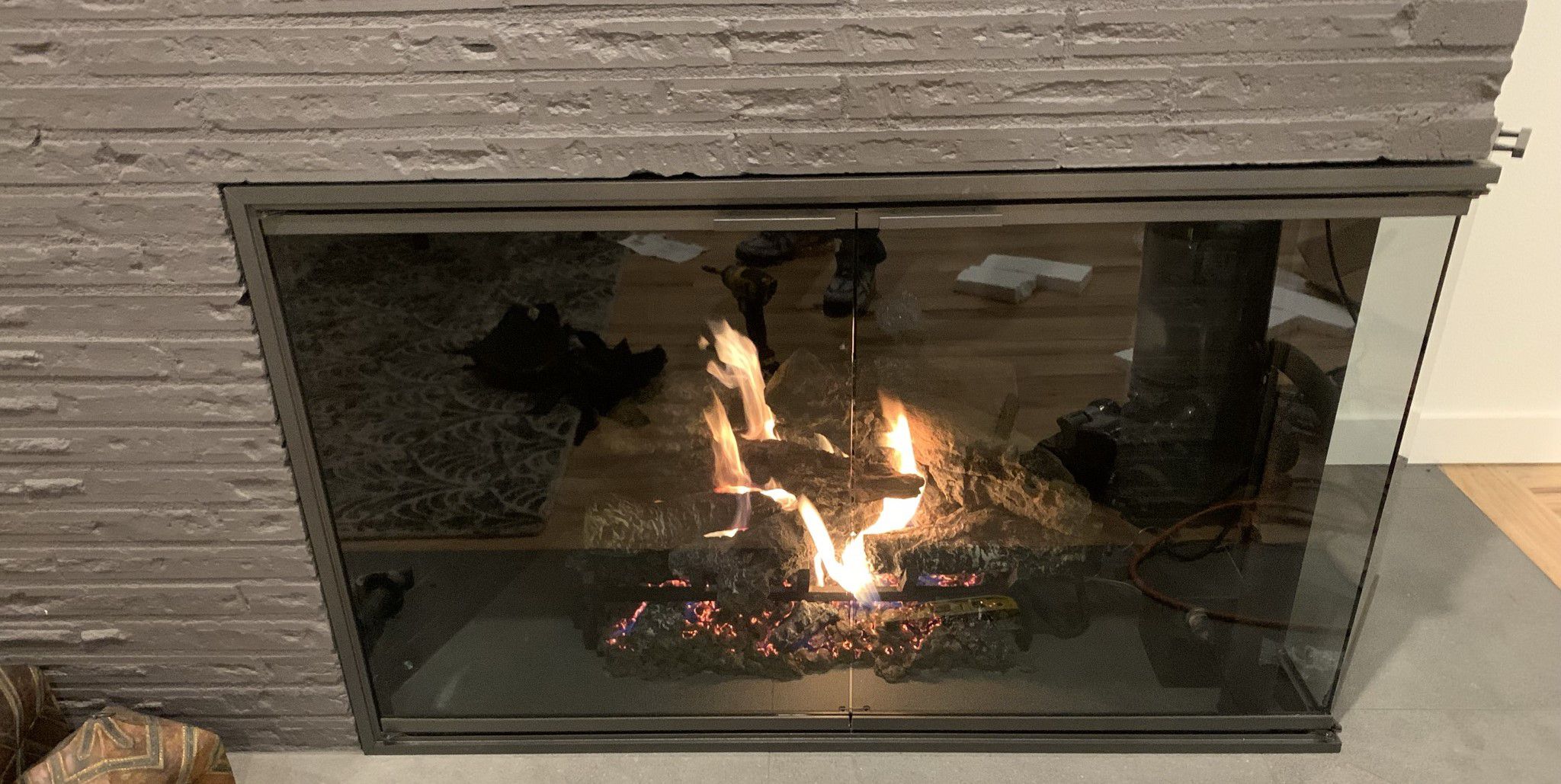

Stiletto Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in
$1,005.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4-5 Weeks Question | Why Buy From Us?

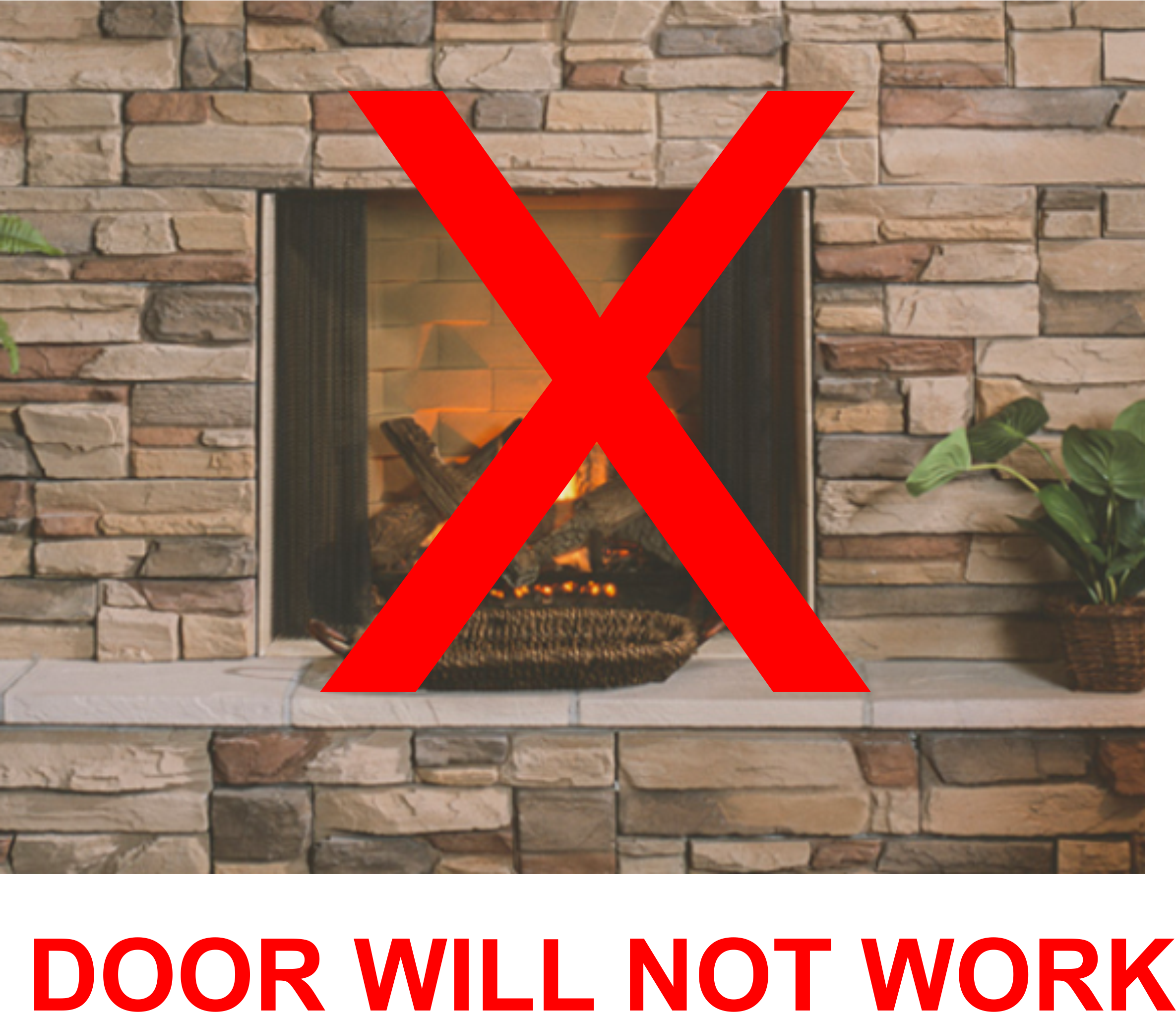

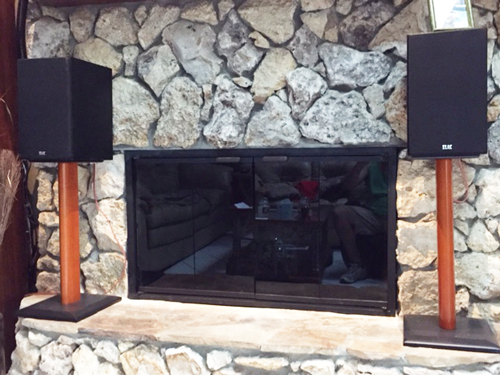

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.

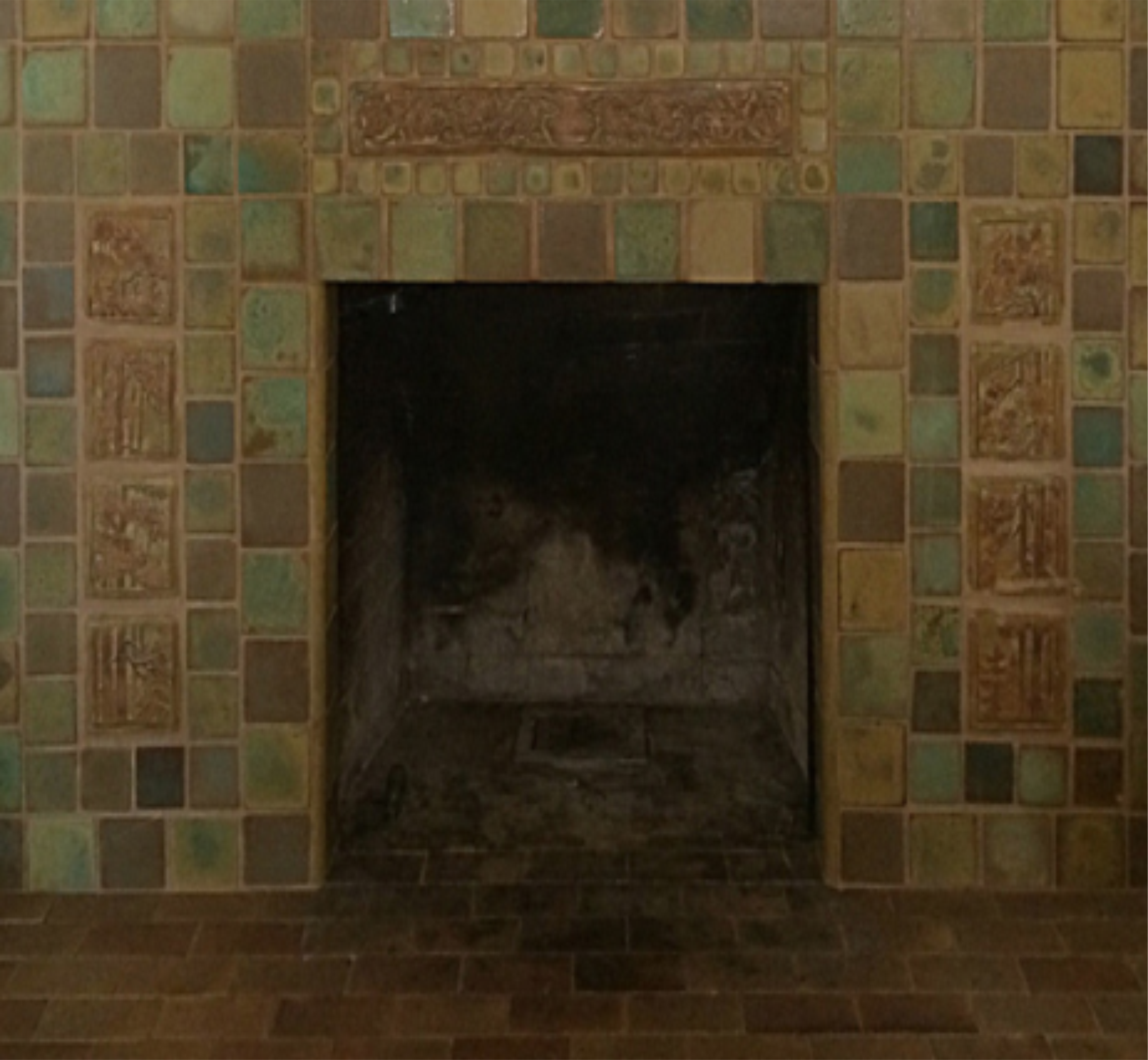

Please stand 6 feet away from your fireplace and take the picture of the front of your fireplace. Head On. Send only jpg,bmp,gif or pdf images!
Available
+

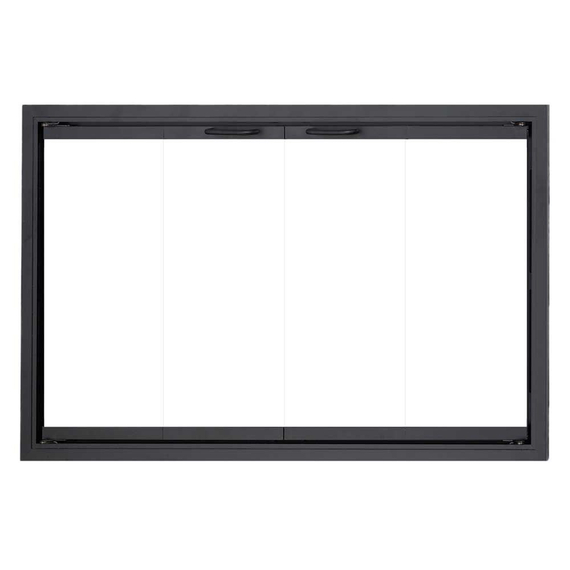

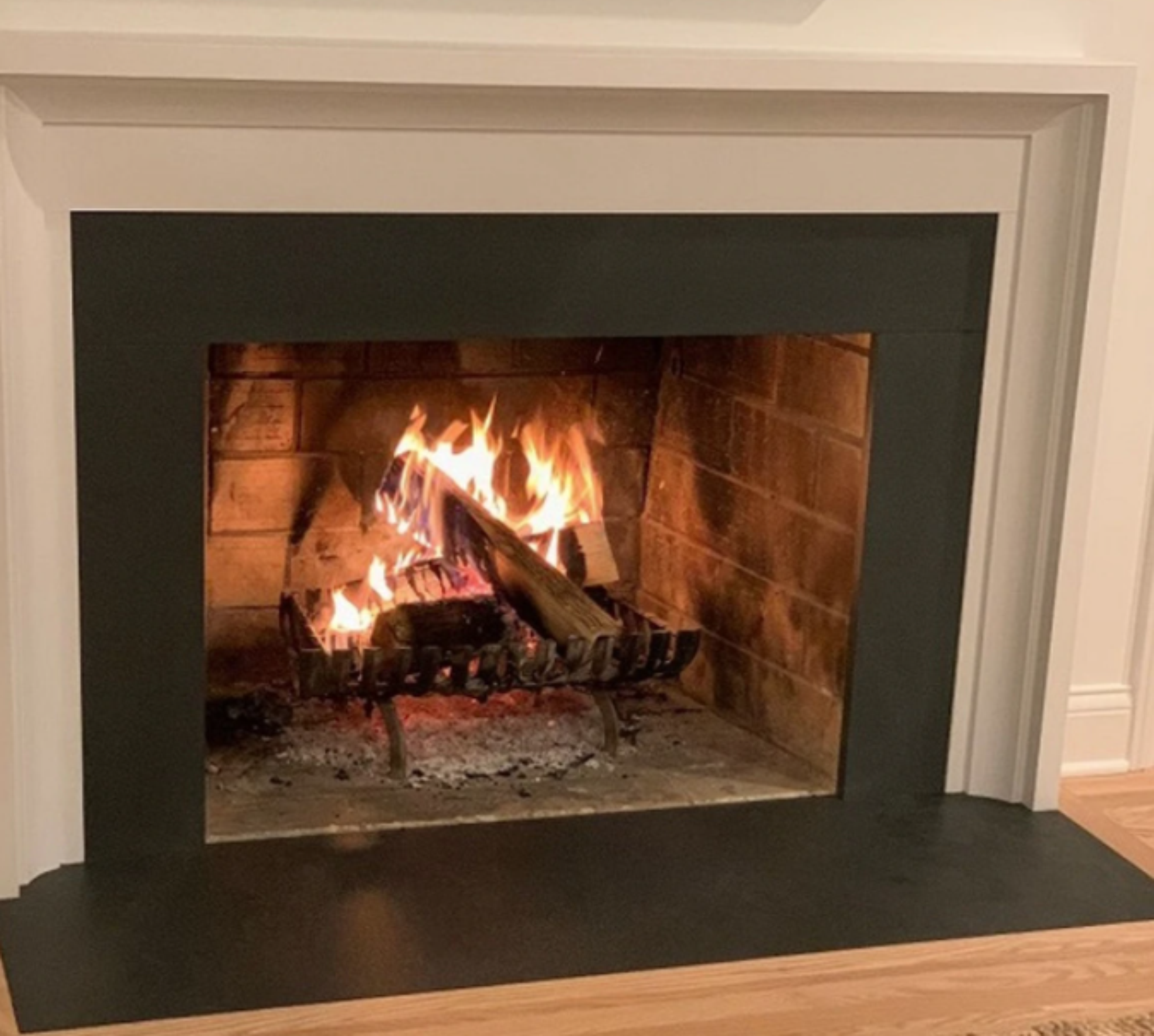

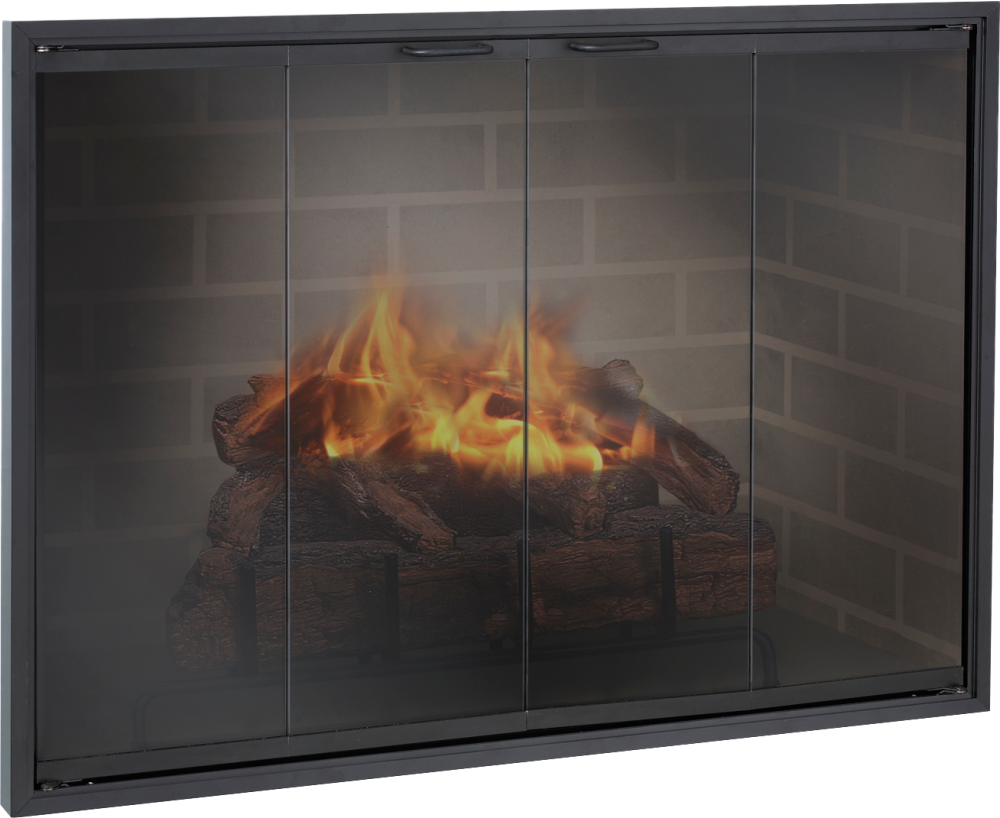

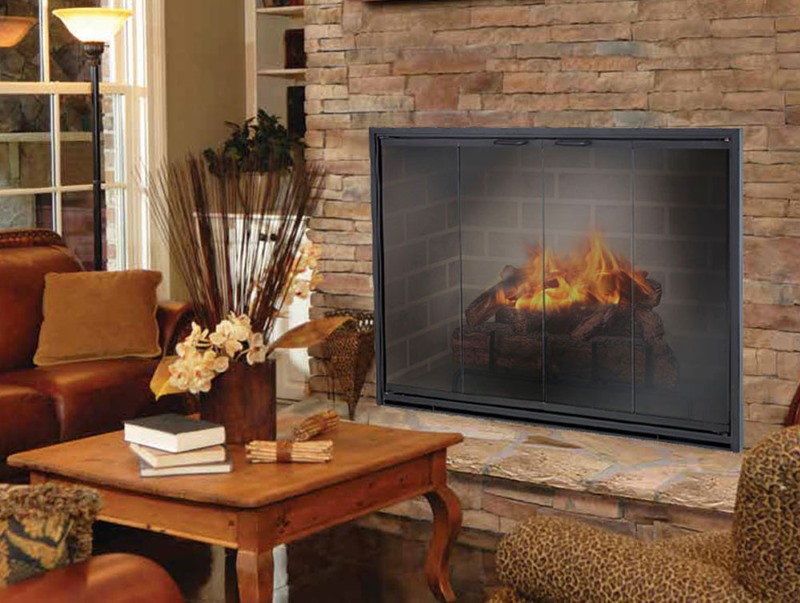

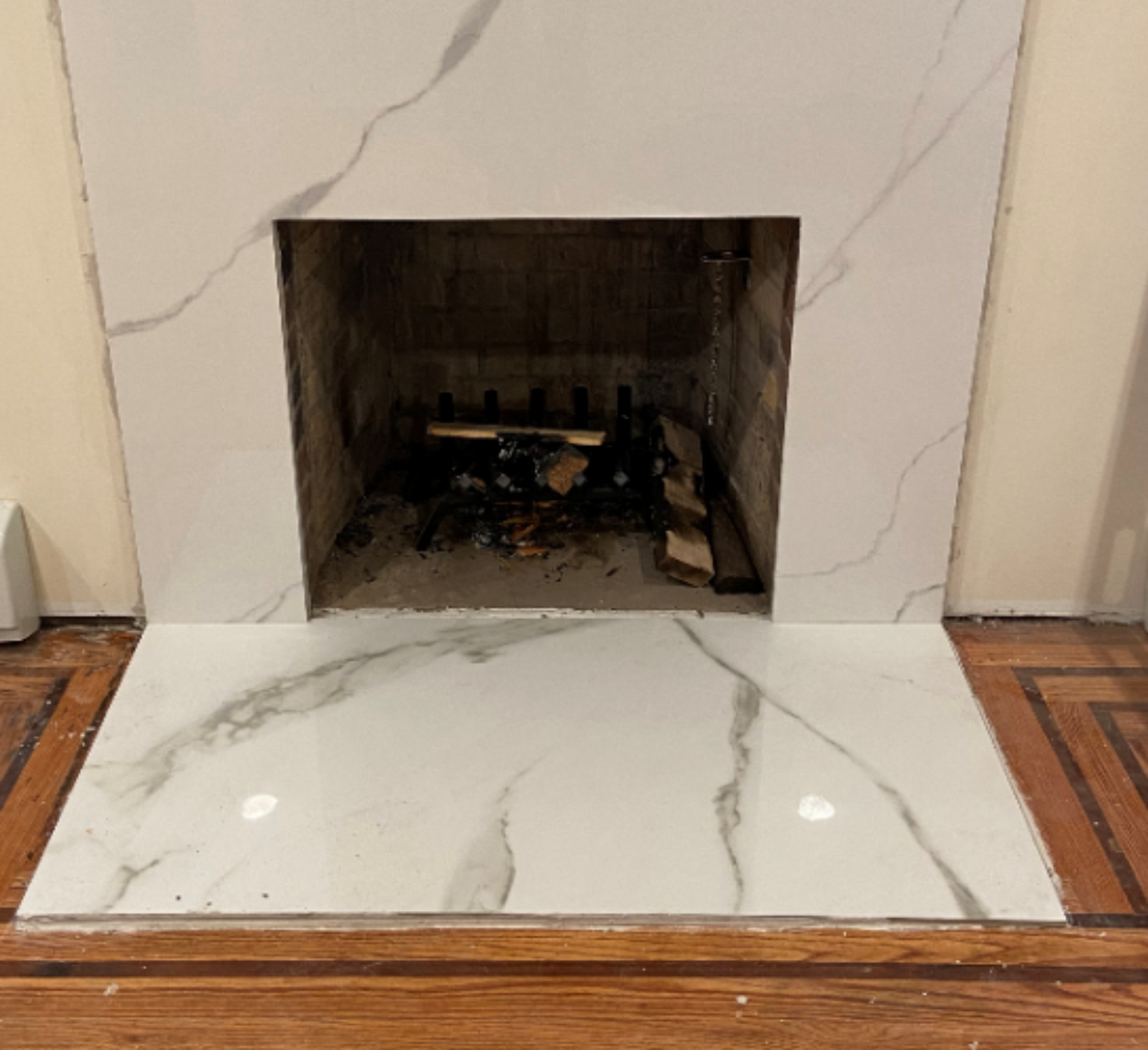

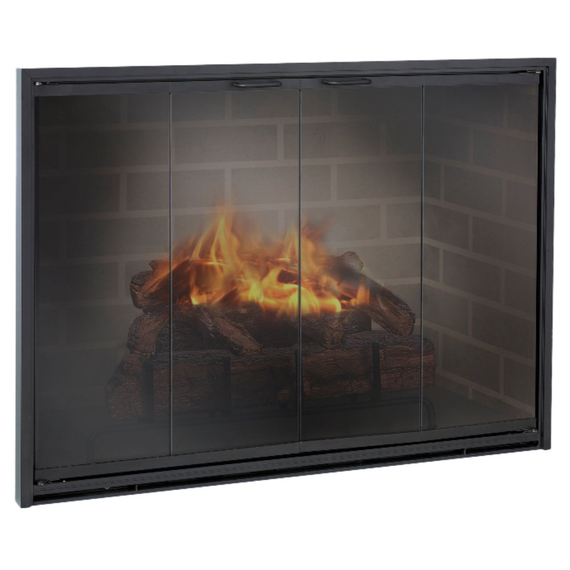

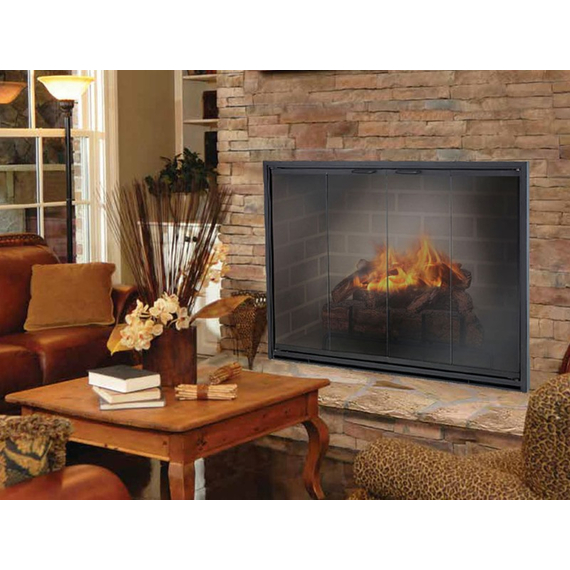

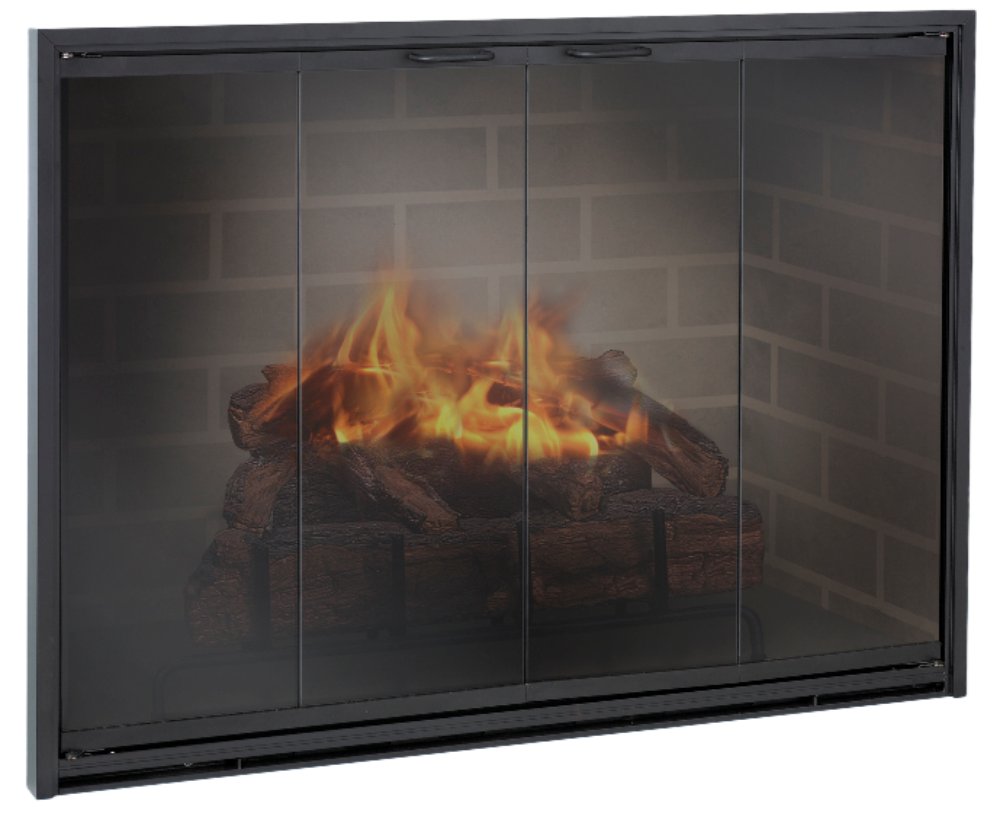

The Stiletto Masonry Fireplace Door by Design Specialties will offer a warm and wide view of your fireplace. The clear tempered glass option will instantly create a cozy focus point for your living space. If you prefer a softer look the tempered glass panels are also available in bronze and grey. For an upgrade, you can add the bold look of the black tempered glass. Shown in the always popular Mahogany, you can choose the perfect color for your home from over 20 rich color finish choices. The options seem limitless with this masonry fireplace door that fits overlap fireplace designs or can be designed for an inside fit. The aluminum frame design features precise lines for an open fireplace view and works with slate, granite, tile, marble, or an inside fit for your brick facing. Your new Stiletto Masonry Fireplace Door will arrive fully assembled and will include all mounting hardware. Add an additional layer of safety with the spark protection  Sliding Black Mesh Curtain or add an extra home accent with the Cabinet Mesh Doors.

About the Stiletto Door Fit:

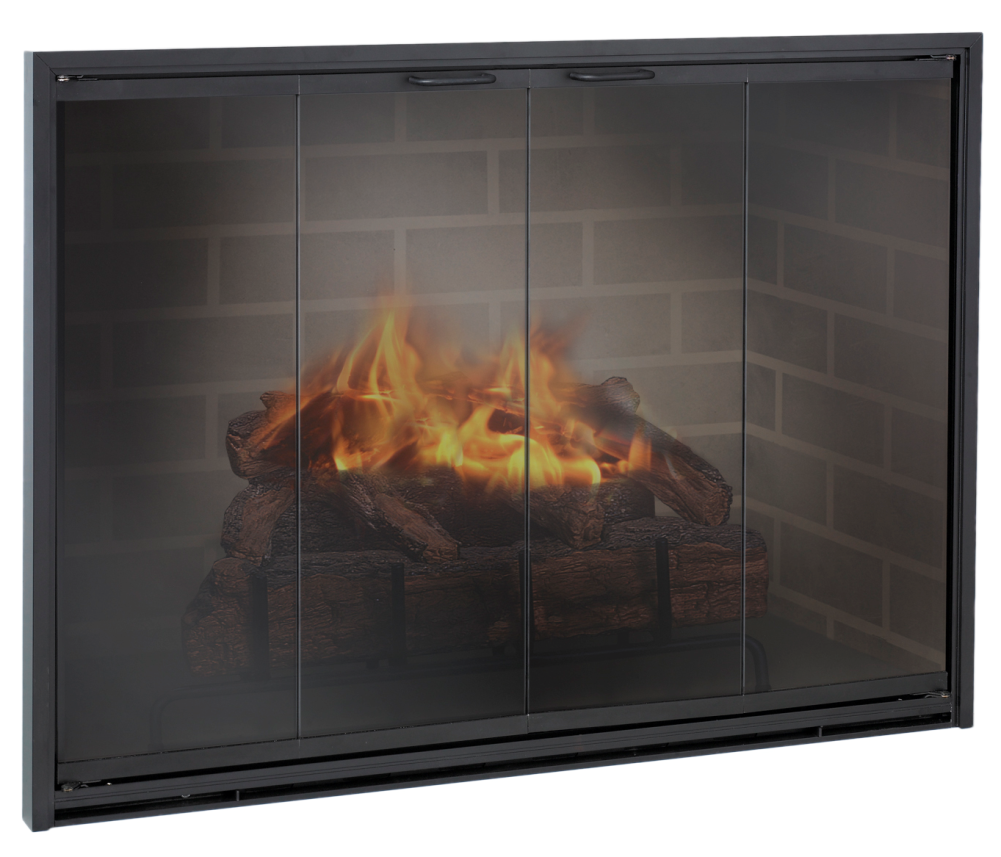

  • 3-Sided Overlap with 15/16 inch frame = design provides an approximate 1/2 inch overlap on each side and 1/2 inch overlap on top (will need a hearth to sit on)

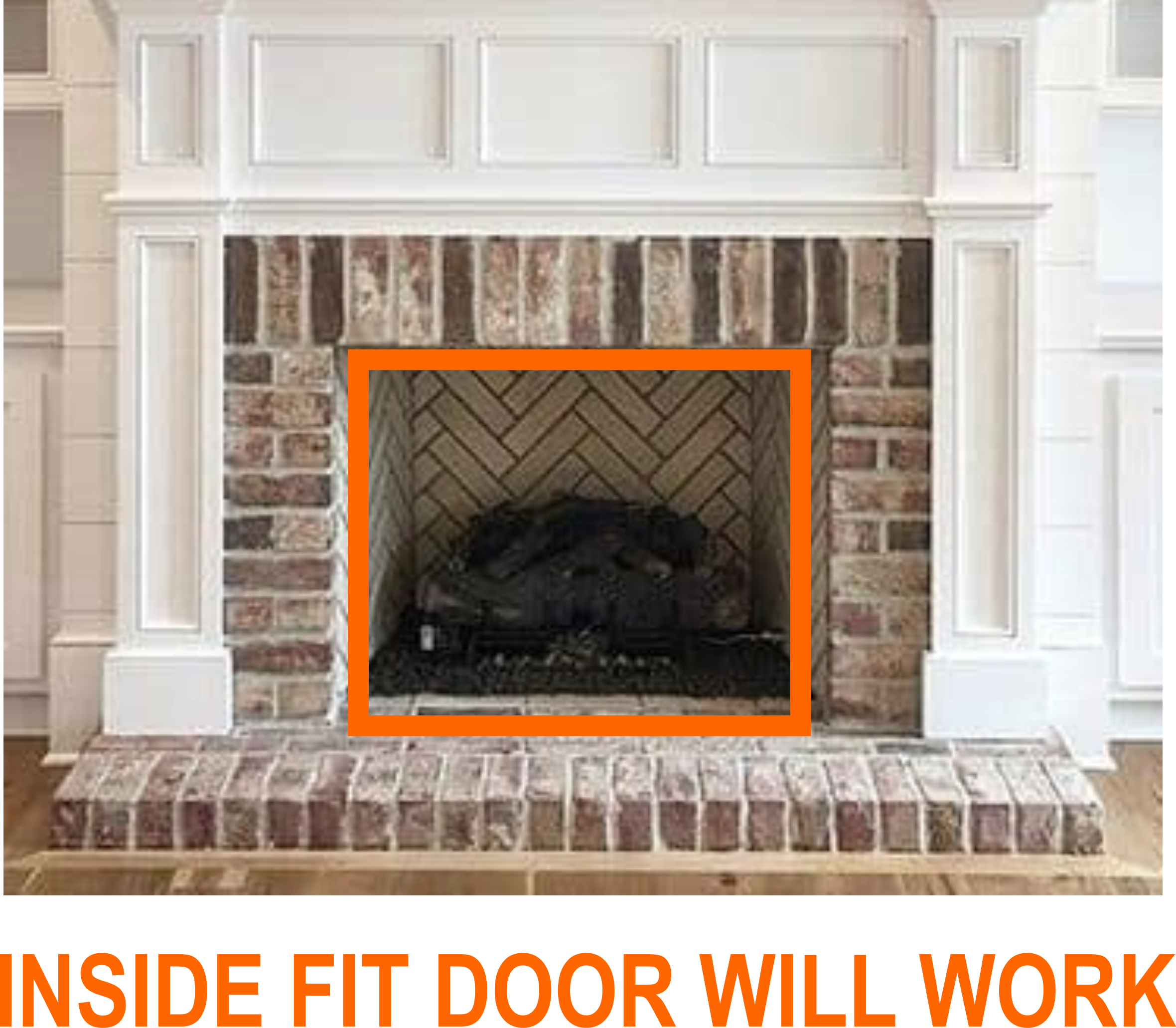

  • Inside fit will fit inside fireplace opening and door is made slighlty smaller to fit into fireplace opening (No hearth needed)
  • Exact FIT door will be fabricated to the dimension selected in price caluculator!

Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.


Stiletto Masonry Fireplace Door Features Product Features:

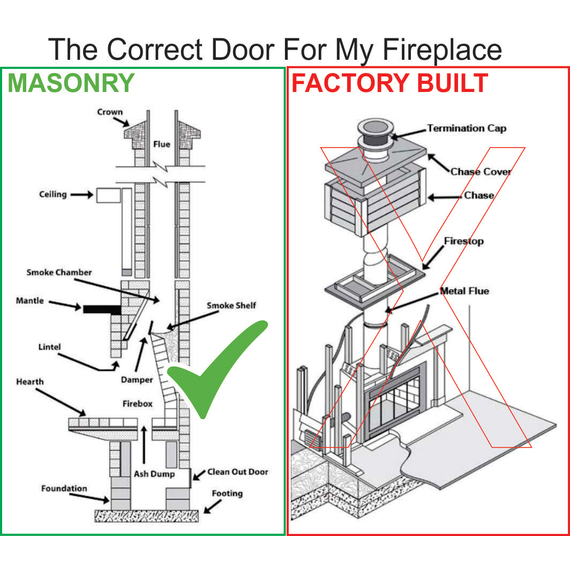

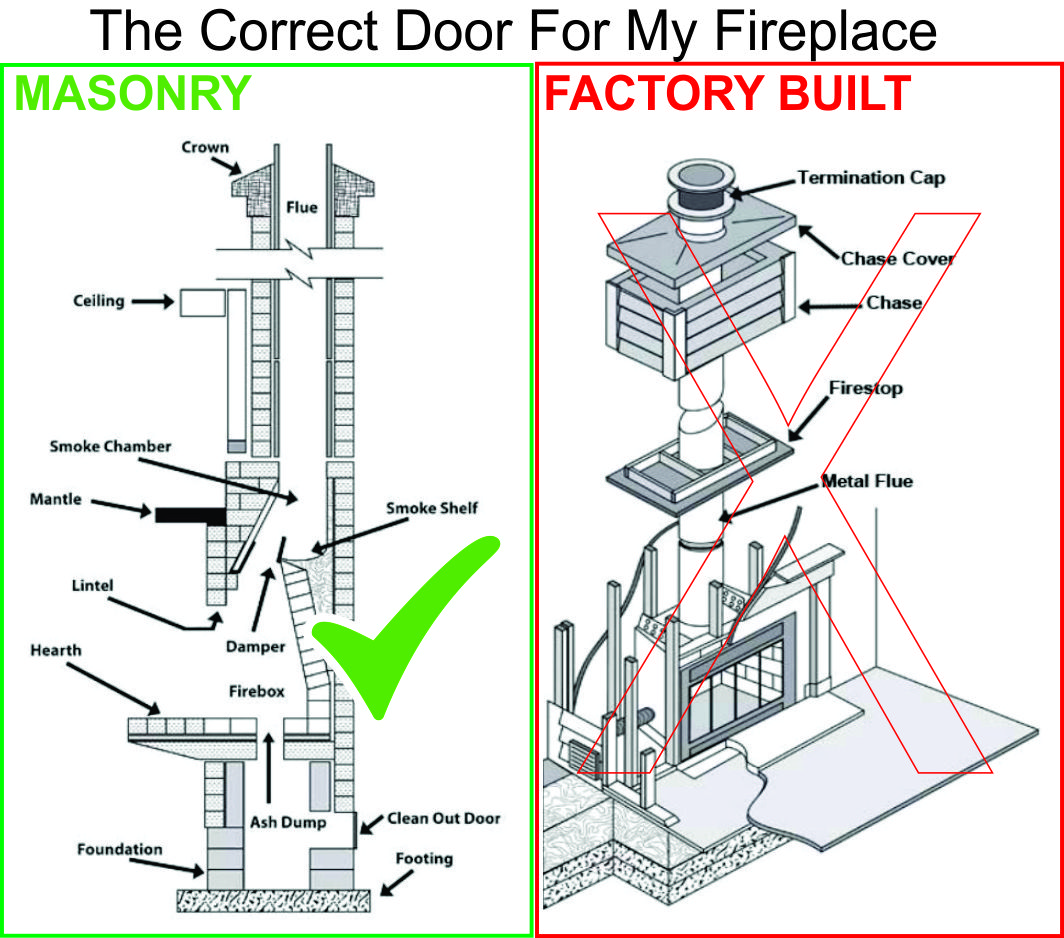

  • The Stiletto Fireplace Door is for masonry fireplaces ONLY
  • Enjoy free shipping; please allow 4 weeks for production and transit time
  • 1 year warranty on workmanship; 2 year workmanship on metal frame (excluding finish)
  • Lifetime limited warranty on tempered glass
  • Available as both an inside and overlap fit
  • Frame will overlap approximately 1/2 inch
  • Choose from trackless bi-fold or cabinet style doors

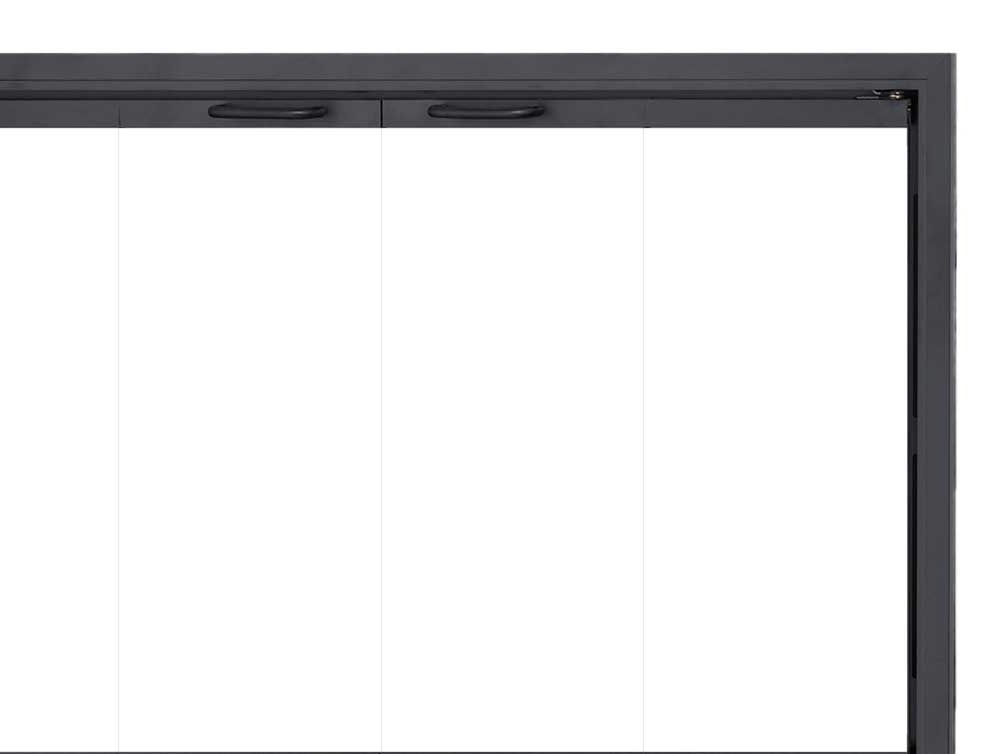

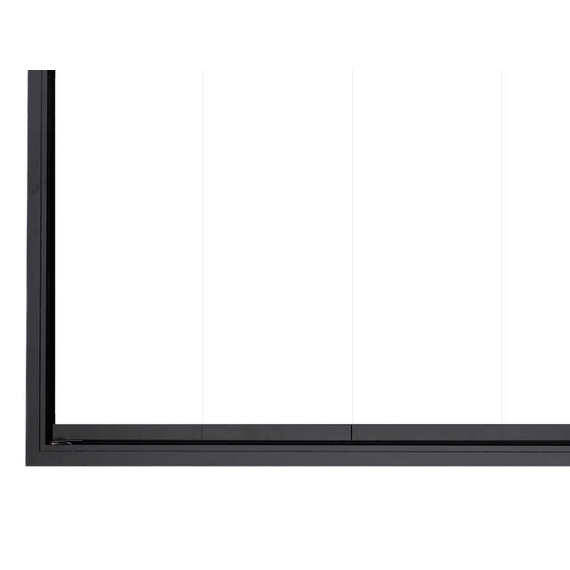

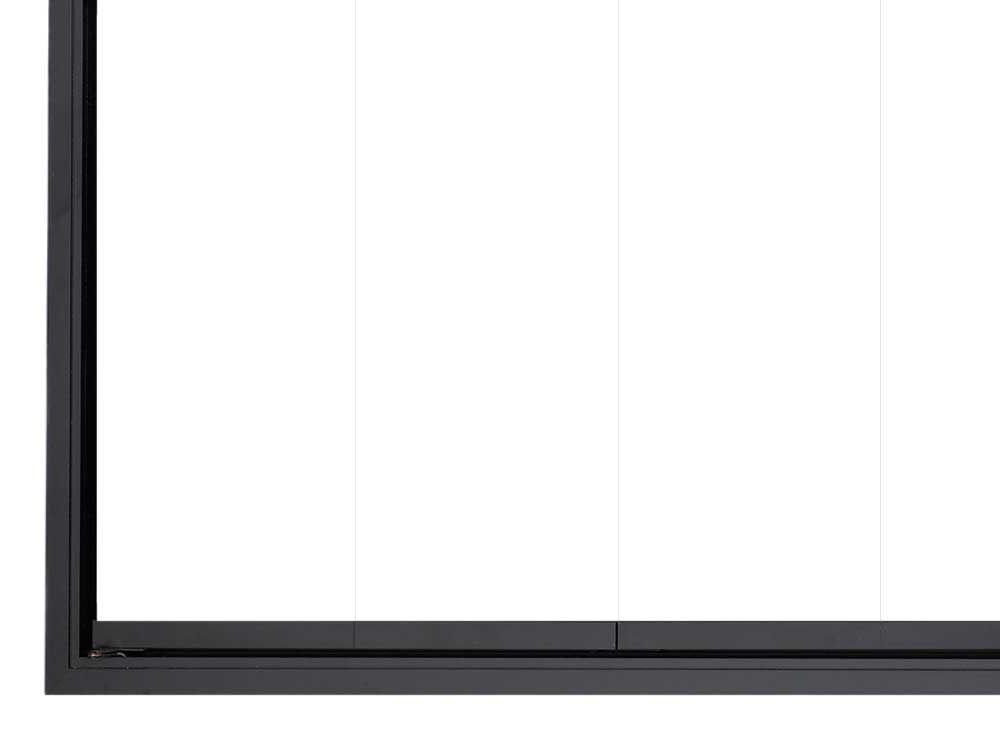

  • The aluminum frame is 15/16 inch wide and 1  5/8 inches deep
  • Check out the videos for the available door finishes
  • 1/4 inch thick tempered safety glass can be tinted grey, clear, bronze, or black
  • Spark protection not included
  • 6 handle styles to choose from
  • Door comes fully assembled with all mounting hardware included
  • NOTE: In order to burn a fire with the doors closed, the temperature of the fire cannot exceed 400°. The flames must always be 6 inches away from the glass.



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Stiletto Masonry Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry
  • Door Fit: Overlap | Inside
  • Door Type: Cabinet Doors | Trackless Bi-Fold Doors
  • Material: 15/16" Wide x 1 5/8" Deep Aluminum Frame
  • Approximate Overlap: 1/2"
  • Recessed Depth: NA - The portion of the door that fits inside the opening when installed as an overlap fit - Does NOT apply to Sliding Mesh And Gate Mesh Doors
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: N/A
  • Mesh Screen: Not Included
  • Handle Style: Simplicity | Square
  • Damper: No Draft Assembly | With Draft Assembly
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included
  • Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

  Manual Page 1 - StilettoManual Page 2 - StilettoManual Page 3 - Stiletto

Manufacturer's Warranty

Manufacturer warrants the glass enclosures to be free from defects in material and workmanship for a period of one (1) year from the date of installation. Manufacturer warrants the metal work (exclusive of the finish) contained in the glass enclosures to be free from defects in the materials and workmanship for a period of two (2) years from the date of installation. Discoloration of any frame piece is caused by over firing and is considered abuse of the enclosure.

MANUFACTURER MAKES NO WARRANTIES AS TO A MAXIMUM TEMPERATURE AND STRESS WHICH MAY CAUSE GLASS BREAKAGE. LIFETIME WARRANTY ON GLASS.
Manufacturer will, however, replace without cost any glass that breaks in normal use. Manufacturer will cover shipping cost for replacement glass for a period of one (1) year from the date of installation. Warranties also are not transferable to new owners.  The foregoing limited warranty is not transferable by the customer and does not include the eventual defects caused by improper use or operation of the glass enclosure or by normal wear and tear. Manufacturer agrees that if the glass enclosure is determined to be defective in manufacture within the applicable written guarantee period set forth above, and the customer provides a written notice of such defects within fourteen (14) days of the end of such period to the customer’s local dealer, Manufacturer is limited to defects in manufacture, and Manufacturer shall not be responsible if the glass enclosure has not been used at all times with reasonable care and in accordance with the instructions which accompany each glass enclosure, and/or if any attempt has been made by any person other than Manufacturer or its authorized agents to repair, alter or otherwise interfere with the foregoing undertaking of Manufacturer is limited to the replacement of any determined by Manufacturer to be defective.
Finally, the enforceability of this limited Warranty shall be further subject to compliance with the following requirements:
A. That the customer complies with the instruction set forth above and does not misuse, abuse, alter, or modify the glass enclosure.
B. That the customer does not use the glass enclosure for a purpose other than its intended use.

DISCLAIMER
The limited warranty set forth above, is expressly in lieu of any other warranties, express or implied, including without limitation any warranty of merchantability or fitness for particular purpose, whether express or implied, and lieu of any other obligation or liability on the part of Manufacturer. Whether under theories of contract, tort or negligence, Manufacturer, shall have no liability for any consequential, incidental or special damages by reason of any act or omission, whether negligent or not, arising out of or in connection with the glass enclosure or its sale, delivery, installation, maintenance, operation, performance, or use, including without limitation any loss of use, damage to associated property or the facility, or any other similar and dissimilar losses, cost.

PLEASE NOTE:
Fireplace doors are hand crafted to the specifications of each order. Due to the nature of the anodization process on aluminum doors, and the plating/powder coating process on steel doors, slight variations in color may occur and will not be considered a warranty issue.
