Stiletto Masonry Glass Corner Fireplace Enclosure

     Send us a PHOTO of your fireplace for a FREE quote

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Opening Size: Up To 27"W and Up To 32"H

=:

$2,210.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4-5 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
WRITE I AGREE
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].
Available
+ −
Brand: Design Specialties
Write a review

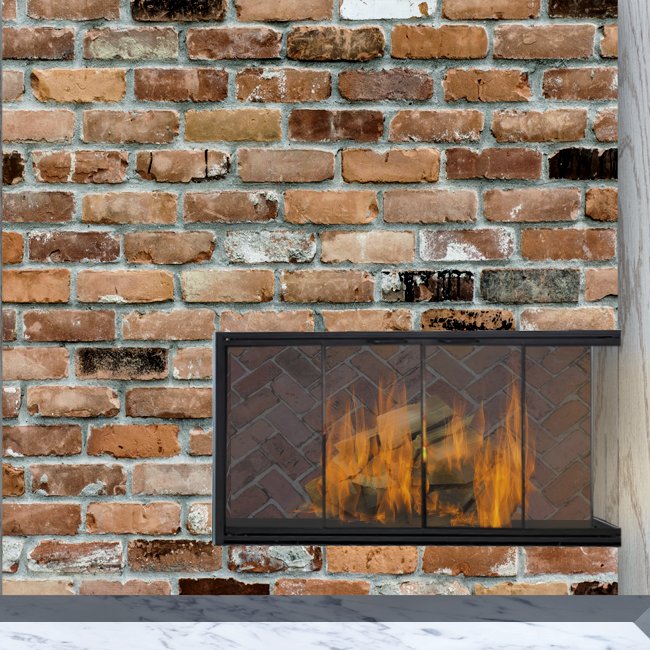

The Stiletto masonry corner fireplace glass door by Design Specialties will accent your modern home perfectly! This beautiful, versatile corner fireplace enclosure offers a thin frame and all glass doors. Plenty of customizations are available, including many finish color choices, bi-fold or cabinet style doors, and your preference of clear or tinted tempered glass. Spark protection is an option, although we highly recommend this add-on for the safety of your loved ones and home. You can also choose the handle style for this masonry fireplace door. Let us know your dimensions, where your hearth is positioned, and how your corner unit is situated in your room, and we will custom-craft a beautiful fireplace glass door that will be enjoyed for years to come!

About the Stiletto Door Design:

  • 3-Sided Overlap with 15/16 inch frame = design provides an approximate 1/2 inch overlap on each side and 1/2 inch overlap on top

Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

Stiletto Masonry Corner Fireplace Door Features and Benefits Product Features and Benefits:

  • Stiletto Corner Fireplace door is for masonry fireplaces only
  • Enjoy free shipping; please allow 4 weeks for production and transit time
  • 1 year warranty on workmanship; 2 year workmanship on metal frame (excluding finish)
  • Lifetime limited warranty on tempered glass
  • Available as both an overlap and inside fit
  • Overlaps half an inch
  • Choose from bi-fold and cabinet style doors
  • Aluminum frame is 15/16 inch wide and 1  5/8 inches deep
  • Check out the color sample videos for the available door finishes
  • 1/4 inch thick tempered safety glass is available in clear, grey, bronze, and black tints
  • Optional spark protection
  • Handle Style options include simplicity, square, contour, contemporary, infinity, and classic
  • Damper available
  • Comes fully assembled with all mounting hardware included



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Stiletto Masonry Corner Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Masonry Corner
  • Door Fit: Overlap | Inside
  • Approximate Overlap: 1/2"
  • Door Type: Bi-Fold Doors | Cabinet Doors
  • Material: 15/16" Wide x 1 5/8" Deep Aluminum Frame
  • Recessed Depth: 0 Inch = The Portion Of The Door That Fits Inside The Opening When Installed As Overlap Fit! - Does NOT Apply To Sliding Mesh And Gate Mesh Doors
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tint: Grey | Clear | Bronze | Black
  • Mesh Screens: Not Included (Optional)
  • Handle Style: Simplicity | Square | Contour | Contemporary | Infinity | Classic
  • Damper: Available
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included
  • Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

Stiletto Masonry Corner Fireplace Door Owners Manual Installation Manuals:

Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
