Stainless Steel Rectangle Masonry Fireplace Door with Arch Window Pane

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in
$3,450.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
If the product is ordered with the natural brushed surface, it is easily cleaned and brightened up with a non-woven abrasive like a Scotch Bright scouring pad
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].
Available
+ −
Brand: Design Specialties
Write a review

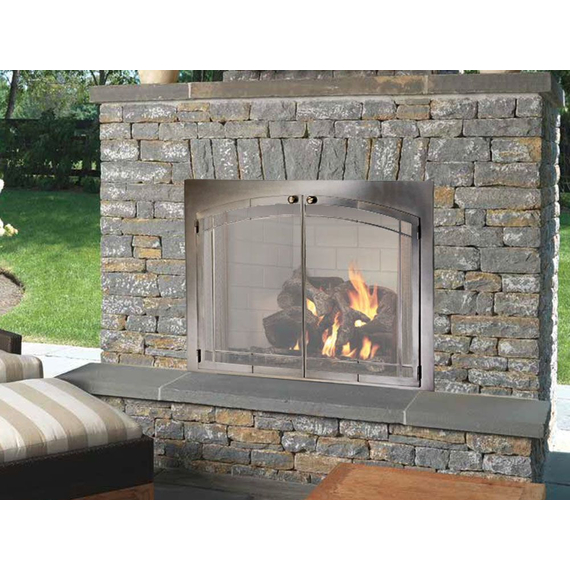

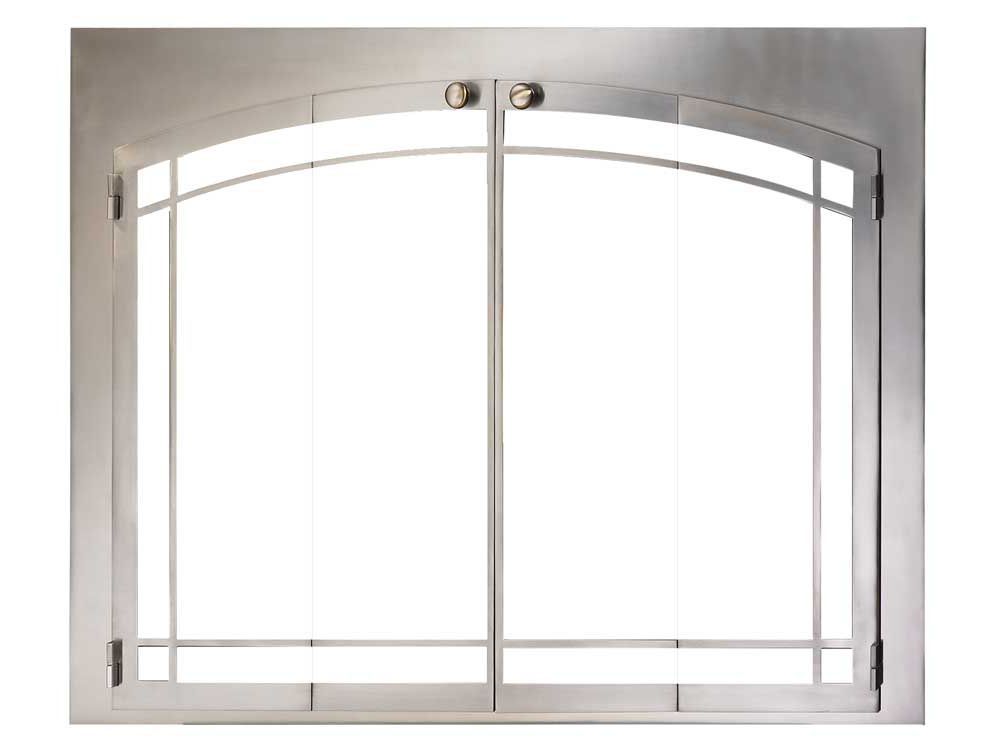

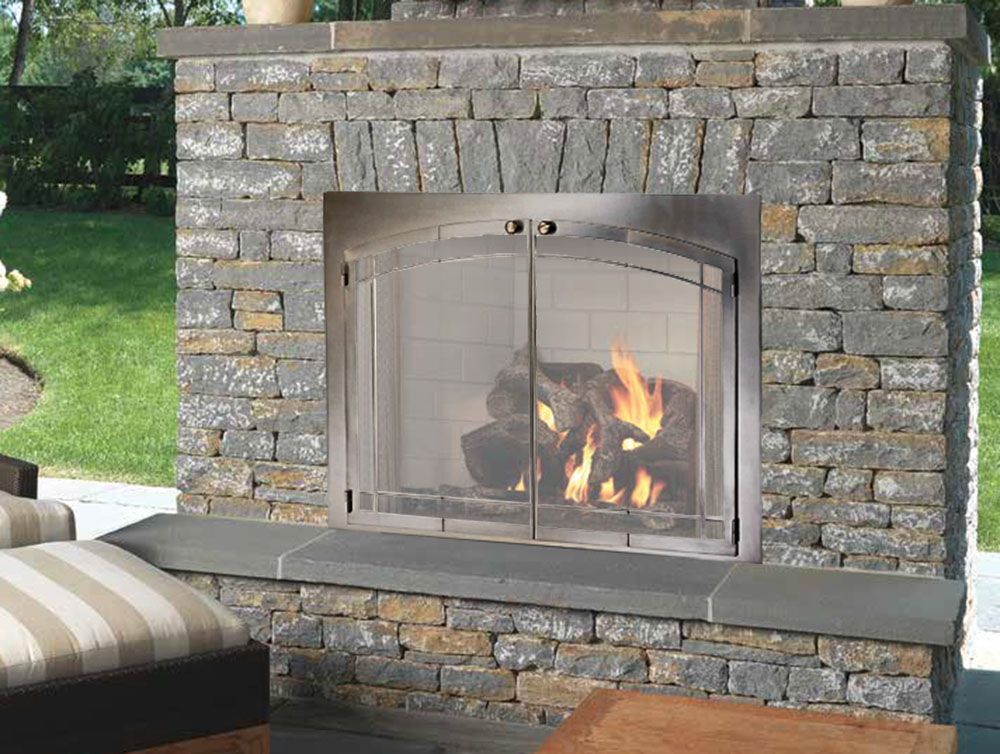

The Stainless Steel Outdoor Fireplace Door with arch window pane is perfect for interior or exterior masonry fireplaces was designed with durability in mind! A single piece of steel is laser cut to a 3/16 inch thickness and then crafted to the width and height you desire for the sturdy frame. This glass fireplace enclosure features 1/4 inch tempered safety glass that is available in clear, grey, or bronze tint for the cabinet or bi-fold doors. Includes stainless steel hardware and hinges, and optional spark protection!

Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

Rectangle Stainless Steel Masonry Door Features and Benefits Product Features and Benefits:

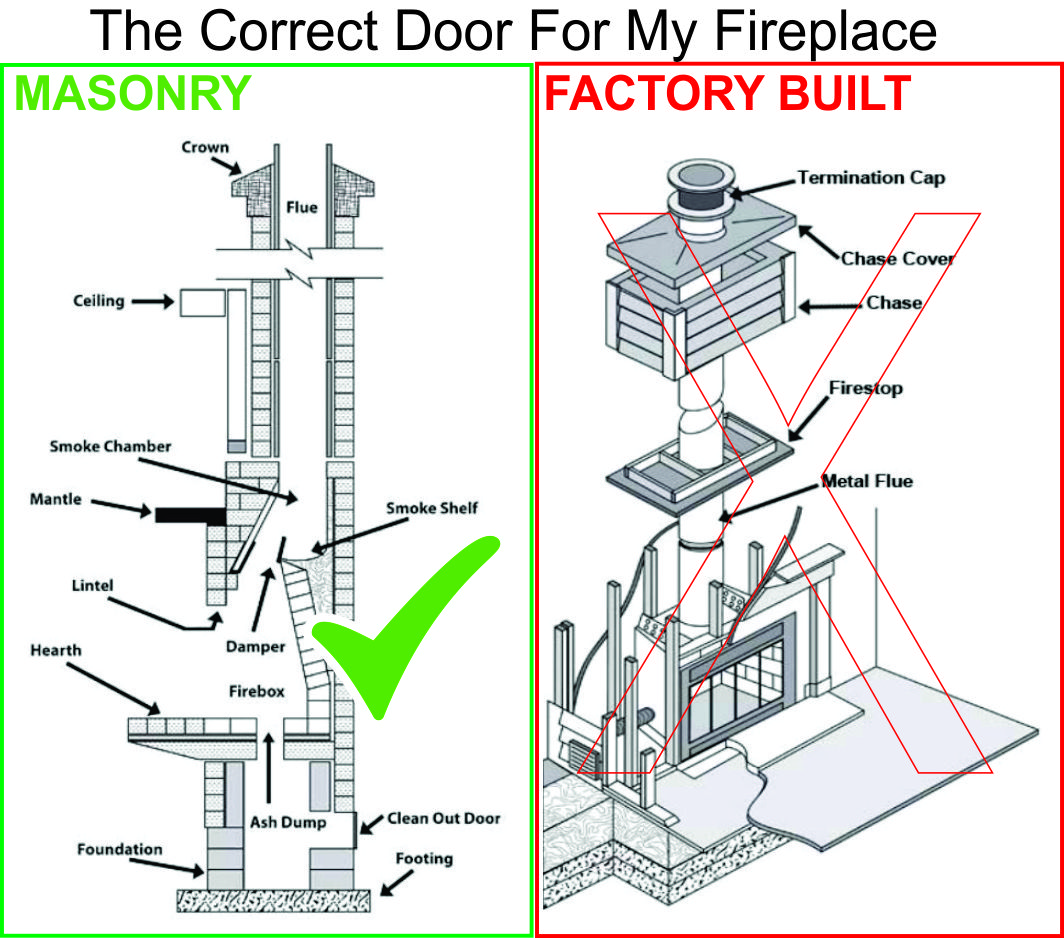

  • This Stainless Steel Fireplace Door With Arch & Window Panels for masonry fireplaces ONLY
  • Fireplace glass door ships for free; please allow 4 weeks for production and transit time
  • 1 year workmanship warranty; 2 year metal warranty (excluding finish)
  • Stainless steel hinges, hardware, and spark protection allow this door to be installed indoors or out
  • Lifetime limited warranty on tempered glass
  • Available as overlap or inside fit door
  • Choose between twin cabinet or bi-fold style doors
  • 304 grade stainless steel frame is 1  1/2 inches wide and 3/16 inches deep
  • Recesses 1 1/2 inches deep
  • Brushed natural stainless steel finish is rust and weather resistant
  • 1/4" tempered safety glass can be tinted grey, clear, or bronze
  • Spark protection not included - choose between hanging curtain or panels
  • 2 handle styles include knob and simplicity
  • Door comes fully assembled with stainless steel mounting hardware included

What You Need To Know About Stainless Steel:
Stainless steel will tarnish and discolor if left outdoors. This is particularly true in environments close to the ocean or swimming pools. Not every component is made from stainless steel and some discoloration or corrosion can occur. Regular cleaning and oiling the moving parts will keep these doors operating as intended. If the product was ordered with the natural brushed surface, it is easily cleaned and brightened up with a non-woven abrasive like a Scotch Bright scouring pad.

Rectangle Stainless Steel Masonry Door Specifications Product Specifications:

  • Door Fit: Inside | Overlap
  • Door Type: Trackless Bi-Fold Doors | Cabinet (Twin) Doors
  • Material: 1 1/2" Wide x 3/16" Deep 3/16" Thick Solid 304 Stainless Steel Frame
  • Recessed Depth: 1 1/2"
  • Finish Colors: Clear Brushed Natural Stainless Steel
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: N/A
  • Stainless Steel Mesh Screen: Optional
  • Stainless Steel Hinges: Included
  • Handle Style: Simplicity | Knob
  • Damper: N/A
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Stainless Steel Hardware Included

Product Manual Product Manual:

Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
