Silhouette Prefab Glass Corner Fireplace Enclosure Inside Fit

You may need to remove the track to install the fireplace door, so measure accordingly. You will need to measure the fireplace opening in three different places, both vertically and horizontally to the nearest 1/16". Enter the smallest size into the price calculator.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside the fireplace opening. Measure the width and height of the inner steel opening where the fireplace door will fit. This will be the same position that the fireplace manufacturer's door was installed. DO NOT measure the finishing material in front of the fireplace (brick, stone, marble, tile, etc). Always use the exact MINIMUM measurements for both height and width when ordering a replacement fireplace door.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in
in
$1,566.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Fabrication Time 4-5 Weeks Question | Why Buy From Us?

WRITE I AGREE
This allows us to evaluate fireplace hearth position.
Available
+

The inside fit Silhouette zero clearance corner fireplace door by Design Specialties is a beautiful addition to any home. Clean lines and an all glass corner allow it to blend in seamlessly with its surroundings, whether as an overlap or inside fit enclosure. You have bi-fold and cabinet style door choices for both the long and short sides of this zero clearance fireplace door, as well as sliding or panel mesh for spark protection. Tempered safety glass is available in grey, clear, bronze, or sophisticated black tints to coordinate with the powder coat, anodized, or artisan finish colors. Choose your preferred handle style for easy opening and closing of this zero clearance fireplace door. Please upload a picture of your prefab unit and submit your measurements, and we'll get to work creating a one of a kind custom door for you!

Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

NOTE:
Many ZC Corner and peninsula fireplaces have metal posts in the corners. In this case, the doors may need to be ordered as individual doors and can not have glass corners.



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Silhouette Zero Clearance Corner Fireplace Door Specifications Product Specifications:

  • Fireplace Type: Prefab Wood Fireplaces or Prefab Wood Fireplaces Converted To Vented Gas Logs
  • Door Fit: Inside
  • Door Type: Bi-Fold Doors | Cabinet Doors
  • Material: 1" Wide x 3/4" Deep Extruded Aluminum Frame

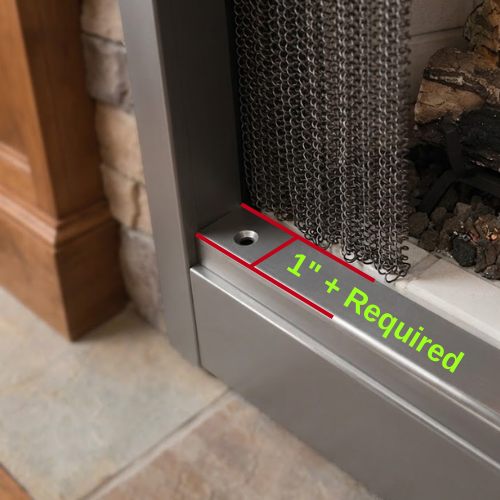

  • Recessed Depth: 3/8 Inch = The Portion Of The Door That Fits Inside The Opening When Installed As Overlap Fit!
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tint: Clear | Black
  • Ceramic Glass: N/A
  • Mesh Screens: Not Included
  • Handle Style: Simplicity
  • Damper: N/A
  • Airtight Option: N/A
  • Mounting: Hardware Included

Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
