Sierra Flame Vienna Linear Gas Fireplace
The Vienna Series offers a contemporary linear gas fireplace with a minimalist design, free from louvers, gaps, or heat dumps. Its clean, seamless appearance ensures a sleek integration into any modern space.
Designed for convenience, the Vienna Series contains all technology within the firebox, eliminating the need for external venting or heat exhaust. This means no gaps, intake or exhaust louvers, or behind-the-wall vents, creating an uninterrupted wall finish. The fireplace allows for the use of standard wood and drywall materials around the unit, removing the need for special framing or concrete boards.
Available in 40-inch, 50-inch, and 60-inch models, the Vienna Series features a double-glass design with no screen, offering an expansive and clear view of the flames. The unit supports both natural gas (NG) and liquid propane (LP) and is simple to maintain—cleaning the glass does not require a technician.
Optional accessories include termination kits and venting kits, providing flexibility for various installation needs. With its straightforward installation process and clean aesthetic, the Vienna Series is an ideal choice for those seeking a modern, functional fireplace.
Features:
- Seamless Design: Fully contained within the fireplace, with no visible gaps, louvers, or heat vents for a streamlined look.
- Combustible-Friendly Installation: Safe with wood framing; no concrete board required.
- Heat Shield Technology: Double-wall glass provides a clear view without safety screens, ensuring hands stay safe from heat.
- Warm Glass System: Maintains glass temperature below 172°F, providing comfortable radiant heat.
- Easy Maintenance: Simple glass removal system for cleaning, no technician needed.
- Powerful Heat Output: Up to 36,000 BTU on high, 18,000 BTU on low.
- Fuel Options: Compatible with both natural gas (NG) and propane (LP).
Venting:
Termination Kit (GEN-TERMKIT)
- Purpose: Used for venting systems to safely terminate horizontal vents for the Vienna Series.
- Components: Includes two firestop/wall thimbles and a horizontal termination vent.
- Notes: Designed for 5" x 8" venting systems.
Through-the-Roof Kit (58TTRK)
- Purpose: Allows venting systems to pass through the roof, providing essential components for weatherproofing and secure installation.
- Components: Includes a 36" hard pipe, storm collar, 58DVA-FCM adapter, and flashing.
- Notes: Suitable for standard roof installations.
Through-the-Roof Kit - Steep (58TTRK-STEEP)
- Purpose: Similar to the standard kit but designed for steep roof installations.
- Components: Includes a 36" hard pipe, storm collar, 58DVA-FCM adapter, and steep flashing.
- Notes: Specifically tailored for roofs with a steeper slope to ensure secure and weatherproof venting.
Specifications:

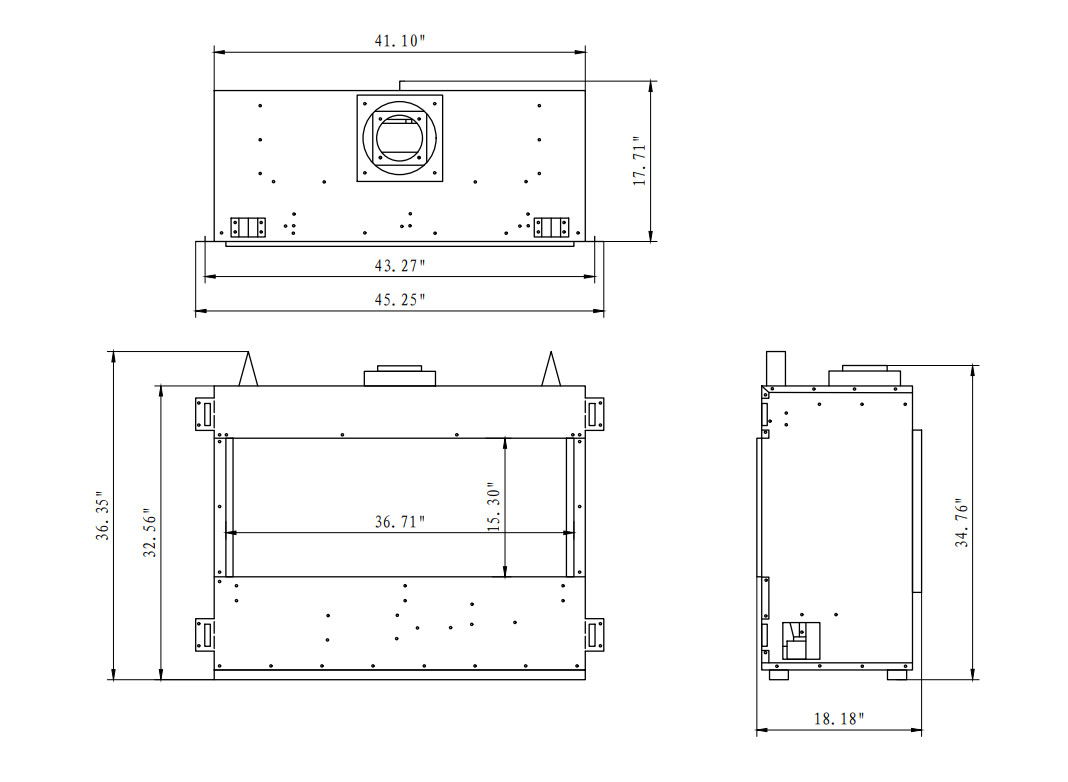

- Vienna 40"
- BTUs: NG: 28,000 (Hi) / 18,000 (Lo); LP: 25,000 (Hi) / 17,000 (Lo)
- Dimensions (Actual): 41.10" W x 32.56" H x 18.18" D
- Framing Dimensions: 43.25" W x 36.5" H x 18.5" D
- Viewing Area: 15.30" H x 36.71" W
- Vienna 50"
- BTUs: NG: 30,000 (Hi) / 20,000 (Lo); LP: 27,000 (Hi) / 20,000 (Lo)
- Dimensions (Actual): 49.09" W x 32.56" H x 18.18" D
- Framing Dimensions: 51.25" W x 36.5" H x 18.5" D
- Viewing Area: 15.30" H x 46.71" W
- Vienna 60"
- BTUs: NG: 36,000 (Hi) / 23,000 (Lo); LP: 30,500 (Hi) / 21,500 (Lo)
- Dimensions (Actual): 60.00" W x 32.56" H x 18.18" D
- Framing Dimensions: 61.25" W x 36.5" H x 18.5" D
- Viewing Area: 15.30" H x 56.71" W
Downloads:
Technical Specifications:
- Model: Vienna 40
- BTU's:
- Natural Gas: Hi 28,000, Lo 18,000
- Propane: Hi 25,000, Lo 17,000
- Vent (Top): 5" & 8"
- Height:
- Actual: 32.56"
- Framing: 36.5"
- Width:
- Actual: 41.10"
- Framing: 43.25"
- Depth:
- Actual: 18.18"
- Framing: 18.5"
- Viewing Area:
- Height: 15.30"
- Width: 36.71"
- Maximum Input:
- Natural Gas (NG): 28,000 Btu/hr (8.21 kW)
- Propane (LP): 25,000 Btu/hr (7.33 kW)
- Minimum Input:
- Natural Gas (NG): 18,000 Btu/hr (5.28 kW)
- Propane (LP): 17,000 Btu/hr (4.98 kW)
- Manifold Pressure:
- Natural Gas (NG): 3.5" w.c. (0.87 kPa)
- Propane (LP): 10.0" w.c. (2.49 kPa)
- Gas Inlet Supply Pressure:
- Natural Gas (NG): Minimum 5.0" w.c. (1.2 kPa), Maximum 10.5" w.c. (2.61 kPa)
- Propane (LP): Minimum 7.0" w.c. (1.74 kPa), Maximum 13.0" w.c. (3.23 kPa)
- Orifice Size (@ 0-4500’):
- Natural Gas (NG): #40 DMS
- Propane (LP): #53 DMS
- Air Shutter:
- Natural Gas (NG): Open 1/8" min (3.175mm)
- Propane (LP): Fully Open
- Control Valve Type: Skytech AF-40004 (for both Natural Gas and Propane)
- Venting:
- 2-ply aluminum vent, Selkirk, Duravent, Security Venting, ICC Venting, or Metal-Fab Venting (for both Natural Gas and Propane)
- Fan: 3 pcs Variable Speed (110 Volt / 60 Hz) (for both Natural Gas and Propane)
- Model: Vienna 50"
- BTU's:
- Vent (Top): 5" & 8"
- Height:
- Actual: 32.56"
- Framing: 36.5"
- Width:
- Actual: 46.10"
- Framing: 48.25"
- Depth:
- Actual: 18.18"
- Framing: 18.5"
- Viewing Area:
- Height: 15.30"
- Width: 46.71"
Natural Gas (NG)
- Maximum Input (Hi): 30,000 Btu/hr (8.79 kW)
- Minimum Input (Lo): 20,000 Btu/hr (5.86 kW)
- Manifold Pressure: 3.5" w.c. (0.87 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 5.0" w.c. (1.2 kPa)
- Maximum: 10.5" w.c. (2.61 kPa)
- Orifice Size (@ 0-4500'): 2 x #49 DMS
- Air Shutter: Open 1/8" min (3.175mm)
- Control Valve Type: Skytech AF-40004
- Venting: 2-ply aluminum vent, Selkirk, Duravent, Security Venting, ICC Venting, or Metal-Fab Venting
- Fan: 3 pcs Variable Speed (110 Volt / 60 Hz)
Propane (LP)
- Maximum Input (Hi): 27,000 Btu/hr (7.91 kW)
- Minimum Input (Lo): 20,000 Btu/hr (5.86 kW)
- Manifold Pressure: 10.0" w.c. (2.49 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 7.0" w.c. (1.74 kPa)
- Maximum: 13.0" w.c. (3.23 kPa)
- Orifice Size (@ 0-4500'): 2 x #56 DMS
- Air Shutter: Fully Open
- Control Valve Type: Skytech AF-40004
- Venting: 2-ply aluminum vent, Selkirk, Duravent, Security Venting, ICC Venting, or Metal-Fab Venting
- Fan: 3 pcs Variable Speed (110 Volt / 60 Hz)
- Model: Vienna 60
- BTU's:
- Natural Gas: Hi 36,000, Lo 23,000
- Propane: Hi 30,500, Lo 21,500
- Vent (Top): 5" & 8"
- Height:
- Actual: 32.56"
- Framing: 36.5"
- Width:
- Actual: 60.00"
- Framing: 61.25"
- Depth:
- Actual: 18.18"
- Framing: 18.5"
- Viewing Area:
- Height: 15.30"
- Width: 56.71"
Natural Gas (NG):
- Maximum Input (Hi): 36,000 Btu/hr (10.55 kW)
- Minimum Input (Lo): 23,500 Btu/hr (6.89 kW)
- Manifold Pressure: 3.5” w.c. (0.87 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 5.0” w.c. (1.2 kPa)
- Maximum: 10.5” w.c. (2.61 kPa)
- Orifice Size (at 0-4500’): 2 X #48 DMS
- Air Shutter: Open 1/8” min (3.175 mm)
- Control Valve Type: Skytech AF-40004
- Venting: 2-ply aluminum vent, Selkirk, Duravent, Security Venting, ICC Venting, or Metal-Fab Venting
- Fan: 4 pcs Variable Speed (110 Volt / 60 Hz)
Propane (LP):
- Maximum Input (Hi): 30,500 Btu/hr (8.94 kW)
- Minimum Input (Lo): 21,000 Btu/hr (6.15 kW)
- Manifold Pressure: 10.0” w.c. (2.49 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 7.0” w.c. (1.74 kPa)
- Maximum: 13.0” w.c. (3.23 kPa)
- Orifice Size (at 0-4500’): 2 X #56 DMS
- Air Shutter: Fully Open
- Control Valve Type: Skytech AF-40004
- Venting: 2-ply aluminum vent, Selkirk, Duravent, Security Venting, ICC Venting, or Metal-Fab Venting
- Fan: 4 pcs Variable Speed (110 Volt / 60 Hz)
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
