Sierra Flame Thompson 36" Linear Gas Fireplace
.jpg "Sierra Flame Thompson 36\" Direct Vent Linear Gas Fireplace - THOMPSON-36-DELUXE-xx")
.jpg "Sierra Flame Thompson")
How does the Sierra Flame Thompson 36" balance modern design with efficient heating to enhance form and function?

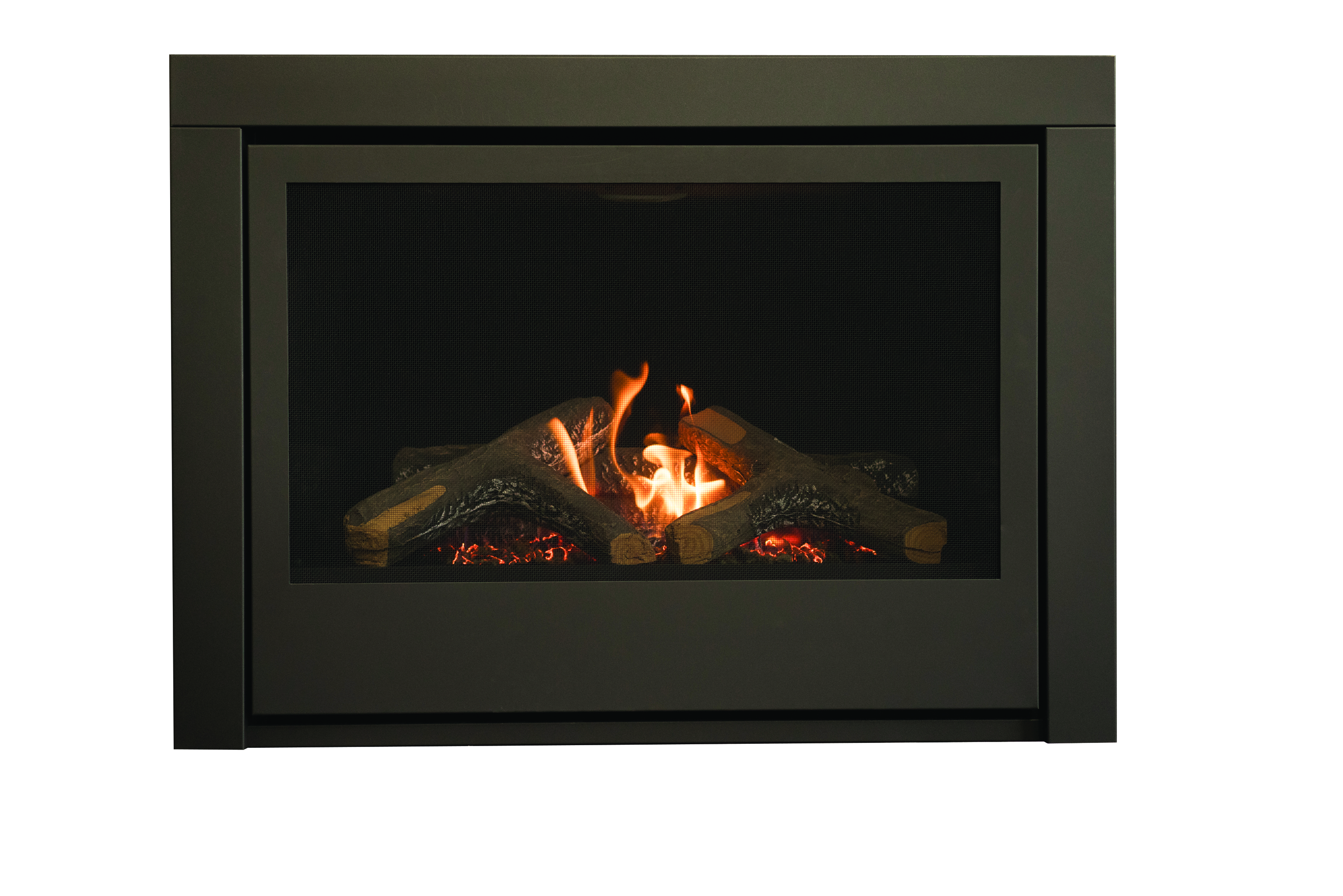

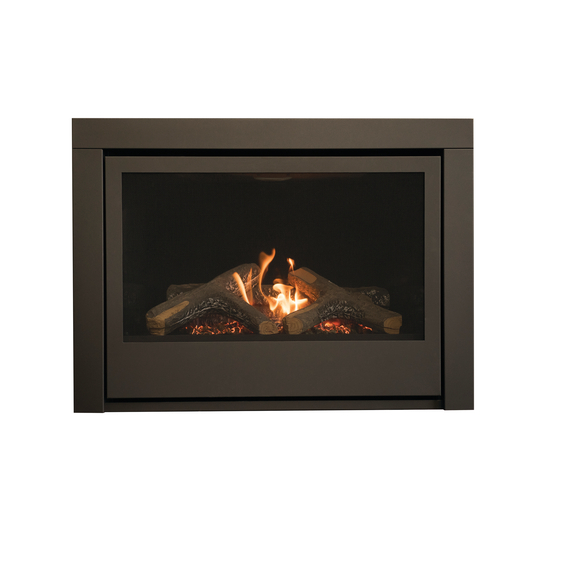

Sierra Flame Thompson 36" Direct Vent Linear Gas Fireplace is a compact heating appliance that provides consistent warmth. This 36-inch by 15-inch fireplace delivers up to 26,000 BTU of heat, which makes it suitable for medium-sized areas. It is available in natural gas and propane configurations to accommodate different fuel preferences.
The unit features a borosilicate glass front known for its durability and heat resistance. It also has a pre-attached black trim and safety barrier for added convenience and safety.

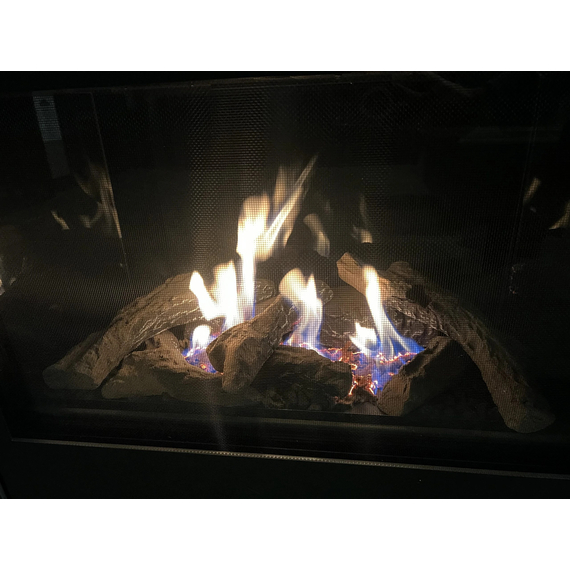

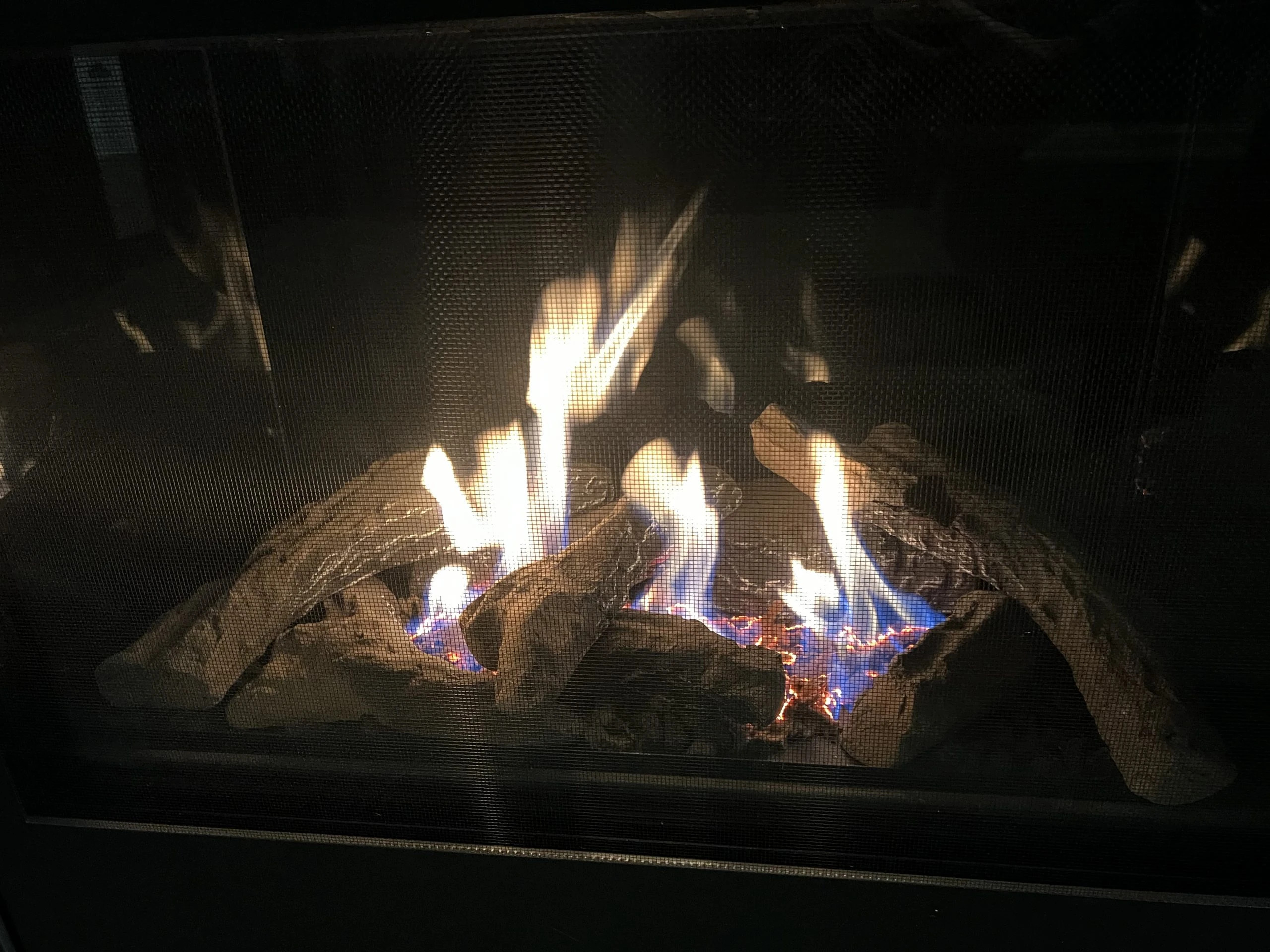

Inside, black porcelain panels enhance the appearance of the flames, and the included four-piece log set creates a realistic fire display. The fireplace also has a modulating valve for flame adjustment, a fan kit for improved heat circulation, and a deluxe digital remote for easy operation.
Features:
- Attached Black Trim & Safety Barrier: Enhances safety and integrates seamlessly with the unit.
- 26,000 BTU Output: Provides effective heating for your space.
- Electronic Ignition: Easy and reliable starting.
- Borosilicate Glass: Durable and heat-resistant for long-lasting clarity.
- 100% Safety Shut-Off: Automatically turns off the unit for safety.
- Top Vent Only Design: Designed for vertical venting.
- Black Porcelain Panels: Offers a sleek, modern appearance.
- 4-Piece Log Set: Realistic logs for an authentic look.
- Deluxe Digital Remote Control: Adjust settings conveniently from anywhere in the room.
- Integrated Fan Kit: Distributes heat evenly throughout the space.
- Modulating Valve: Allows for precise control over flame and heat output.
Termination Kits
These are designed for terminating venting systems at exterior walls, typically used for horizontal venting installations.
- TERM-KIT: Termination Kit for 4" x 7" vent. Includes fire stop/wall thimble and horizontal termination vent. No flex included - $186.00
- For vent termination on exterior walls without flexible pipe.
- SF94217405: 4" x 7" Horizontal Flex Termination Kit. Includes 5' of flex, 1 wall thimble, and horizontal termination - $421.00
- For horizontal venting with flexible pipe, including termination components.
Through-the-Roof Kits
These kits are used for venting systems that pass through the roof, providing all necessary components for roof installations.
- TTRK: 5-Piece Duravent Through the Roof Kit. Includes 36" Hard Pipe, Storm Collar, High Wind Cap, 0926i Adaptor, and Flashing - $568.00
- For venting systems passing through the roof, including storm protection and sealing.
- TTRK-S: 5-Piece Duravent Through the Roof Kit - Steep. Includes 36" Hard Pipe, Storm Collar, High Wind Cap, 0926i Adaptor, and Steep Flashing
- For steep roof installations, includes specific flashing for steep slopes.
Flex Components
These are parts designed for use with flexible vent pipes, offering extensions and couplings for various venting configurations.
- SF94207410: 4" x 7" Coaxial Flex - 10' length. Flex only
- For coaxial vent systems requiring a 10' length of flexible vent pipe.
- SF942074C: 4" x 7" Flex Extension Coupler Kit
- For connecting or extending flexible vent pipes.
Adapters
Adapters allow different types of vent pipes (hard pipe to flex or vice versa) to connect smoothly.
- DURA-HARD: Adapter for Hard Pipe Installations
- For transitioning from flexible vent pipe to hard pipe in venting installations.
- DURA-FLEX: Galvanized Adapter for Flex to Hard Pipe Installations
- For transitioning from hard pipe to flexible vent pipe.
Specifications:
- Framing Dimension: 37” H x 38” W x 15” D
- Viewing Area: 16-1/2” H x 29” W
- BTUS (NG): Hi 26,000- Lo 18,000
- AFUE / P.4 (NG EFFICIENCY): 67.68%
- Weight: 125 lbs
- Venting: 4” flex vent on exhaust side 7” flex vent on the air intake side, Venting – **Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC
- Ceiling/Mantle Height: Internl ceiling= 52” from top of unit Mantel height=42”
Downloads:

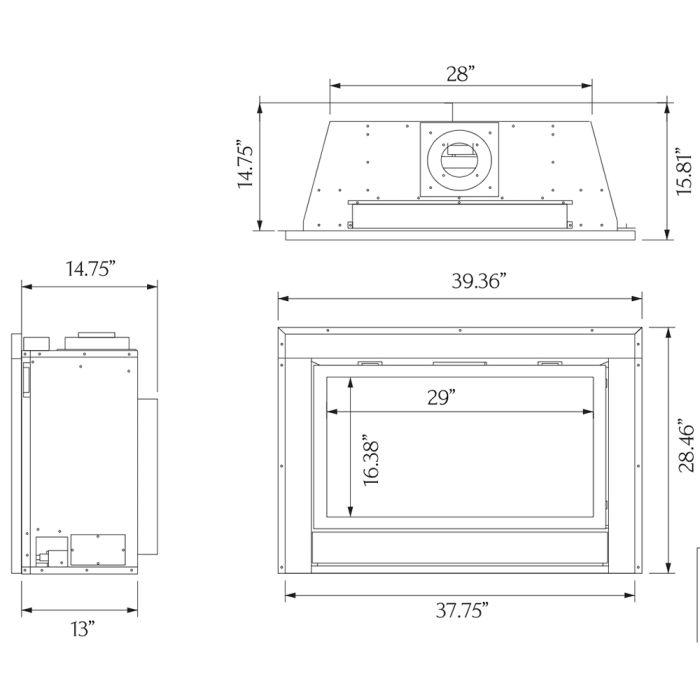

Technical Specifications:
- Model: Thompson
- Vent (Top): 4" & 7"
- Height:
- Actual: 28 1/2"
- Framing: 37"
- Width:
- Actual: 39 1/2"
- Framing: 38"
- Depth:
- Actual: 13"
- Framing: 15"
- Viewing Area:
- Height: 16 1/2"
- Width: 29"
Natural Gas (NG):
- Input (Hi): 26,000 Btu/hr (7.62 kW)
- Input (Lo): 18,000 Btu/hr (5.28 kW)
- Manifold Pressure:
- Hi: 3.5" w.c. (0.87 kPa)
- Lo: 1.7" w.c. (0.42 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 5.0" w.c. (1.2 kPa)
- Maximum: 13.5" w.c. (3.4 kPa)
- Orifice Size: #41 DMS
- Air Shutter: Open 1/8" min (3.175 mm)
- Control Valve Type: Skytech AF-40004 Robertshaw Apex Control B081
- Venting: 2-ply aluminum vent, ICC venting Duravent, Security Venting, Selkirk, or Metal-Fab Venting
- Fan: Variable Speed (115 Volt)
Propane (LP):
- Input (Hi): 26,000 Btu/hr (7.62 kW)
- Input (Lo): 18,000 Btu/hr (5.28 kW)
- Manifold Pressure:
- Hi: 10.0" w.c. (2.49 kPa)
- Lo: 6.4" w.c. (1.59 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 7.0" w.c. (1.74 kPa)
- Maximum: 13.5" w.c. (3.4 kPa)
- Orifice Size: #54 DMS
- Air Shutter: Open 1/2" min (12.7 mm)
- Control Valve Type: Skytech AF-40004 Robertshaw Apex Control B081
- Venting: 2-ply aluminum vent, ICC venting Duravent, Security Venting, Selkirk, or Metal-Fab Venting
- Fan: Variable Speed (115 Volt)
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
