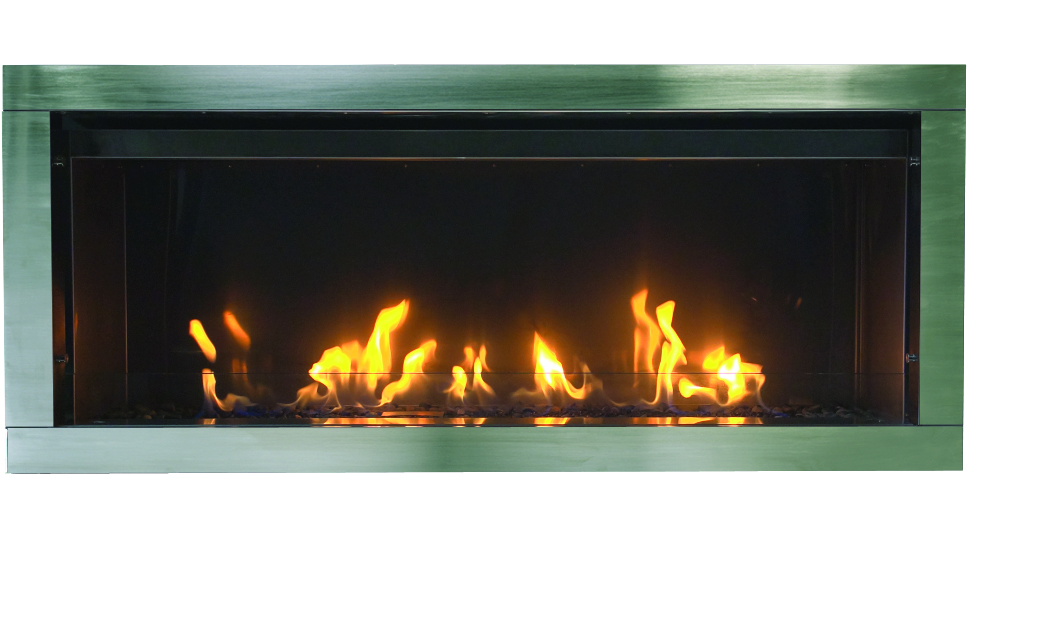

Sierra Flame Tahoe 450L Outdoor Ventless Gas Fireplace
The Sierra Flame Tahoe 450L Outdoor Ventless Linear Gas Fireplace (TAHOE-45-xx) is a sleek and modern addition to any outdoor space. Designed for flexibility, it can be built-in to accentuate its 3” trim or installed with finishing material right up to the glass for a clean face look. This stainless steel fireplace delivers 40,500 BTU of heat, powered by electronic ignition and a battery-operated system for ease of use. It features a durable 6” glass shield, a stainless steel pan burner with a criss-cross pattern, and a convenient kill switch for added safety.
The Tahoe 450L also comes with a remote control, allowing for effortless operation. The included 9-piece decorative rock media set, paired with striking black reflective fire glass media, enhances its contemporary appeal. With wood framing allowed, this fireplace offers a versatile installation that fits your style. The stainless steel construction ensures long-lasting durability, making it a reliable choice for your outdoor heating needs.
Features:
- 6” glass shield for safety and style
- 40,500 BTU output for efficient heating
- Durable stainless steel cover with kill switch
- Battery-powered electronic ignition for reliable starts
- Remote control for convenience
- Stainless steel pan burner with criss-cross pattern for even flame distribution
- Compatible with wood framing
- Includes a 9-piece decorative rock media set
- Black reflective fire glass media for a modern look
Specifications:
- Vent Type: Vent Free
- BTU Ratings:
- Natural Gas: High 40,500 / Low 29,000
- Propane: High 32,500 / Low 24,000

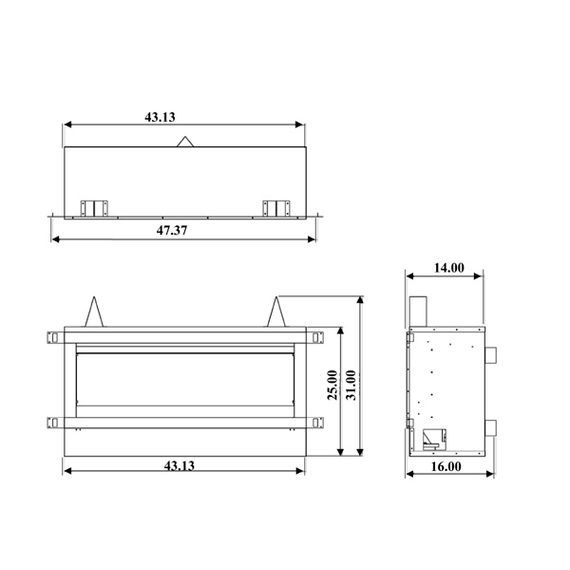

- Dimensions:
- Height: 25" (Actual), 31" (Framing)
- Width: 43 1/8" (Actual), 47 3/4" (Framing)
- Depth: 14" (Actual), 16" (Framing)
- Ceiling / Mantle Height: Internal ceiling = 48” Mantle height = 42”
Downloads:
Technical Specifications:
- Model: Tahoe
- Vent Type: Vent-less
- Height:
- Actual: 25”
- Framing: 31”
- Width:
- Actual: 43 1/8”
- Framing: 47 3/8”
- Depth:
- Actual: 14”
- Framing: 16”
Gas Specification
Natural Gas:
- Input:
- Hi: 40,500 Btu/hr (11.87 kW)
- Lo: 29,000 Btu/hr (8.5 kW)
- Gas Inlet Supply Pressure:
- Minimum: 5.0” w.c. (1.2 kPa)
- Maximum: 13.5” w.c. (3.4 kPa)
- Air Shutter Setting: Adjustable from 1/8” open to fully open
- Orifice Size (@ 0-2000’): #30 DMS
Propane (LP)
- Input:
- Hi: 32,500 Btu/hr (9.52 kW)
- Lo: 24,000 Btu/hr (7.03 kW)
- Gas Inlet Supply Pressure:
- Minimum: 12” w.c. (2.99 kPa)
- Maximum: 14” w.c. (3.49 kPa)
- Air Shutter Setting: Fully open
- Orifice Size (@ 0-2000’): #47 DMS
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
