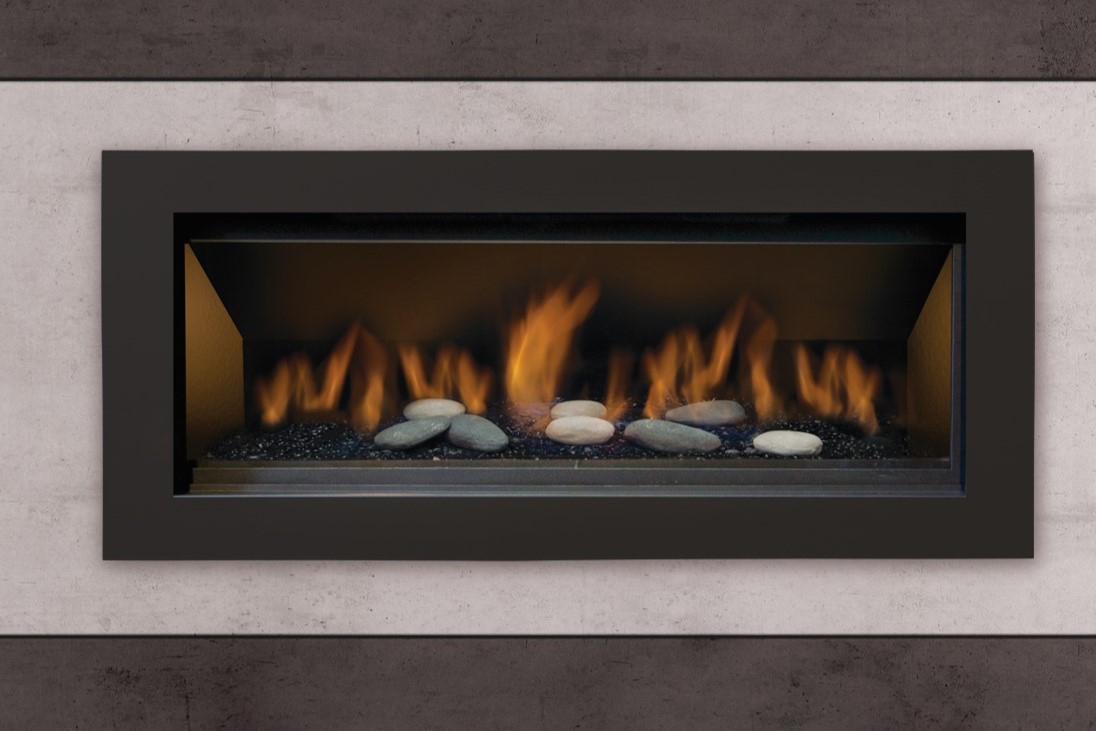

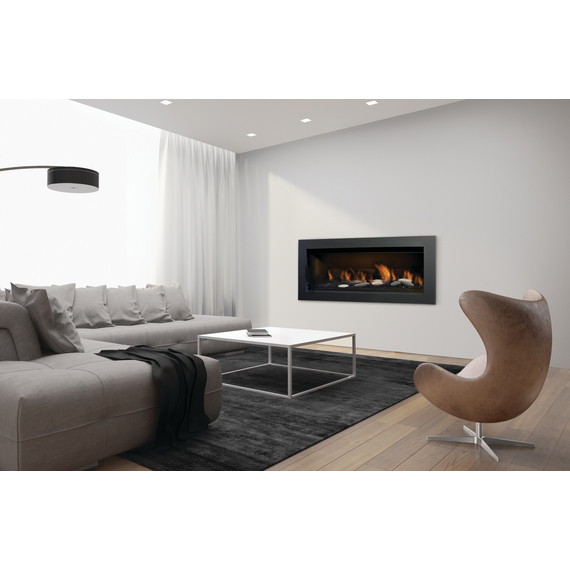

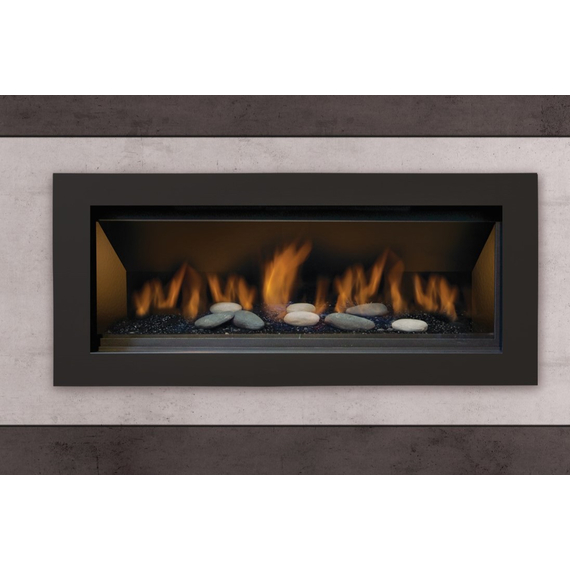

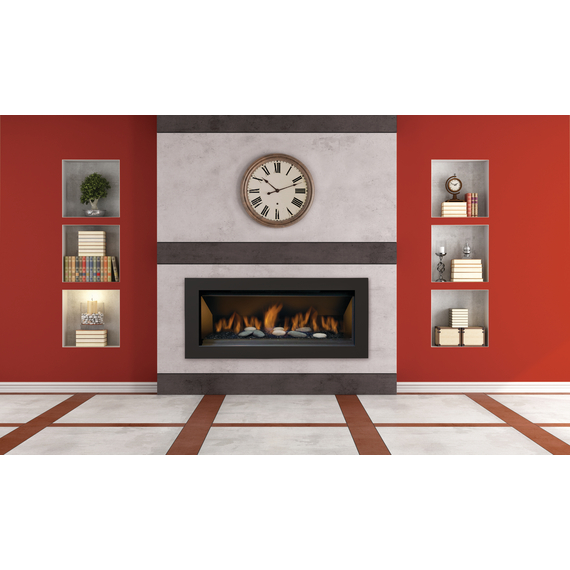

Sierra Flame Stanford 55L Direct Vent Gas Fireplace

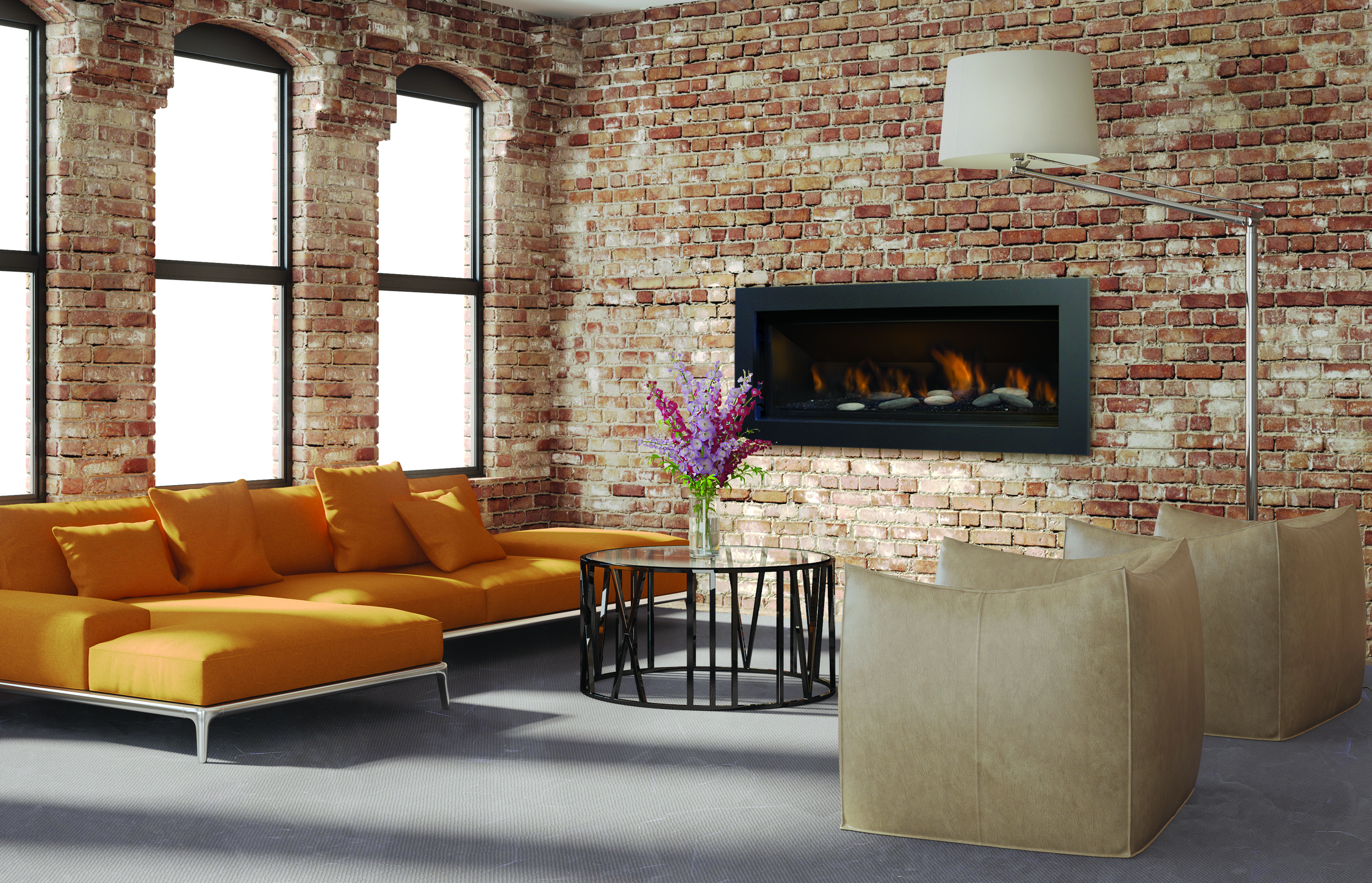

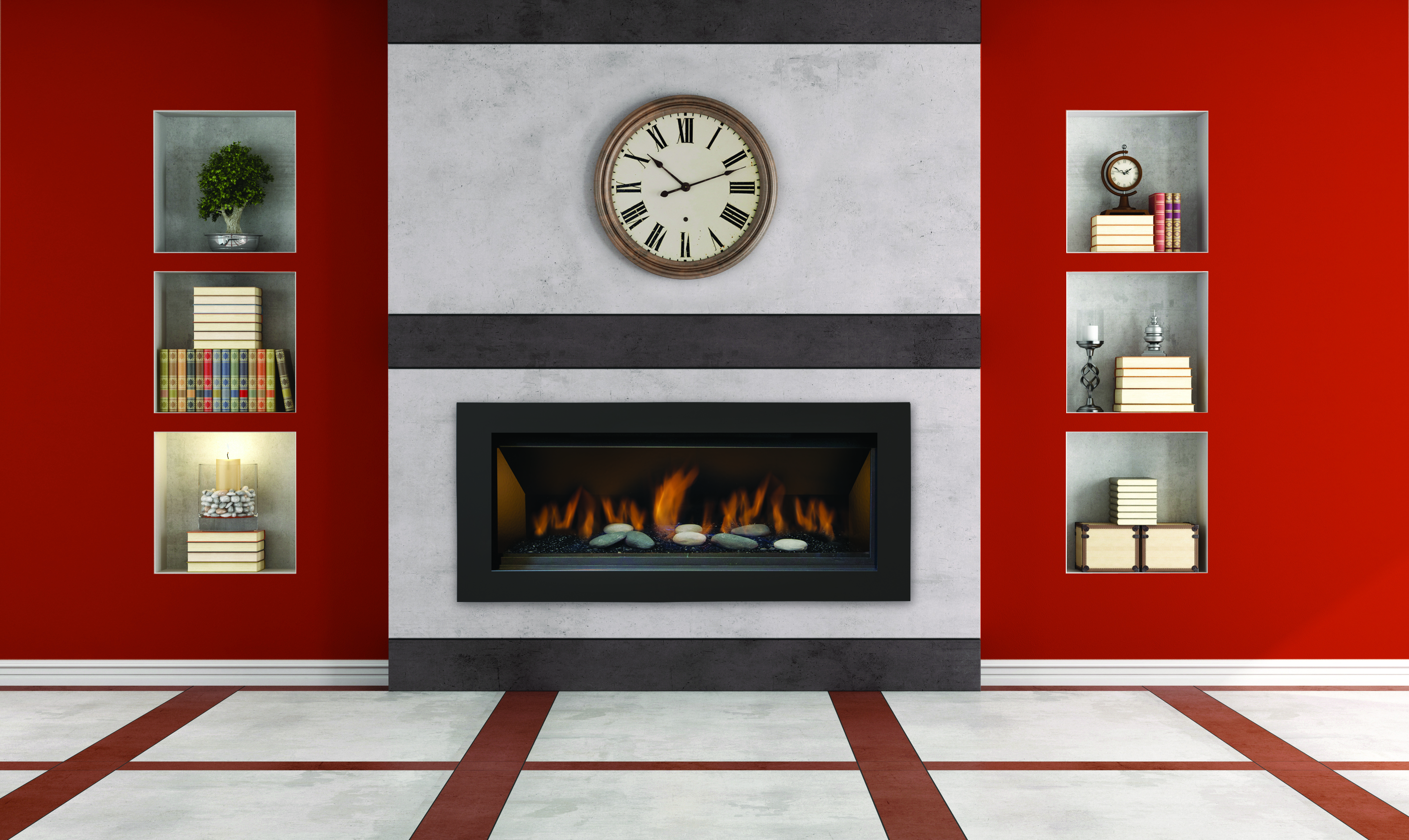

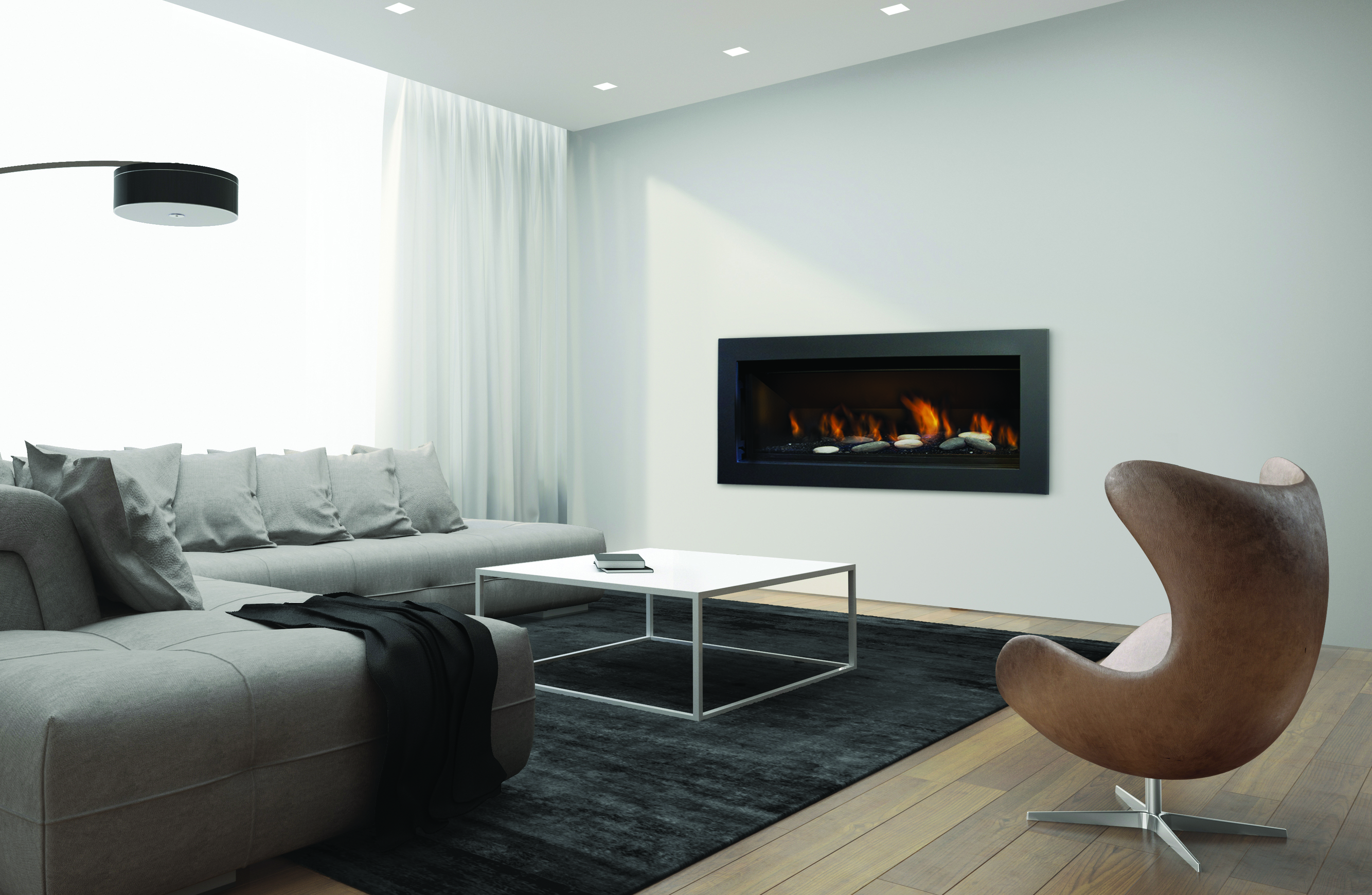

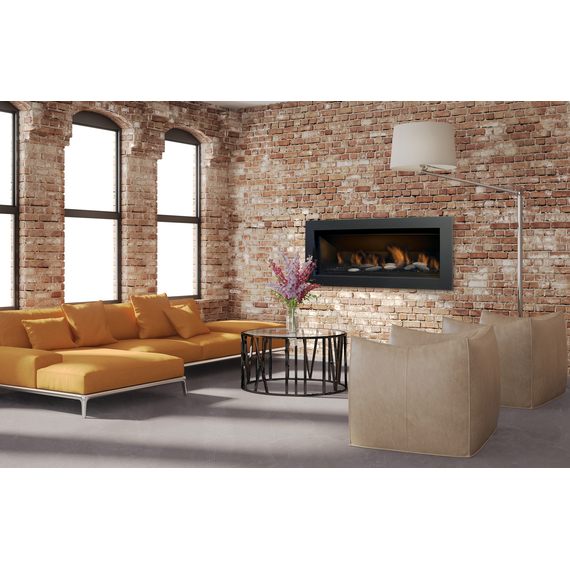

The Sierra Flame Stanford 55L Direct Vent Built-In Linear Gas Fireplace Deluxe System brings a balance of modern design and practical functionality to your home. Designed for effortless integration, this 55-inch fireplace offers a sleek flush-mount design, enhancing your living space with clean lines and contemporary appeal.
Its ceramic glass front provides a crisp, clear view of vibrant flames powered by a robust 36,000 BTU output. Whether using natural gas or propane, the Stanford 55L delivers consistent warmth, making it ideal for relaxing evenings or social gatherings. An electronic ignition system ensures quick, hassle-free starts, while a 7-stage modulating valve lets you fine-tune flame intensity to suit your mood.
The deluxe system includes a 7-day programmable thermostat remote for precise control over heating schedules. A dual fan kit with 6-stage adjustable control optimizes heat distribution, maintaining comfort throughout the room. Black porcelain panels and black reflective fire glass enhance the visual allure, creating a polished, luxurious centerpiece.

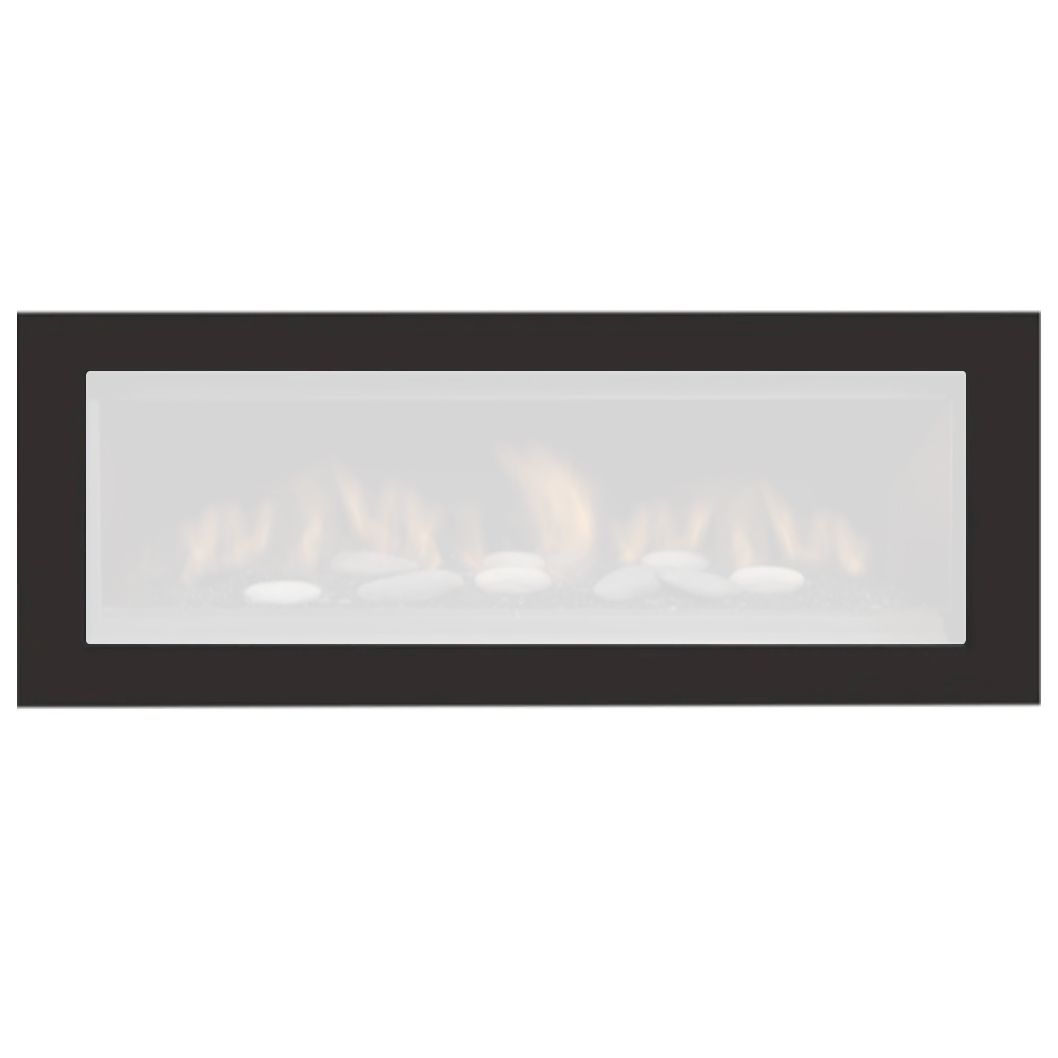

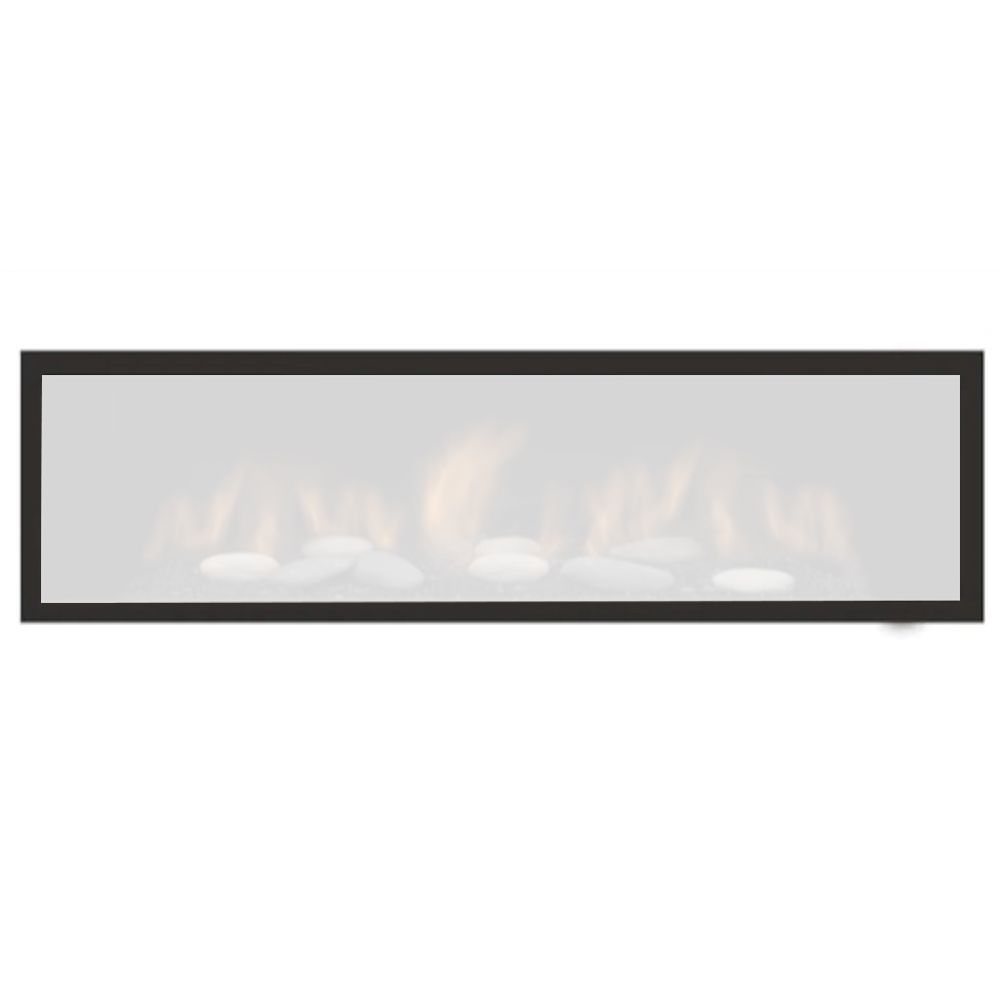

Safety is a priority with features like 100% safety shut-off, while a dual stainless steel pan burner ensures reliable performance. The fireplace comes with customizable options, including different surrounds and media sets, enabling you to tailor the design to complement your decor.
With a generous viewing area and refined features, the Sierra Flame Stanford 55L transforms your home into a stylish, cozy retreat, offering warmth and ambiance in every detail.
Features:
- Ceramic Glass: High-performance glass enhances heat transfer and durability.
- Flush Mount Design: Clean, seamless installation for a modern aesthetic.
- 36,000 BTU (Stanford Model): Provides efficient heating for larger spaces.
- Electronic Ignition: Reliable, hassle-free ignition system.
- 7-Day Programmable Thermostat Remote: Customizable comfort with advanced scheduling.
- 7-Stage Modulating Valve: Precision flame adjustment for optimal ambiance and heat control.
- Linear Style Burner with Dual Stainless Steel Pan Burners: Sleek burner design ensures even flame distribution.
- 100% Safety Shut-Off: Automatic shut-off feature for enhanced safety.
- Top Vent Only: Efficient venting directed from the top.
- Black Porcelain Panels: Reflective interior panels amplify the flames and add visual depth.
- Dual Fan Kit with 6-Stage Control: Improves heat circulation with adjustable speed settings.

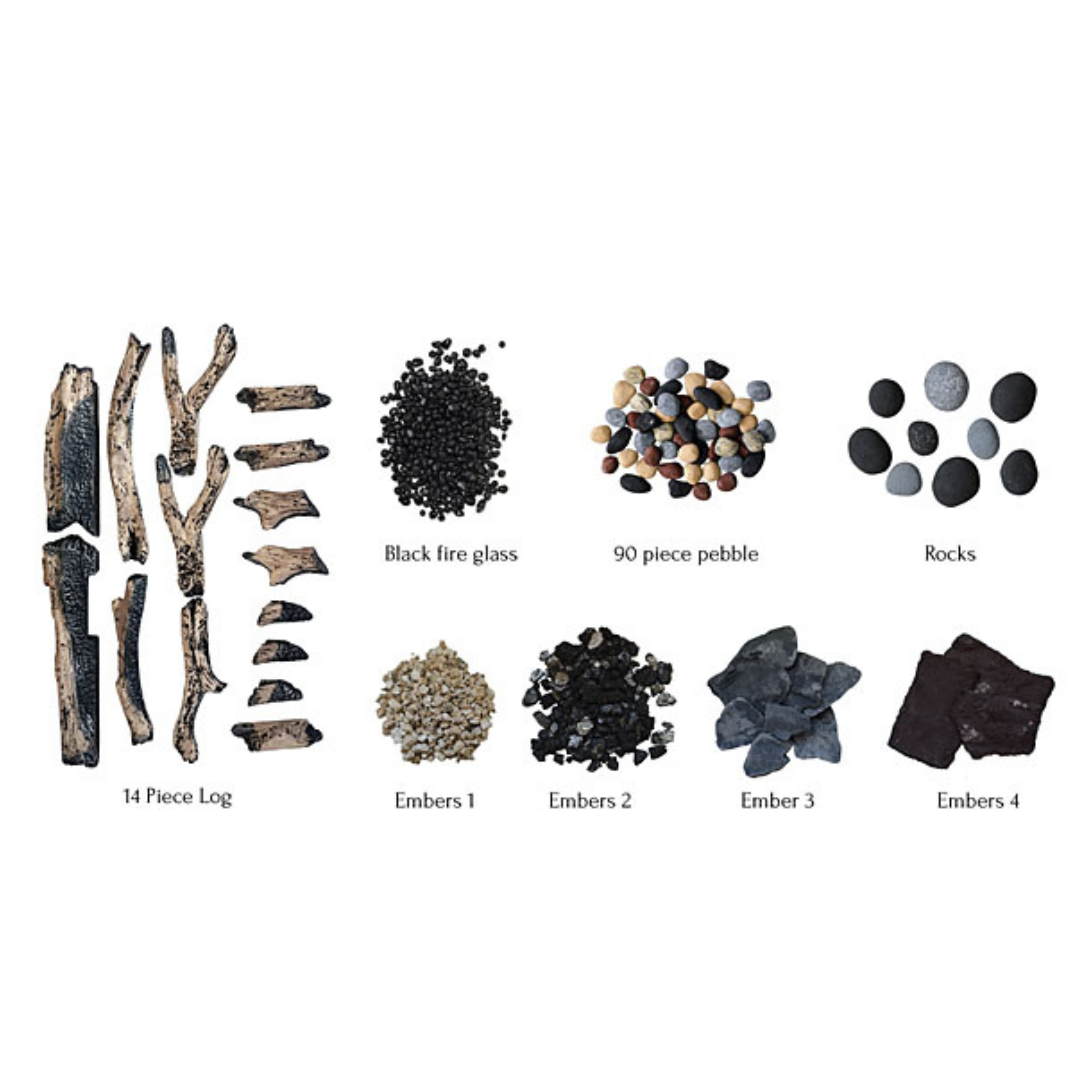

- Black Reflective Fire Glass Media: Adds a contemporary, glossy finish to the display.
- 9-Piece Decorative Rock Media Set: Enhances the natural, aesthetic appeal of the fire.
- Termination Kit: Essential venting components for a proper installation.
- Extra Decorative Rock Media (3-Piece Set): Customizable options for a personalized look.
- Fuel Options: Compatible with both Natural Gas (NG) and Liquid Propane (LP).
Specifications:
- BTU Output:
- Natural Gas: High 36,000 / Low 21,000
- Propane: High 32,000 / Low 26,000
- Vent Type: Top vent (4" & 7" options)
- Dimensions:
- Unit Size: 54.29" W x 29.86" H x 14.5" D
- Framing Size: 58.5" W x 39" H x 17.5" D
- Viewing Area: 52.75" W x 18.5" H
- Efficiency: 68.75% (EnerGuide rating)
Downloads:
Technical Specifications:
- Model: Stanford
- Vent Type: Top (4" & 7")
- Height:
- Actual: 29.86 Inches
- Framing: 39 Inches
- Width:
- Actual: 54.29 Inches
- Framing: 58 1/2 Inches
- Depth:
- Actual: 14 1/2 Inches
- Framing: 17 1/2 Inches
- Viewing Area:
- Height: 18 1/2 Inches
- Width: 52 3/4 Inches
- Efficiency: EnerGuide 68.75%
Natural Gas (NG):
- Maximum Input (Hi): 36,000 Btu/hr (10.55 kW)
- Minimum Input (Lo): 21,250 Btu/hr (6.23 kW)
- Manifold Pressure: 3.5" w.c. (0.87 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 5.0" w.c. (1.2 kPa)
- Maximum: 13.5" w.c. (3.4 kPa)
- Orifice Size (@ 0-2000'): 2 x #45 DMS
- Air Shutter: Open 3/8" min (9.525 mm)
- Control Valve Type: Skytech AF-40004
- Venting: 2-ply aluminum vent, Selkirk Duravent, Security Venting, ICC Venting, or Metal-Fab Venting
- Fan: Variable Speed (110 Volt / 60 Hz)
Propane (LP):
- Maximum Input (Hi): 32,000 Btu/hr (9.38 kW)
- Minimum Input (Lo): 26,000 Btu/hr (7.62 kW)
- Manifold Pressure: 10.0" w.c. (2.49 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 7.0" w.c. (1.74 kPa)
- Maximum: 13.5" w.c. (3.4 kPa)
- Orifice Size (@ 0-2000'): 2 x #56 DMS
- Air Shutter: Fully Open
- Control Valve Type: Skytech AF-40004
- Venting: 2-ply aluminum vent, Selkirk Duravent, Security Venting, ICC Venting, or Metal-Fab Venting
- Fan: Variable Speed (110 Volt / 60 Hz)
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
