Sierra Flame Palisade 36 Gas Fireplace

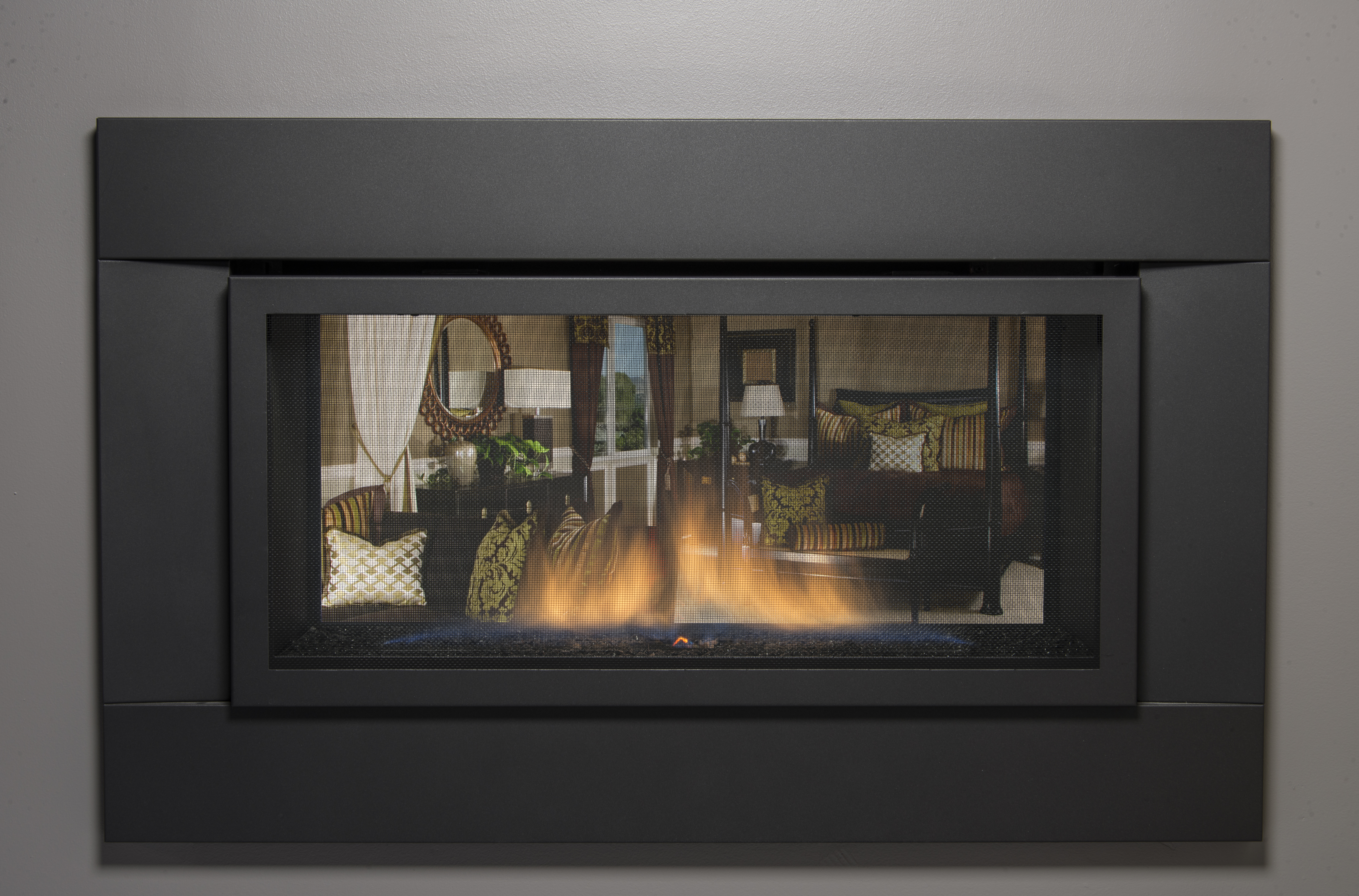

The Sierra Flame Palisade 36" Direct Vent Linear Gas Fireplace is a see-through model designed to add warmth and style to multiple spaces. It has a compact design at just 10 7/8 inches deep and features a curved front face. The glass viewing area measures 15 inches high by 32.5 inches wide, offering a clear view of the flames. This fireplace is available in Standard and Deluxe systems to suit different needs.
The Standard System is straightforward and reliable. It includes a clean-face design, two safety screens, and tempered glass. It has a 20,000 BTU output and comes with black porcelain panels, black reflective fire glass, and a 3-piece rock set. It uses side venting, electronic ignition, and a basic remote control for flame adjustments.
The Deluxe System enhances the Standard System by including more advanced functions. It has a modulating valve for adjusting flame height and heat levels. A fan kit enhances heat dispersion, while a deluxe digital remote enables more exact settings. Like the Standard, it includes black porcelain panels, black reflective fire glass, and a 3-piece rock set, but the additional features provide greater customization.

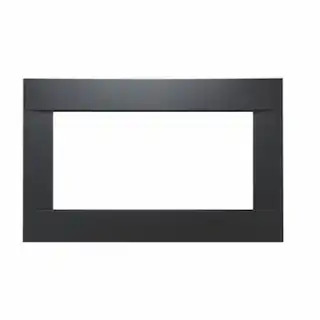

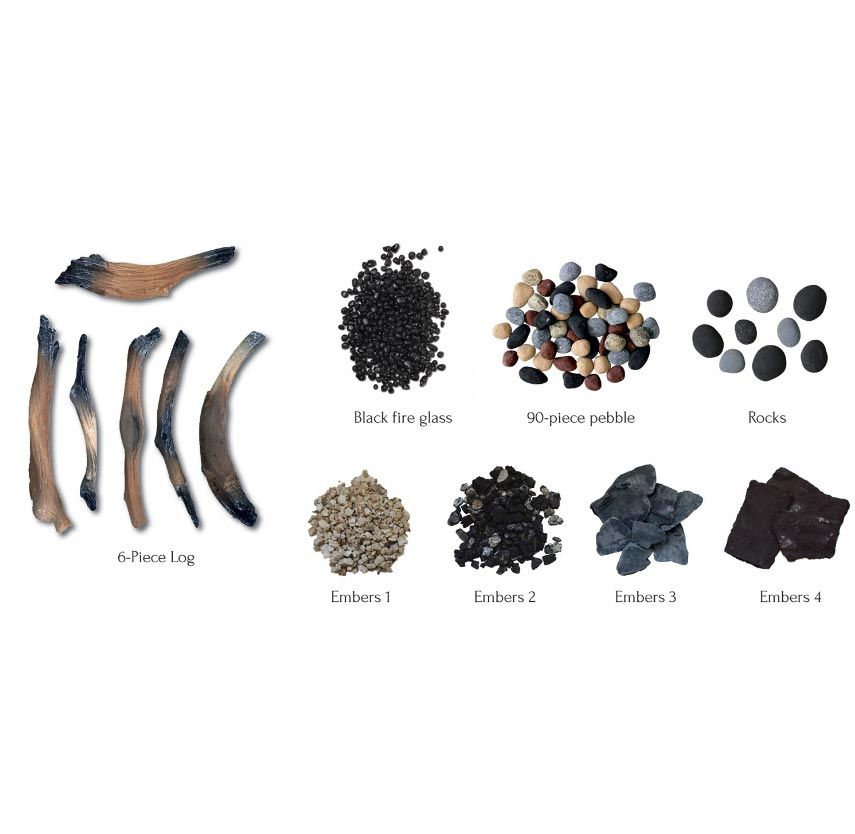

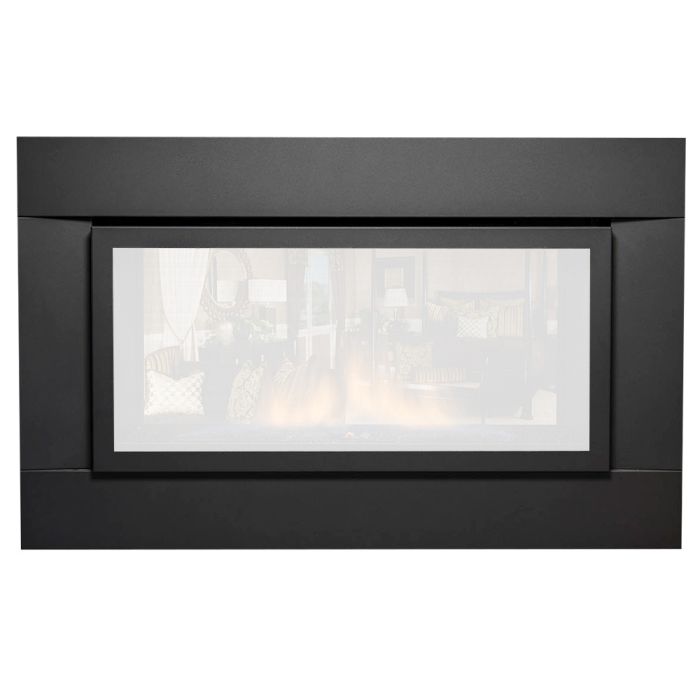

Both systems come standard with decorative black reflective fire glass and rocks. You can upgrade with a 6-piece log set that includes additional media such as fire glass, pebbles, rocks, and embers. Surrounds are available in black or stainless steel finishes, with or without access panels. Each surround measures 41.5 inches wide by 25.75 inches high. Extra decorative rock media is also available for those who want to customize the look further.
The Palisade operates with natural gas or liquid propane and includes a 100% safety shutoff for added security. A safety barrier is recommended for additional protection.
Whether you want more control options or simplicity, this fireplace lets you choose the type that best suits your needs.
Features:
- Standard System
- True clean face design
- 2 safety screens
- Standard Valve
- 20,000 BTU
- Electronic ignition
- Tempered glass
- 100% safety shut off
- Side vent only
- Black porcelain panels
- Remote control (Basic)

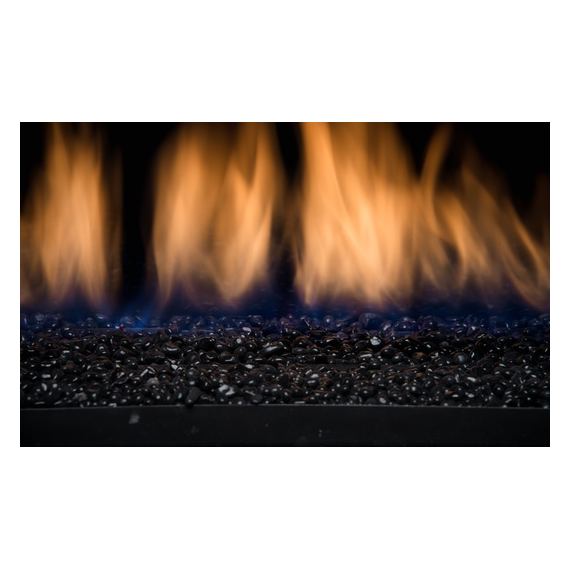

- Black reflective fire glass and rock set
- Deluxe System
- True clean face design
- 2 safety screens
- Modulating valve
- 20,000 BTU
- Electronic ignition
- Tempered glass
- 100% safety shut off
- Side vent only
- Black porcelain panels
- Deluxe digital remote control
- Fan kit
- Modulating valve
- Black reflective fire glass and rock set
Venting:
Termination Kits
These kits are designed for venting systems to safely terminate at exterior walls.
- TERM-KIT: Termination Kit for 4" x 7" vent
- Includes a firestop/wall thimble and a horizontal termination vent.
- For vent termination at exterior walls without flexible pipe.
Through-the-Roof Kits
These kits are used for venting systems that pass through the roof, providing essential components for installation and weatherproofing.
- TTRK: 5-Piece Duravent Through-the-Roof Kit
- Includes a 36" hard pipe, storm collar, high wind cap, 0926i adapter, and flashing.
- For standard roof installations, ensuring secure and weatherproof venting.
- TTRK-S: 5-Piece Duravent Through-the-Roof Kit - Steep
- Includes a 36" hard pipe, storm collar, high wind cap, 0926i adapter, and steep flashing.
- Designed for steep roof installations, ensuring proper flashing and protection.
Specifications:
- BTU Output:
- Natural Gas: 20,000 (High) | 13,000 (Low)
- Propane: 19,500 (High) | 13,500 (Low)
- Vent Type: Top (4" & 7")

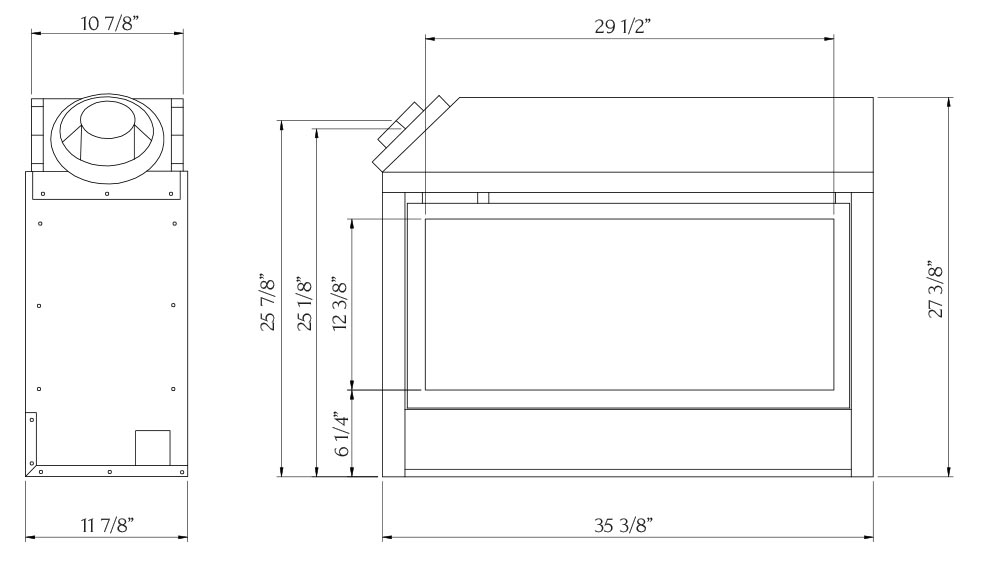

- Dimensions (Actual): 35.3" W x 27.38" H x 11.88" D
- Framing Dimensions: 39 1/2" W x 32" H x 10 7/8" D
- Viewing Area: 15" H x 32 1/2" W
- Efficiency: 63.45% (EnerGuide)
- Venting: 4” flex vent on exhaust side 7” flex vent on the air intake side **Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC
- Ceiling/Mantle Height: Internal ceiling = minimum 40” Mantle Height = minimum 40”
Downloads:
Technical Specifications:
- Model: Palisade
- BTU’s:
- Natural Gas: High 20,000 | Low 13,000
- Propane: High 19,500 | Low 13,500
- Vent: Top (4" & 7")
- Height:
- Actual: 27.38"
- Framing: 32"
- Width:
- Actual: 35.3"
- Framing: 39 1/2"
- Depth:
- Actual: 11.88"
- Framing: 10 7/8"
- Viewing Area:
- Height: 15"
- Width: 32 1/2"
- Efficiency (EnerGuide): 63.45%
Gas Specification
- Input (BTU/hr and kW):
- High: 20,000 BTU/hr (5.861 kW)
- Low: 13,000 BTU/hr (3.81 kW)
- Manifold Pressure:
- High: 3.5” w.c. (0.87 kPa)
- Low: 1.7” w.c. (0.42 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 5.0” w.c. (1.2 kPa)
- Maximum: 13.5” w.c. (3.4 kPa)
- Orifice Size (DMS):
- Main Orifice: #44 DMS
- Valve Orifice: #51 DMS
- Air Shutter Settings: Open 1/8” min (3.175 mm)
- Control Valve Type: Skytech AF-40004, Robertshaw
- Venting:
- 2-ply aluminum vent
- Compatible brands: Selkirk, Duravent, Metal-Fab, ICC, or Security Venting
- Fan: Variable Speed (115 Volt)
Specifications for Propane (LP)
- Input (BTU/hr and kW):
- High: 19,500 BTU/hr (5.71 kW)
- Low: 13,500 BTU/hr (3.96 kW)
- Manifold Pressure:
- High: 10.0” w.c. (2.49 kPa)
- Low: 6.4” w.c. (1.59 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 7.0” w.c. (1.74 kPa)
- Maximum: 13.5” w.c. (3.4 kPa)
- Orifice Size (DMS):
- Main Orifice: #56 DMS
- Valve Orifice: #60 DMS
- Air Shutter Settings: Fully open
- Venting:
- 2-ply aluminum vent
- Compatible brands: Selkirk, Duravent, Metal-Fab, ICC, or Security Venting
- Fan: Variable Speed (115 Volt)
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
