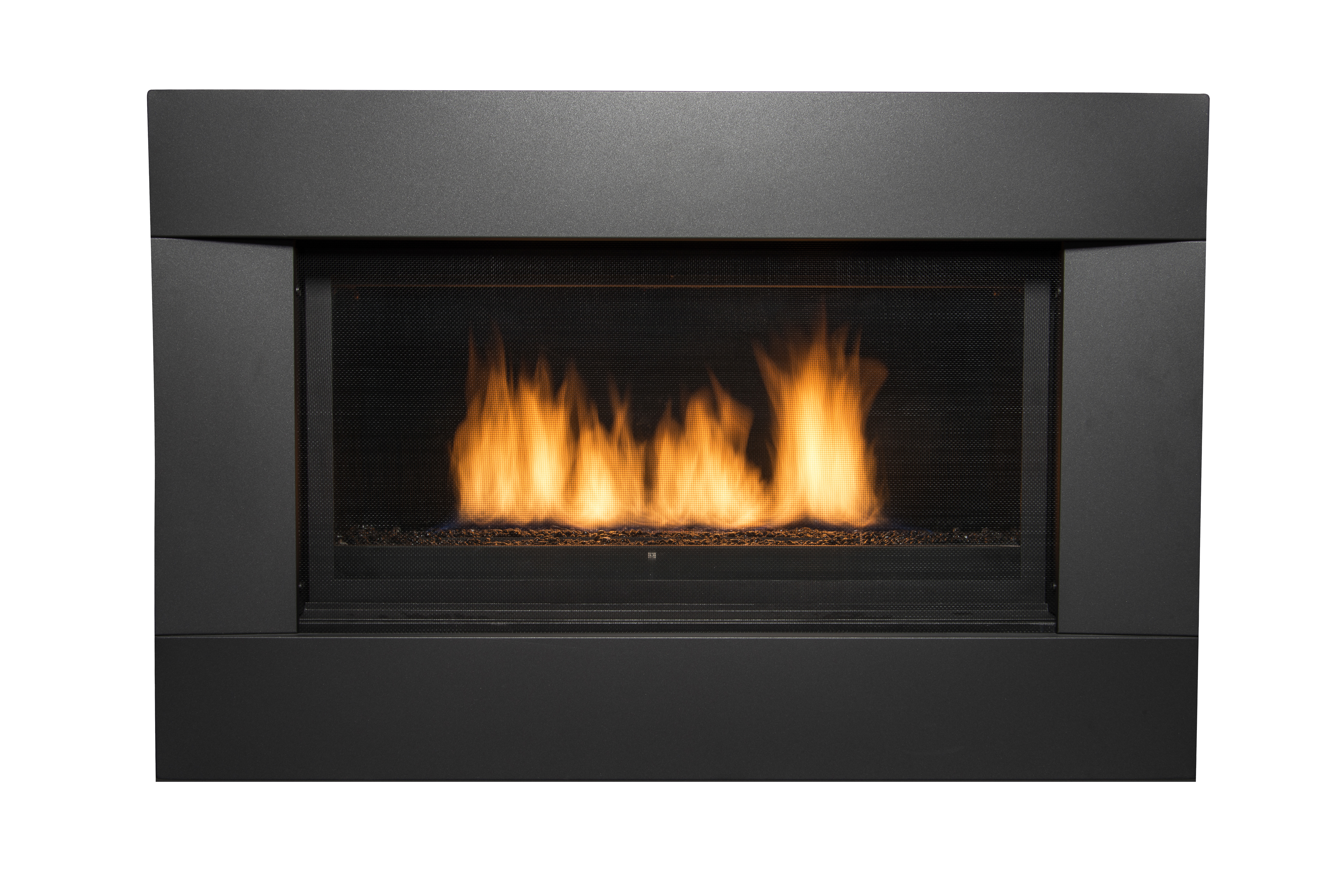

Sierra Flame Newcomb 36" Gas Fireplace
The Sierra Flame Newcomb 36" Direct Vent Linear Gas Fireplace is designed for flexibility and ease of use and is available in Standard and Deluxe configurations to meet varying needs. Both systems share a clean-face design with tempered glass, top venting, a 100% safety shutoff feature, and electronic ignition.
The Standard System comes with a basic remote control for straightforward flame adjustments that is ideal for those that value dependability and simplicity
The Deluxe System expands on these features, including a deluxe remote with a 7-day programmable thermostat for more precise temperature control. It also includes a 6-stage dual fan kit to improve heat circulation and a modulating valve that allows for accurate flame height and intensity adjustments. And its ideal for those who wants more personalization, These extra features make the Deluxe System an attractive alternative.
The Newcomb 36 has a glass viewing area measuring 15 inches high and 32.5 inches wide, providing a clear view of the fire. It can operate on either natural gas or liquid propane, depending on your fuel preference.

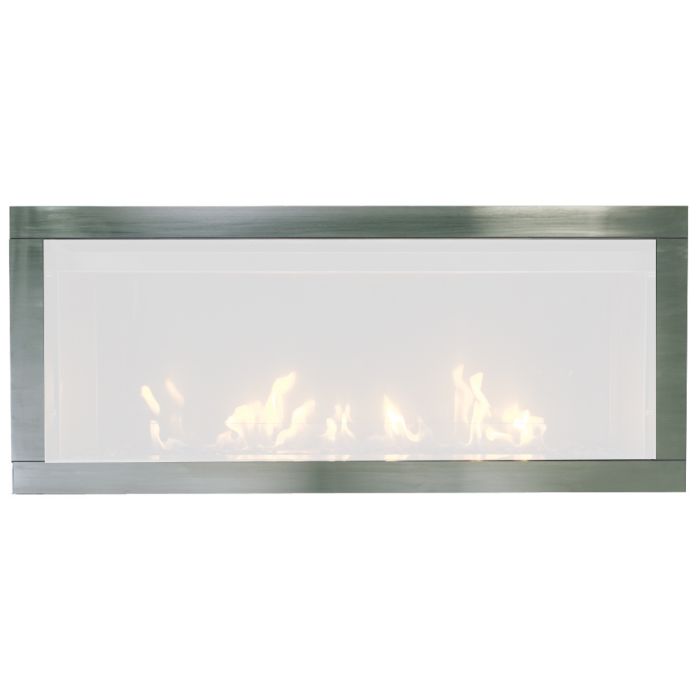

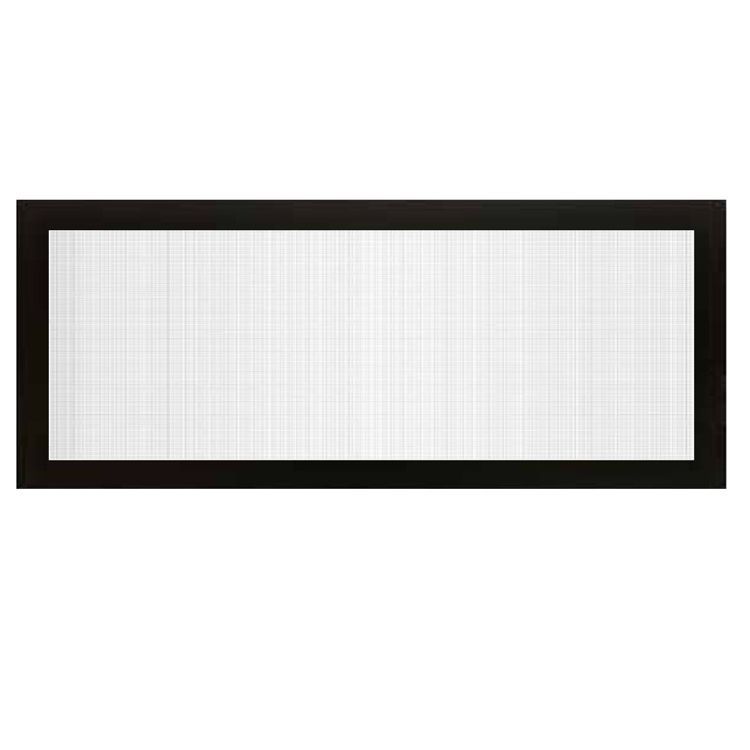

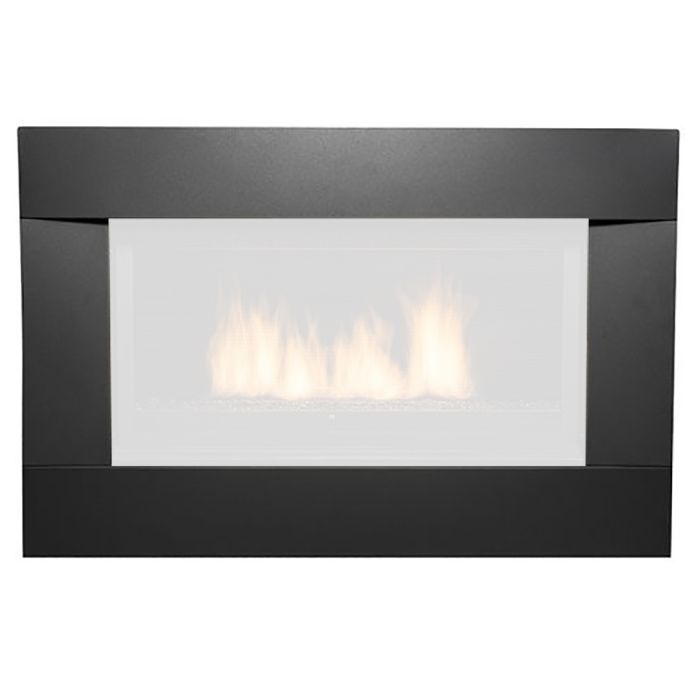

Optional accessories include stainless steel or black surrounds with safety barriers. The available sizes are 43.25 inches wide by 27.25 inches high for the stainless steel option and 38.25 inches wide by 25.5 inches high for the black surround. Additional optional features include a 6-piece design media kit with a log set and decorative accents such as black fire glass, pebbles, rocks, and embers. Extra decorative rock media is also available.
With distinct Standard and Deluxe options and a range of accessories, the Newcomb 36 is adaptable to both basic and more advanced heating and aesthetic preferences.
Features:
- Standard System – NEWCOMB-36
- Clean face design
- Tempered glass
- 100% safety shutoff
- Top vent only
- Electronic ignition

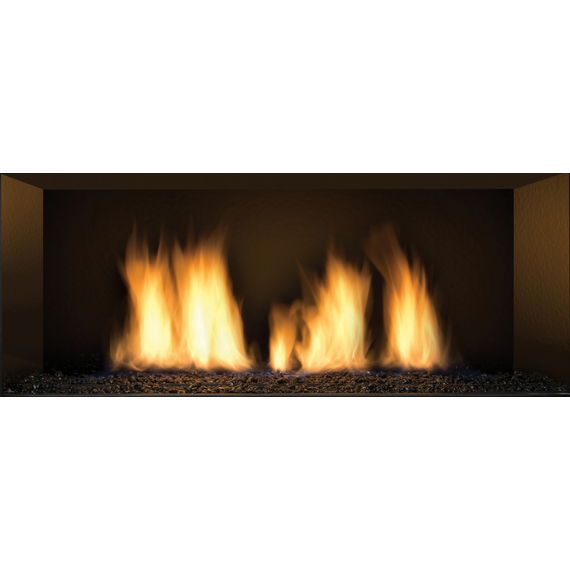

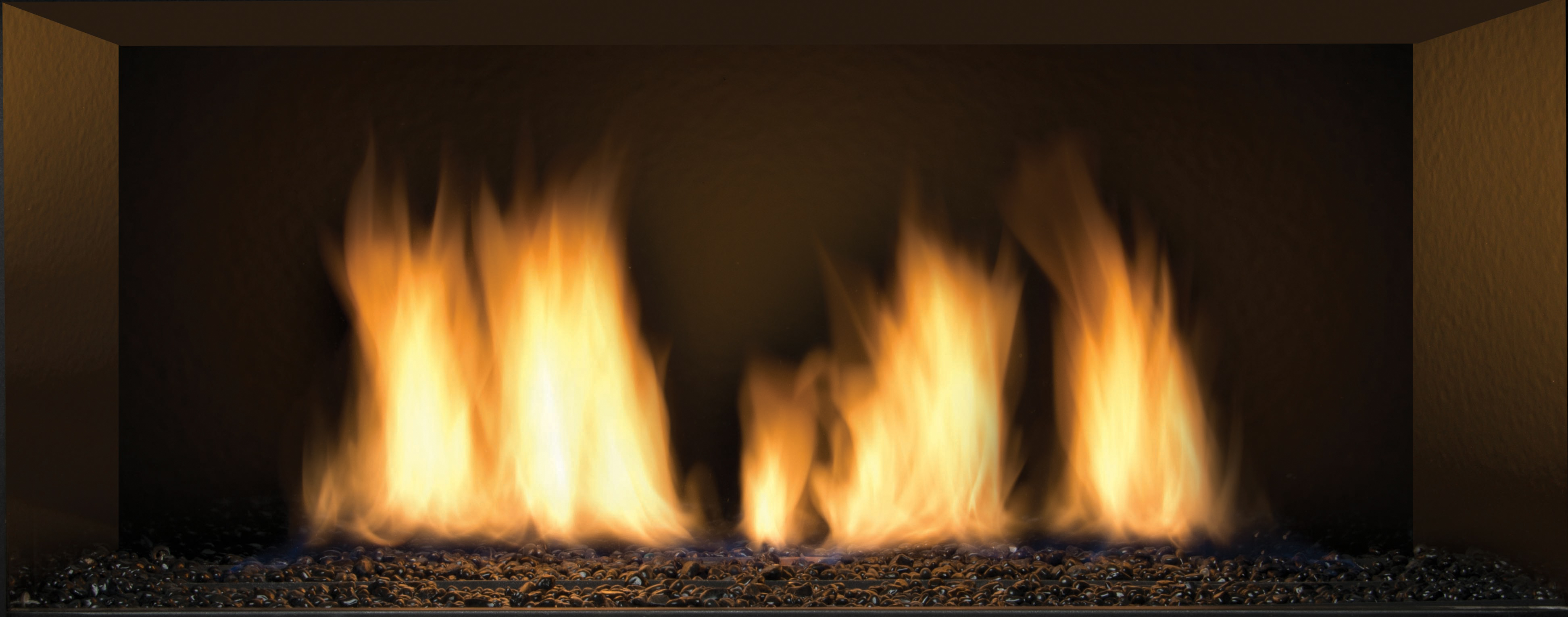

- Black porcelain panels
- Black glass and 3 piece rock set
- Basic remote control
- Deluxe System – NEWCOMB-36-DELUXE
- Clean face design
- Tempered glass
- 100% safety shutoff
- Top vent only
- Electronic ignition
- Black porcelain panels
- Black glass and 3 piece rock set
- Deluxe remote control
- Fan kit
- Modulating valve
Venting:
Termination Kits
These kits are designed for venting systems to terminate at exterior walls or for horizontal venting.
- TERM-KIT: Termination Kit for 4" x 7" vent
- Includes a firestop/wall thimble and a horizontal termination vent.
- For vent termination at exterior walls without flexible pipe.
- SF94217405: 4" x 7" Horizontal Flex Termination Kit
- Includes 5' of flexible pipe, one wall thimble, and a horizontal termination vent.
- For horizontal venting systems with flexible pipe.
Flex Components
These are designed for use with flexible vent pipes, providing extensions and couplers.
- SF94207410: 4" x 7" Coaxial Flex - 10' Length
- For coaxial vent systems requiring a 10' length of flexible vent pipe.
- SF942074C: 4" x 7" Flex Extension Coupler Kit
- For connecting or extending flexible vent pipes.
Adapters
Adapters allow smooth transitions between vent types (e.g., hard pipe to flexible pipe).
- DURA-HARD: Adapter for Hard Pipe Installations
- For transitioning from flexible vent pipe to hard pipe in venting systems.
- DURA-FLEX: Galvanized Adapter for Flex to Hard Pipe Installations
- For transitioning from hard pipe to flexible vent pipe.
Through-the-Roof Kits
These kits allow venting systems to pass through the roof and include components for weatherproofing.
- TTRK: 5-Piece Duravent Through-the-Roof Kit
- Includes a 36" hard pipe, storm collar, high wind cap, 0926i adapter, and flashing.
- For standard roof installations, ensuring secure venting and storm protection.
- TTRK-S: 5-Piece Duravent Through-the-Roof Kit - Steep
- Includes a 36" hard pipe, storm collar, high wind cap, 0926i adapter, and steep flashing.
- For steep roof installations with specialized flashing for added security.
Specifications:
- Vent Type: Top (4" & 7")

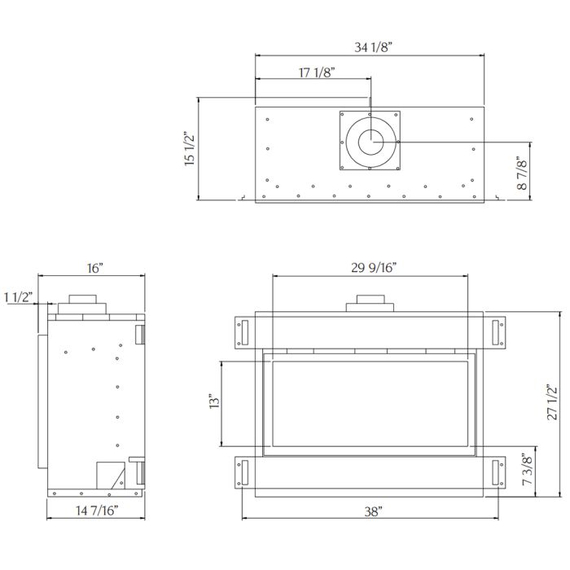

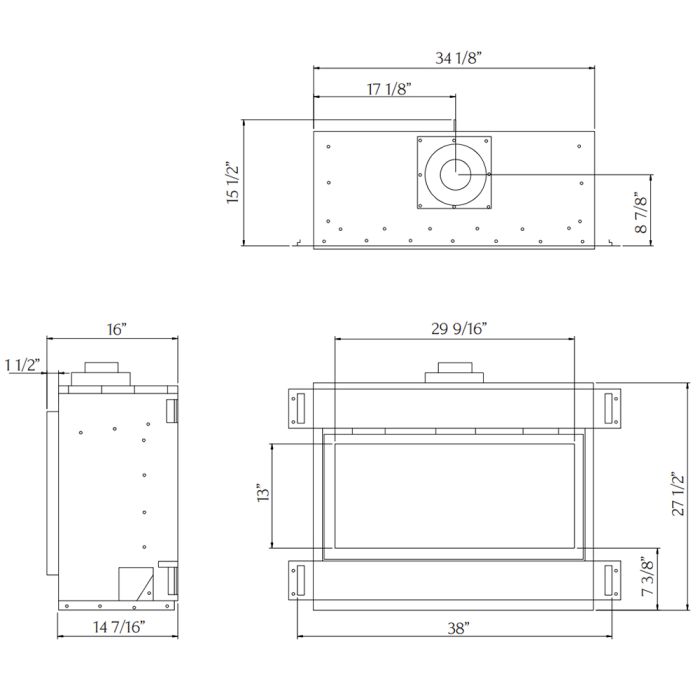

- Dimensions (Actual): 34 1/8" W x 27 1/2" H x 14 13/32" D
- Framing Dimensions: 38" W x 33 1/2" H x 15 1/2" D
- Viewing Area: 15" H x 32 1/2" W
- BTUS (NG): Hi 21,000- Lo 13,000
- AFUE / P.4 (NG EFFICIENCY): 65.1 %
- Weight: 115 lbs
- Venting: 4” flex vent on exhaust side 7” flex vent on the air intake sideg – **Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC
- Ceiling/Mantle Height: Internal ceiling = minimum 48” Mantle Height = minimum 40”
Downloads:
Technical Specifications:
- Model: Newcomb
- Vent: Top, 4" & 7"
- Height:
- Actual: 27 1/2"
- Framing: 33 1/2"
- Width:
- Actual: 34 1/8"
- Framing: 38"
- Depth:
- Actual: 14 13/32"
- Framing: 15 1/2"
- Viewing Area:
- Height: 15"
- Width: 32 1/2"
Natural Gas (NG)
- Input (Hi): 21,000 Btu/hr (6.15 kW)
- Input (Lo): 13,000 Btu/hr (3.81 kW)
- Manifold Pressure (Hi): 3.5" w.c. (0.87 kPa)
- Manifold Pressure (Lo): 1.7" w.c. (0.42 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 5.0" w.c. (1.2 kPa)
- Maximum: 13.5" w.c. (3.4 kPa)
- Orifice Size @ 0–4500': #43 DMS
- Valve Orifice @ 0–4500': #51 DMS
- Air Shutter: Open 1/8" min (3.175 mm)
- Control Valve Type: Skytech AF-40004 / Robertshaw
- Venting: 2-ply aluminum vent, Selkirk, Duravent, Metal-Fab, ICC, or Security Venting
- Fan: Variable Speed (115 Volt)
Propane (LP)
- Input (Hi): 20,750 Btu/hr (6.08 kW)
- Input (Lo): 13,000 Btu/hr (3.81 kW)
- Manifold Pressure (Hi): 10.0" w.c. (2.49 kPa)
- Manifold Pressure (Lo): 6.4" w.c. (1.59 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 7.0" w.c. (1.74 kPa)
- Maximum: 13.5" w.c. (3.4 kPa)
- Orifice Size @ 0–4500': #55 DMS
- Valve Orifice @ 0–4500': #60 DMS
- Air Shutter: Fully Open
- Control Valve Type: Skytech AF-40004 / Robertshaw
- Venting: 2-ply aluminum vent, Selkirk, Duravent, Metal-Fab, ICC, or Security Venting
- Fan: Variable Speed (115 Volt)
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
