Sierra Flame Lamego 45" Contemporary Gas Fireplace
_uktw-zz_e281-a2_sfb0-nj.png "Sierra Flame Stanford 55L (Included Accessories)")
The Sierra Flame Lamego 45" Zero Clearance Contemporary Gas Fireplace offers a seamless blend of modern design and efficient heating. Designed with sleek lines and thoughtful features, this gas fireplace enhances your living space with both style and functionality.

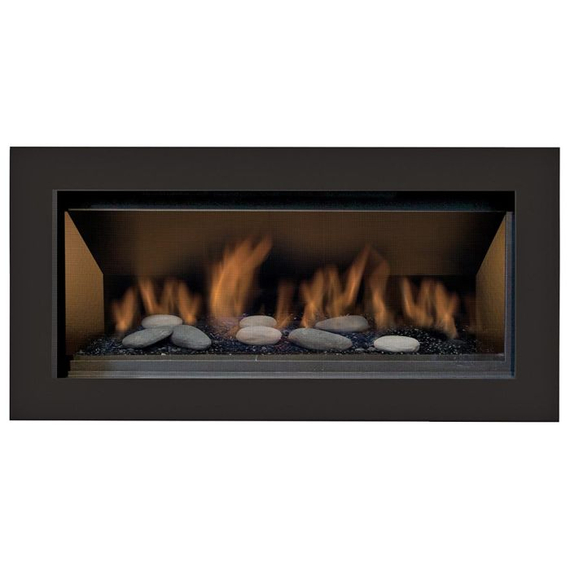

The fireplace comes equipped with a glass river pebble kit, creating a calm, natural aesthetic that complements contemporary interiors. Its clean face black surround with an integrated safety screen provides both elegance and added safety, making it an ideal choice for any household.
Built for performance, the Lamego features an aluminized steel pan burner that offers adjustable heat settings, delivering up to 30,000 BTUs on high and 22,000 BTUs on low. Whether you need a warm, inviting atmosphere or just a gentle touch of heat, this fireplace adapts to your comfort needs.
Enjoy the clear view of dancing flames through durable borosilicate glass, designed for both strength and clarity. The electronic ignition system simplifies operation, providing instant flames with a single push of a button.
With a 4” x 7” top venting configuration, installation is straightforward, and the pre-installed fan ensures efficient heat distribution for consistent comfort throughout your space.
The Sierra Flame Lamego 45" Zero Clearance Contemporary Gas Fireplace is a sophisticated addition to any home, combining style, warmth, and functionality into one exceptional centerpiece.
Features:
- 45” Large Modern Zero Clearance Linear Design: Sleek, contemporary linear fireplace ideal for modern spaces.
- 30,000 BTU on High / 22,000 BTU on Low: Adjustable heat output to suit different room sizes and comfort levels.
- Borosilicate Glass: High-quality, heat-resistant glass for durability and clear viewing.

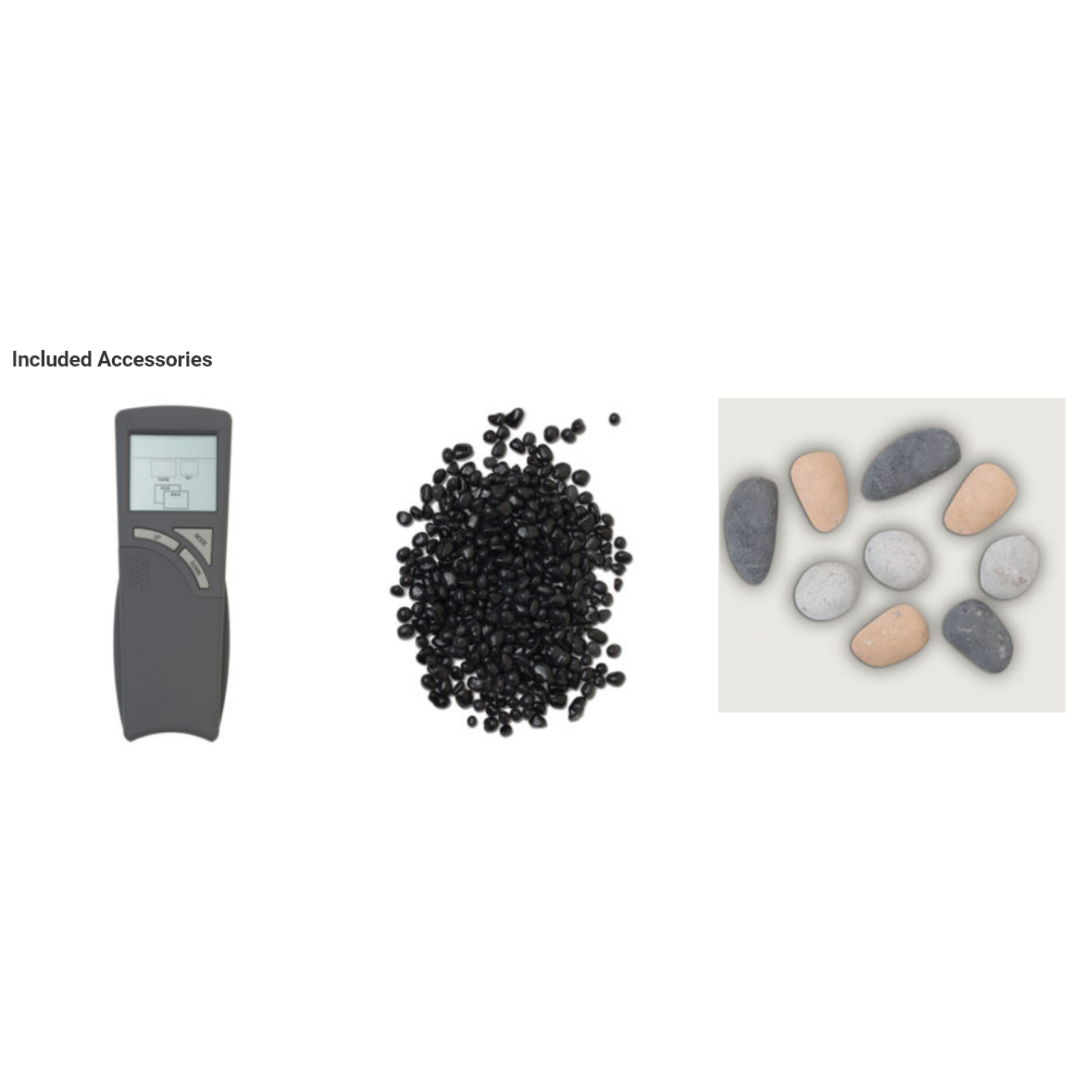

- Glass & Stone Media Included: A stylish mix of media for a striking fire display.
- Heat-Activated Variable Speed Fan: Efficient heat distribution with automatic fan speed adjustment.
- Clean Face Surround with Safety Screen: Minimalist design with an integrated safety screen for added protection.

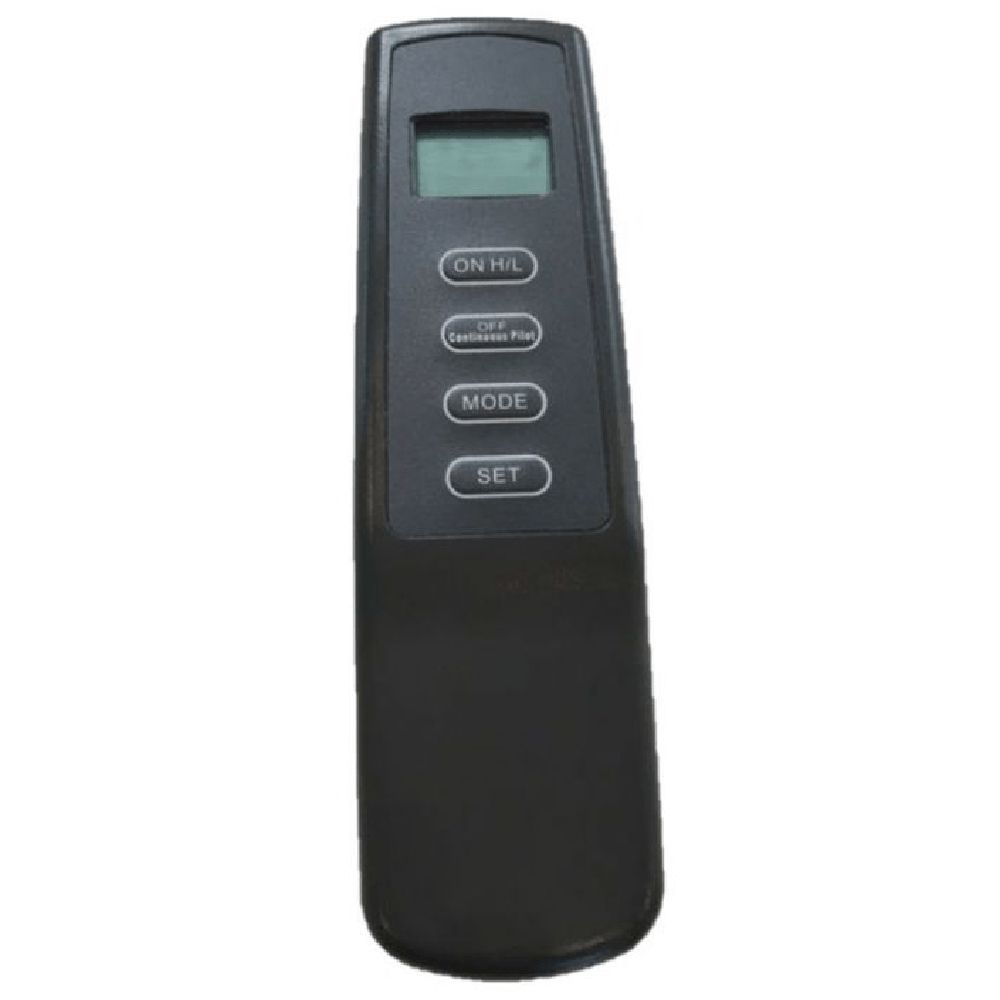

- Venting Material & Remote Control Not Included: Venting and remote control sold separately for customization.
Specifications:
- BTU Ratings:
- Natural Gas: High 30,000, Low 22,000
- Propane: High 27,000, Low 19,500
- Vent: Top (4" & 7")

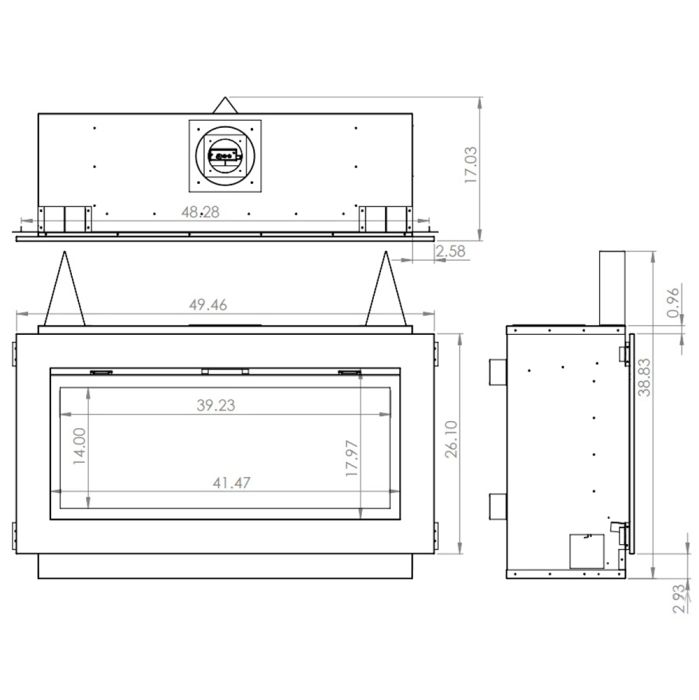

- Dimensions:
- Actual Size: 44 1/4" W x 29.86" H x 14 1/2" D
- Framing Size: 48 1/4" W x 39" H x 16 1/2" D
- Viewing Area: 42" W x 18 1/2" H
- Venting: 4” flex vent on exhaust side 7” flex vent on the air intake side, Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC
- Ceiling/Mantle Height: Internal ceiling = 58” Mantle height = minimum 42”
Downloads:
Technical Specifications:
- Model: Lamego 45"
- Vent: Top, 4" & 7"
- Height:
- Actual: 29.86"
- Framing: 39"
- Width:
- Actual: 44 1/4"
- Framing: 48 1/4"
- Depth:
- Actual: 14 1/2"
- Framing: 16 1/2"
- Viewing Area:
- Height: 18 1/2"
- Width: 42"
- Efficiency (EnerGuide): 69.50%
Natural Gas (NG)
- Maximum Input (Hi): 30,000 Btu/hr (8.79 kW)
- Minimum Input (Lo): 22,000 Btu/hr (6.45 kW)
- Manifold Pressure: 3.5” w.c. (0.87 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 5.0” w.c. (1.2 kPa)
- Maximum: 10.5” w.c. (2.61 kPa)
- Orifice Size: 2 x #49 DMS
- Air Shutter: Open 1/8" min (3.175 mm)
- Control Valve Type: Skytech AF-40004
- Venting:
- 2-ply aluminum vent
- Compatible with Selkirk, Duravent, Security Venting, ICC Venting, or Metal-Fab Venting
- Fan: Variable Speed (110 Volt / 60 Hz)
Propane (LP)
- Maximum Input (Hi): 27,000 Btu/hr (7.91 kW)
- Minimum Input (Lo): 19,500 Btu/hr (5.71 kW)
- Manifold Pressure: 10.0” w.c. (2.49 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 7.0” w.c. (1.74 kPa)
- Maximum: 13.0” w.c. (3.23 kPa)
- Orifice Size: 2 x #58 DMS
- Air Shutter: Fully Open
- Control Valve Type: Skytech AF-40004
- Venting:
- 2-ply aluminum vent
- Compatible with Selkirk, Duravent, Security Venting, ICC Venting, or Metal-Fab Venting
- Fan: Variable Speed (110 Volt / 60 Hz)
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
