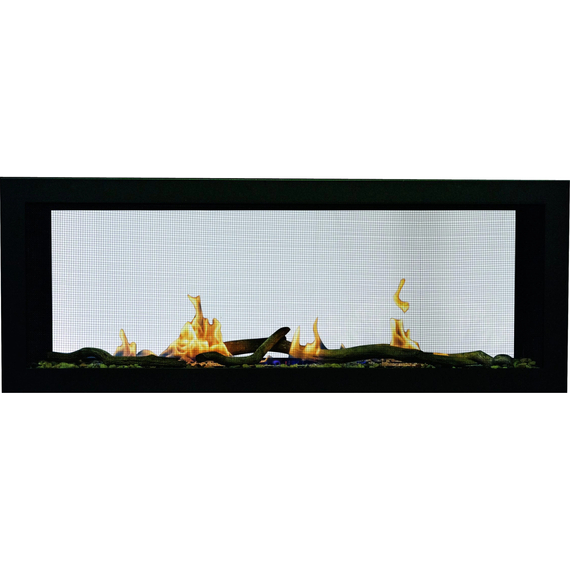

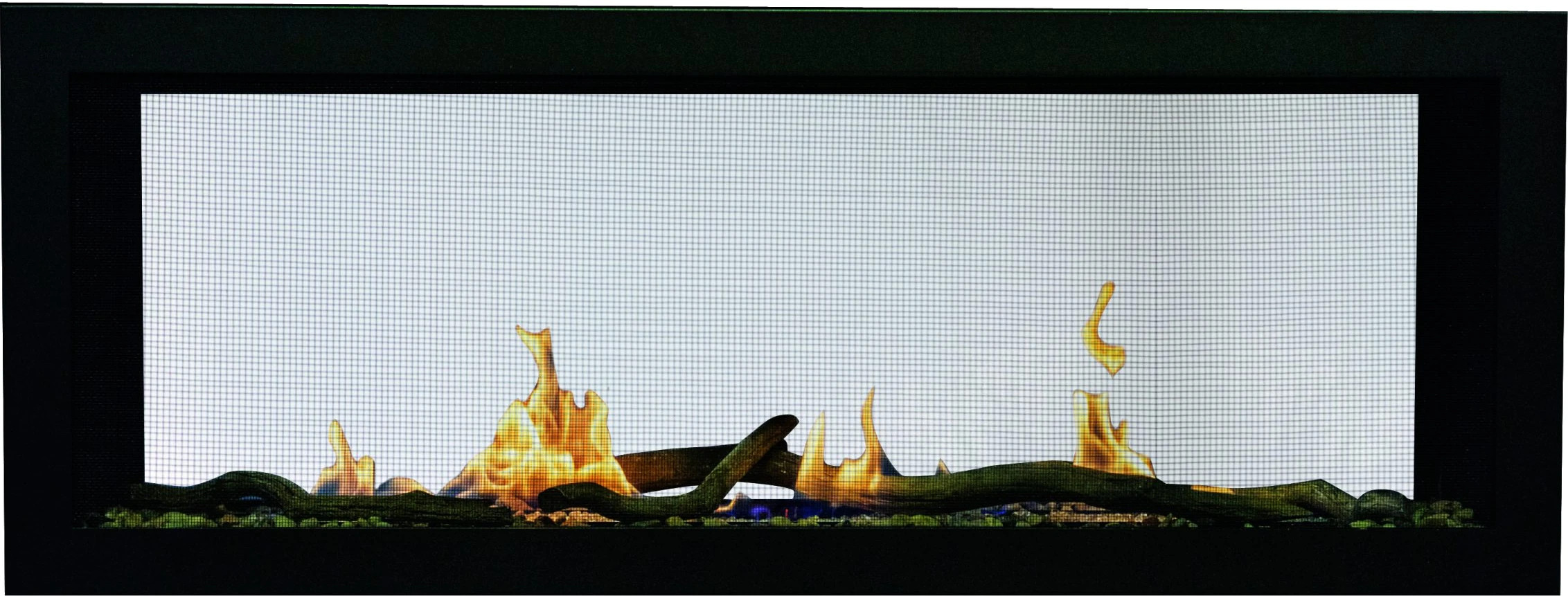

Sierra Flame Emerson 48" See Through Gas Fireplace
.jpg "Sierra Flame Emerson 48\" See Through Direct Vent Linear Gas Fireplace")

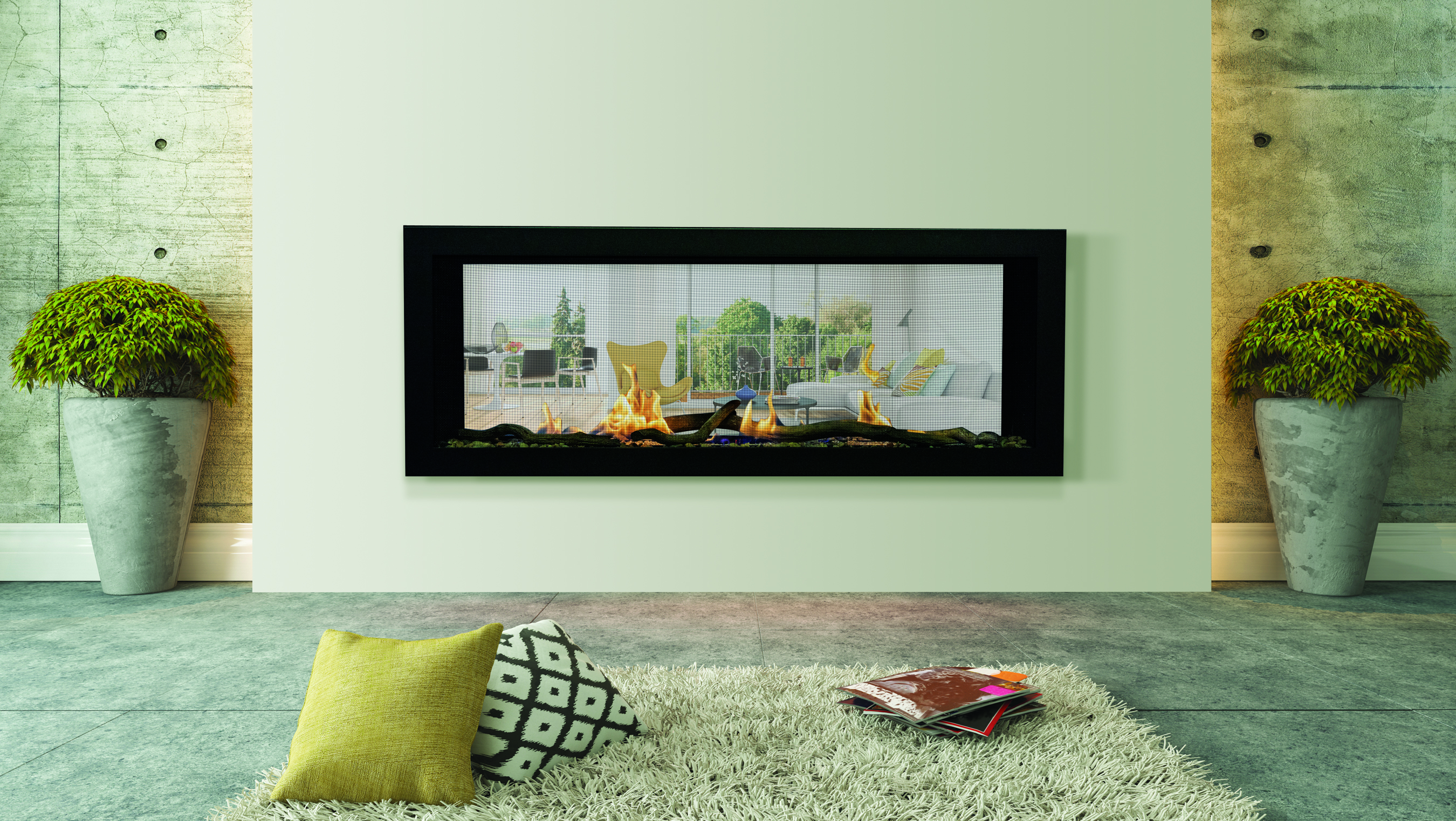

.jpg "Sierra Flame Emerson Installed")
A fireplace is more than just a source of heat; it transforms a house into a home. It creates a warm and inviting atmosphere that is perfect for relaxing evenings or gatherings. Additionally, a fireplace serves as a functional feature that provides comfort during colder months.
The Emerson 48ST is a 48-inch-wide see-through gas fireplace with a slim 9-inch depth. It provides warmth for your home and offers a heat output of 26,000 BTUs.
A new adapter kit allows for through-the-roof configurations for installations requiring a vertical setup. While the unit does not include a fan, it maintains a straightforward design that prioritizes simplicity.

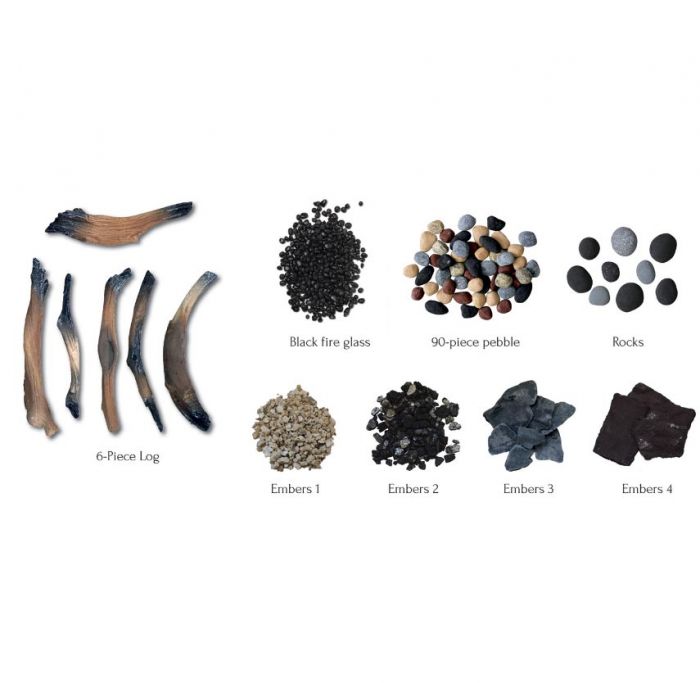

Optional features include a six-piece decorative media kit featuring logs, pebbles, rocks, and embers and an additional three-piece decorative rock set. The Emerson 48ST has two fuel options and features a glass viewing area measuring 13 inches high by 41 inches wide.
This fireplace combines functionality and modern aesthetics, making it a versatile addition to a variety of spaces.
Features:
- Borosilicate Glass: High-strength, heat-resistant glass for exceptional durability and clarity.
- Slim Profile (Just 9" Deep): Perfect for tight spaces without sacrificing performance.
- No Fan Required: Operates silently, creating a tranquil atmosphere.
- Dual Safety Screens: Designed for enhanced protection while maintaining a sleek aesthetic.
- Flush Clean Face Design: Modern, seamless integration with any decor.
- Powerful 26,000 BTU Heat Output: Efficiently warms your living space with ease.
- Electronic Ignition: Hassle-free startup for consistent performance.
- 7-Day Programmable Thermostat Remote: Customizable comfort at your fingertips with advanced control options.
- 7-Stage Modulating Valve: Precise flame adjustment for optimal heat and ambiance.
- Linear Style Burner: Delivers a contemporary flame presentation for a striking visual appeal.
- NG or LP Compatible: Flexible fuel options to suit your home's requirements.
- Top Vent Design: Ideal for spaces requiring vertical venting solutions.
- Includes 2 Non-Combustible Boards: Simplifies installation while ensuring safety.
- Steel Header: Provides robust support and structural integrity.
- Black Reflective Fire Glass Media: Creates a stunning, modern look to complement the flames.
- Dual Stainless Steel Pan Burner: Ensures even flame distribution and reliable performance.
Specifications:
- BTUs: Natural Gas: High 26,000 | Low 16,000
- Vent Type: Top (4" & 6")

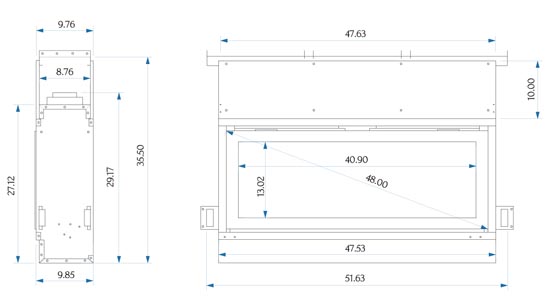

- Unit Dimensions: 47-63/64" W x 27" H x 9.85" D
- Framing Dimensions: 51-3/4" W x 56" H x 8-3/4" D
- Viewing Area: 41" W x 13" H
- Efficiency: 65.80% (EnerGuide)
Downloads:
Technical Specifications:
- Model: Emerson
- Vent Type: 4" & 6" Top Vent
- Dimensions:
- Actual Height: 27"
- Framing Height: 56"
- Actual Width: 47.63"
- Framing Width: 51 ¾"
- Actual Depth: 9.85"
- Framing Depth: 8 ¾"
- Viewing Area:
- Height: 13"
- Width: 41"
- Efficiency (EnerGuide): 65.80%
Natural Gas (NG) Specifications:
- BTU Input:
- Hi: 21,000 BTU/hr (6.15 kW)
- Lo: 13,000 BTU/hr (3.81 kW)
- Manifold Pressure:
- Hi: 3.5" w.c. (0.87 kPa)
- Lo: 1.7" w.c. (0.42 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 5.0" w.c. (1.2 kPa)
- Maximum: 13.5" w.c. (3.4 kPa)
- Orifice Size (@ 0–4500'):
- Burner: #43 DMS
- Valve: #51 DMS
- Air Shutter: Open 1/8" min (3.175 mm)
- Control Valve Type: Skytech AF-40004 Robertshaw
- Venting: Compatible with 2-ply aluminum vent, Selkirk, Duravent, Metal-Fab, ICC, or Security Venting
- Fan: Variable Speed (115 Volt)
Propane (LP) Specifications:
- BTU Input:
- Hi: 20,750 BTU/hr (6.08 kW)
- Lo: 13,000 BTU/hr (3.81 kW)
- Manifold Pressure:
- Hi: 10.0" w.c. (2.49 kPa)
- Lo: 6.4" w.c. (1.59 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 7.0" w.c. (1.74 kPa)
- Maximum: 13.5" w.c. (3.4 kPa)
- Orifice Size (@ 0–4500'):
- Burner: #55 DMS
- Valve: #60 DMS
- Air Shutter: Fully Open
- Control Valve Type: Skytech AF-40004 Robertshaw
- Venting: Compatible with 2-ply aluminum vent, Selkirk, Duravent, Metal-Fab, ICC, or Security Venting
- Fan: Variable Speed (115 Volt)
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
