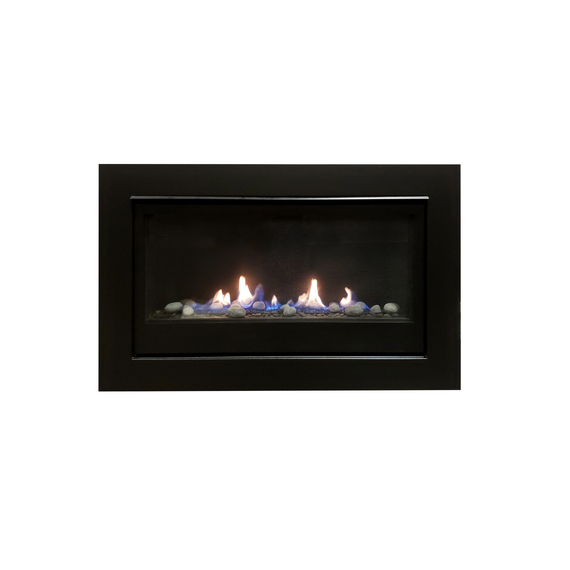

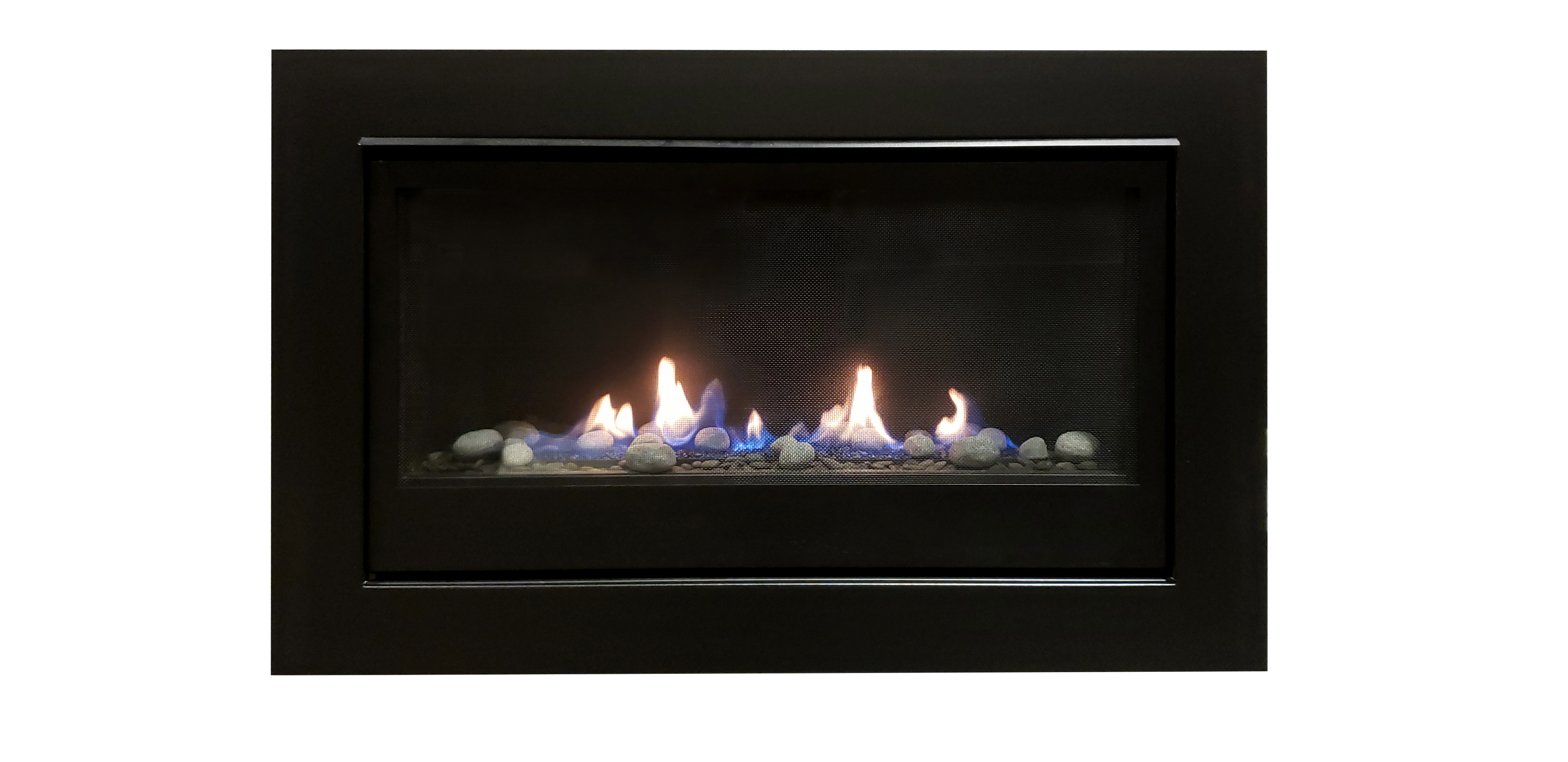

Sierra Flame Boston 36" Builders Gas Fireplace
The Sierra Flame Boston-36" Builders Direct Vent Linear Gas Fireplace combines contemporary design with reliable performance, making it a refined addition to your living space. Designed to balance form and function, this fireplace creates a warm and inviting atmosphere while maintaining a modern aesthetic.
Its true linear design integrates seamlessly into various settings, offering a clean, streamlined appearance. Included accessories, such as tempered glass, a safety screen, and a black glass kit with a grey pebble kit, enhance both safety and visual appeal, creating a stylish focal point for your room.
Built for durability and efficiency, the Boston-36" features a stainless steel burner and top vent configuration, ensuring consistent performance and proper ventilation. The 4” x 6” venting accommodates both natural gas and liquid propane options, providing flexibility to suit your home's needs.
Installation is straightforward, thanks to a 40” internal ceiling and compact framing depth of 9-5/8”. The optional black surround allows you to customize the fireplace’s look, blending effortlessly with your décor.
Convenience is key with the Boston-36". The electronic ignition system provides easy operation, and the included fan kit optimizes heat distribution for a cozy, evenly warmed space.
Whether used as a centerpiece for quiet evenings or as a gathering spot for entertaining, the Sierra Flame Boston-36" Builders Direct Vent Linear Gas Fireplace delivers warmth and modern elegance, making it a versatile and functional enhancement to your home.
Features:
- True Linear Design: Modern aesthetic with a sleek, streamlined look.
- Tempered Glass: Durable and heat-resistant for clear viewing and safety.

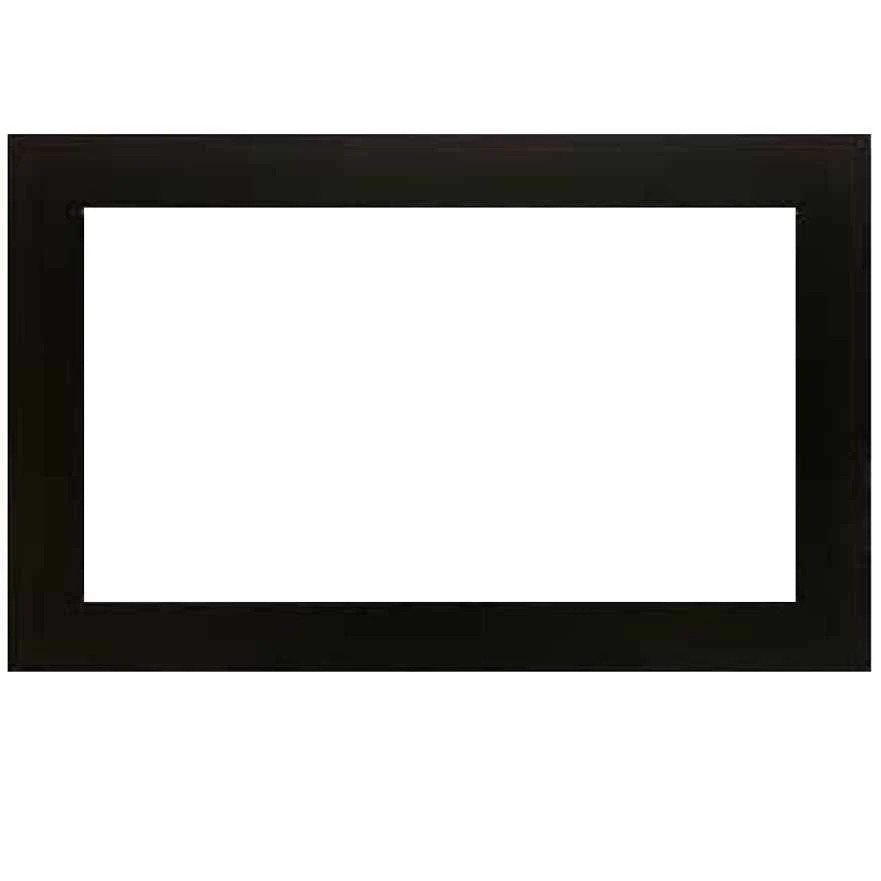

- Optional Black Surround with Safety Screen: Adds a finished appearance and protection.
- Black Glass Kit & Grey Pebble Kit: Includes stylish media options for a contemporary fire display.
- Stainless Steel Burner: Durable and efficient, offering consistent performance.
- Top Vent Design: Optimized venting for efficient airflow and installation flexibility.
- Electronic Ignition Only: Reliable ignition system for hassle-free operation.
- Full Fan Kit: Ensures even heat distribution throughout the room.
- Thermostatic Remote (Available for Purchase): Provides convenient temperature control for the electronic ignition system.
- 4” x 6” Venting Configuration: Supports efficient venting.
- Fuel Options: Compatible with both Natural Gas (NG) and Liquid Propane (LP).
Specifications:
- BTU Input: Hi 16,000 Lo 11,500 (Natural Gas) Hi 16,000 Lo 10,000 (Liquid Propane)
- Dimensions:
- Actual Size: 34.91" W x 25.44" H x 10.24" D
- Framing Size: 37" W x 30 1/4" H x 9 5/8" D
- Viewing Area: 30 1/2" W x 12 3/4" H
- Efficiency: 69.50% (EnerGuide rating)
- Venting: 2-ply aluminum vent , Top (4" & 6")
Downloads:

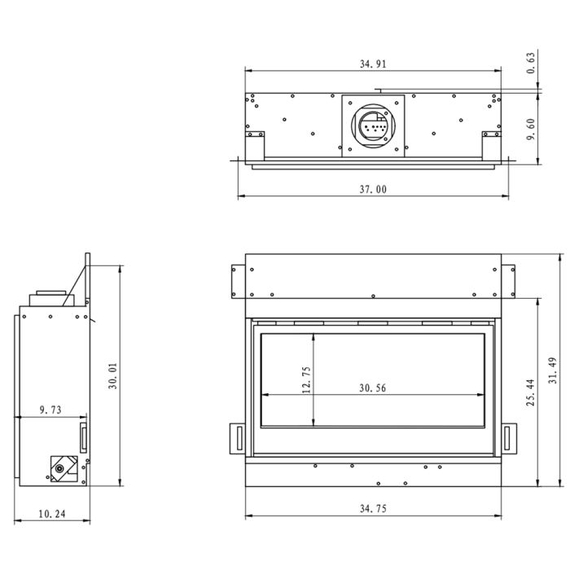

Technical Specifications:
- Model: Boston 36"
- Vent: Top, 4" & 6"
- Height:
- Actual: 25.44"
- Framing: 30 1/4"
- Width:
- Actual: 34.91"
- Framing: 37"
- Depth:
- Actual: 10.24"
- Framing: 9 5/8"
- Viewing Area:
- Height: 12 3/4"
- Width: 30 1/2"
- Efficiency (EnerGuide): 69.50%
Natural Gas (NG):
- Input:
- Hi: 16,000 Btu/hr (4.69 kW)
- Lo: 11,500 Btu/hr (3.37 kW)
- Manifold Pressure:
- Hi: 3.5" w.c. (0.87 kPa)
- Lo: 1.7" w.c. (0.42 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 5.0" w.c. (1.2 kPa)
- Maximum: 10.5" w.c. (2.61 kPa)
- Orifice Size (at 0-4500’): # 48 DMS
- Air Shutter: Open 1/8" min (3.175 mm)
- Control Valve Type: Skytech AF-40004
- Venting: 2-ply aluminum vent
Propane (LP):
- Input:
- Hi: 16,000 Btu/hr (4.69 kW)
- Lo: 10,000 Btu/hr (2.93 kW)
- Manifold Pressure:
- Hi: 10.0" w.c. (2.49 kPa)
- Lo: 6.4" w.c. (1.59 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 7.0" w.c. (1.74 kPa)
- Maximum: 13.0" w.c. (3.23 kPa)
- Orifice Size (at 0-4500’): # 56 DMS
- Air Shutter: Fully open
- Control Valve Type: Skytech AF-40004
- Venting: 2-ply aluminum vent
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
