Sierra Flame Bennett 45 Direct Vent Gas Fireplace

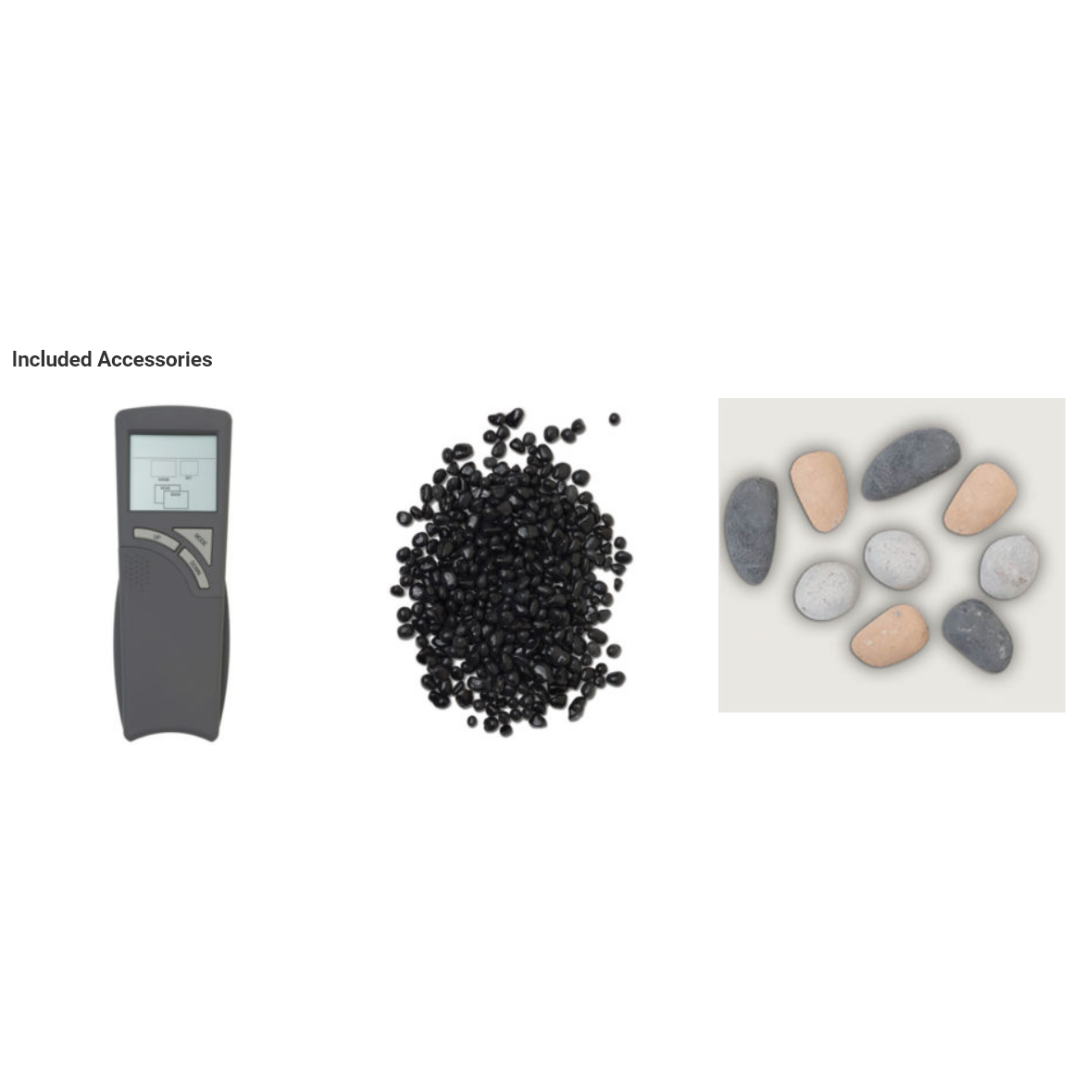

_uktw-zz_e281-a2.png "Sierra Flame Stanford 55L (Included Accessories)")

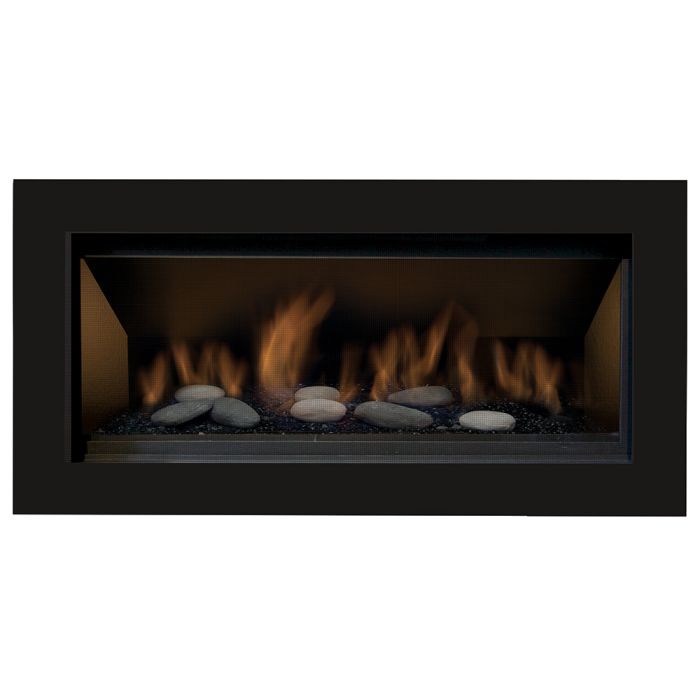

The Sierra Flame Bennett 45 Direct Vent Built-In Linear Gas Fireplace (BENNETT-45-xx) brings sleek modern aesthetics and efficient heating to your home. With its minimalist flush-mount design and premium ceramic glass, this fireplace offers an uninterrupted view of dynamic flames, adding warmth and visual appeal to any space.
The black porcelain panels enhance the contemporary design, while the included black reflective fire glass and 9-piece decorative rock media set create an engaging focal point. Whether you're relaxing solo or hosting guests, the Bennett fireplace complements the atmosphere with style.
Designed for convenience, the 7-day programmable thermostat remote allows you to adjust flame intensity and temperature effortlessly. A 30,000 BTU output, paired with a 7-stage modulating valve, delivers efficient heating with precise control, ensuring comfort throughout your room. The linear-style burner creates a mesmerizing flame display that pairs functionality with visual charm.
Built for reliable performance, the Bennett fireplace features a dual fan kit with a 6-stage adjustable control to evenly distribute heat. Safety features like the 100% shut-off mechanism provide peace of mind, while fuel options for natural gas or propane offer installation flexibility. The electronic ignition system ensures quick and reliable starts every time.
Elevate your living space with the Sierra Flame Bennett 45 Direct Vent Built-In Linear Gas Fireplace—a blend of modern design, advanced functionality, and luxurious comfort.
Features:
- Ceramic Glass: Durable glass for optimal heat transfer and clear flame visibility.
- Black Porcelain Panels: Reflective interior enhances the fire's depth and visual appeal.
- Flush Mount Design: Seamless integration for a clean and modern look.
- 30,000 BTU Output (Bennett Model): Ideal for medium to large spaces.
- Linear Style Burner with Dual Stainless Steel Pan Burners: Sleek and even flame presentation.
- 7-Stage Modulating Valve: Precise flame adjustment for tailored ambiance.
- Electronic Ignition: Reliable, hassle-free startup.
- Deluxe Digital Remote Control: Includes a 7-day programmable thermostat for personalized comfort.

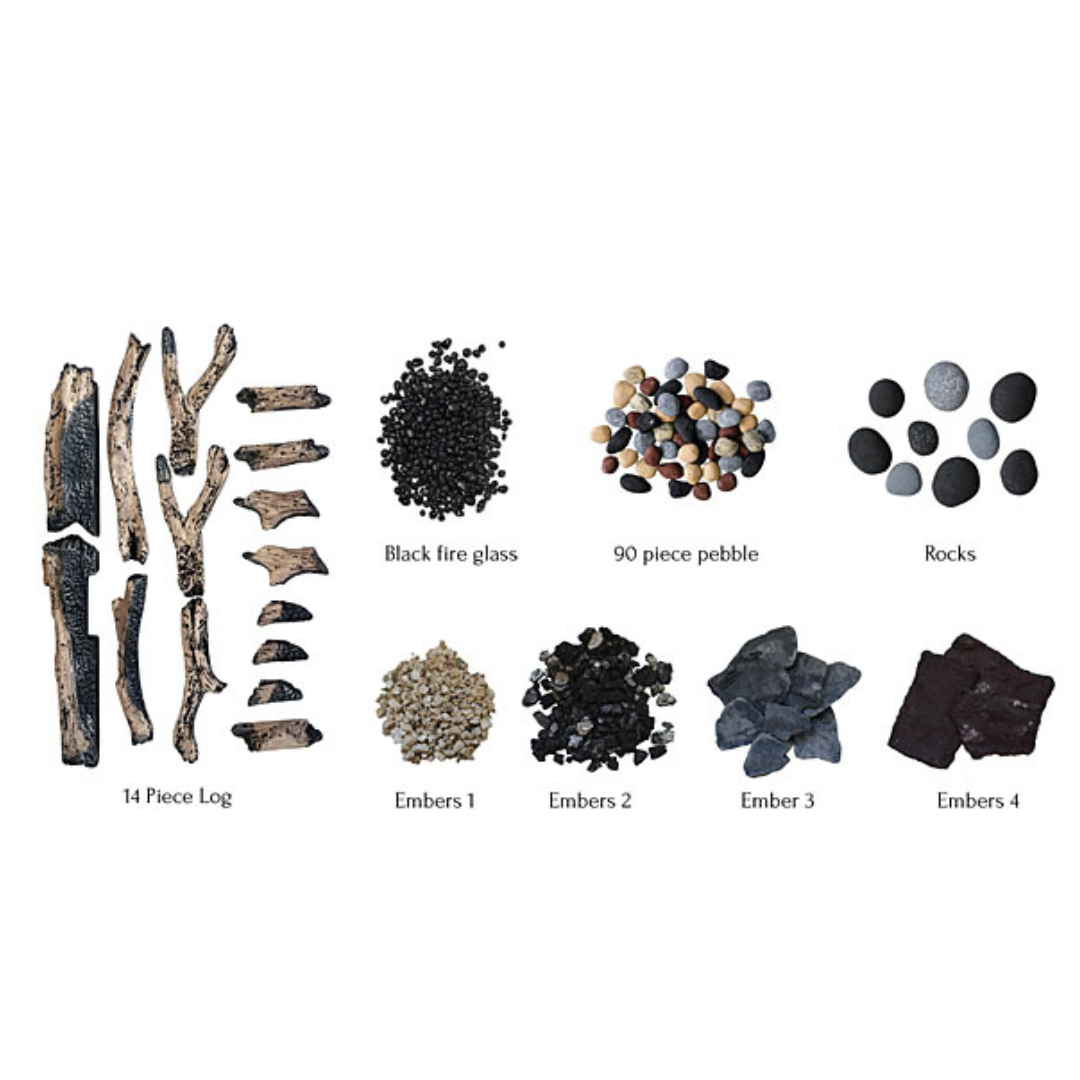

- Black Reflective Fire Glass Media & 9-Piece Decorative Rock Set: Contemporary media options for a striking display.
- Dual Fan Kit with 6-Stage Adjustable Control: Efficiently circulates warmth throughout the room.
- 100% Safety Shut-Off: Provides peace of mind by automatically shutting down in emergencies.
- Fuel Options: Supports Natural Gas (NG) and Liquid Propane (LP).
- Top Vent Only: Ensures efficient and straightforward venting.
- Glass Viewing Area: 16-1/2” H x 42” W, offering an expansive and captivating view of the flames.
- Fuel Options: Available in Natural Gas (NG) or Liquid Propane (LP) configurations to suit your preferences.
Specifications:
- BTU Output:
- Natural Gas: High 30,000 / Low 22,000
- Propane: High 27,000 / Low 19,500
- Vent Type: Top vent (4" & 7")

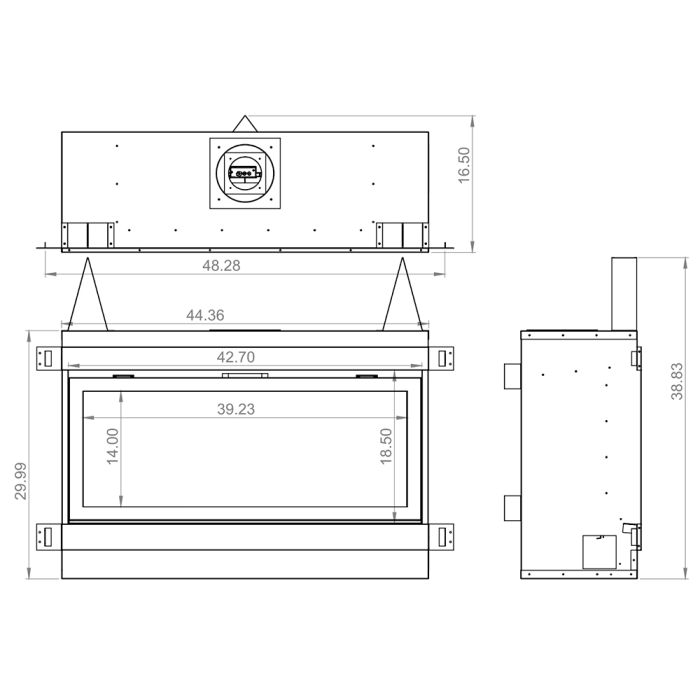

- Dimensions:
- Unit Size: 44.25" W x 29.86" H x 14.5" D
- Framing Size: 48.25" W x 39" H x 16.5" D
- Viewing Area: 42" W x 16.5" H
- Efficiency: 69.50% (EnerGuide rating)
- Venting: 4” flex vent on the exhaust side and 7” flex vent on the air intake side, Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC
- Ceiling/Mantle Height: Internal ceiling = 58” Mantle height = minimum 42”
Downloads:
Technical Specifications:
- Model: Bennett
- Vent: Top: 4" & 7"
- Height:
- Actual: 29.86"
- Framing: 39"
- Width:
- Actual: 44 1/4"
- Framing: 48 1/4"
- Depth:
- Actual: 14 1/2"
- Framing: 16 1/2"
- Viewing Area
- Height: 16 1/2"
- Width: 42"
- EnerGuide: 69.50%
Natural Gas (NG)
- Maximum Input (Hi): 30,000 Btu/hr (8.79 kW)
- Minimum Input (Lo): 22,000 Btu/hr (6.45 kW)
- Manifold Pressure: 3.5” w.c. (0.87 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 5.0” w.c. (1.2 kPa)
- Maximum: 13.5” w.c. (3.4 kPa)
- Orifice Size: 2 x #49 DMS
- Air Shutter: Open 1/8" min (3.175 mm)
- Control Valve Type: Skytech AF-40004
- Venting: 2-ply aluminum vent, compatible with Selkirk, Duravent, Security Venting, ICC Venting, or Metal-Fab Venting
- Fan: Variable Speed (110 Volt / 60 Hz)
Propane (LP)
- Maximum Input (Hi): 27,000 Btu/hr (7.91 kW)
- Minimum Input (Lo): 19,500 Btu/hr (5.71 kW)
- Manifold Pressure: 10.0” w.c. (2.49 kPa)
- Gas Inlet Supply Pressure:
- Minimum: 7.0” w.c. (1.74 kPa)
- Maximum: 13.5” w.c. (3.4 kPa)
- Orifice Size: 2 x #58 DMS
- Air Shutter: Fully Open
- Control Valve Type: Skytech AF-40004
- Venting: 2-ply aluminum vent, compatible with Selkirk, Duravent, Security Venting, ICC Venting, or Metal-Fab Venting
- Fan: Variable Speed (110 Volt / 60 Hz)
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
