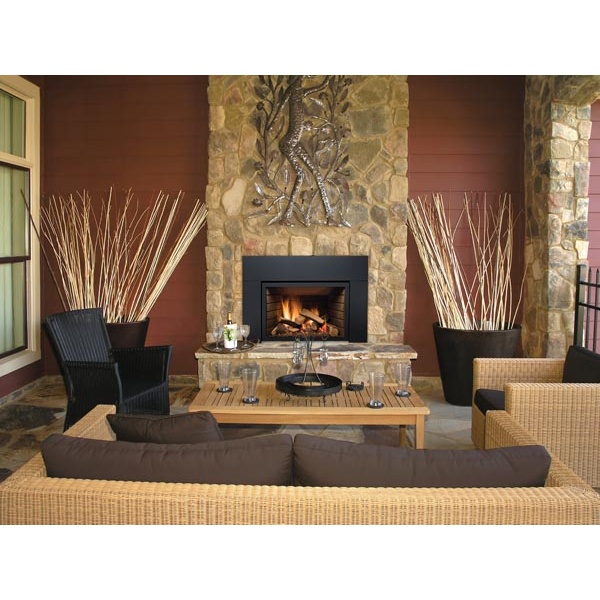

Sierra Flame Abbot 30" Direct Vent Gas Insert
The Sierra Flame Abbot 30-inch Direct Vent Insert Gas Fireplace is a well-designed heating solution that combines efficiency with a clean, modern aesthetic. Its true clean face design ensures a seamless look, while the ceramic glass viewing area offers a clear view of the flames.
With a heat output of 26,000 BTU, the Abbot provides reliable warmth for your space. A 7-day programmable thermostat remote control simplifies temperature management, and the 7-stage modulating flame control allows you to adjust the flame intensity and height to your preference. The included fan kit with adjustable settings ensures efficient heat distribution.
The unit operates on a standard 110v outlet and features electronic ignition for consistent performance. Safety features include a 100% safety shut-off system for added peace of mind.

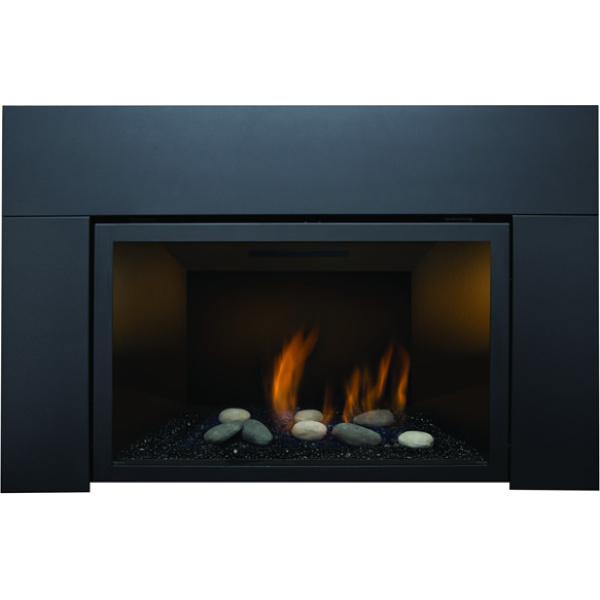

The fireplace comes with black porcelain panels, black reflective glass, and a 9-piece rock set as standard. For a more traditional appearance, optional ceramic brick panels and a log set are available. It is compatible with both natural gas and liquid propane.
Additional options include various surround sizes, decorative rock media, and a chimney cap. The Abbot offers a glass viewing area of 16 inches high by 25 inches wide and is available in Deluxe and Premiere system configurations.
Features:
- Attached Black Trim & Safety Barrier
- 26,000 BTU Output
- Electronic Ignition
- Borosilicate Glass
- 100% Safety Shut-Off
- Top Vent Only Design
- Black Porcelain Panels

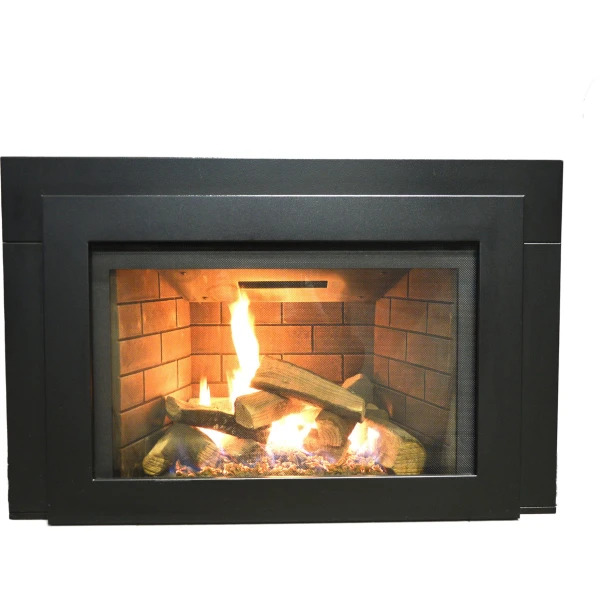

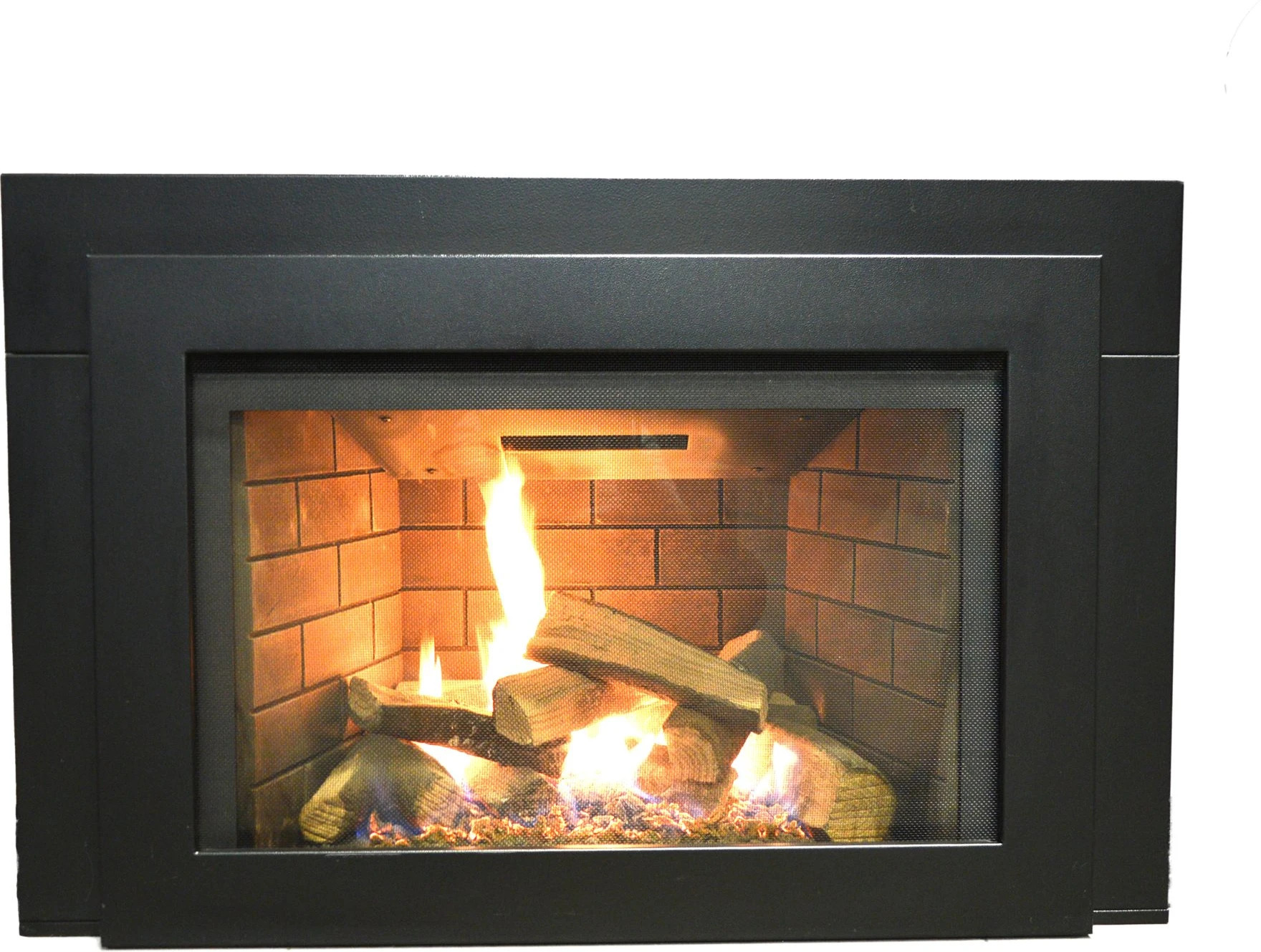

- 4-Piece Log Set: Realistic logs for an authentic look.
- Deluxe Digital Remote Control
- Integrated Fan Kit
- Modulating Valve
Specifications:
- Glass Viewing Area: 16” H x 25” W
- Framing Dimension: 20-1/4” H x 27” W x 16-1/4” D
- Viewing Area: 16” H x 25” W
- BTUS (NG): Hi 26,000- Lo 10,500
- AFUE / P.4 (NG EFFICIENCY): 68.3 %
- Weight: 115 lbs
- Venting: 3” flex vent on exhaust side 3” flex vent on the air intake side, **Venting – Any certified 2 ply flex piping can be used. Certified on Duravent, Selkirk, Metal Fab, ICC
- Ceiling/Mantle Height: Mantle Height = minimum 33” with a 4” deep mantle Please see manual for other mantle clearances
Downloads:
Technical Specifications:
- Fuel Type: Natural Gas (NG) and Propane (LP)
- Efficiency: 68.30% (EnerGuide rating)
- Input Ratings:
- High Input (Natural Gas): 26,000 BTU/hr (7.62 kW)
- Low Input (Natural Gas): 20,000 BTU/hr (4.69 kW)
- High Input (Propane): 23,000 BTU/hr (6.74 kW)
- Low Input (Propane): 16,500 BTU/hr (4.84 kW)
- Manifold Pressure:
- Natural Gas: 3.5" w.c. (High) / 1.7" w.c. (Low)
- Propane: 10.0" w.c. (High) / 6.4" w.c. (Low)
- Gas Inlet Supply Pressure:
- Natural Gas: Minimum 5.0" w.c. / Maximum 13.5" w.c.
- Propane: Minimum 7.0" w.c. / Maximum 13.5" w.c.
- Orifice Size (@ 0–4500'):
- Natural Gas: #41 DMS
- Propane: #53 DIMS
- Valve Orifice (@ 0–4500'):
- Natural Gas: #47 DMS
- Propane: #60 DIMS
- Air Shutter Settings (Log & Rock Kit):
- Natural Gas: Open 3/16" – 1/4" (4.7625 mm – 6.35 mm)
- Propane: Fully Open
- Control Valve Type: Skytech AF-40004
- Vent Type: 2-ply aluminum vent
- Fan: Variable speed (120 Volt)

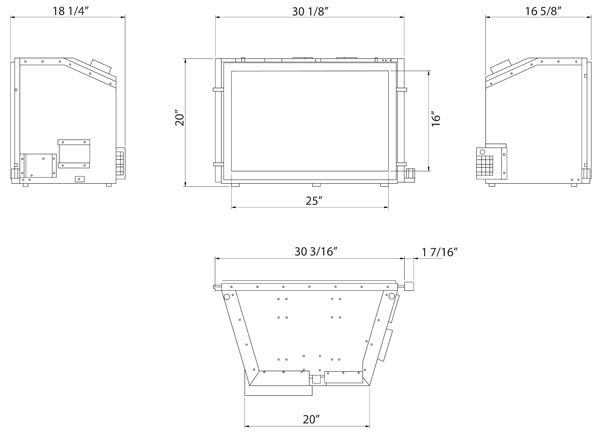

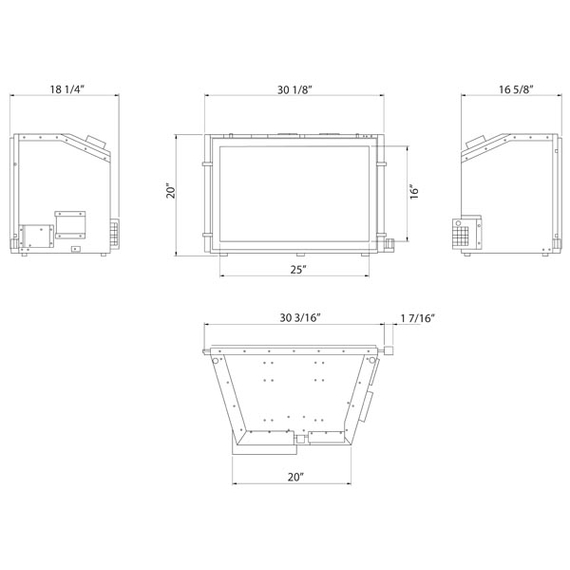

- Dimensions:
- Framing Height: 20 1/4"
- Framing Width: 27"
- Framing Depth: 16 1/4"
- Viewing Area:
- Height: 16"
- Width: 25"
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
