Phoenix Outdoor Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in
$1,005.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].
Available
+ −
Brand: Design Specialties
Write a review

The Phoenix outdoor wood burning fireplace glass doors by Design Specialties offers a decorative profile with subtle curves for an eye-catching enclosure! The 2 inch extruded aluminum radius frame is the definition of durability and beauty. Twins open easily for a view of the flames and comes with tempered safety glass in your choice of clear, grey, or bronze tints. This overlap or inside fit custom fireplace door can also be made with no damper. Choose one of two handle styles and select your favorite finish color to complete the unique look of this exquisite door. Upgrade to stainless steel hardware, hinges, and spark protection and install this enclosure on an exterior prefab fireplace! Free shipping!

Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

What You Need To Know If Door Is Used Outdoors
Aluminum doors intended for outdoor use will have most components other than the outer frame and door frames made from stainless steel. Not all components are stainless however and some staining due to corrosion will occur. Fireplace doors used outdoors with stainless components will function as intended if kept clean and the moving components oiled occasionally. Manufacturer is not responsible for tarnishing or discoloration due to environmental factors.

Phoenix Masonry Fireplace Door Features Product Features:

  • The Phoenix outdoor fireplace door is for masonry fireplaces ONLY
  • Fireplace glass door ships for free; please allow 4 weeks for production and transit time
  • 1 year workmanship warranty; 2 year metal warranty (excluding finish)
  • Lifetime limited warranty on tempered glass
  • Available as both an inside and overlap fit
  • The frame will overlap approximately 1 1/2 inches
  • Fabricated with twin doors
  • The aluminum frame is 2  1/8 inches wide and 1/2 inch deep
  • Check out the videos for the available door finishes
  • 1/4 inch thick tempered safety glass can be tinted grey, clear, or bronze
  • Spark protection not included
  • 2 handle styles to complete the look of your fireplace door
  • Damper not available for outdoor fireplace doors
  • Door comes fully assembled with all mounting hardware included
  • Stainless steel hardware and hinges.
  • Spark protection are available as upgrades for exterior installation



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Phoenix Masonry Fireplace Door Specifications Product Specifications:

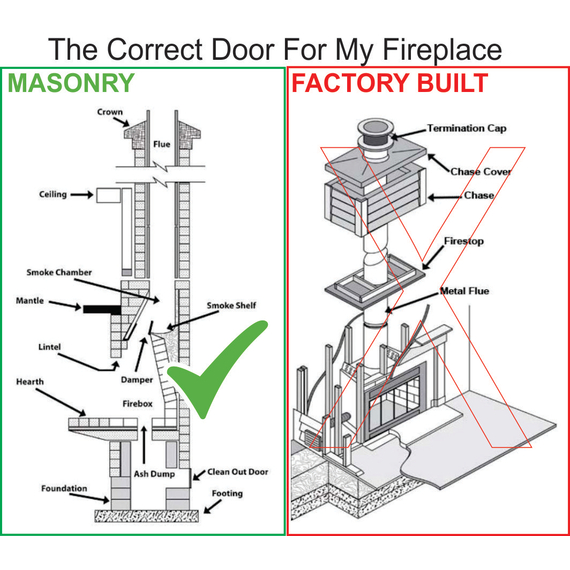

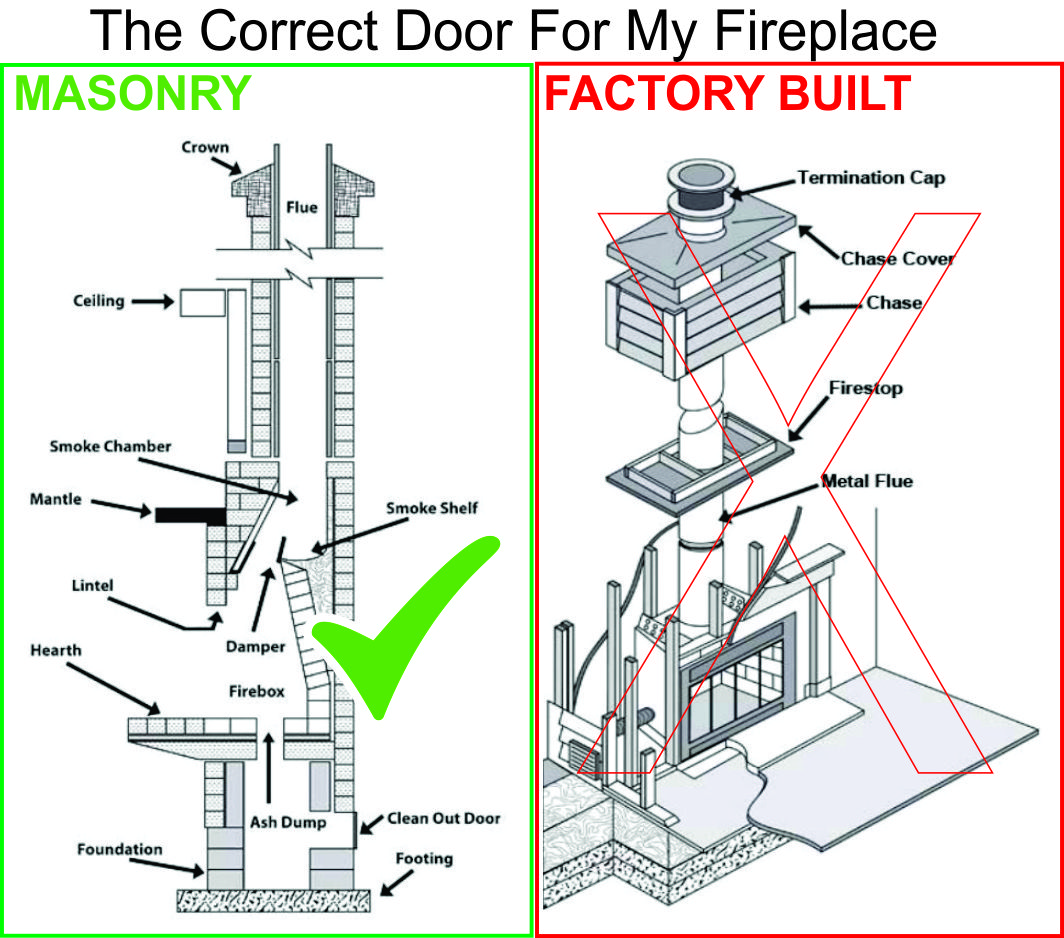

  • Fireplace Type: Masonry
  • Door Fit: Overlap | Inside
  • Door Type: Twin Doors
  • Material: 2 1/8" Wide x 1/2" Deep Extruded Aluminum Frame
  • Hinges: Stainless Steel
  • Approximate Overlap: 1 1/2"
  • Approximate Recessed Depth: 1 1/8"
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: N/A
  • Mesh Screen: Not Included
  • Handle Style: Simplicity | Square
  • Damper: No Damper
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Mounting: Hardware Included
  • Please note: Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox. Cabinet mesh adds 3/4 inch.

Phoenix Masonry Fireplace Door PDF Manuals Product Manuals:

Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
