Paterson Single Sliding Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth or firebox floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.


Side Clearance Formula
To ensure everything fits correctly and you have enough space for the door rails use this formula below
Opening width divided by 2 = X
X minus 2-1/4" =  Clear Free Space needed PER SIDE!
You will also need 2-3/8" of clear space above the opening to install the tracks and rollers



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in

Size Range For Pricing: Up To 34"W and Up To 35"H

=:

$2,443.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-6 Weeks Question | Why Buy From Us?

Z-tabs welded on to main frame are an optional method of mounting when lintel clamps are not applicable. Flanges are recommended for rough or irregular fireplaces!
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].
Available
+

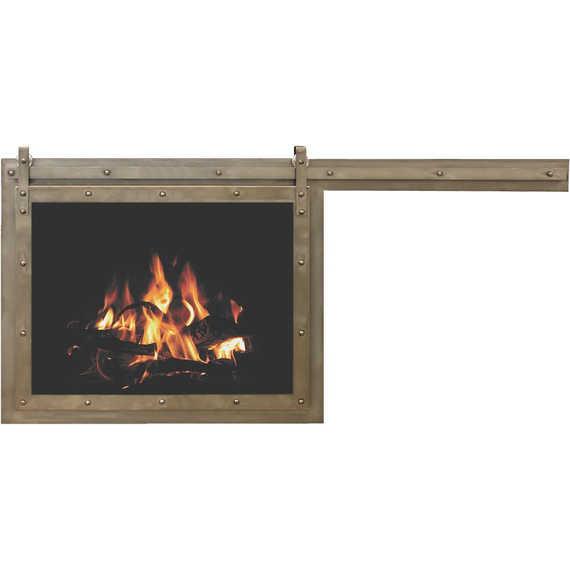

A single Sliding fireplace door is truly a work of art that will turn the entire look of your masonry fireplace around! It features the ever-trendy barn door fireplace door theme with rivet details and a premium roller track for doors that slide open and shut with little effort. Choose the ideal finish for the 7 gauge steel frame - we offer several powder coat colors and 5 premium finishes for a truly unique look. The tempered safety glass comes in your preference of grey, clear, or bronze. You can even opt for the ceramic glass upgrade, which withstands hotter temperatures so that you can keep the doors closed while the fire is burning. Cabinet mesh protection is included, and you can customize this enclosure with or without a damper. The Paterson glass fireplace door comes with a lifetime closure latch made of solid brass.

PLEASE NOTE: Keep in mind that the roller track on this door will be twice the size of your fireplace opening! Make sure you have enough space to accommodate this stunning modern fireplace door. Installation is easy and we include all the hardware you'll need!

Side Clearance Formula

To ensure everything fits correctly and you have enough space for the door rails use this formula below.
Opening times 2 = X
X plus 2-1/4" =  Clear Free Space needed on SIDE you want the rail installed!
You will also need 2-3/8" of clear space above the opening to install the tracks and rollers


 Paterson Sliding Masonry Fireplace Door Features Product Features and Benefits:

  • The Paterson Single Sliding door is for masonry fireplaces ONLY
  • Door ships for free; please allow 4 to 6 weeks for production and transit time
  • 5-year warranty on workmanship and material only; 1-year glass warranty
  • Available as an overlap fit door ONLY
  • Cabinet doors with center bar slide open and closed easily thanks to the premium roller track
  • 7 gauge steel mainframe is 3 inches wide by 3/16 inch deep
  • The door frame is 2  1/8 inch wide
  • Check out the videos for the available finishes colors; limited premium finishes available
  • 1/4 inch tempered glass is available in grey, clear, and bronze
  • Ceramic glass upgrade available; this allows you to burn a fire with the doors closed
  • Cabinet mesh optional to shield your home from sparks and embers
  • Hidden damper option is available
  • Handles are not necessary thanks to the sliding door design
  • Door arrives fully assembled; includes all mounting hardware and solid brass closure latch



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

 Paterson Sliding Masonry Fireplace Door Specifications Product Specifications:

  • Door Fit: Overlap
  • Door Type: Single Door
  • Material: 3" Wide x 3/16" Deep 7 Gauge Steel Frame With 2 1/8" Wide Door Stiles
  • Glass: 1/4" Tempered Safety Glass
  • Tempered Glass Tints: Grey | Bronze | Clear
  • Ceramic Glass: Upgrade Available
  • Mesh Protection: Optional
  • Damper: Available
  • Airtight Option: N/A
  • Assembly: Fully Assembled

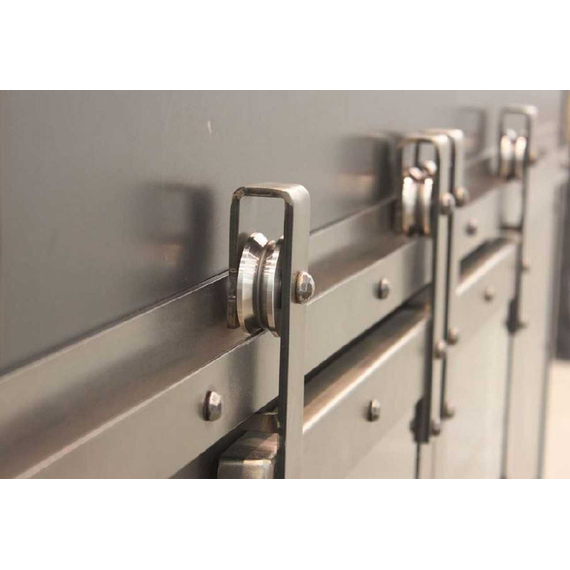

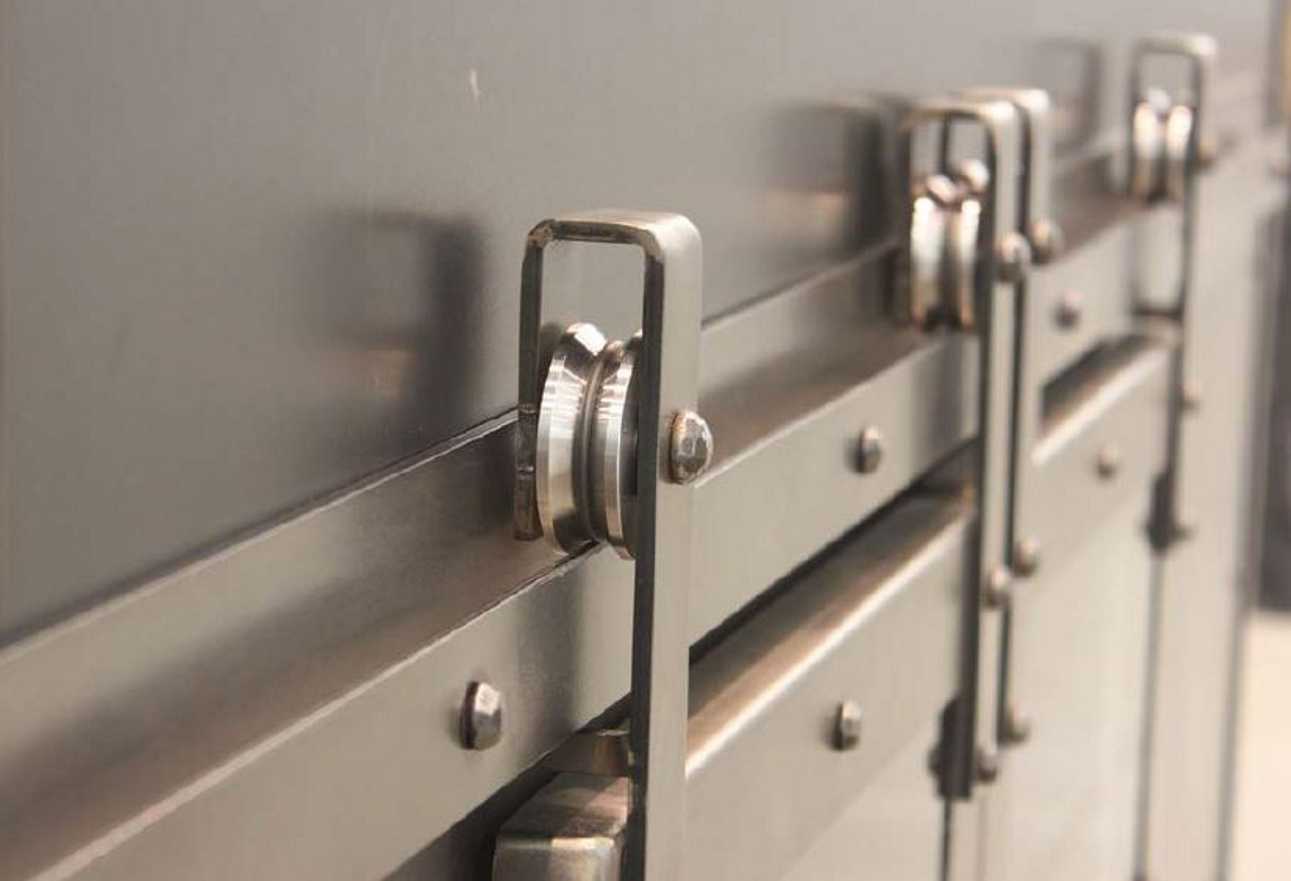

  • Mounting: Premium Roller Track | Hardware Included

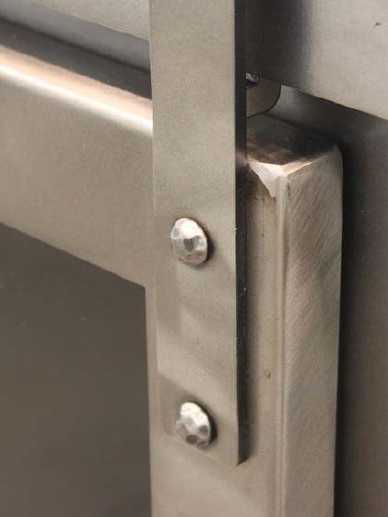

  • Additional: Solid Brass Lifetime Closure Latch | Rivet Details

Manufacturer's Warranty

Limited 5 Year Warranty

Warrantied Products: Fireplace Doors, Heating Solutions, Freestanding Screens, Hanging Mesh Kits, Toolsets, Hearth Centers, Log Rings & Holders, Firepits, Wood Racks, and Fireplace Hoods.

Manufacturer hereby warrants these products to be free from defects in materials and/or workmanship, for the period of time and under the conditions described in each section below, subject to the limitations listed below (see section 2).

1. Limited Warranties
     1a. Manufacturer warrants the metal/steel materials and the applied finish of this product, to be free from defects in materials and/or workmanship, for a period of five (5) years, subject to the limitations outlined below (see section 2). Color finishes may vary slightly in shade and are not guaranteed to perfectly match or coordinate. Finishes deemed to be significantly varied may be re-finished solely at Manufacturers option and discretion.
    1b. Manufacturer warrants any glass materials of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the limitations outlined below (see section 2).
   1c. Manufacturer warrants any electrical components of this product to be free from defects in materials and/or workmanship, for a period of one (1) year, subject to the following limitations, and those outlined below (see section 2). Exposing this product to flames and/or heat without engaging the blower unit will void your warranty.

2. Limitations
    2a .The repair or replacement of parts, or the performance of service under this warranty, does not extend the life of this warranty beyond its original expiration date.
   2b. This warranty is non-transferable and is offered exclusively for the benefit of the original purchaser, beginning on the original date of retail sale.
   2c. Manufacturer does not warrant this product against the following: 1. Damage occurring during transportation or installation, damage resulting from improper installation, accident, alteration, or mis-use. 2. Discoloration of finish, distortion of metal parts, and or/glass breakage due to high heat.
   2d. Manufacturer is not responsible for any additional charges that may occur during the warranty process, nor are they responsible for any travel, labor, or installation expenses.

3. Warranty Process
    If, during the given warranty periods, a product covered under this warranty proves to be defective in material or workmanship, a claim for warranty service should be made through your authorized Manufacturer Dealer. Proof of purchase will be required. The authorized dealer will contact Manufacturer to procure replacement parts and/or if additional service is deemed necessary. Manufacturer reserves the right to choose at its option, the best method of repair or replacement, for any warrantied part or product.
