HHT Outdoor Lifestyle Villawood 36" Outdoor Wood Fireplace

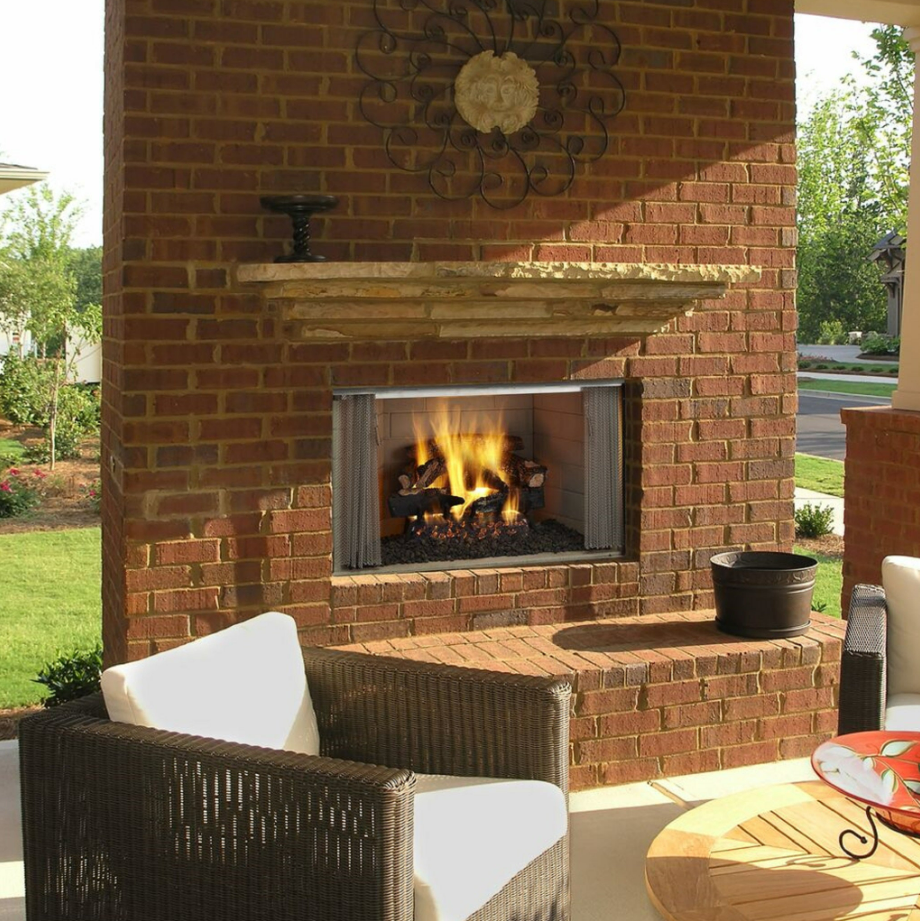

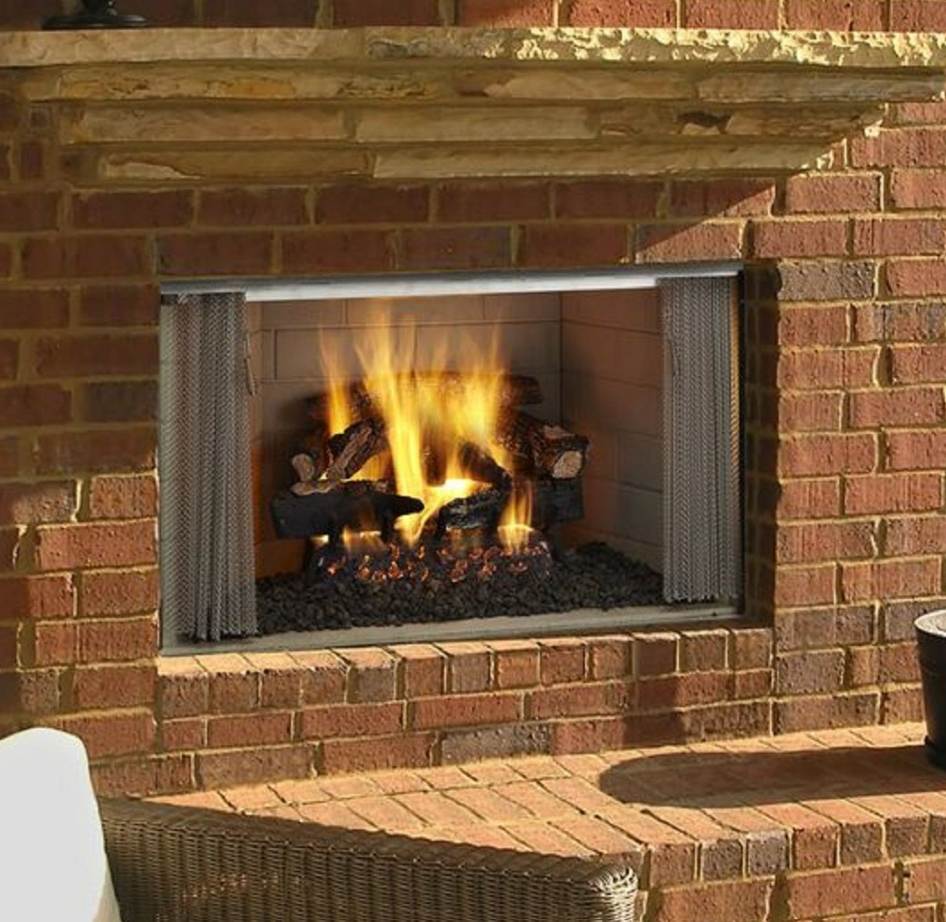

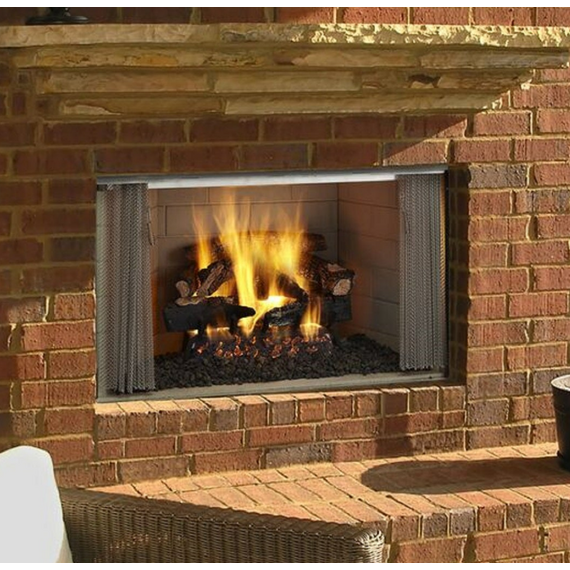

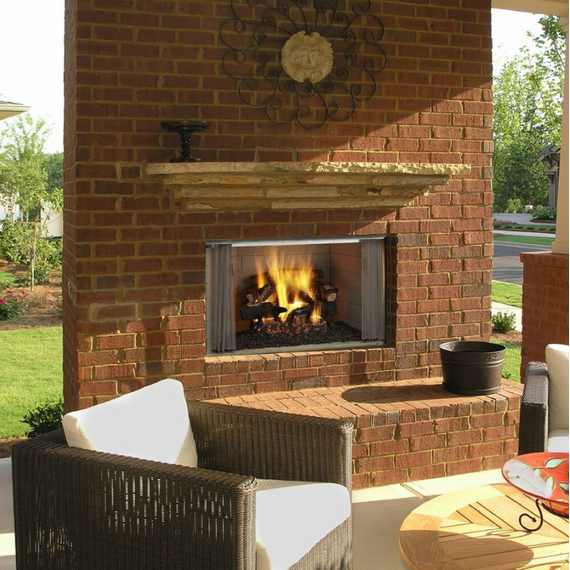

The Outdoor Lifestyle Villawood 36" Outdoor Traditional Refractory Wood Fireplace - ODVILLA-36x-B , our budget-friendly outdoor wood fireplace, seamlessly blends Heat & Glo craftsmanship with the charm of masonry. Ideal for your deck, patio, or outdoor kitchen, it provides the delightful sounds of a crackling wood fire in a welcoming ambiance.

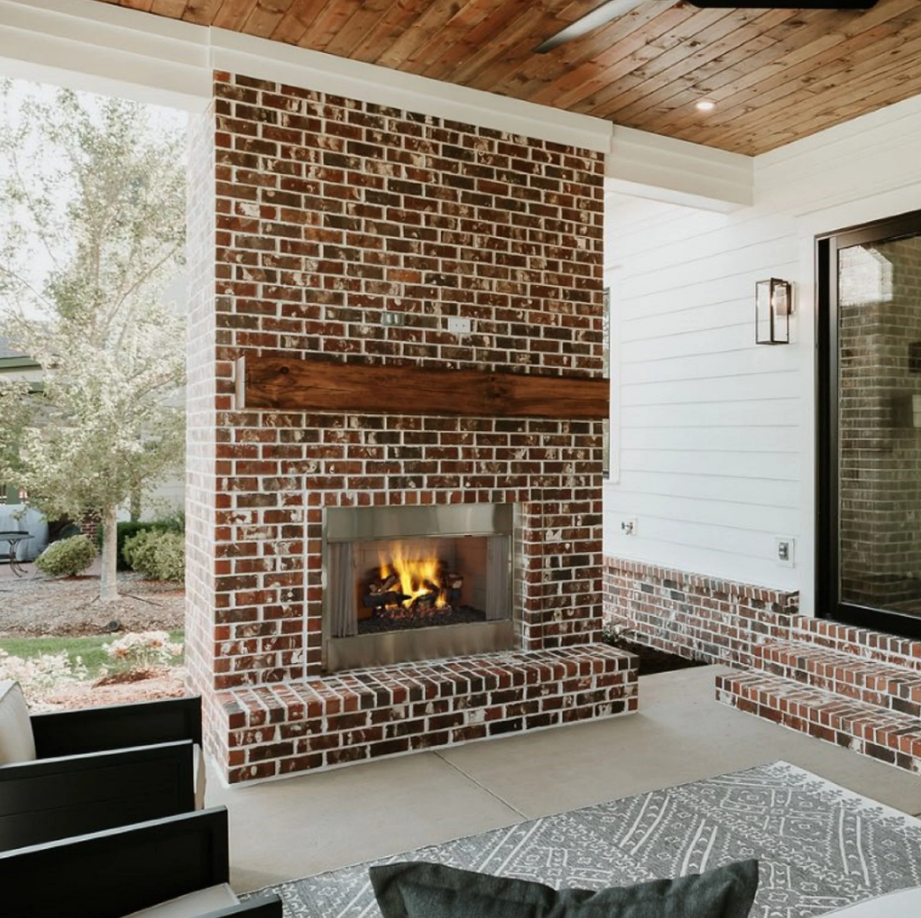

The VillaWood is a versatile wood-burning fireplace suitable for various outdoor settings. Elevate your outdoor kitchen or enrich your living space with both style and warmth. Incorporate the Villa Wood outdoor fireplace into your deck or patio to savor the ambiance of a wood fire.
Features:

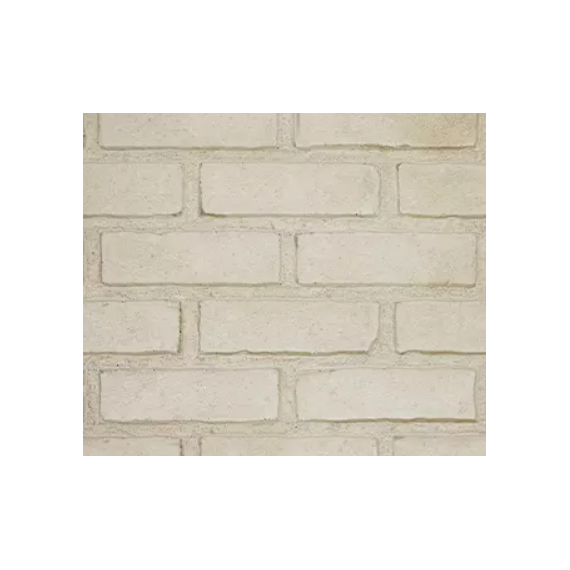

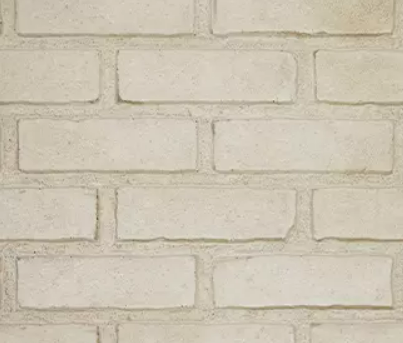

- Choose from Traditional or Herringbone Brick Interior for an Authentic Masonry Look
- Steel Grate and Stainless Steel Mesh Curtain Screens Built to Look Great for Years
- 36" or 42" Wide Fireplace Adds Enjoyment to Your Space
INCLUDES:
- Grate
- Stainless Steel Mesh Curtain Screens
- Dual Gas Knockouts
- Outside Air Standard
- UL & ULC Listed
- 36" x 20-7/8" Viewing Area
OPTIONAL FEATURES:

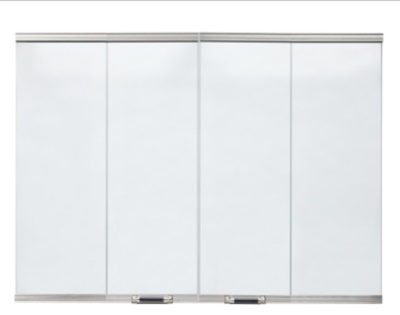

- Bi-fold Glass Doors with Stainless Steel Finish

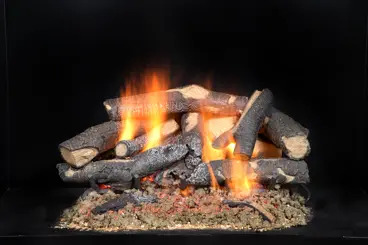

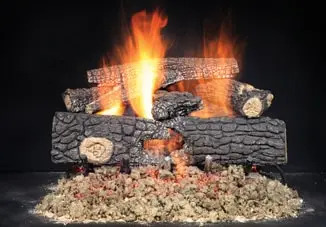

- Outdoor Fireside Realwood Gas Log Set for the Added Convenience of Gas
Specifications:
- Front Width: 41" (Actual), 42" (Framing)
- Back Width: 23-3/4" (Actual), 42" (Framing)
- Height: 39-1/2" (Actual), 39-3/4" (Framing)
- Depth: 21-3/8" (Actual), 21-1/2" (Framing)
- Viewing Area: 36" x 20-7/8"
VENTING NOTES:
- Requires SL300 series pipe. See Venting section.
Downloads:
Technical Specifications:
A. Appliance Certification
- Tested and listed per UL 127 and CAN/ULC-S610-M87 standards by Underwriters Laboratories Inc. for the U.S. and Canada.
- Compatible with optional components listed in the manual (sold separately).
- Outdoor Lifestyles® is a trademark of Hearth & Home Technologies Inc.
- Warnings:
- Do Not:
- Install or operate a damaged fireplace.
- Modify the fireplace.
- Install without following instructions.
- Operate without fully assembling all components.
- Overfire.
- Install an unvented gas log set.
- Use unapproved parts or components.
- Install parts not listed or approved.
- Improper installation or alteration can lead to injury or property damage; seek professional assistance.
- Do Not:
- Notice: This fireplace is decorative and should not be considered for primary heating purposes.
B. Non-Combustible Materials
- Materials that do not ignite or burn:
- Steel, brick, concrete, glass, iron, tile, slate, or plaster.
- Must meet ASTM E 136 standards for behavior of metals at 750°C.
C. Combustible Materials
- Materials that can ignite or burn:
- Wood, plant fibers, compressed paper, plastic.
- Any non-fireproofed material (plastered or un-plastered).
Warnings
- Fire Risk:
- Do not place materials near the fireplace or use it for cooking or warming food.
- Health Risks (California Proposition 65):
- Product and fuels (wood and pellets) expose users to chemicals like carbon black and carbon monoxide, known to cause cancer, birth defects, or reproductive harm.
- For more information: www.P65Warnings.ca.gov.

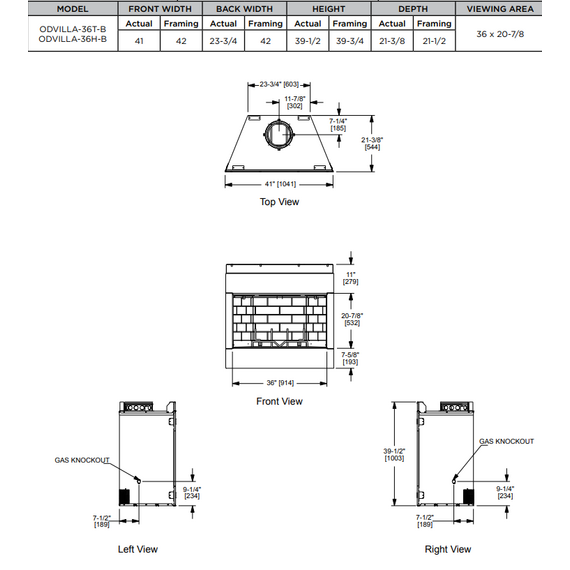

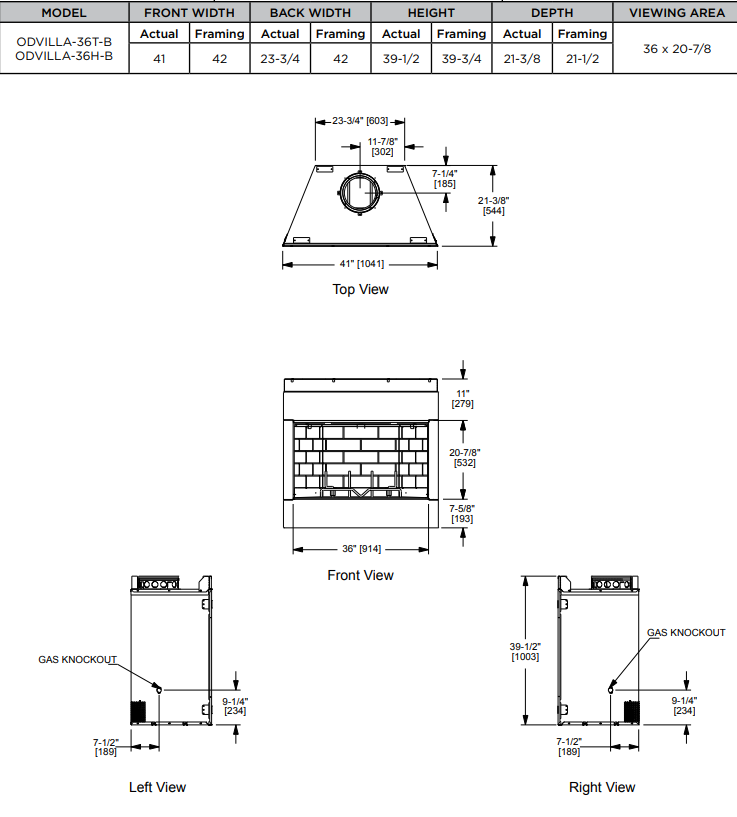

Product Dimension
Model: ODVILLA-36T-B
- Front Width:
- Actual: 41 inches
- Framing: 42 inches
- Back Width:
- Actual: 23-3/4 inches
- Framing: 42 inches
- Height:
- Actual: 39-1/2 inches
- Framing: 39-3/4 inches
- Depth:
- Actual: 21-3/8 inches
- Framing: 21-1/2 inches
- Viewing Area: 36 x 20-7/8 inches
Model: ODVILLA-36H-B
- Front Width:
- Actual: 41 inches
- Framing: 42 inches
- Back Width:
- Actual: 23-3/4 inches
- Framing: 42 inches
- Height:
- Actual: 39-1/2 inches
- Framing: 39-3/4 inches
- Depth:
- Actual: 21-3/8 inches
- Framing: 21-1/2 inches
- Viewing Area: 36 x 20-7/8 inches
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
