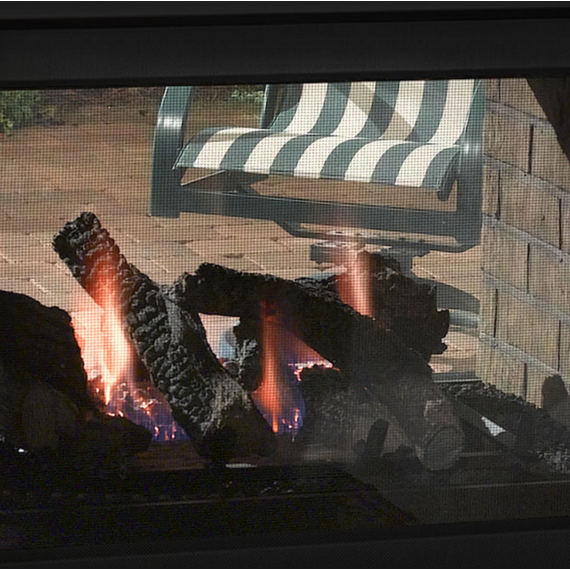

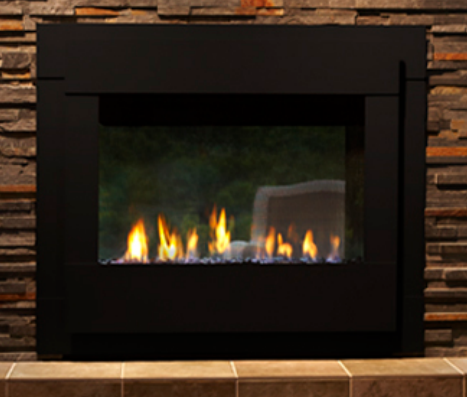

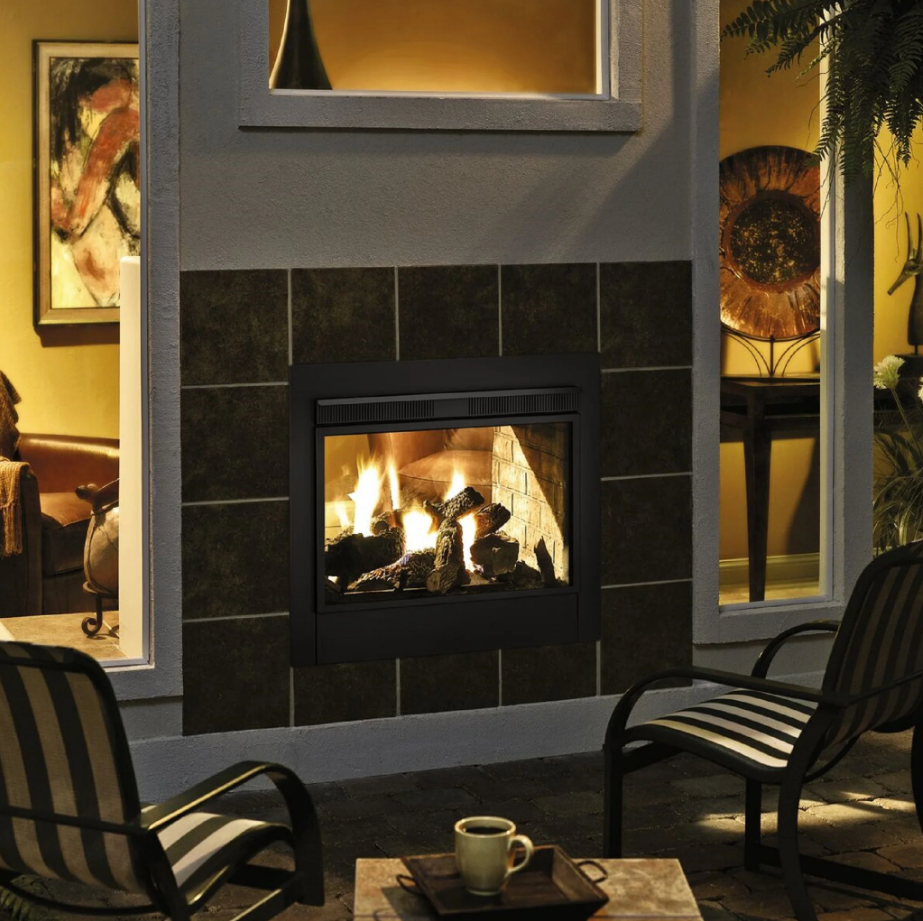

HHT Outdoor Lifestyle Twilight 36" See-Through Gas Fireplace

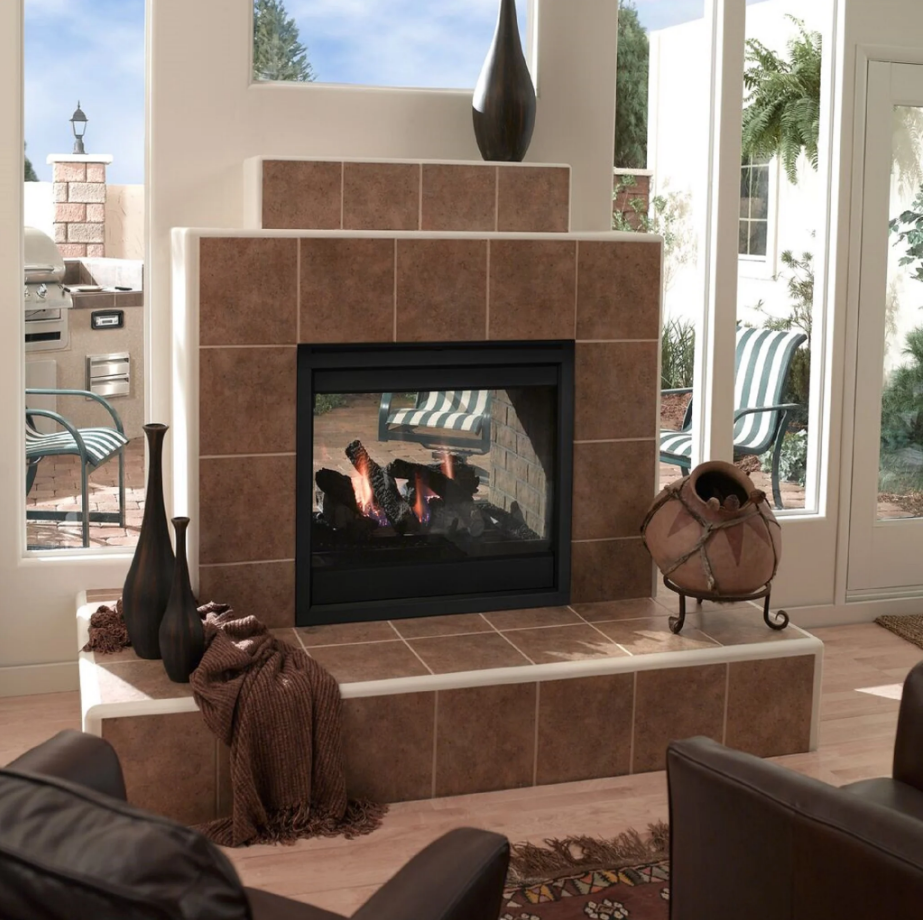

Experience the warmth of the fire throughout the entire year, whether indoors or outdoors. The Outdoor Lifestyle Twilight 36" Indoor/Outdoor See-Through Gas Fireplace - TWILIGHT-IFT allows for a versatile design, enabling you to create two distinct spaces. You have the flexibility to include windows above the fireplace, enhancing your view of the fire from both sides.
Infuse warmth and provide captivating fireside views in both indoor and outdoor settings using a single fireplace. Our innovative see-through fireplace, designed for indoor and outdoor use, comes equipped with intelligent controls that align with your lifestyle. Enjoy the convenience of managing your fire remotely or even through voice commands, seamlessly enhancing two spaces simultaneously. Additionally, you can opt for control options such as a touchscreen remote or a wireless wall switch.
Features:

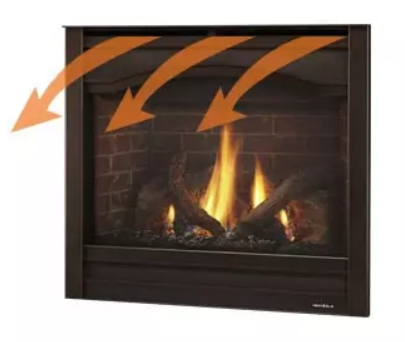

- Removes any fumes or combustion exhaust efficiently and effectively from your home.

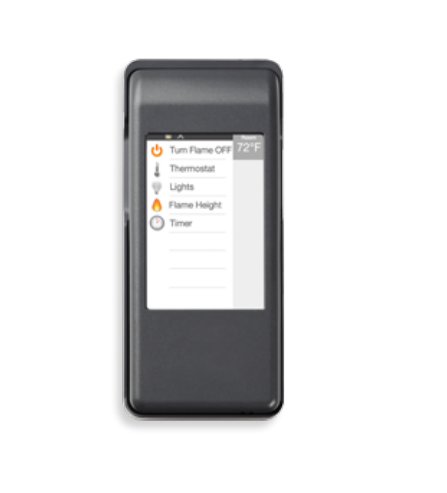

- Offers you a touchscreen remote control or wireless wall switch to fit your life.
- IntelliFire Touch ignition system.
- Manual gas shut-off valve.
Specifications:
- Model: Twilight 36"
- Framing Width: 44"
- Framing Depth: 23"
- Framing Height: 47-5/8"
- Viewing Area: 35-5/8" x 21-1/2"
- BTU/hr Input: 38,000 NG
Downloads:
- Twilight Installation Manual and Appliance Setup
- Twilight Owner's Manual Care and Operation
- Twilight Service Parts
- Twilight Full Specifications
- HHT Outdoor Lifestyle Indoor/Outdoor Collection Brochure
- Mantels Shelves and Surrounds
ACCESSORY MANUALS:
- IFT Field Service Guide

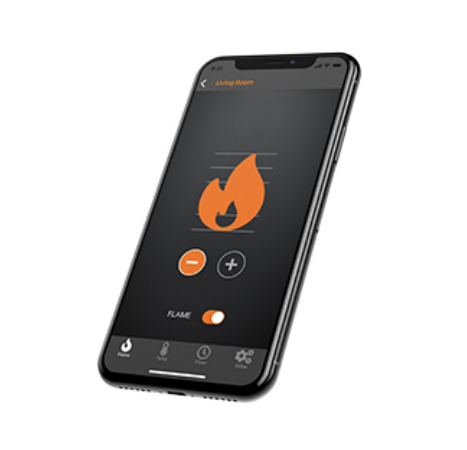

- IntelliFire App Quick Start Guide
- IntelliFire App User Guide

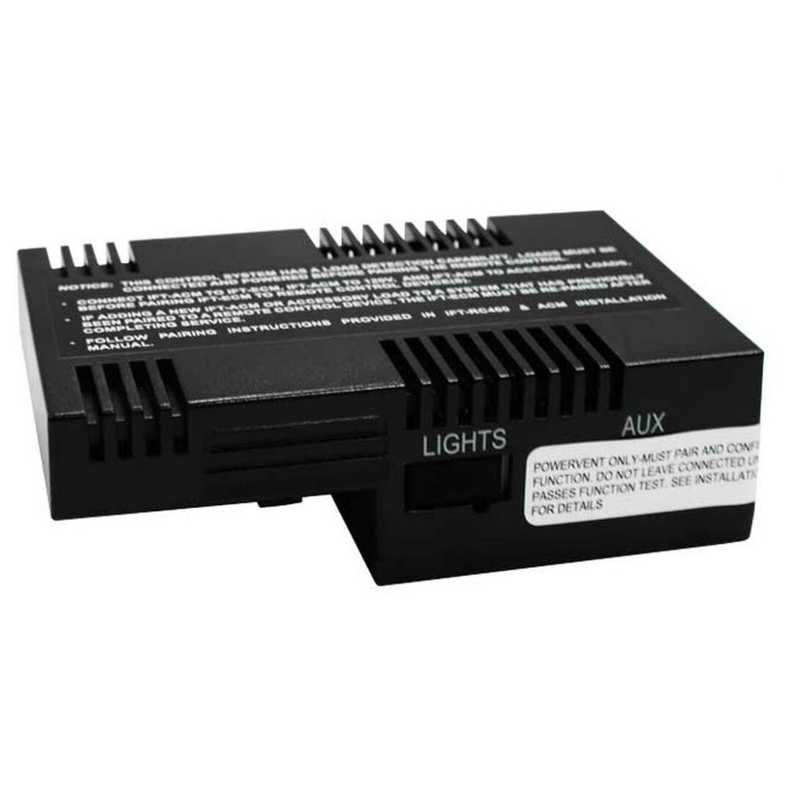

- IntelliFire Touch IFT-ACM
- IntelliFire Touch IFT-RC150

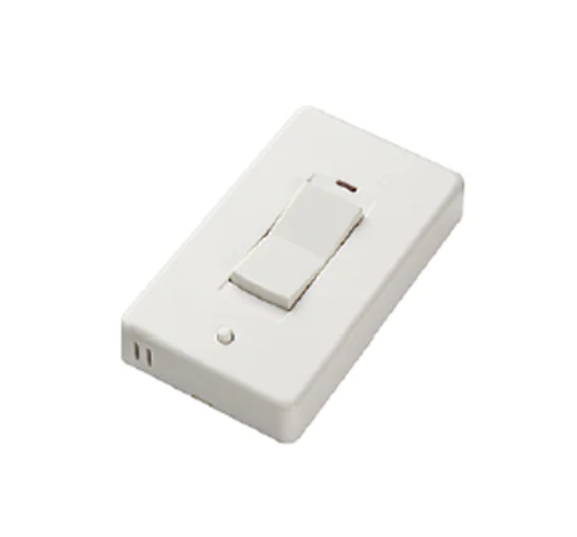

- IFT-RC150 IntelliFire™ Touch Wireless Wall Switch
- IFT-RC400 IntelliFire Touch® Remote Control
- IFT-RC400 & IFT-ACM IntelliFire Touch® Remote Control & Auxiliary Control Module
- IntelliFire® Wi-Fi Module (IFT-WFM) Installation Instructions
Technical specifications:
A. Appliance Certification
- Model: Twilight-IFT
- Laboratory: Underwriters Laboratories, Inc. (UL)
- Type: Direct Vent Gas Appliance
- Standard: ANSI Z21.50-2019, CSA 2.22-2019
- Notice:
- Installation must conform to local codes.
- Follow the National Fuel Gas Code (ANSI Z223.1-latest edition in the U.S.A.) and CAN/CGA B149 Installation Codes in Canada.
- Certifications:
- ANSI standards for "Vented Decorative Gas Appliances" and "Gas Fired Appliances for Use at High Altitudes."
- Certified for installation in a bedroom or bed/sitting room.
- Warnings:
- Not intended for use as a heat source: Decorative appliance only.
- Not for use with solid fuel: Not intended to burn solid fuel.
B. Glass Specifications
- Tempered Glass (Interior Glass)
- Manufactured with tempered glass meeting ANSI Z97.1 and CPSC 16 CFR 1202 standards.
- Compliance with CPSC 16 CFR Section 1201.5 for certification and labeling requirements.
- Ceramic Glass (Exterior Glass)
- Appliance equipped with ceramic glass.
- Replace only with ceramic glass (contact dealer for replacements).
C. Thermal Performance Data
- Sound Transmission Class (STC): 27
- Thermal Resistance (R Value): 0.8 hr-sq-ft-°F/BTU
- Thermal Conductivity (K Value): 1.25 BTU-in/hr-sq-ft-°F
D. Air Infiltration, Water Resistance, and Structural Tests
- Testing Standards: ASTM E283, ASTM E331, ASTM E330
- Air Infiltration: 0.07 CFM/ft² @ 1.57 psf
- Water Resistance: No leakage @ 8 psf & 25 psf
- Structural Load: No blowout @ 75 psf
E. BTU Specifications
- Model: Twilight-IFT (NG)
- U.S. or Canada (0–2000 ft): 38,000 BTU, Orifice Size: 32
- Canada (2000–4500 ft): 34,200 BTU, Orifice Size: 33
- Model: Twilight-IFT (Propane)
- U.S. or Canada (0–2000 ft): 36,000 BTU, Orifice Size: 50
- Canada (2000–4500 ft): 33,300 BTU, Orifice Size: 51

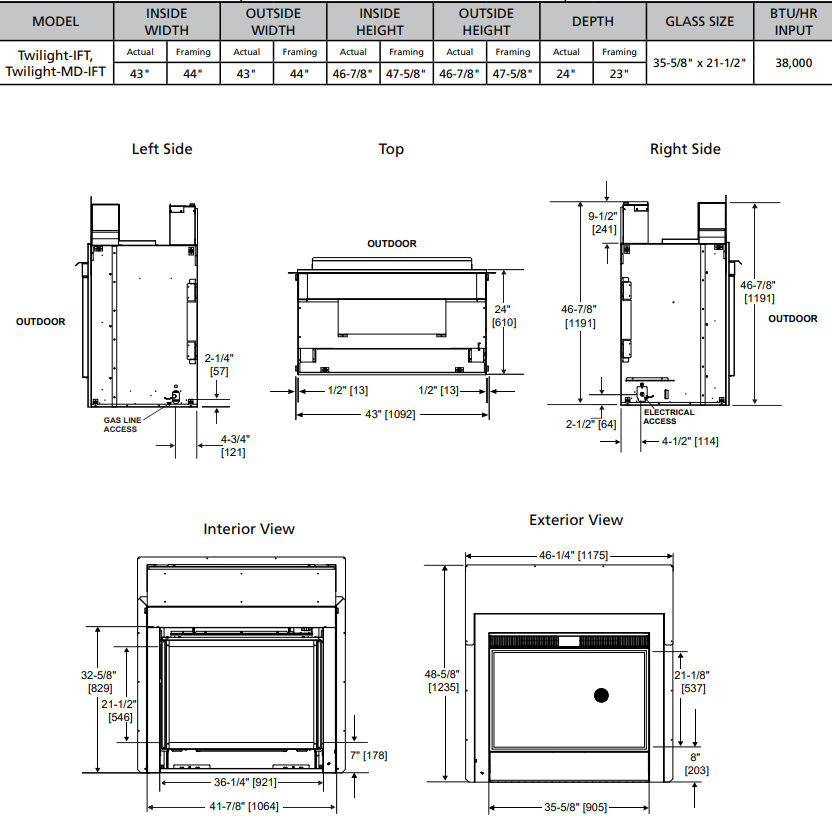

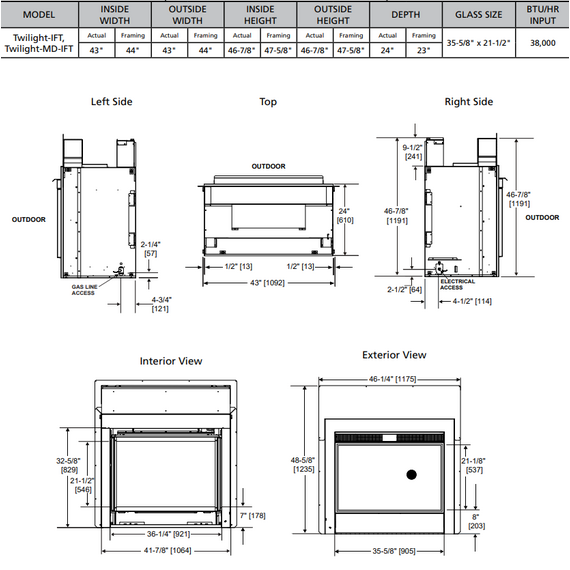

F. Product Dimension
- Model: Twilight-IFT, Twilight-MD-IFT
- Inside Width:
- Actual: 43"
- Framing: 44"
- Outside Width:
- Actual: 43"
- Framing: 44"
- Inside Height:
- Actual: 46-7/8"
- Framing: 47-5/8"
- Outside Height:
- Actual: 46-7/8"
- Framing: 47-5/8"
- Depth:
- Actual: 24"
- Framing: 23"
- Glass Size: 35-5/8" x 21-1/2"
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
