HHT Outdoor Lifestyle Cottagewood 42" Outdoor Wood Fireplace

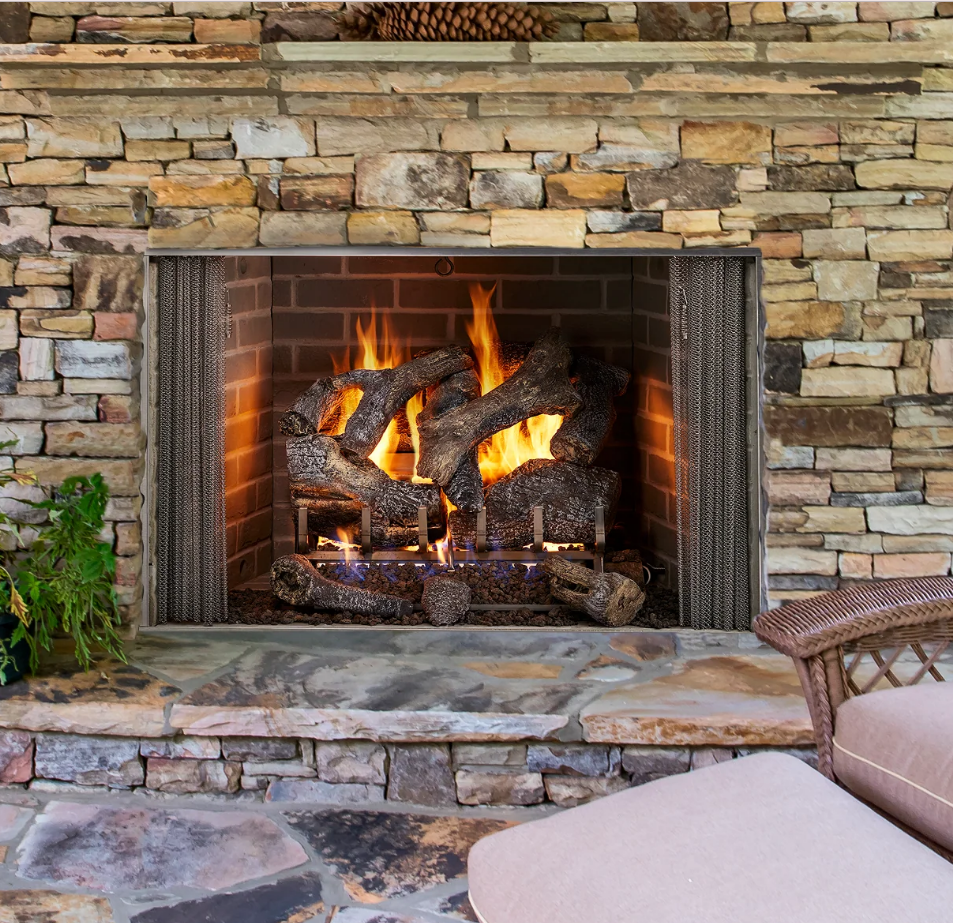

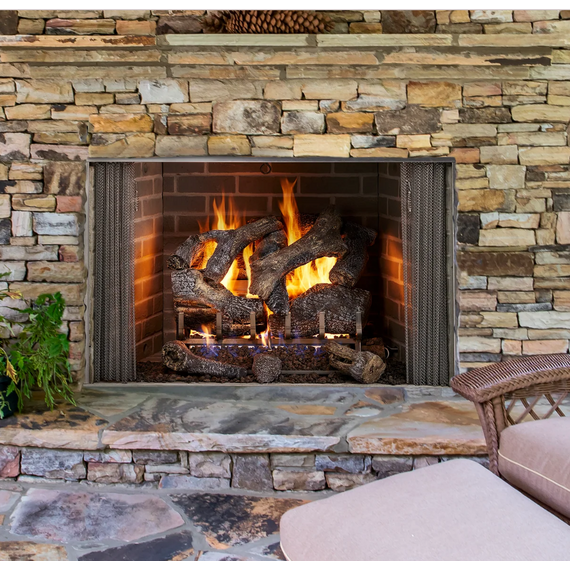

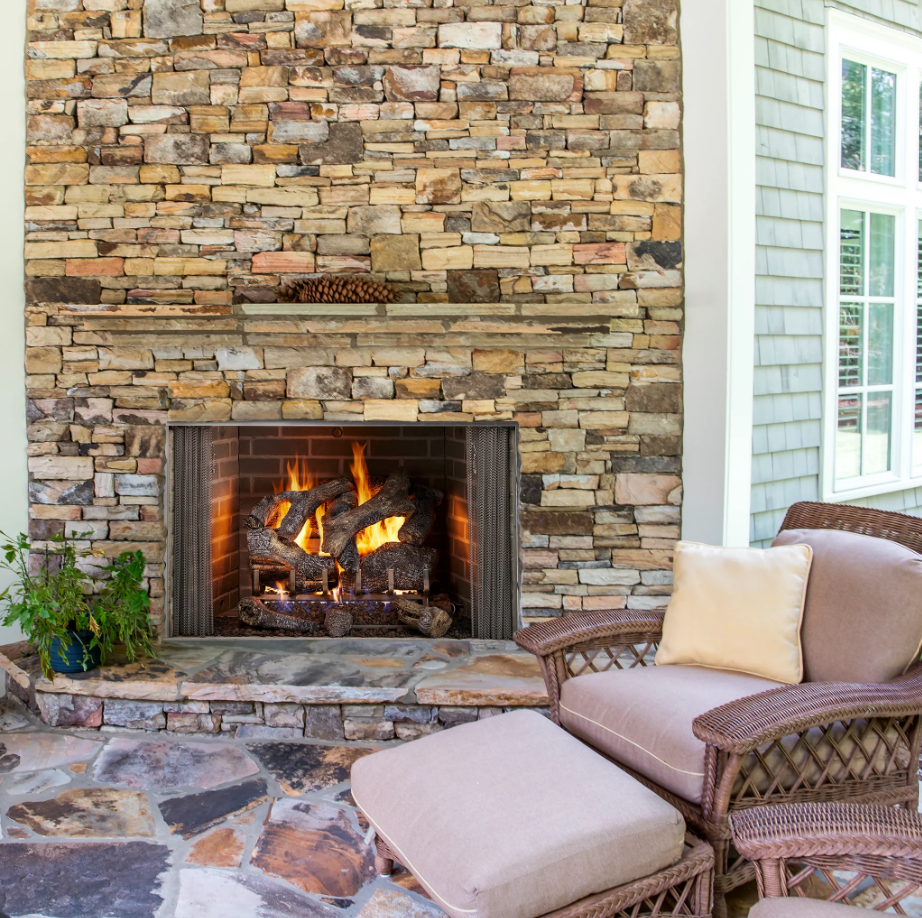

The Outdoor Lifestyle Cottagewood 42" Outdoor Wood Fireplace - ODCTGWD-42 is designed to bring the cozy comfort of a real wood fire to your backyard or patio. With its natural glow and the familiar crackle of burning wood, it sets the stage for relaxed evenings with family or lively gatherings with friends.
The fireplace features a generous viewing area and a masonry-inspired design that adds character to any outdoor space. Whether you’re enjoying a quiet night or hosting a group, it provides both style and practicality.
Thanks to its zero-clearance construction, this fireplace is easy to install and works well with various flooring materials, giving you a polished, seamless finish.
The Cottagewood 42" is all about enjoying the outdoors with warmth, charm, and simplicity. It’s a thoughtful choice for making the most of your time outside.
Features:
- 36" or 42" Wide Openings
- Tuckaway Stainless Steel Screens for Open View of Flames or to Keep Sparks In
- Easy Damper Control for Airflow/Smoke Control on Enclosed Patios

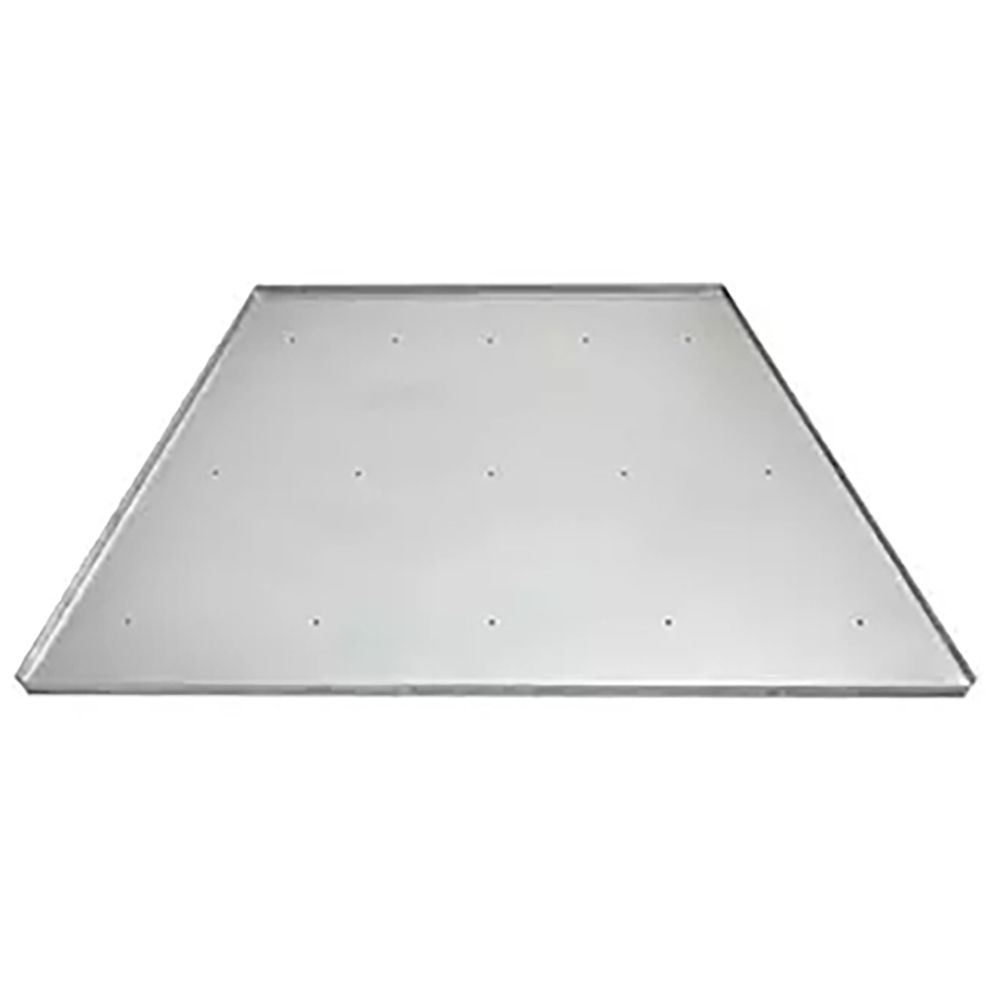

- Safe on a Wood or Composite Deck with a 20" Protective Hearth Apron

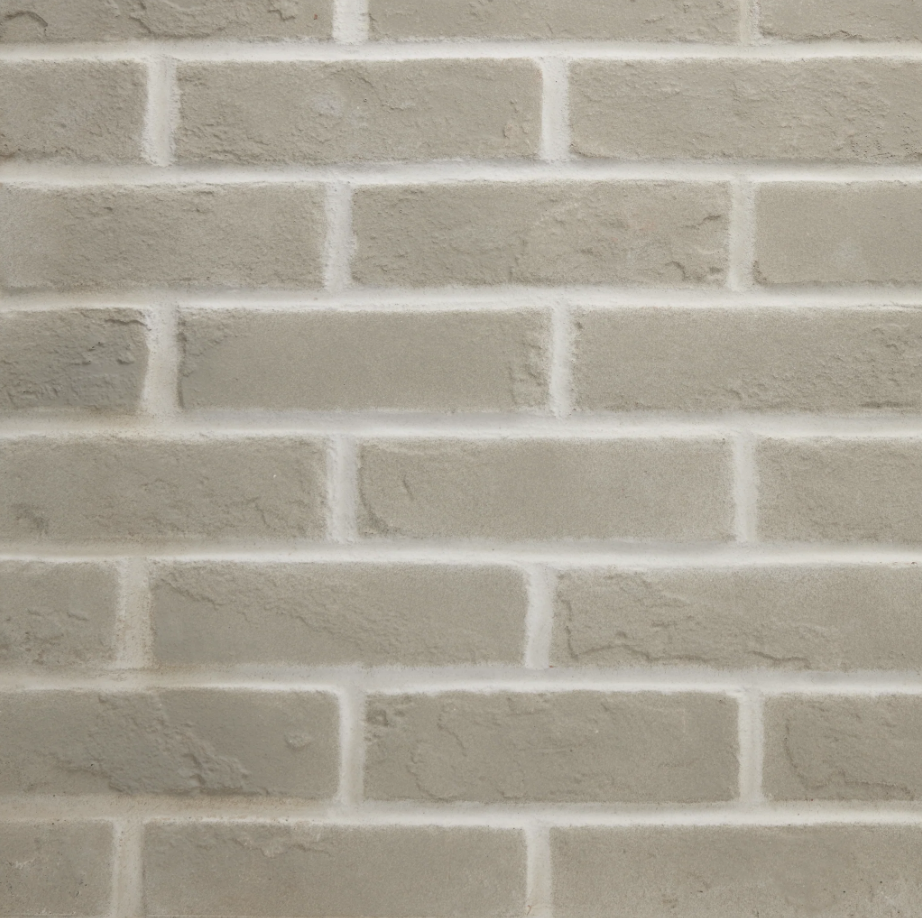

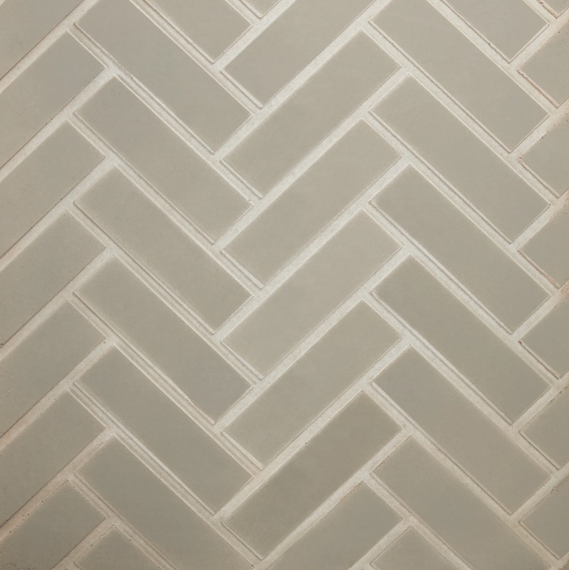

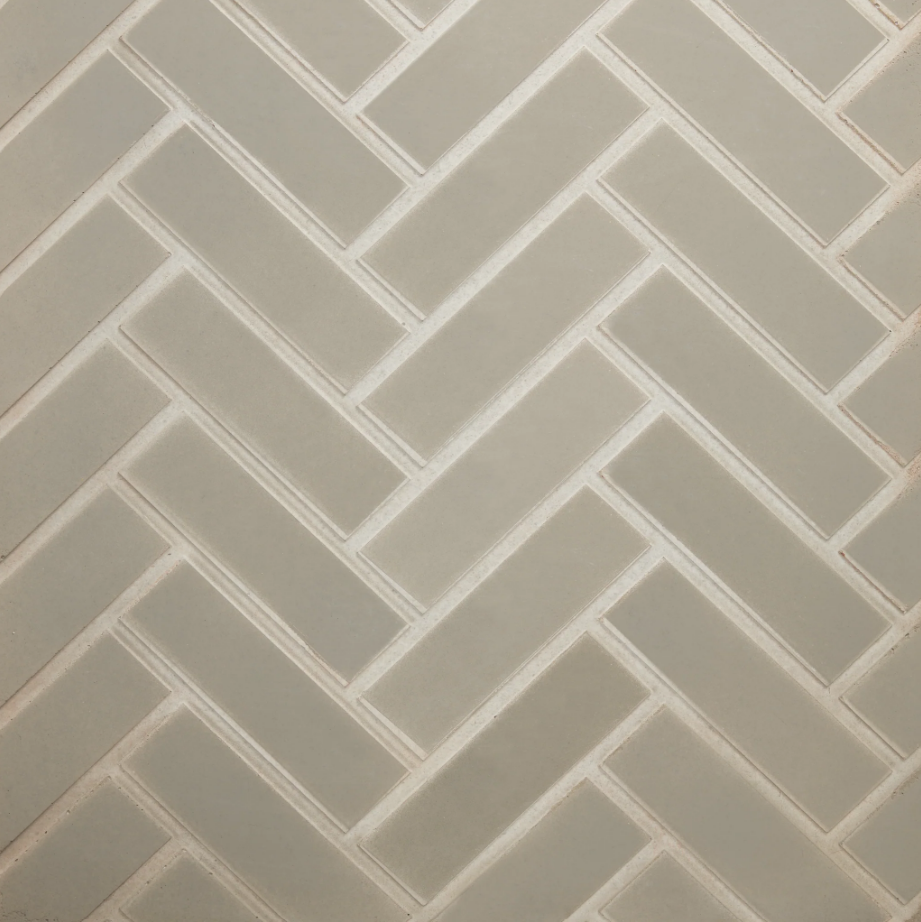

- Mineral Gray Traditional or Herringbone Brick Interior Panels
- Black Painted Grate Keeps Logs in Place and Burns More Efficiently
- Place Freestanding or Next To An Exterior Wall
INCLUDES:
- Mineral Gray Traditional or Herringbone Refractory Liners
- Outside Air Kit
- Dual Gas Knockouts
- Black Grate
- Convenient Damper Control
- Stainless Steel Facings
- Viewing Area: 36" x 28 1/2"
- Stainless Steel Safety Screens
- UL/ULC Listed
Specifications:
- Model: ODCTGWD-42 / ODCTGWD-42H
- Dimensions (Actual / Framing):
- Front Width: 50-1/2" / 51-1/2"
- Back Width: 34-1/2" / 51-1/2"
- Height: 59-1/4" / 59-3/4"
- Depth: 27-1/2" / 28-1/2"
- Firebox Opening: 42" x 28-1/2"
VENTING NOTES:
- Requires SL1100 Series Chimney. See Venting Section.

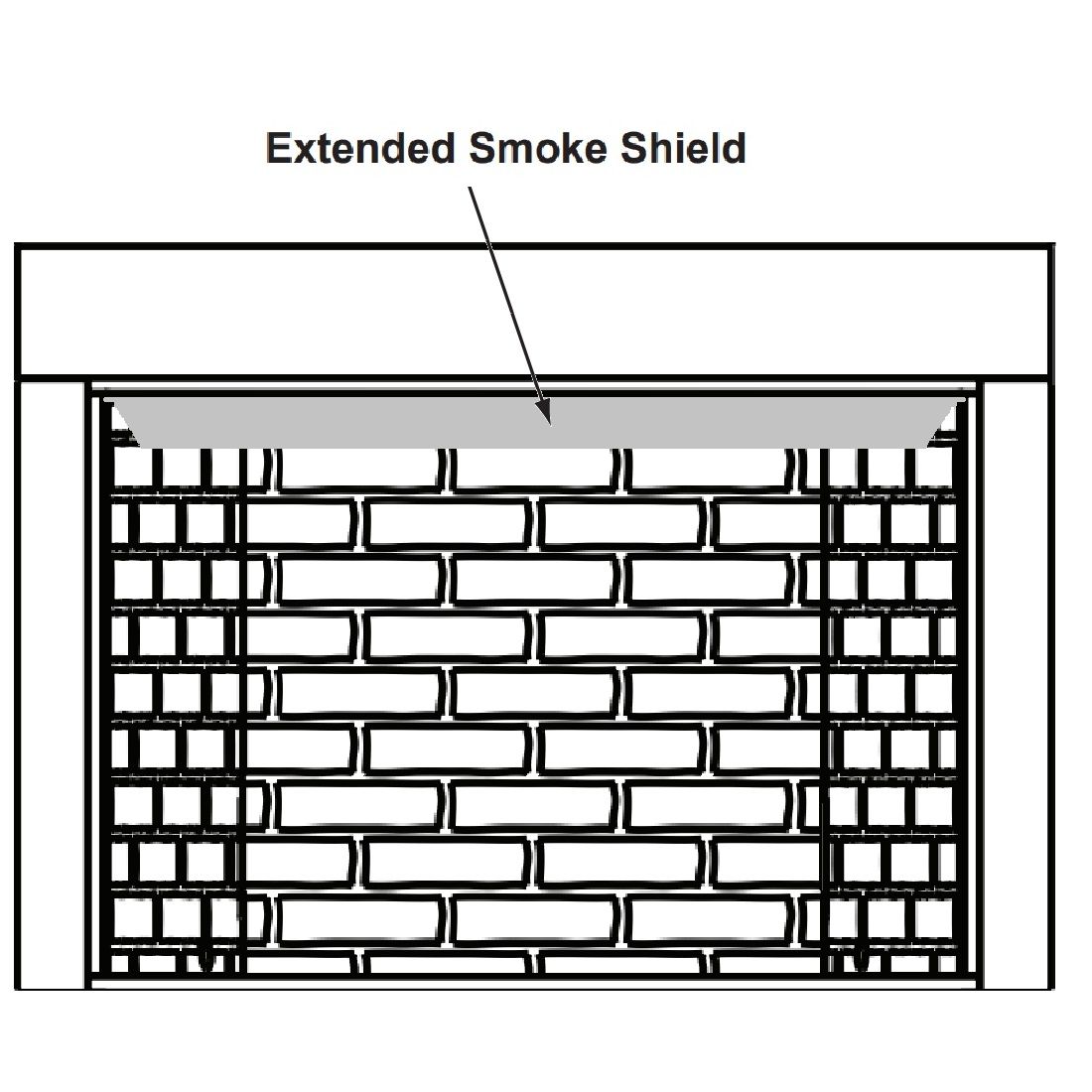

- Extended Smoke Shield in the ODCTGWD-FSK (36/42) is for Freestanding Fireplace Installs and Reduces Min Vent Height to 9.5'. See Install Manual for All Requirements.

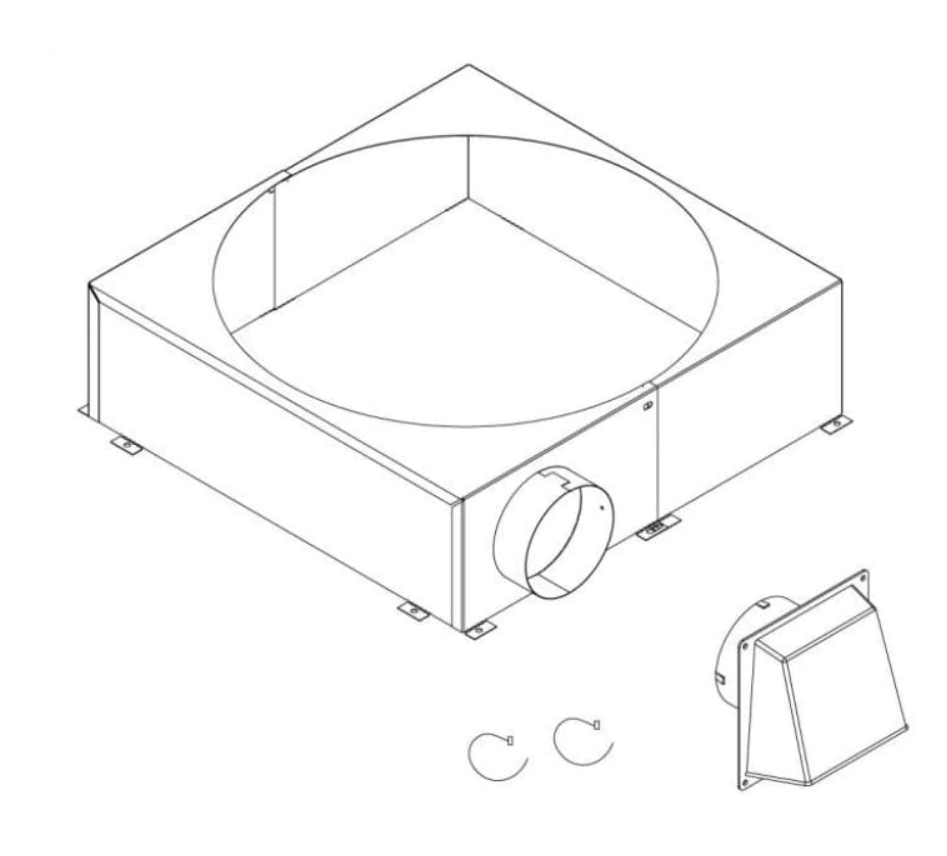

- Canada Uses SL400 Series Chimney and Requires SLA-10 and CAK5A
Downloads:
Technical Specifications:
A. Appliance Certification
- Tested and listed in accordance with UL 127 and CAN/ULC-S610 standards by Underwriters Laboratories Inc.
- For installation and operation in the United States and Canada.
- Installation Notes:
- Can be installed in sleeping rooms, except in manufactured homes.
- Requires compliance with the National Fuel Gas Code when using a gas log set.
- Tested and listed for use with optional components specified in the manual.
- Optional components may be purchased separately and installed later.
- Installation of an outside air kit is best done during initial fireplace installation due to significant reconstruction requirements.
- Trademark: Outdoor Lifestyles (by Hearth & Home Technologies).
- Warnings:
- Risk of fire! Use only solid wood fuel.
- Other fuels may cause overfiring and generate poisonous gases (e.g., carbon monoxide).
B. Vented and Unvented Gas Options
- Optional Installations:

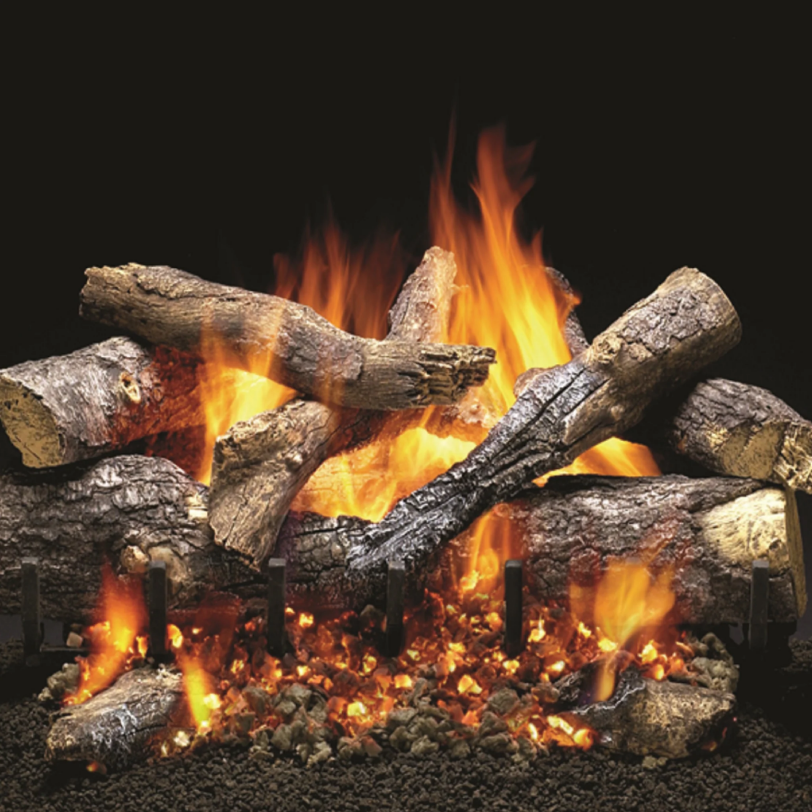

- Vented gas log sets.
- Unvented gas log sets.
- Gas or wood inserts.
- Gas log lighters.
- Follow instructions provided with accessories.
Unvented Gas Logs
- Installation Requirements:
- Must operate with the fireplace glass door fully open (if included).
- Only unvented gas log sets meeting ANSI Z211.11.2 standards can be used.
- Must incorporate an automatic shutoff device.
- Install in accordance with National Fuel Gas Code Z223.1 (Latest Edition).
- Warnings:
- Do not operate unvented gas log sets in this fireplace if the chimney is removed.

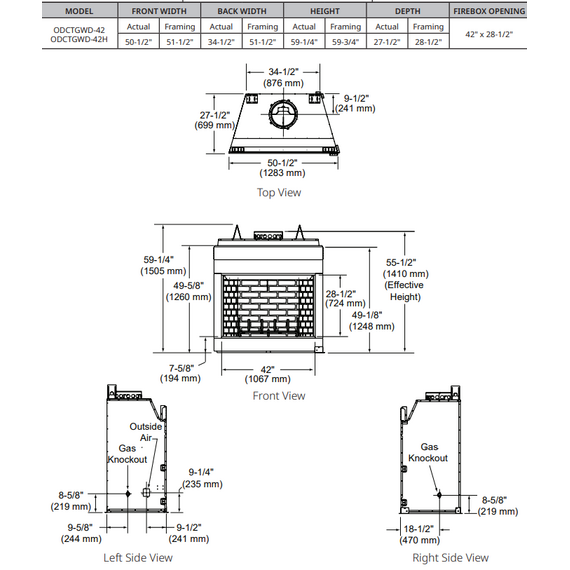

Product Dimension
- Front Width:
- Actual: 50-1/2"
- Framing: 51-1/2"
- Back Width:
- Actual: 34-1/2"
- Framing: 51-1/2"
- Height:
- Actual: 59-1/4"
- Framing: 59-3/4"
- Depth:
- Actual: 27-1/2"
- Framing: 28-1/2"
- Firebox Opening: 42" x 28-1/2"
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
