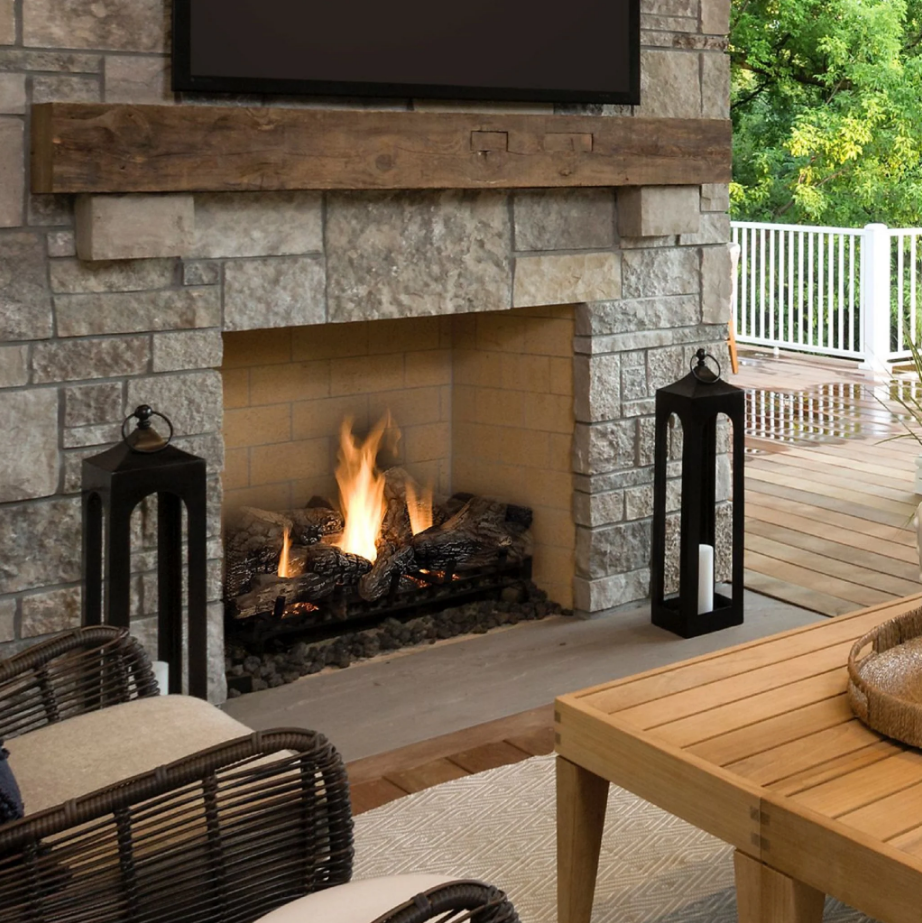

HHT Outdoor Lifestyle Castlewood 42" Outdoor Wood Fireplace
Enhance your outdoor lifestyle by savoring the ambiance of a spacious wood fire with The Castlewood, our exceptional outdoor wood fireplace. It features a striking 38" firebox and is securely built with brick construction for added safety.
Transform any outdoor space into an inviting and tranquil living area with The Castlewood. Its expansive, elevated opening offers a captivating view from the entire yard, while the textured brick interior provides a masonry-style aesthetic at a fraction of the expense. Immerse yourself in the delight of a substantial wood fire with the Castlewood.
Features:
- Expansive 38" High Firebox Opening

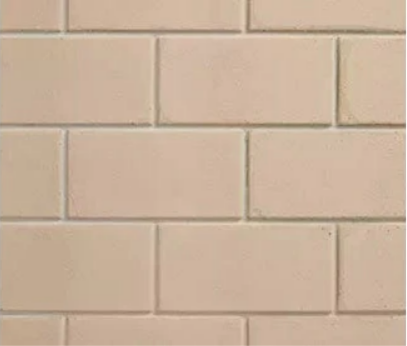

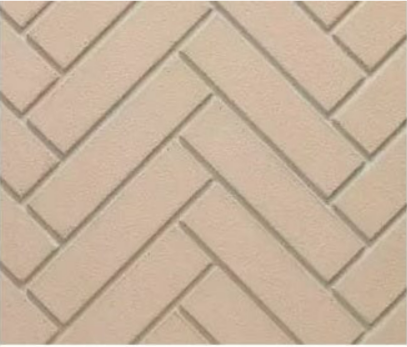

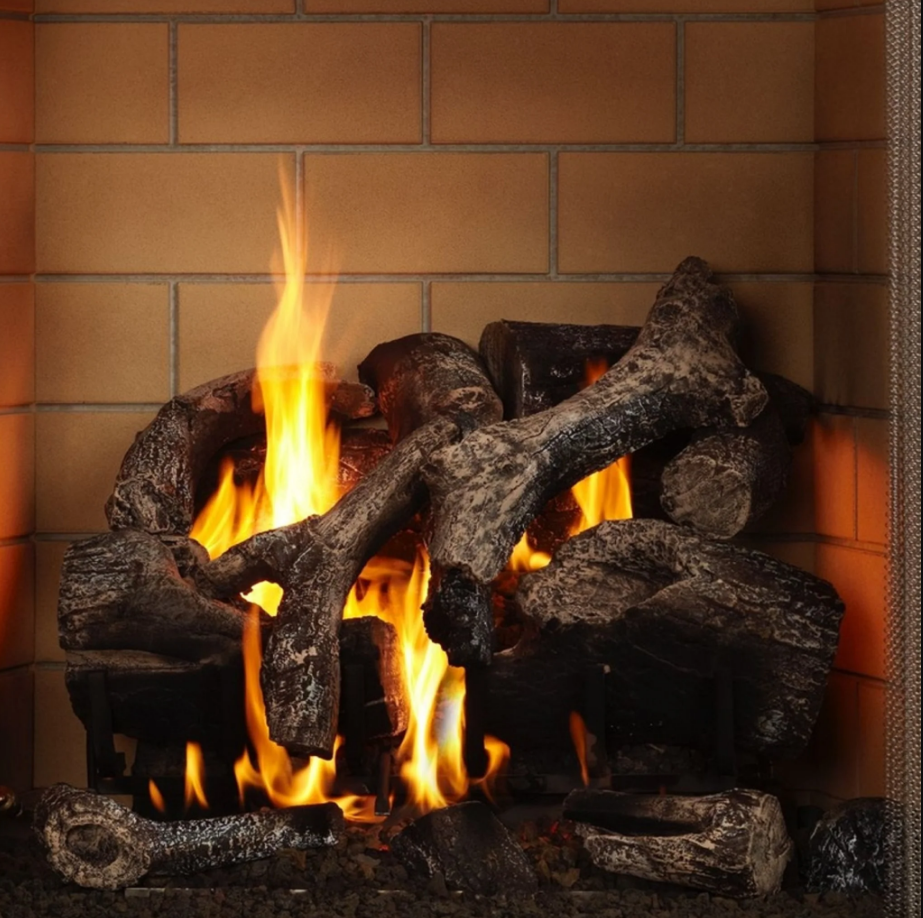

- Choose from Traditional or Herringbone Brick Interior for an Authentic Masonry Look

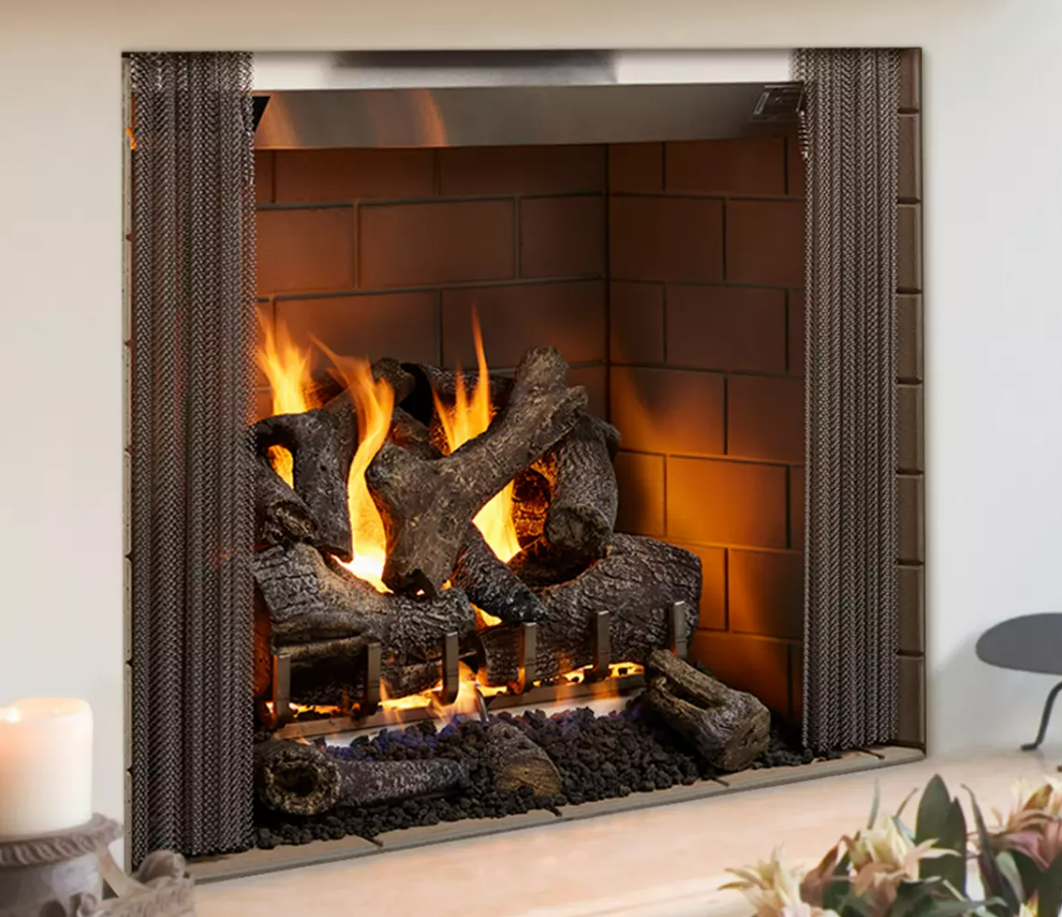

- Black Steel Grate and Stainless Steel Mesh Curtain Screens Built to Look Great for Years
- 42" Wide Fireplace Adds Enjoyment to Your Space
- Expansive Viewing Area: Gives you a generous view of the fire in a bold, custom masonry appearance.
- Outdoor Approved: Provides durable, safe operation with stainless-steel materials and unique design features.
INCLUDES:
- Expansive 38" High Firebox Opening
- Stainless Steel Mesh Curtain Screens
- Black Grate
- Transition Collar
- Dual Gas Knockouts
- Outside Air Hoods
- 41-7/8" x 38" Viewing Area
- UL & ULC Listed
Specifications:
- Model: 42" Castlewood Outdoor Wood Firebox
- Model Number: ODCASTLEWD-42-B
- Framing Width: 53-7/8"
- Framing Depth: 28-3/8"
- Framing Height: 74-1/2"
- Viewing Area: 41-7/8" x 38"
- Max Log Size: 30"
Venting:

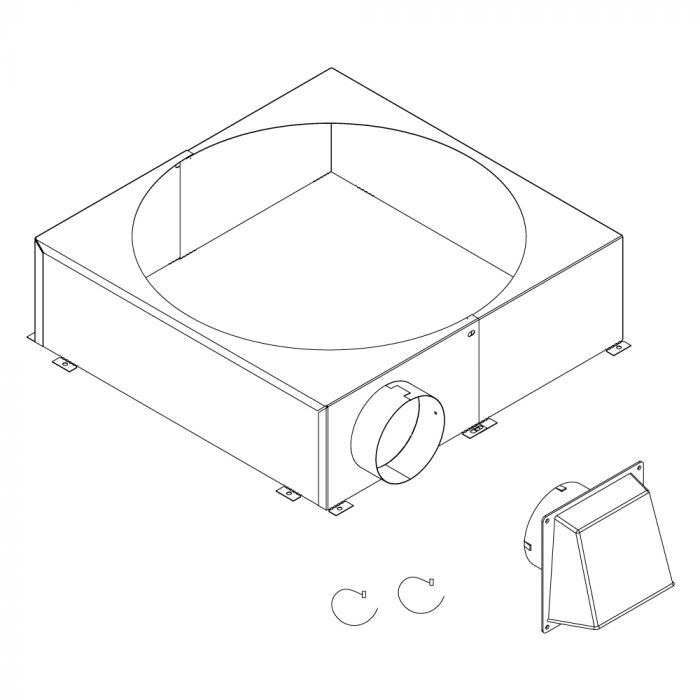

The Majestic Chimney Air Kit SL1100 Wood Pipe is designed for use with Majestic fireplaces featuring SL1100 Class A chimney systems. It includes an 11-inch inner and 13-inch outer diameter, providing an outside air option to reduce negative pressure within the chimney. The kit improves airflow and overall fireplace performance. It weighs 7 pounds and is intended for professional installation to ensure compatibility and safe operation.
- VENTING NOTES:
- Requires SL1100 Series Pipe
- Cooling Hood or All Non-Combustible Materials are Required

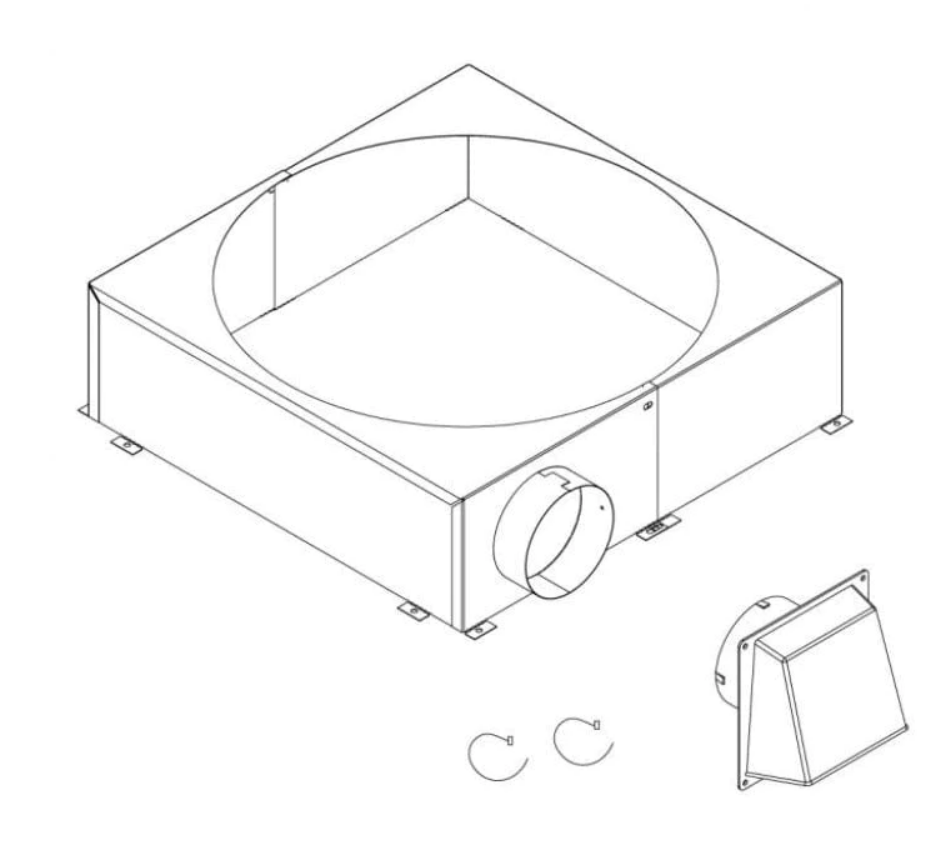

- Canada: Requires SL400 Series Pipe, SLA10 and CAK8A.
Downloads:
- Castlewood 42 Installation Manual
- Castlewood 42 Service Parts
- Castlewood 42 Full Specifications

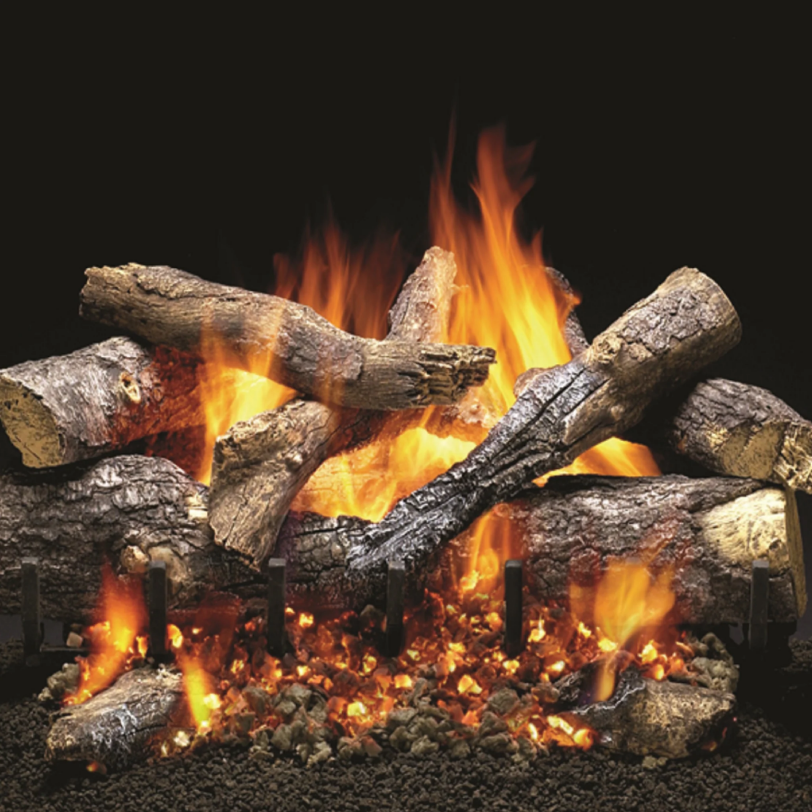

- HHT Outdoor Lifestyle Gas Log Sets Brochure
- HHT Outdoor Lifestyle Fireplace Collection Brochure
ACCESORY MANUALS:

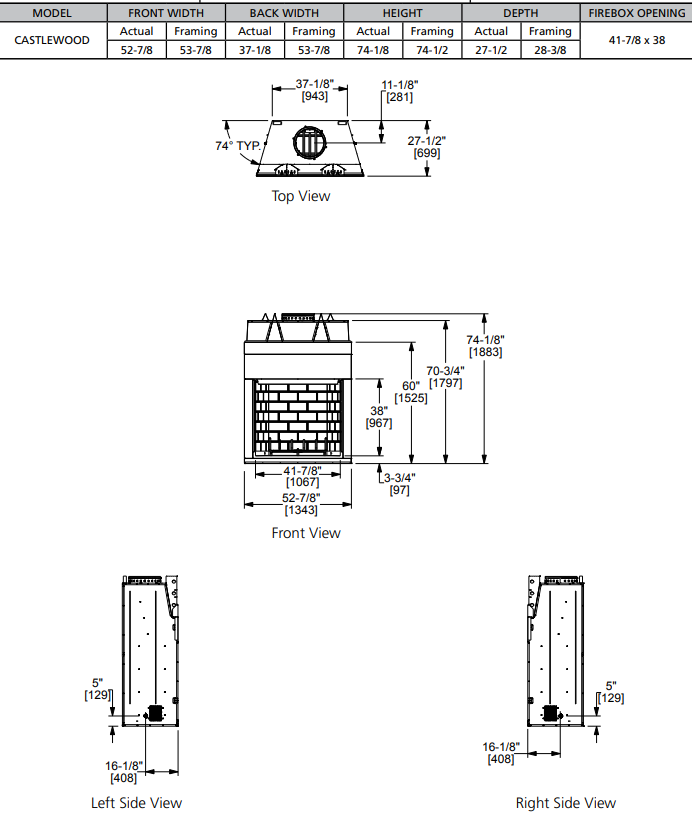

Technical Specifications:
- Model: Castlewood
- Front Width:
- Actual: 52-7/8"
- Framing: 53-7/8"
- Back Width:
- Actual: 37-1/8"
- Framing: 53-7/8"
- Height:
- Actual: 74-1/2"
- Framing: 74-1/2"
- Depth:
- Actual: 27-1/2"
- Framing: 28-3/8"
- Firebox Opening: 41-7/8" x 38"
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
