Osburn Matrix Wood Stove with Variable Speed Blower

Starting at:
$3,899.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 1-2 Weeks What Does Lead Time Mean | Why Buy From Us?

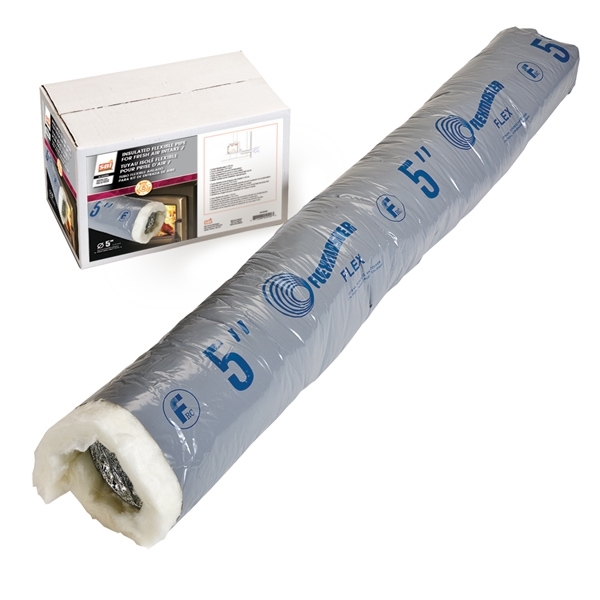

Required for Mobile Home Installations - Dimensions: 4 Foot Length / 5 Inch Diameter
Available
+

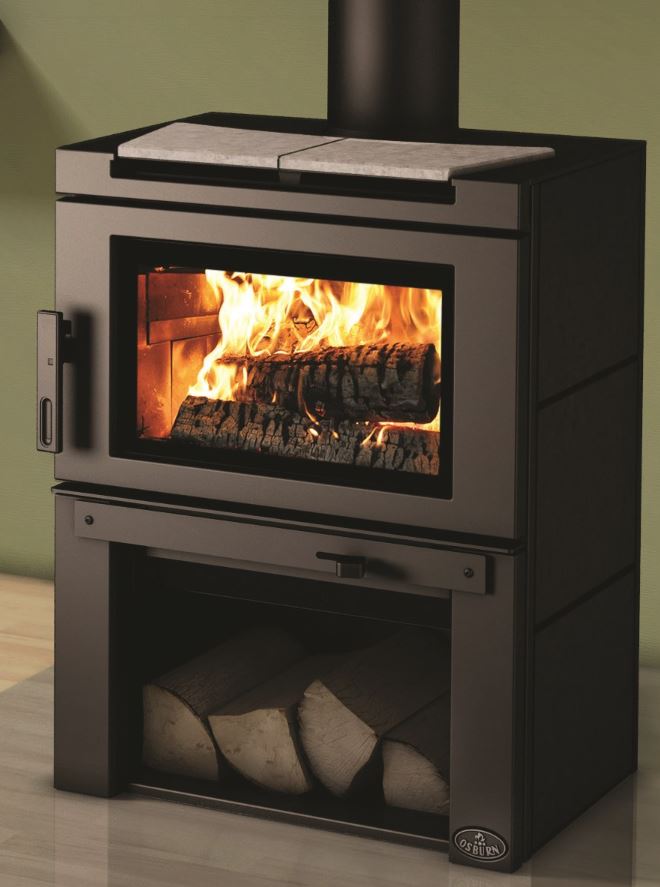

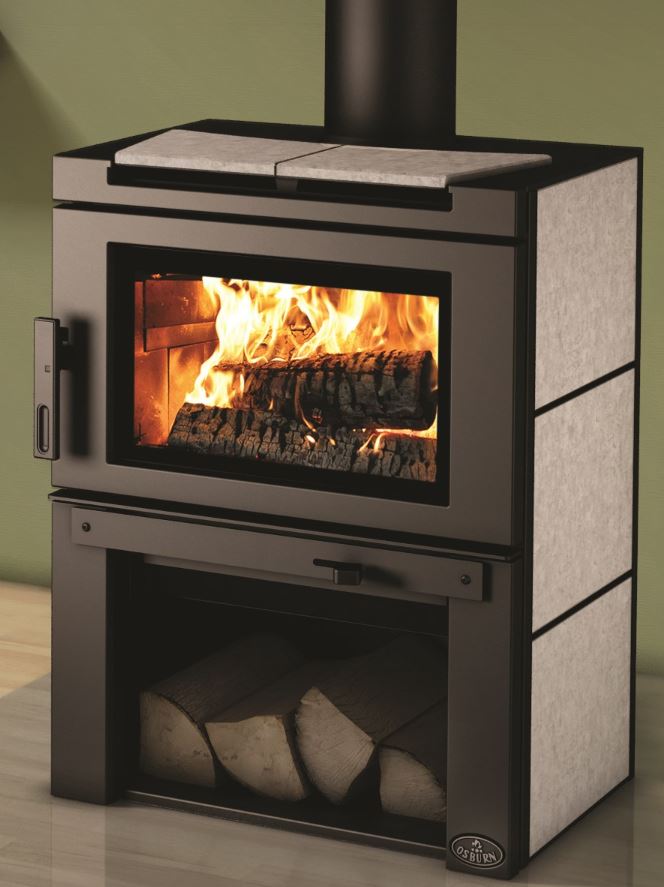

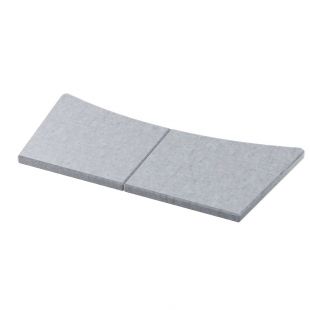

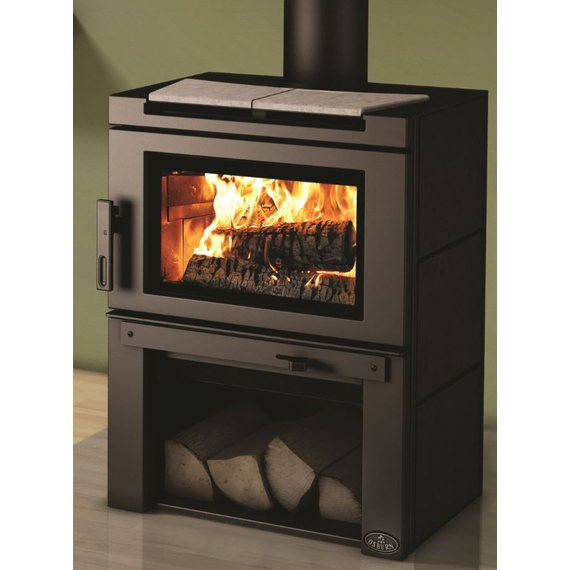

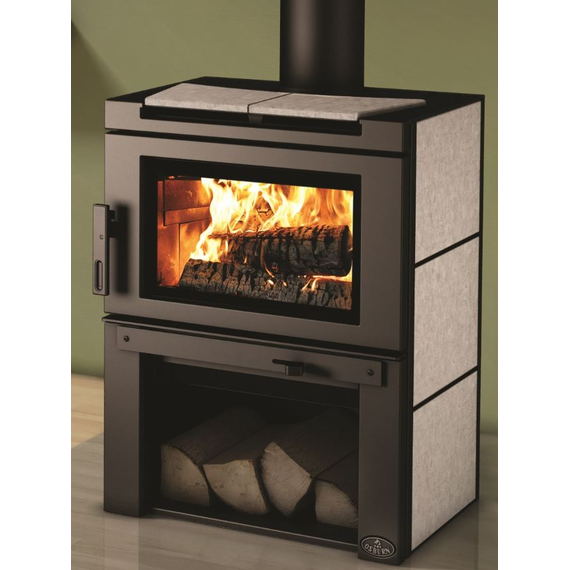

With the same sleek, modern style and greatly improved performance, the Matrix wood burning stove will certainly bring a European touch to your home. Allow the Matrix wood stove to provide you with the warmth, safety, and coziness you need during these cold winters. Now, you can customize your device with the steel or soapstone top and side panel options from the local Quebec City mine, reminding us of the richness of your equipment.

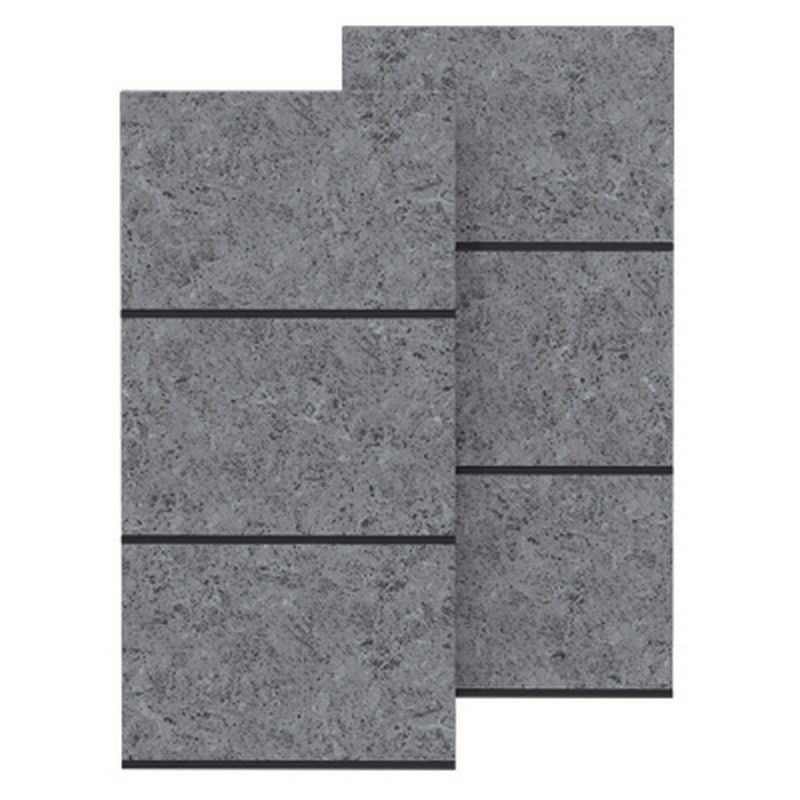

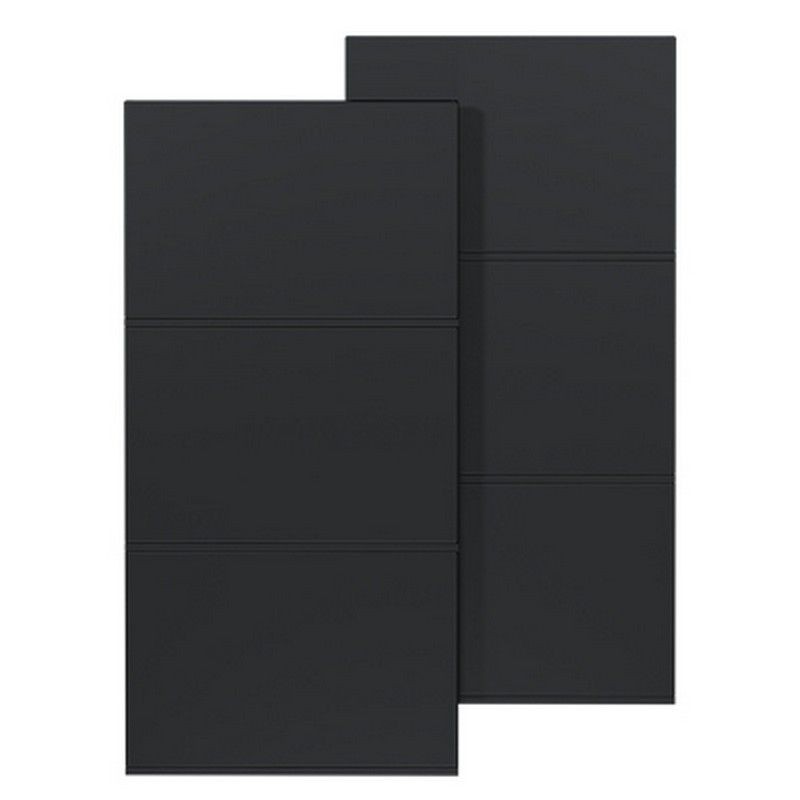

Optional soapstone side shields are also available. Logs can be conveniently placed underneath the large firebox, making the Matrix a practical yet aesthetically pleasing heating machine.

Fireplace Doors Online is proud to offer our customers a shopping experience that delivers quality, style, affordability, and above all - safety. Because of local compliance codes and liability issues, we must verify the installation of this product (room specs, certified installer info). Please look through the product brochure for this item and decide on the features you prefer, then give us a call so we can help you order!

Specifications:

 Color:  Black
 Fuel Type:  Dry cordwood (16" recommended)
 Combustion Technology:  Non-catalytic
 Recommended Heating Area:  500 - 2,100 ft²
 Overall Firebox Volume:  2.4 ft³
 Loading Volume EPA:  1.95 ft³
 Maximum Burn Time:  8 Hours
 Maximum Heat Output-Dry Cordwood:  75,000 BTU/h
 Minimum Overall Heat Output Rate:  14,200 BTU/h (4.16 kW)
 Maximum Overall Heat Output Rate:  44,500 BTU/h (13.04 kW)
 Average Efficiency-Dry Cordwood (HHV):  72 %
 Average Efficiency-Dry Cordwood (LHV):  77 %
 Optimum Efficiency:  79 %
 Baffle Material:  C-Cast or equivalent
 Average Particulate Emission Rate:  2.3 g/h
 Average CO:  69 g/h
 Maximum Log Length:  20"
 Recommended Log Length:  16"
 Log Positioning:  Loading over width

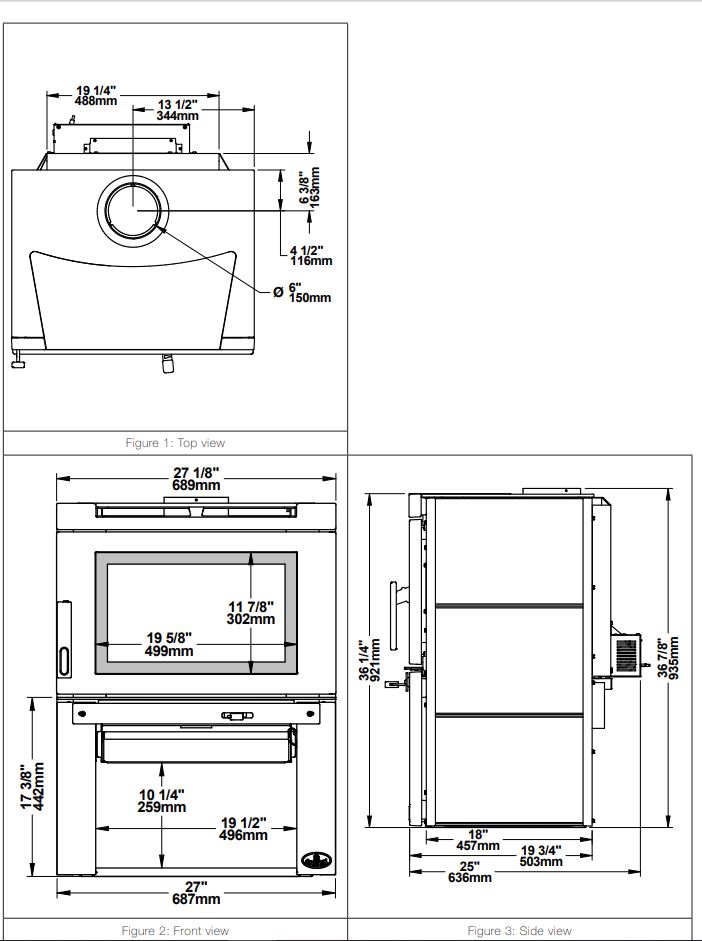

 Flue Outlet Diameter:  6"

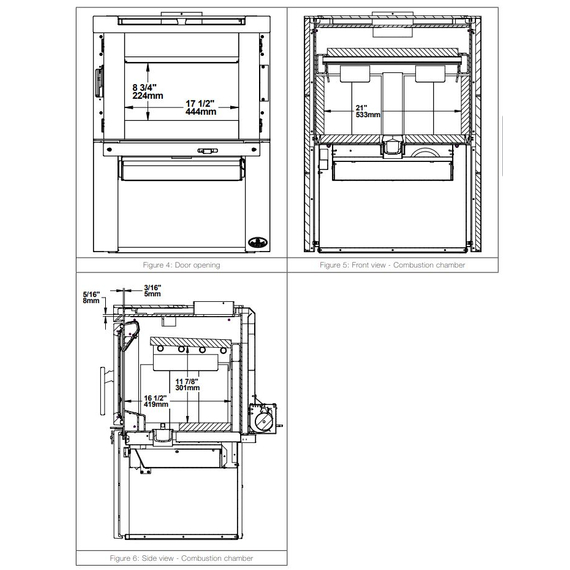

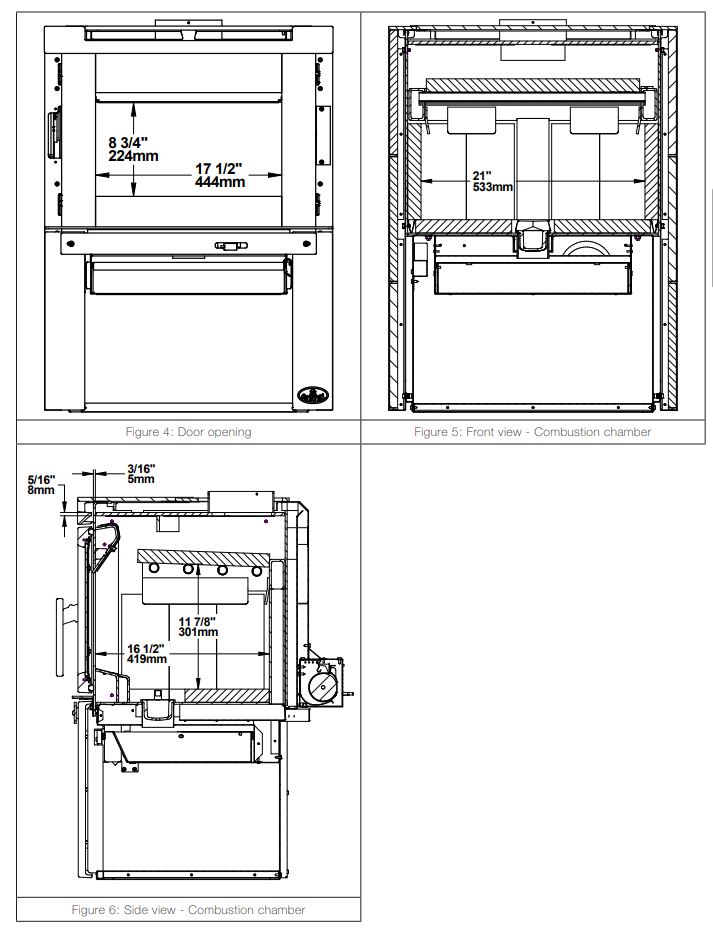

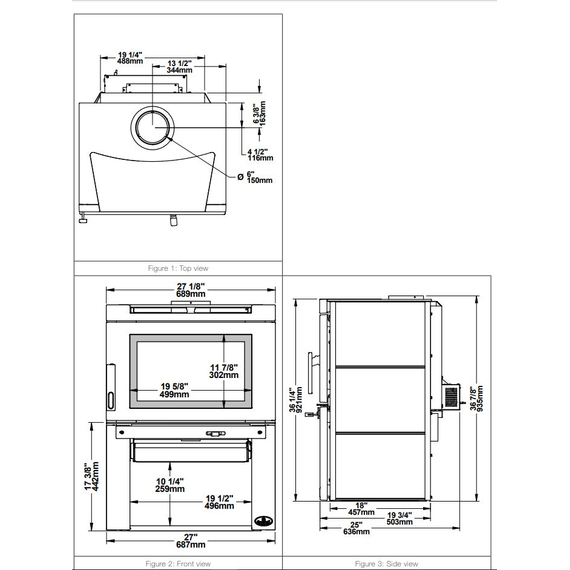

 Door Opening Dimensions (W x H):  17 1/2" x 8 3/4"
 Firebox Dimensions (W x D):  21" x 16 1/2"
 Glass Air-Wash System:  Yes
 Glass Surface Dimensions (W x H):  19 5/8" x 11 7/8"
 Glass Type:  Ceramic glass
 Door Type:  Single, glass with cast iron frame

Downloads:

OSBURN LIMITED LIFETIME WARRANTY

The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. This warranty covers brand new products only, which have not been altered, modified nor repaired since shipment from factory. Proof of purchase (dated bill of sale), model name and serial number must be supplied when making any warranty claim to your OSBURN dealer.

This warranty applies to normal residential use only. This warranty is void if the unit is used to burn material other than cordwood (for which the unit is not certified by EPA) and void if not operated according to the owner's manual. Damages caused by misuse, abuse, improper installation, lack of maintenance, over firing, negligence or accident during transportation, power failures, downdrafts, venting problems or under-estimated heating area are not covered by this warranty. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

This warranty does not cover any scratch, corrosion, distortion, or discoloration. Any defect or damage caused by the use of unauthorized or other than original parts voids this warranty. An authorized qualified technician must perform the installation in accordance with the instructions supplied with this product and all local and national building codes. Any service call related to an improper installation is not covered by this warranty.

The manufacturer may require that defective products be returned or that digital pictures be provided to support the claim. Returned products are to be shipped prepaid to the manufacturer for investigation. Transportation fees to ship the product back to the purchaser will be paid by the manufacturer. Repair work covered by the warranty, executed at the purchaser’s domicile by an authorized qualified technician requires the prior approval of the manufacturer. All parts and labour costs covered by this warranty are limited according to the table below. The manufacturer, at its discretion, may decide to repair or replace any part or unit after inspection and investigation of the defect.

The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding the wholesale price of any warranted but defective parts. The manufacturer shall, in no event, be responsible for any uncommon, indirect, consequential damages of any nature, which are in excess of the original purchase price of the product. A one-time replacement limit applies to all parts benefiting from lifetime coverage. This warranty applies to products purchased after June 1 st, 2015.

DESCRIPTION WARRANTY APPLICATION* PARTS LABOUR

Combustion chamber (welds only) and cast iron door frame. Parts: Lifetime Labour: 5 years

Ceramic glass**, plating (manufacturing defect**), and convector air-mate. Parts: Lifetime Labour: N/A

Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), C-Cast baffle**, vermiculite baffle**, secondary air tubes**, removable stainless steel combustion chamber, deflectors, and supports. Parts: 7 years Labour: N/A

Handle assembly, glass retainers and air control mechanism. Parts: 5 years Labour: 3 years

Removable carbon steel combustion chamber components. Parts: 5 years Labour: N/A

Standard and optional blower, heat sensors, switches, rheostat, wiring, and electronics. Parts: 2 years Labour: 1 year

Paint (peeling**), gaskets, insulation, ceramic fiber blankets, refractory bricks (fireplace only***), and other options. Parts: 1 year Labour: N/A

All parts replaced under the warranty. Parts: 90 days Labour: N/A

*Subject to limitations above **Picture required ***limited to one replacement

Labour cost and repair work to the account of the manufacturer are based on a predetermined rate schedule and must not exceed the wholesale price of the replacement part. Shall your unit or a components be defective, contact immediately your OSBURN dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling:

• Your name, address and telephone number

• Bill of sale and dealer’s name

• Installation configuration

• Serial number and model name as indicated on the nameplate fixed to the back of your unit

• Nature of the defect and any relevant information

Before shipping your unit or defective component to our plant, you must obtain an Authorization Number from your OSBURN dealer. Any merchandise shipped to our plant without authorization will be refused automatically and returned to sender.
