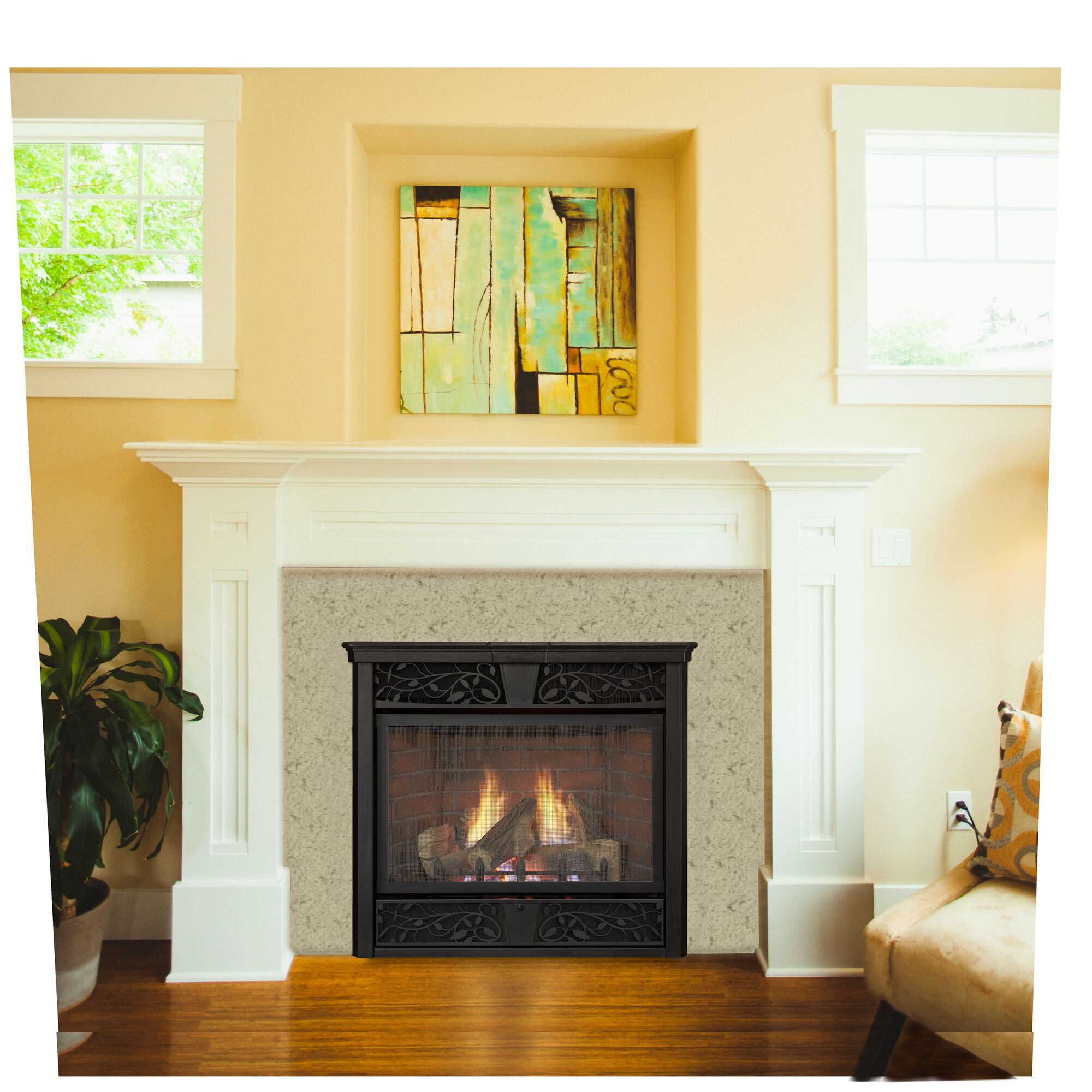

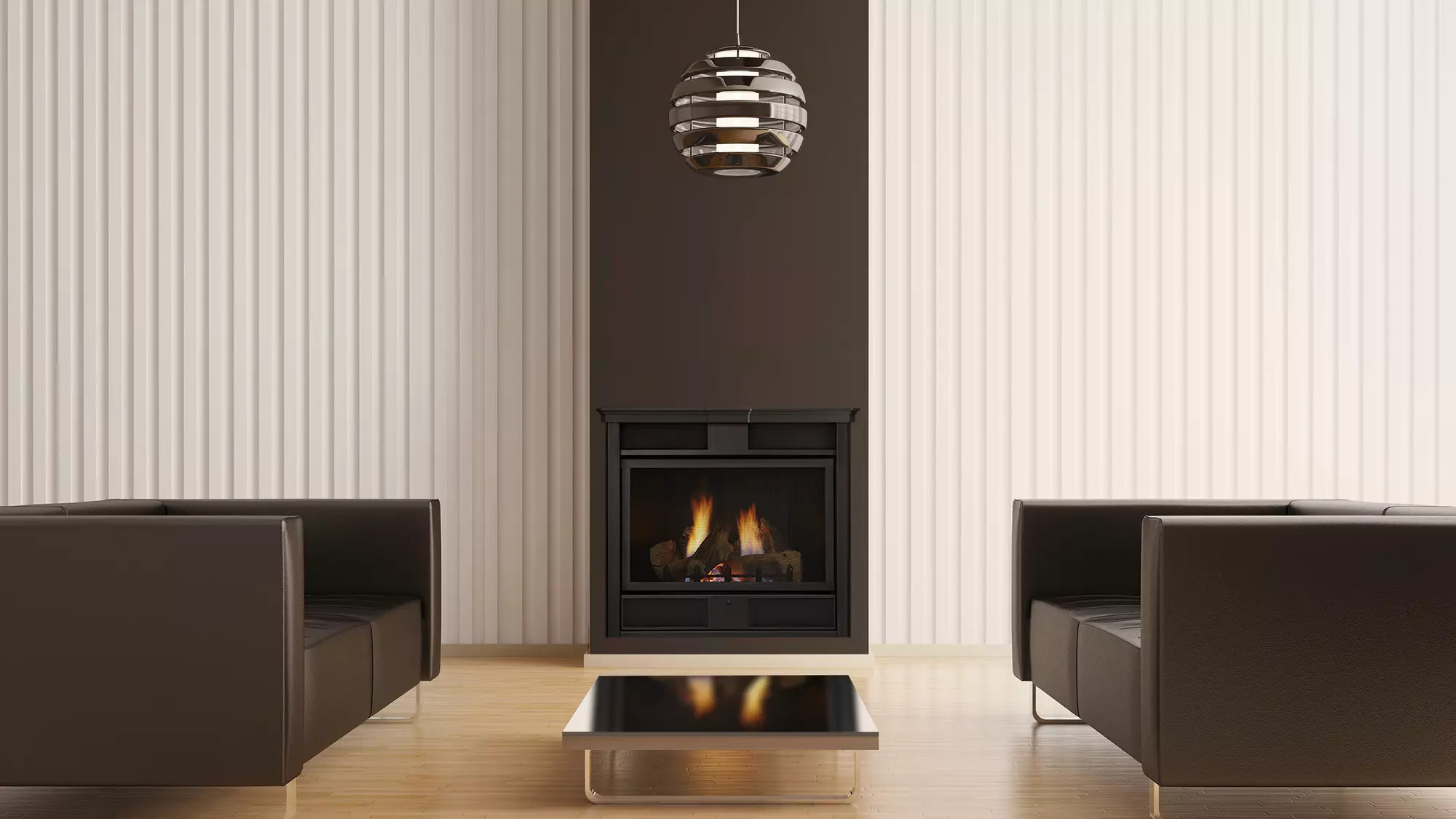

32 Inches Symphony Vent Free Gas Fireplace by Monessen

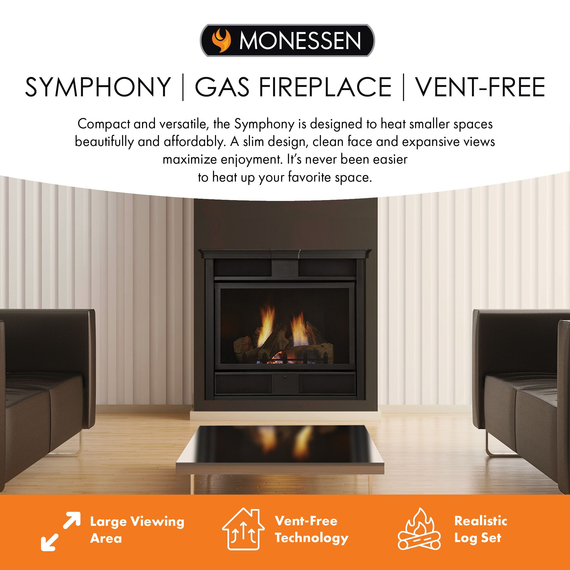

The Monessen Symphony 32" Ventless Gas Fireplace combines the charm of a traditional hearth with modern efficiency and customization options, creating a cozy centerpiece for any room. With up to 28,000 BTUs of warmth, this fireplace is perfect for keeping smaller spaces comfortable and welcoming, even on the chilliest days. The innovative Natural Blaze Burner System and exclusive 7-piece log set deliver mesmerizing, realistic flames that bring a touch of nature indoors.
Designed for both style and convenience, the Symphony features a slim, contemporary profile with an expansive viewing area, offering a full view of its captivating flame display. The accessible control panel makes it easy to adjust settings, while the included 18" flexible gas line and on/off shut-off valve provide added safety and flexibility.

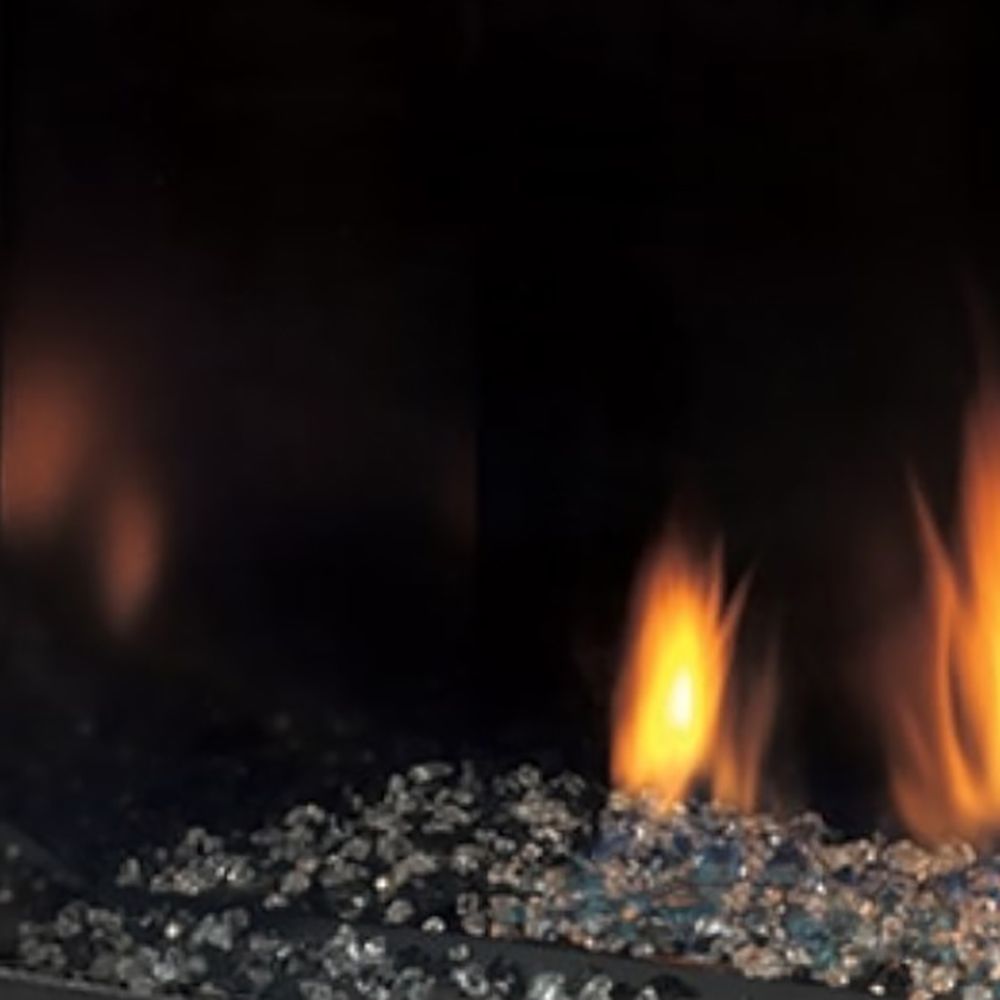

For those who appreciate choice, the Symphony offers two ignition options: a reliable millivolt control or the advanced EcoLogic (IPI) control system, allowing you to personalize your experience. Transform this fireplace with optional accents, like classic log sets for a rustic feel or modern fireglass for a contemporary touch, to reflect your unique décor style.
With its CSA design certification, Monessen’s Symphony Ventless Gas Fireplace is engineered for worry-free enjoyment. Easy to install and versatile in design, it’s a seamless addition to any space, offering the timeless comfort of a hearth without the need for a vent. Cozy up to the Monessen Symphony—a perfect blend of warmth, beauty, and convenience.

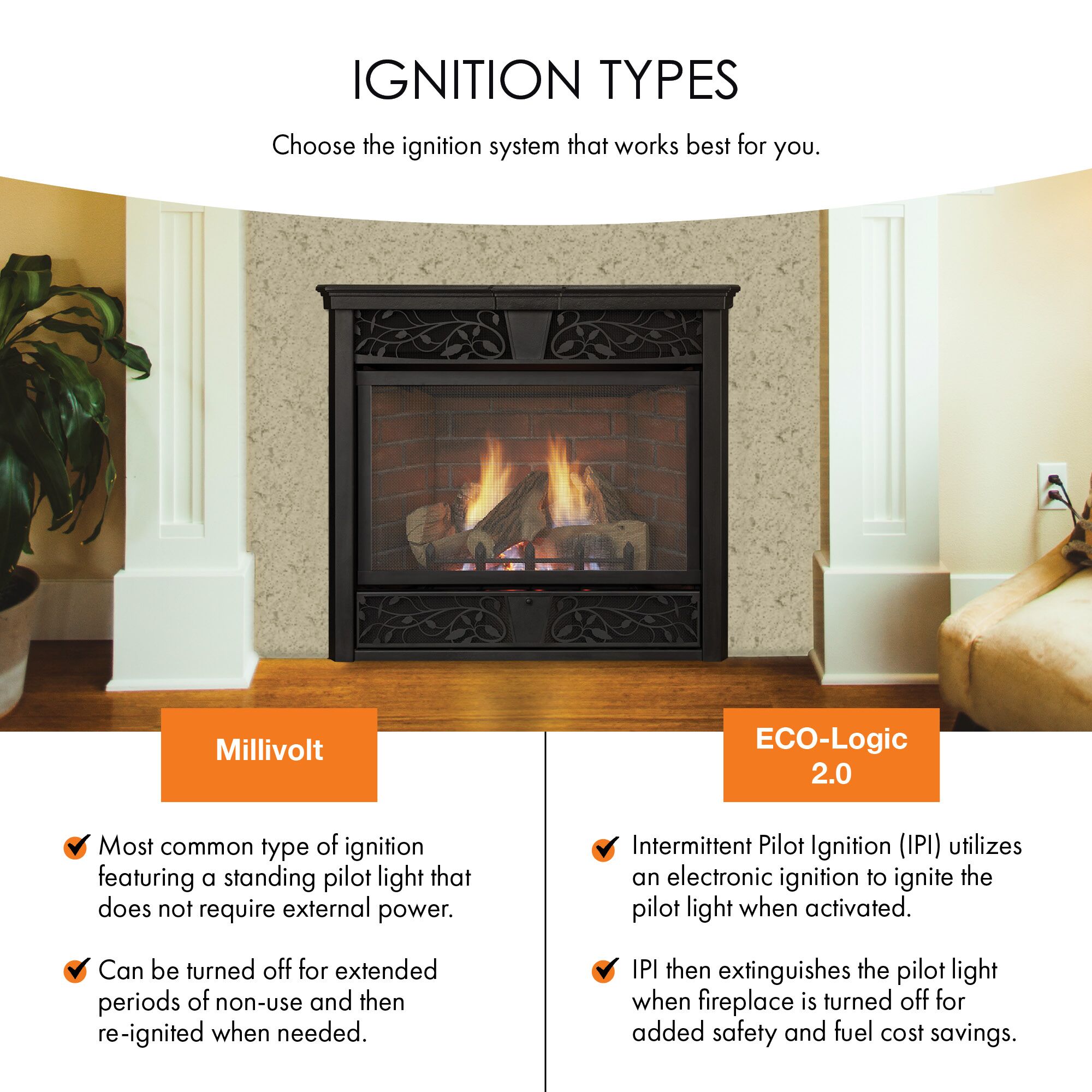

IGNITION CONTROLS:
- Millivolt ignition: Low-voltage system uses pilot flame's heat to ignite gas without external power; if flame goes out, gas flow stops.
- Intermittent Pilot Ignition (IPI): Efficient gas ignition. Sparks/glow plug lights pilot gas as needed. Saves energy, used in modern gas devices.
Features:
- Slim Face Clean Design.
- 7 pieces log set included.
- Millivot and IPI Control are the two ignition modes available.

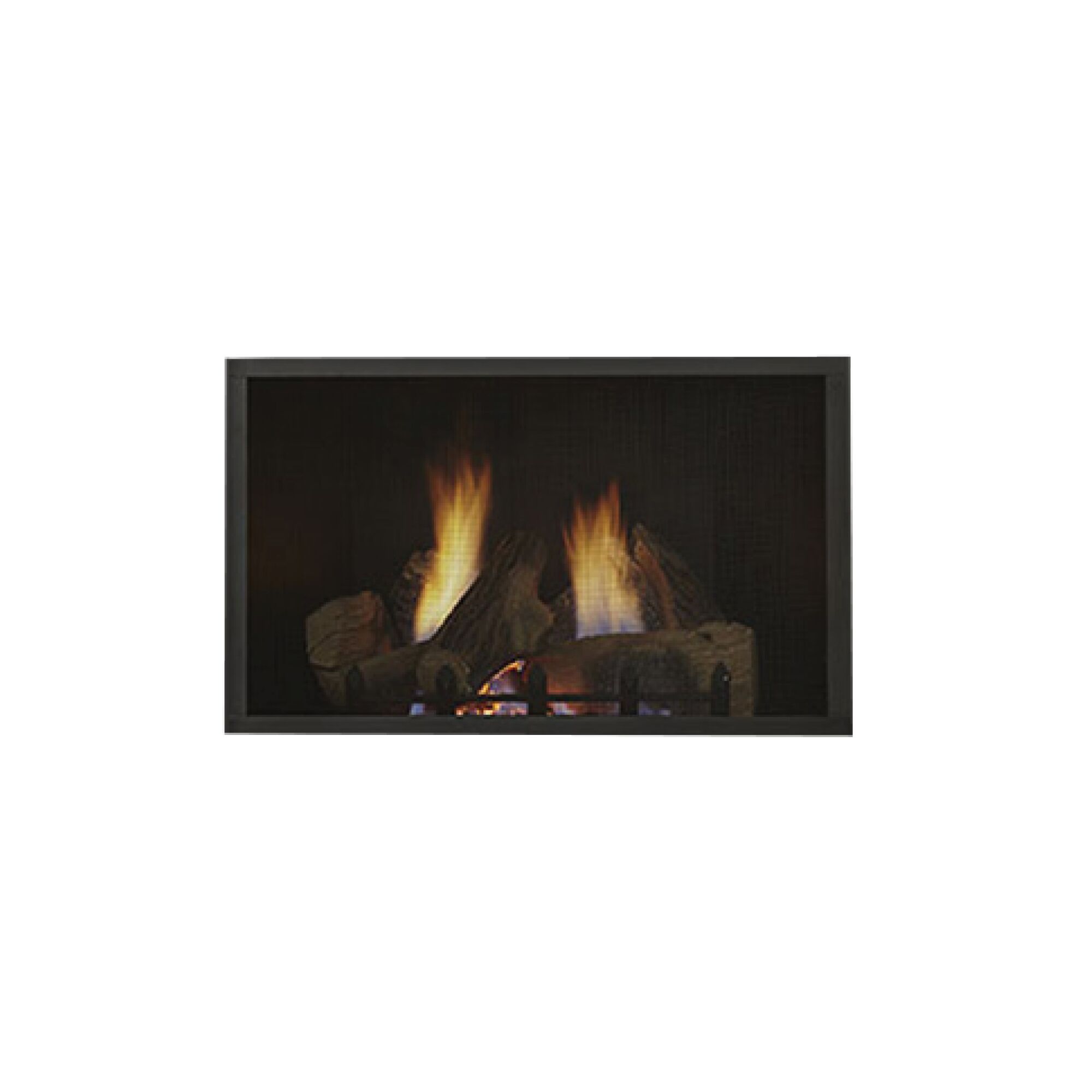

- The exclusive Natural Blaze Burner Technology produces instant dancing yellow flames and a bed of active embers.
- Ventless Technology
- Up to 28,000 BTUs

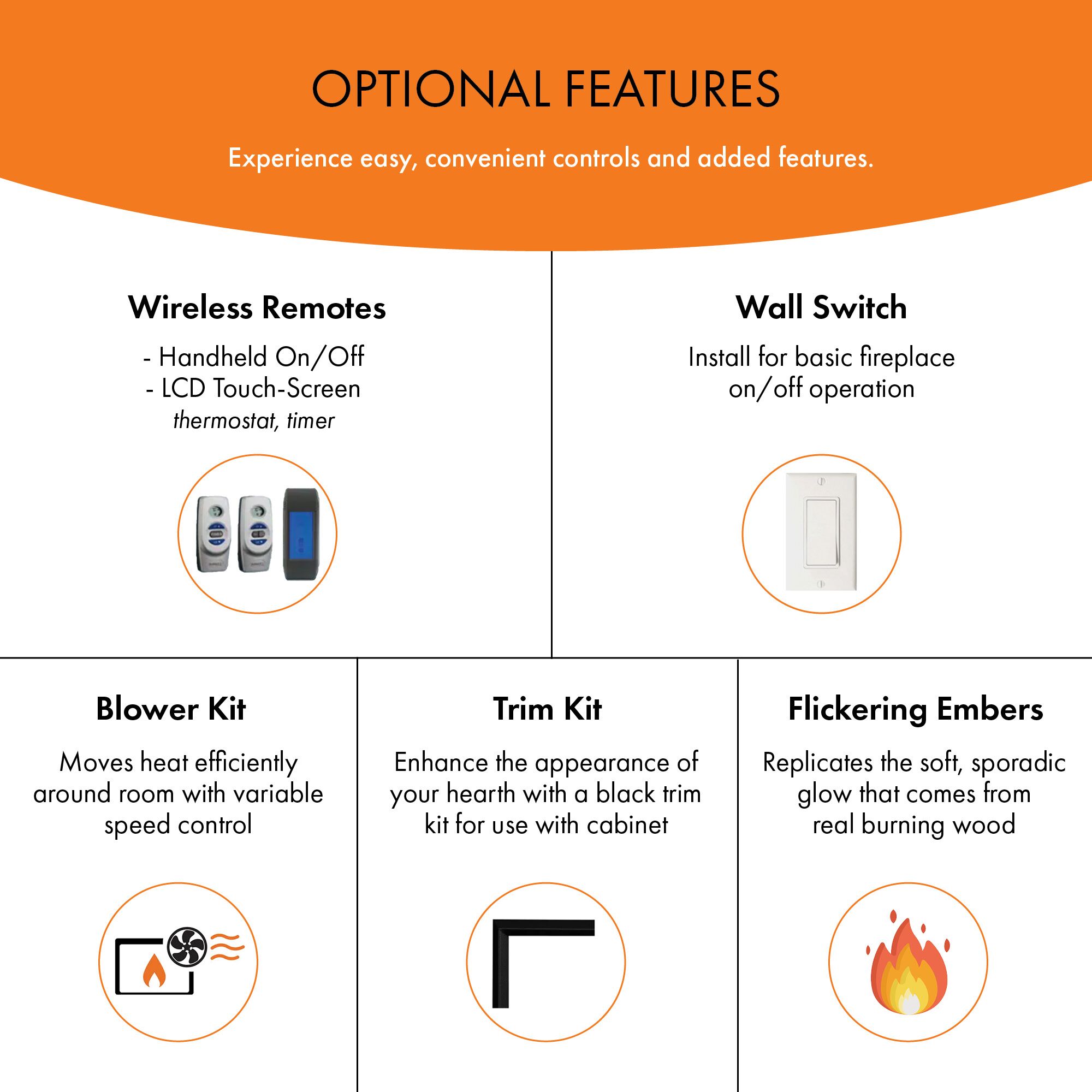

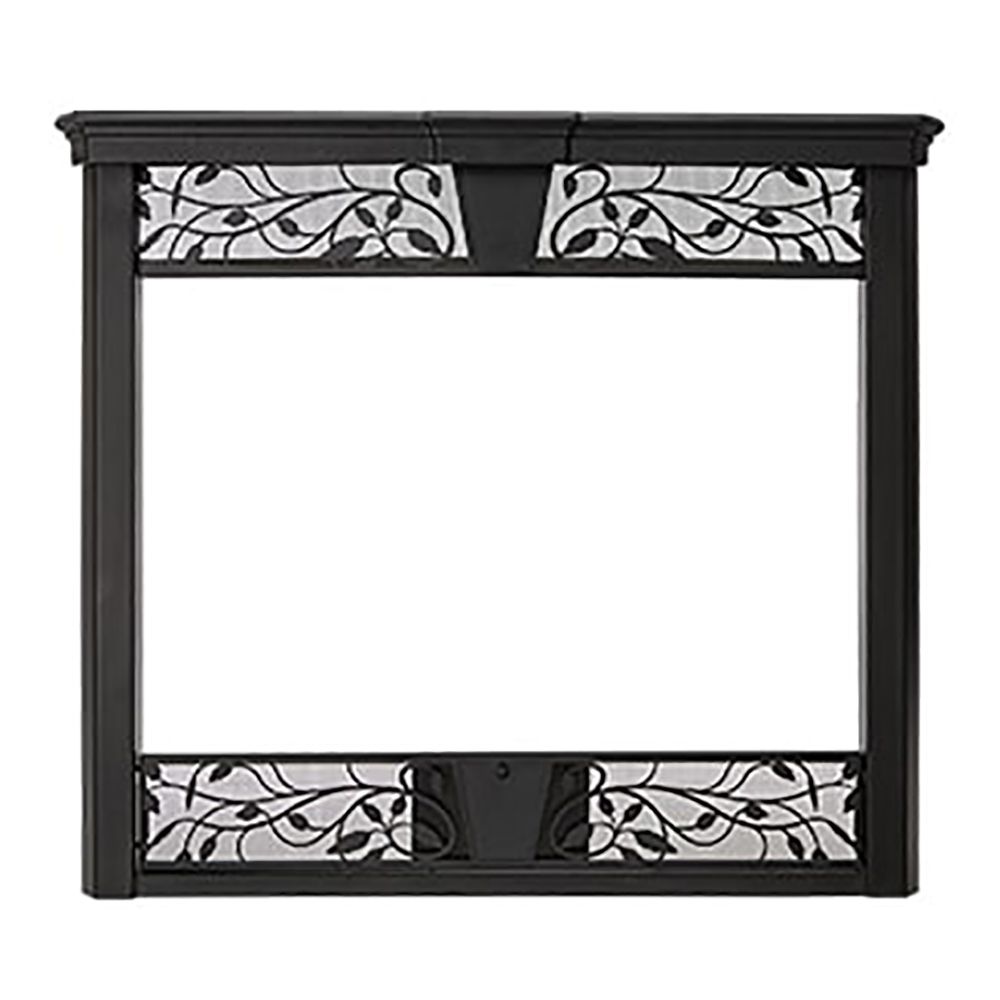

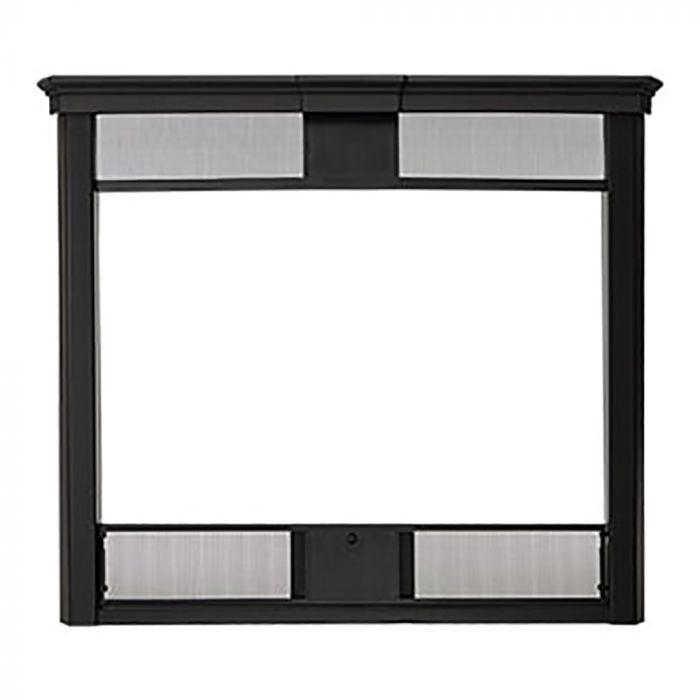

- Optional Accesories Available.
Specifications:
- Fuel Type: Natural Gas and Liquid Propane
- NG BTU: 28,000
- LG BTU: 27,000

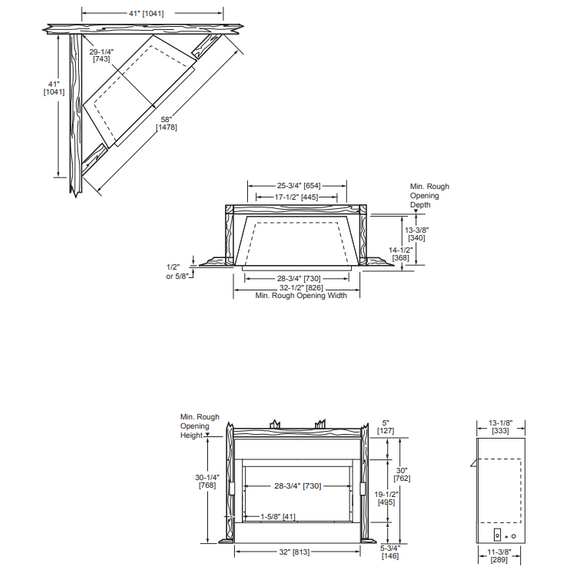

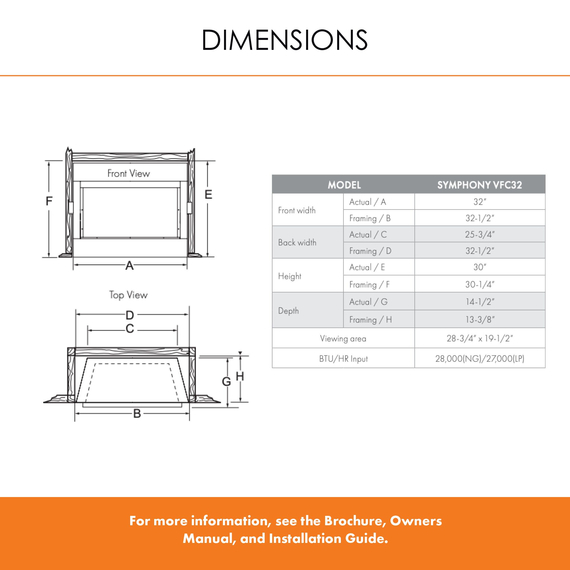

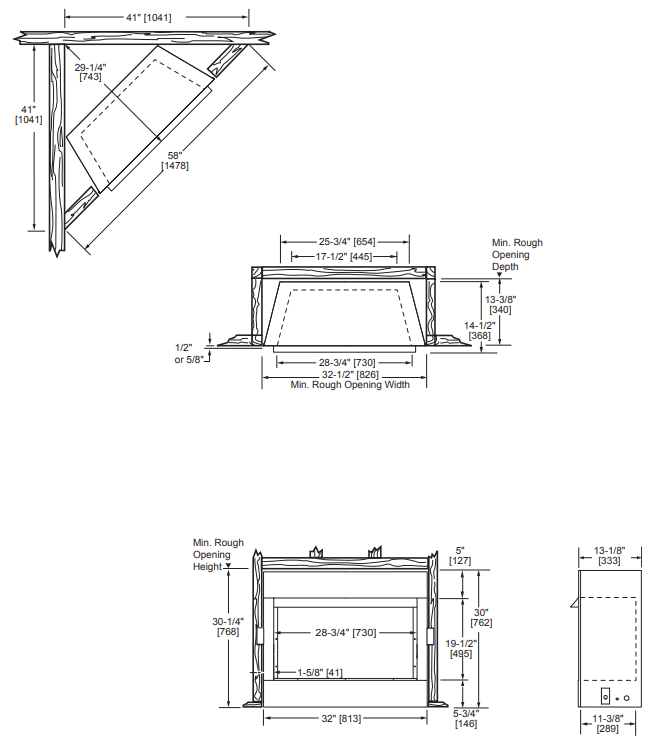

- Framing Width: 32-1/2"
- Framing Depth: 13-3/8"
- Framing Height: 30-1/4"
- Viewing Area: 28-3/4 x 19-1/2" (560 sq in)

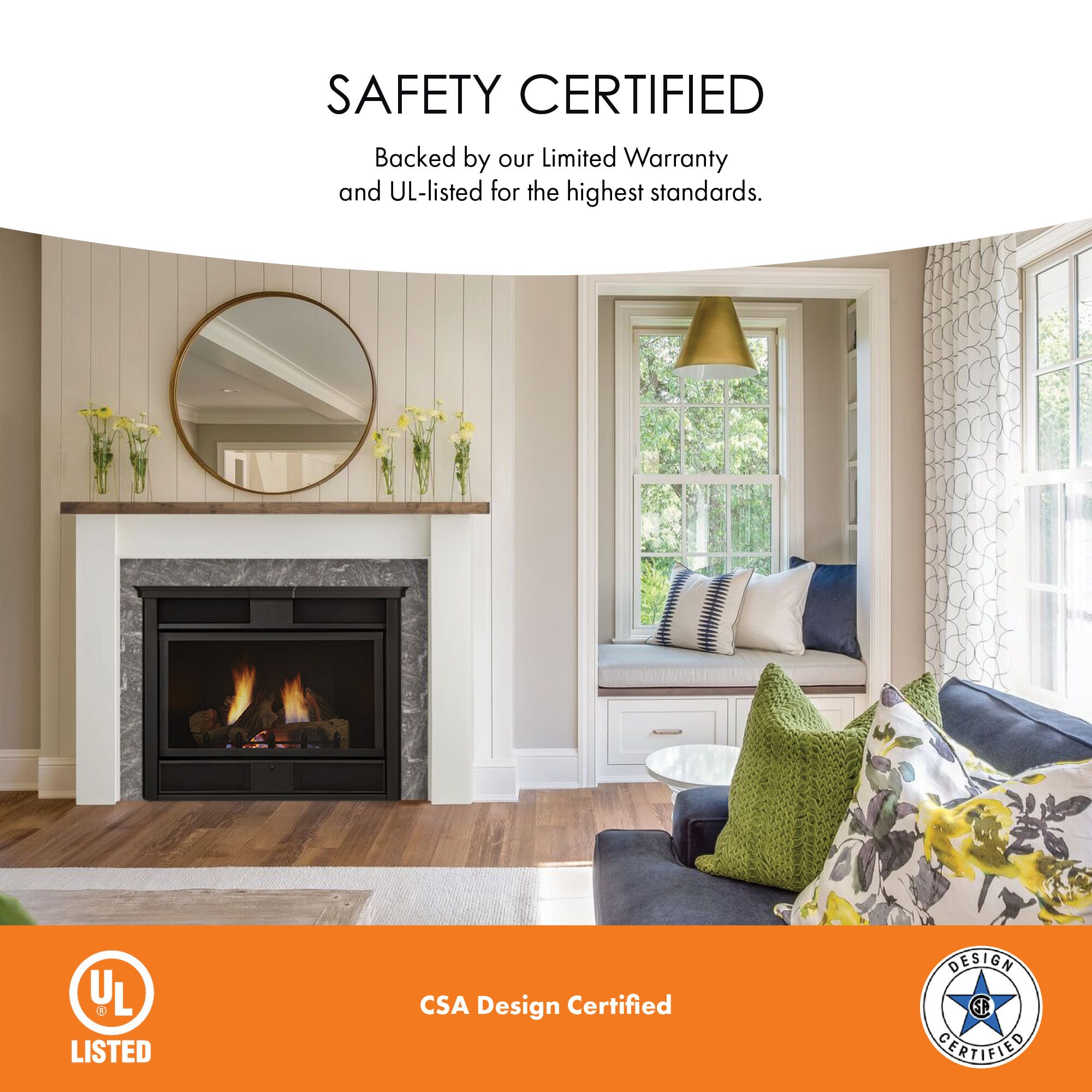

- Certification: ANSI Z223.1, NFPA54 ,ANSI Z21.11
**For more detailed specifications, please visit the Tech Specs tab.
**For detailed information and documents, please visit the Downloads tab where you'll find PDFs and additional resources available for download.
SOMETHING TO CONSIDER BEFORE YOU PURCHASE A VENT FREE APPLIANCE:
Vent-Free sets are supplemental zone heaters - They are not intended for continuous use or whole house heating.
Glass doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety controls. With adequate combustion and ventilation air, the damper may be closed for vent-free use. The damper may be opened slightly for reduced venting.
Check local codes and ordinances for permitted uses.
- In Most Cases, Vent Free Appliances Are NOT Approved For Bedrooms Or Bathrooms.
- Select States And/Or Counties Within States May Not Allow Installation Of Vent Free Products.
- This includes but is not limited to: California, Minnesota, Wisconsin.
- Other states may have local restrictions such as Arizona, Nevada, Idaho, Alaska, Wyoming, New Mexico, North Dakota and South Dakota. Please check local codes before purchasing a Vent Free Appliance.
- Vent free Products Are Not Suitable For People With Allergies Or Breathing Problems
Technical Specifications:
Model Specifications:
- VFC24CNV (Natural Gas, Millivolt):
- Max BTU: 22,000
- Min BTU: 16,000
- Orifice Size: #52
- VFC24CPV (Propane, Millivolt):
- Max BTU: 22,000
- Min BTU: 16,000
- Orifice Size: #52
- VFC24CLN (Natural Gas, IPI):
- Max BTU: 22,000
- Min BTU: 16,000
- Orifice Size: #52
- VFC24CLP (Propane, IPI):
- Max BTU: 22,000
- Min BTU: 16,000
- Orifice Size: #52
- VFC32CNV (Natural Gas, Millivolt):
- Max BTU: 27,000
- Min BTU: 20,000
- Orifice Size: #38
- VFC32CPV (Propane, Millivolt):
- Max BTU: 27,000
- Min BTU: 20,000
- Orifice Size: #38
- VFC32CLN (Natural Gas, IPI):
- Max BTU: 27,000
- Min BTU: 20,000
- Orifice Size: #38
- VFC32CLP (Propane, IPI):
- Max BTU: 27,000
- Min BTU: 20,000
- Orifice Size: #38
Note:
For LP models, an external regulator is required to reduce supply pressure to a maximum of 13" w.c.
Operation

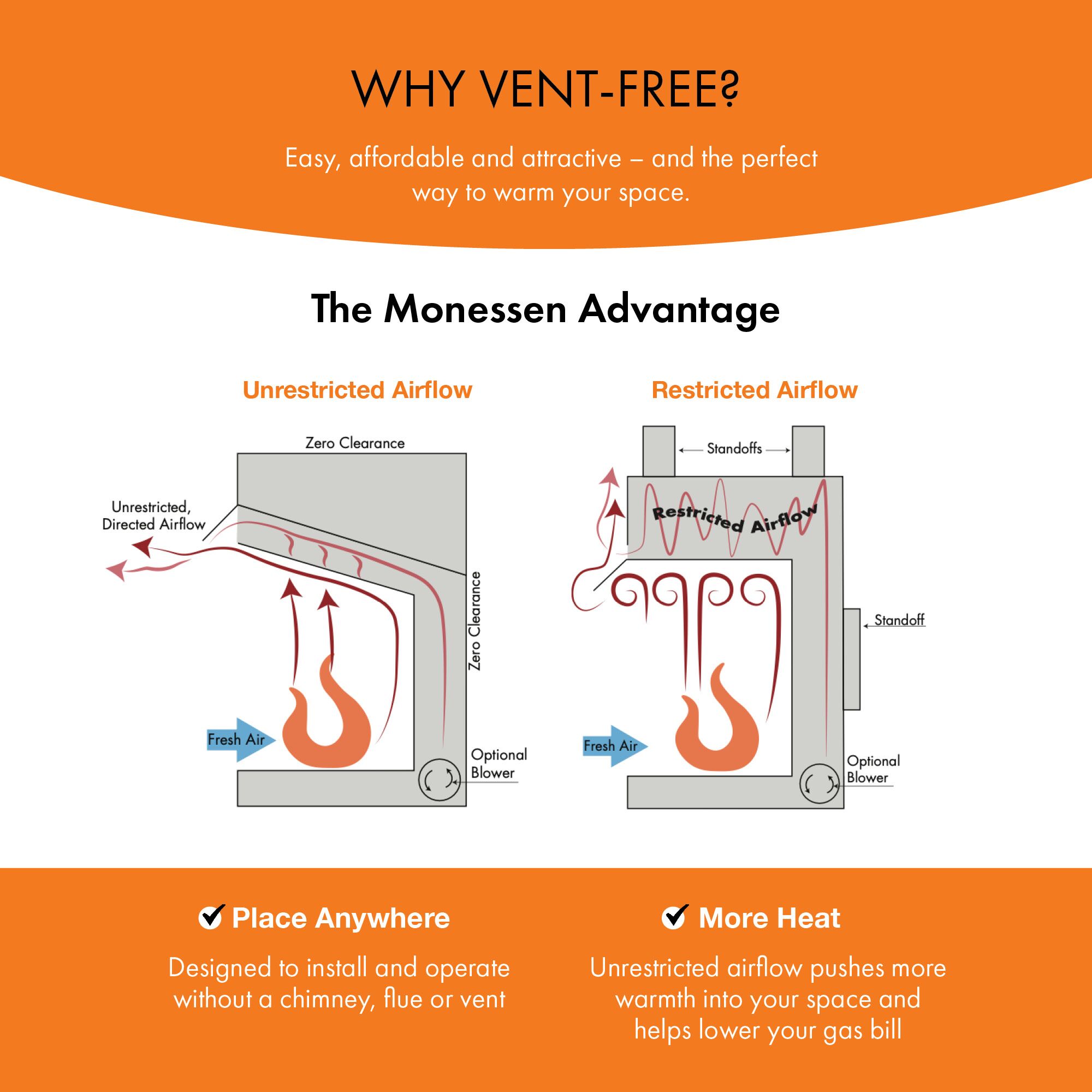

- Unvented gas heater:
- Requires no outside venting.
- Burns cleanly with high heating efficiency.
- Zero-clearance appliance:
- Can be installed flush against or recessed into walls.
Gas Pressures
- Natural Gas (NAT):
- Regulator Pressure: 3.5" w.c.
- Pilot Regulator: 3.5" w.c.
- Max. Inlet Pressure: 10.5" w.c.
- Min. Inlet Pressure: 5.0" w.c.
- Liquid Propane (LP):
- Regulator Pressure: 10.0" w.c.
- Max. Inlet Pressure: 13.0" w.c.
- Min. Inlet Pressure: 11.0" w.c.
Ignition Controls
Piezo Ignitor:
Enables pilot ignition without matches or batteries.
Millivolt and EcoLogic 2.0 Controls:4 positions:
- OFF: Shuts off all gas to the logs.
- IGN: Lights/maintains a standing pilot.
- ON: Turns ON/OFF log set with remote or thermostat.
- LOW/HI: Controls flame height for heat output.
Pilot
- Gas Log Heater:
- Equipped with an Oxygen Depletion Sensor (ODS).
- Shuts off the gas if oxygen levels drop below safety thresholds.
- Pilot can only be relit when adequate fresh air is available.
Thermal Generator
- Millivolt gas log pilot: Includes a millivolt generator to provide power for remote activation.
Downloads:
- Symphony Ventless Fireplace Manual
- Symphony Ventless Fireplace Brochure
- Symphony 32" Ventless Fireplace Spec Sheet
- Product Warranty
Accessory Manual
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
