30 Inch Lyric Vent Free Contemporary Gas Burner by Monessen
The Monessen Lyric 30" Ventless Contemporary Gas Burner – where cutting-edge design meets unparalleled efficiency, setting the stage for a fireplace experience like no other.

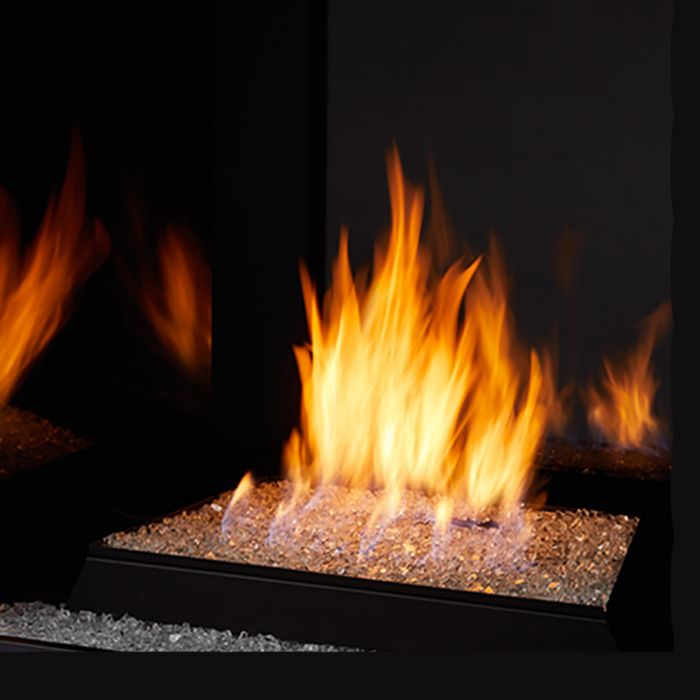

Elevate your space with Lyric's vent-free contemporary burner, a seamless fusion of style and functionality. The captivating dance of flames through fire glass media creates a stunning modern aesthetic, infusing your room with a touch of shimmer and a fascinating play of light. Immerse yourself in the ambiance of contemporary elegance that adds both romance and richness to every corner of your home.
Experience the ultimate convenience with the millivolt control system and auto spark ignition. Operate your fireplace effortlessly using a simple, remote-ready interface. The auto spark ignition ensures a hassle-free start, letting you enjoy the warmth and beauty of your contemporary fire with the touch of a button.
Break free from traditional constraints with the Lyric's vent-free technology. No need for a chimney or venting – this contemporary gas burner allows you the flexibility to install it wherever your vision takes you. Redefine your space without limitations, creating a focal point that transcends traditional boundaries.
The Lyric is not just a source of heat; it's a work of art that transforms your living space. Revel in the efficiency of a Monessen vent-free gas product while basking in the ambiance of contemporary design. Let the Flames of the Lyric become a statement piece that sparks conversation and admiration among family and friends.
Indulge in the perfect blend of form and function with the Monessen Lyric 30" Ventless Contemporary Gas Burner. Ignite your passion for modern style, redefine your living space, and embrace the warmth of a fireplace that transcends the ordinary. Elevate your home with the Lyric – where contemporary elegance meets the future of fireplace design.
Valves & Controls:
Millivolt Valve Remote Ready - Standing Pilot. The device utilizes a standing pilot that consumes 575 BTU per hour, equivalent to 1 therm of natural gas every 7.2 days or 1 gallon of propane every 6.6 days. It comes with an ON/OFF switch and can be utilized with SR-MV1, THR-MV1, WS-MV1, and WT-MV1 remote controllers, or a wired wall switch, wired wall timer, or home automation system.
Features:
- A touch of shimmer, a bit of shine, flames that move and flicker adding romance and richness to your room.
- Simple, remote-ready millivolt control with auto-spark ignition makes operation effortless.
- Ventless Technology.
- Contemporary burner with multi-peak flame and shimmering, elegant ember bed

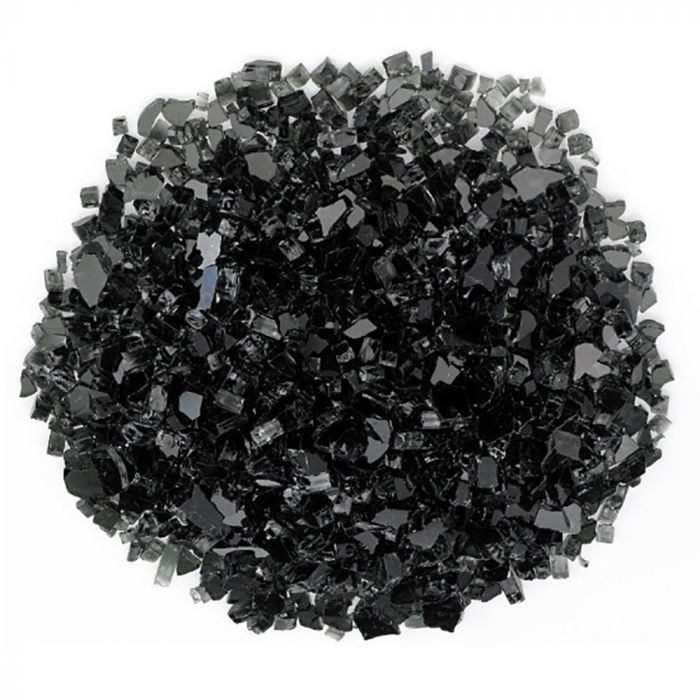

- Two bags of Onyx fire glass media standard with burner
- Auto-spark igniter If changing glass media, 30" Lyric requires 2 bags(4.5lbs)
- Dual-rated for vent-free and vented applications(Vented Applications Require Damper Clamps: C-CLAMP)
- CSA design certified
Specifications:
- Minimum Opening Front Width: MIL: 34"
- Minimum Opening Height: MIL: 13"
- Minimum Opening Depth: MIL: 11"
- Minimum Opening Back Width: MIL: 24"
- Fuel Type: Natural Gas or Liquid Propane
- BTU/hr Input: 37,000 NG / 36,000 LP
- Heating Capacity: Up to 1,850 sq ft
- Ignition System: Millivolt
Downloads:
Technical Specifications:
A. Appliance Certification
- Model Numbers: LYR18N/PV, LYR24N/PV, LYR30N/PV
- Laboratory Certification: Underwriters Laboratories, Inc. (UL)
- Type: Unvented Room Heater
- Standard Compliance:
- ANSI Z21.11.2-2016 (Unvented Application)
- ANSI Z21.60-2017/CSA 2.26-2017 (Vented Application)
- Usage Note:
- State and local codes govern whether this appliance can operate in a vented configuration. Check local codes for compliance.
- Key Standards:
- Designed to meet ANSI standards for "Unvented Room Heaters" and relevant sections of "Gas Burning Heating Appliances for Manufactured Homes" and "Gas Fired Appliances for Use at High Altitude."
- Local Compliance Requirement:
- Installations must comply with local codes or the National Fuel Gas Code, ANSI Z223.1 (latest U.S. edition).
- Disclaimer:
- Not Intended as a Primary Heat Source:
- This appliance is supplemental and decorative and should not be relied on as primary heating in residential calculations.
B. BTU Specifications
- Models and BTU Ranges:
- LYR18N/PV: 28,000 BTU max / 19,000 BTU min, Orifice #38
- LYR18P/V: 27,000 BTU max / 19,000 BTU min, Orifice #52
- LYR24N/PV: 37,000 BTU max / 25,000 BTU min, Orifice #38
- LYR24P/V: 36,000 BTU max / 25,000 BTU min, Orifice #52
- LYR30N/PV: 39,000 BTU max / 25,000 BTU min, Orifice #38
- LYR30P/V: 36,000 BTU max / 25,000 BTU min, Orifice #49
- Regulator Requirement for LP Models:
- LP models need an external regulator to reduce supply pressure to 13" w.c.
- Gas Pressure Specifications
- Natural Gas:
- Inlet Pressure: Minimum 5.0" w.c., Maximum 10.5" w.c.
- Gas Valve Manifold Pressure Setting: 3.5" w.c.
- Pilot Regulator: 3.5" w.c.
- Propane (LP):
- Inlet Pressure: Minimum 11.0" w.c., Maximum 13.0" w.c.
- Gas Valve Manifold Pressure Setting: 10.0" w.c.
- Pilot Regulator: 10.0" w.c.
- Natural Gas:
C. High Altitude Installations
- Altitude Adjustment Notice:
- For installations above 2,000 feet, reduce input rate by 4% for every additional 1,000 feet above this elevation.
- Local gas utilities or authorities can provide proper orifice sizing for high altitudes.
D. Non-Combustible Materials Specification
- Approved Materials:
- Any material that does not ignite or burn, such as:
- Steel
- Iron
- Brick
- Tile
- Concrete
- Slate
- Glass
- Plasters
- Any material that does not ignite or burn, such as:
- Testing Compliance:
- Materials must pass ASTM E 136, Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750°C.
- Controls and Safety Features
- Millivolt Ignition Controls:
- Auto spark ignition enables easy activation with a button press.
- Control Positions:
- OFF: All gas is shut off.
- IGN: Lights/maintains a standing pilot.
- ON: Toggles gas log set operation with remote or thermostat.
- LOW/HI: Adjusts flame height/output.
- Pilot/ODS:
- Features an Oxygen Depletion Sensor (ODS) that shuts off gas flow if oxygen levels drop.
- Pilot relights only when sufficient fresh air is available.
- Thermal Generator:
- The millivolt gas log pilot uses a thermopile generator for remote activation.
Manufacturer's Warranty
