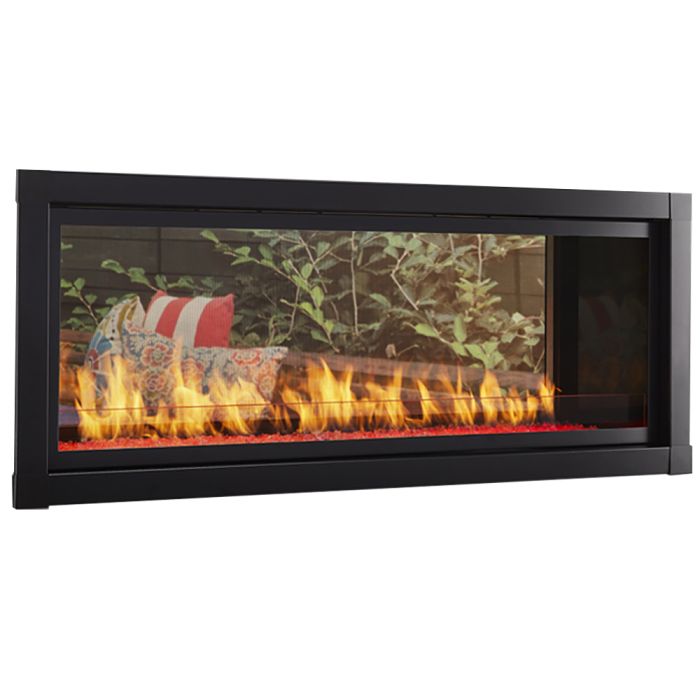

48" Artisan Vent Free See-Through Gas Fireplace by Monessen

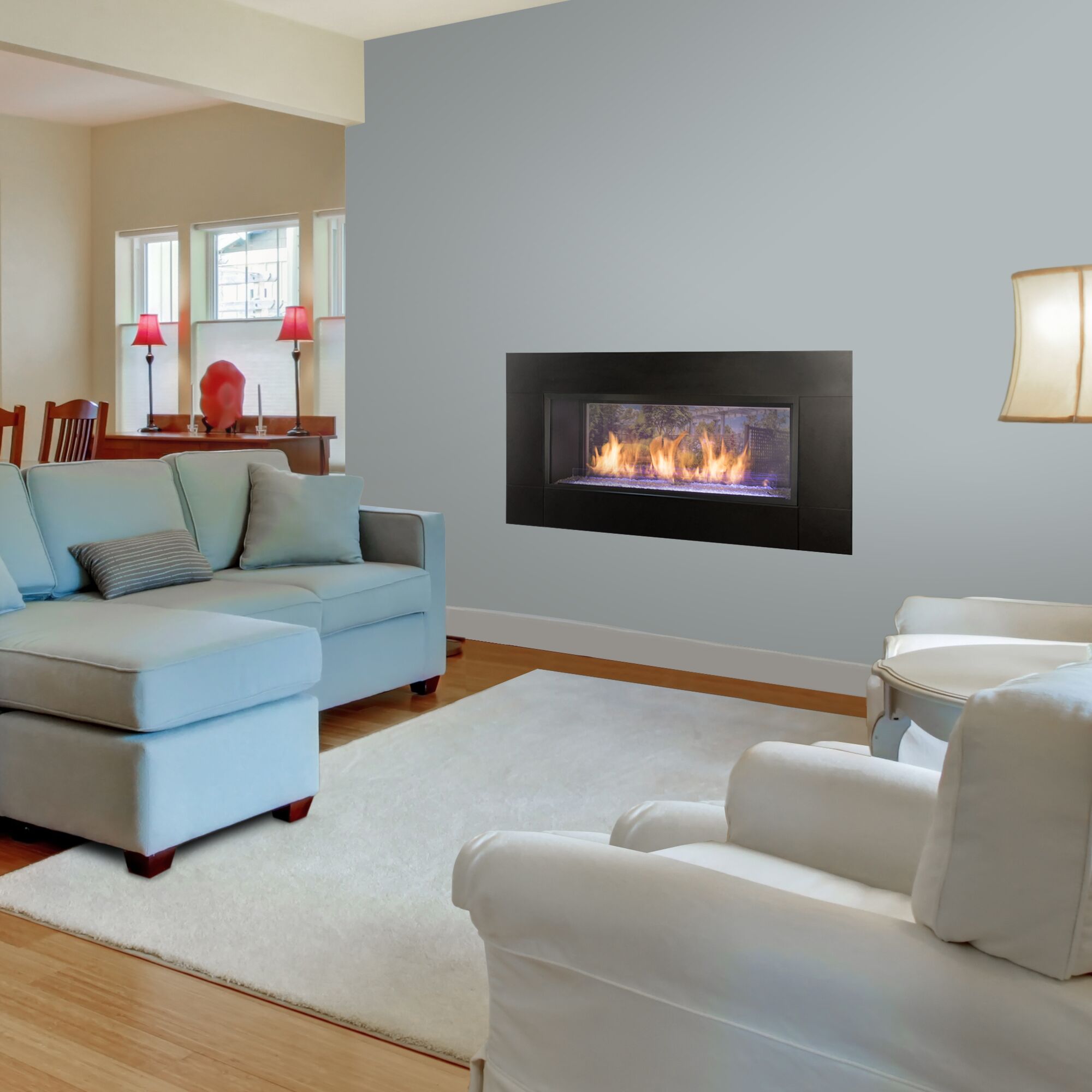

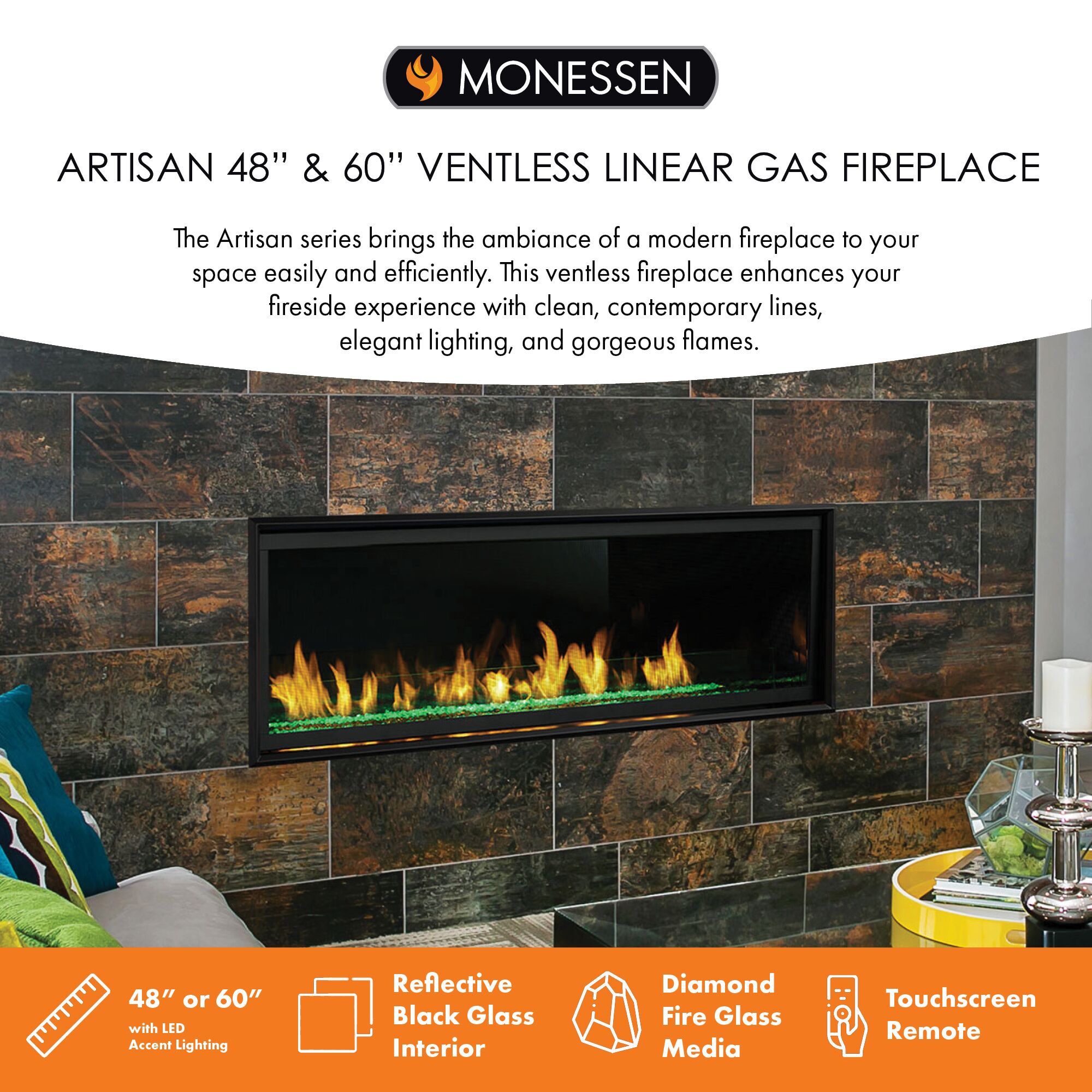

The Monessen Artisan 48" Ventless See-Through Gas Fireplace – Where Elegance Meets Innovation! Are you ready to elevate your home's ambiance to the next level? Look no further than the Artisan fireplace, your ticket to modern luxury and style. This premium ventless gas fireplace will keep you warm and add a touch of contemporary sophistication to any space. The Artisan fireplace boasts a sleek, linear design that perfectly complements its mesmerizing flame presentation. It's not just a source of heat; it's a work of art that enhances the aesthetic of your home. With its see-through design, this fireplace is a captivating divider between two rooms, transforming both simultaneously. Experience the allure of dancing flames from multiple angles, creating a stunning focal point for any occasion. Want to take your gatherings outside? The optional stainless steel outdoor kit lets you seamlessly transition your Artisan fireplace into a two-sided indoor/outdoor masterpiece.
It's a versatile addition that adds warmth and style to your patio or deck, allowing you to enjoy the charm of the flames wherever you desire. Accent lighting takes your fireplace experience to the next level, enhancing the cozy atmosphere with soft, inviting illumination. Whether it's a romantic evening or a casual get-together, the Artisan sets the mood effortlessly. The Artisan fireplace is fully customizable, with multiple trim kits and front options that allow you to create a surround display that suits your taste and complements your home decor. Plus, various optional accessories are available to help you make it uniquely yours. If you crave versatility, choose the Artisan with the outdoor stainless steel front for two-sided interior/exterior installation. It's the ultimate choice for those who love to redefine their living space. Elevate your living space with the Monessen Artisan Ventless See-Thru Gas Fireplace – where innovation, style, and comfort unite to create an unforgettable home experience. Transform your space, set the mood, and enjoy the warmth. Upgrade your lifestyle with the Artisan fireplace today!
IGNITION CONTROLS:
- Intermittent Pilot Ignition (IPI): Efficient gas ignition. Sparks/glow plug lights pilot gas as needed. Saves energy, used in modern gas devices.
Features:
- Thermostat, light, and on/off switches are all within easy reach with a multi-purpose remotele.

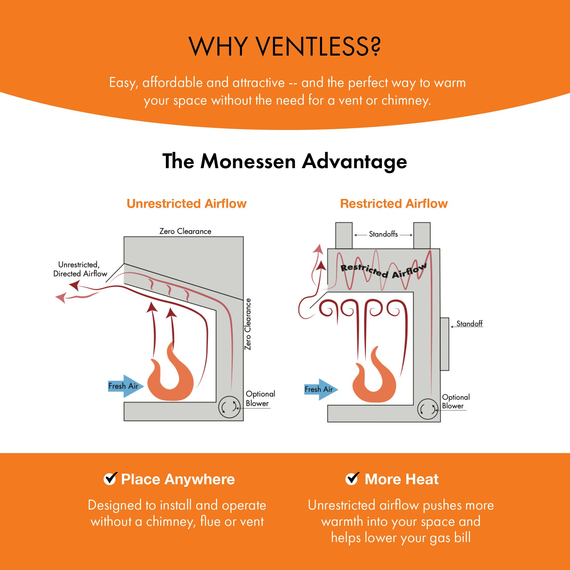

- The ventless design simplifies installation.

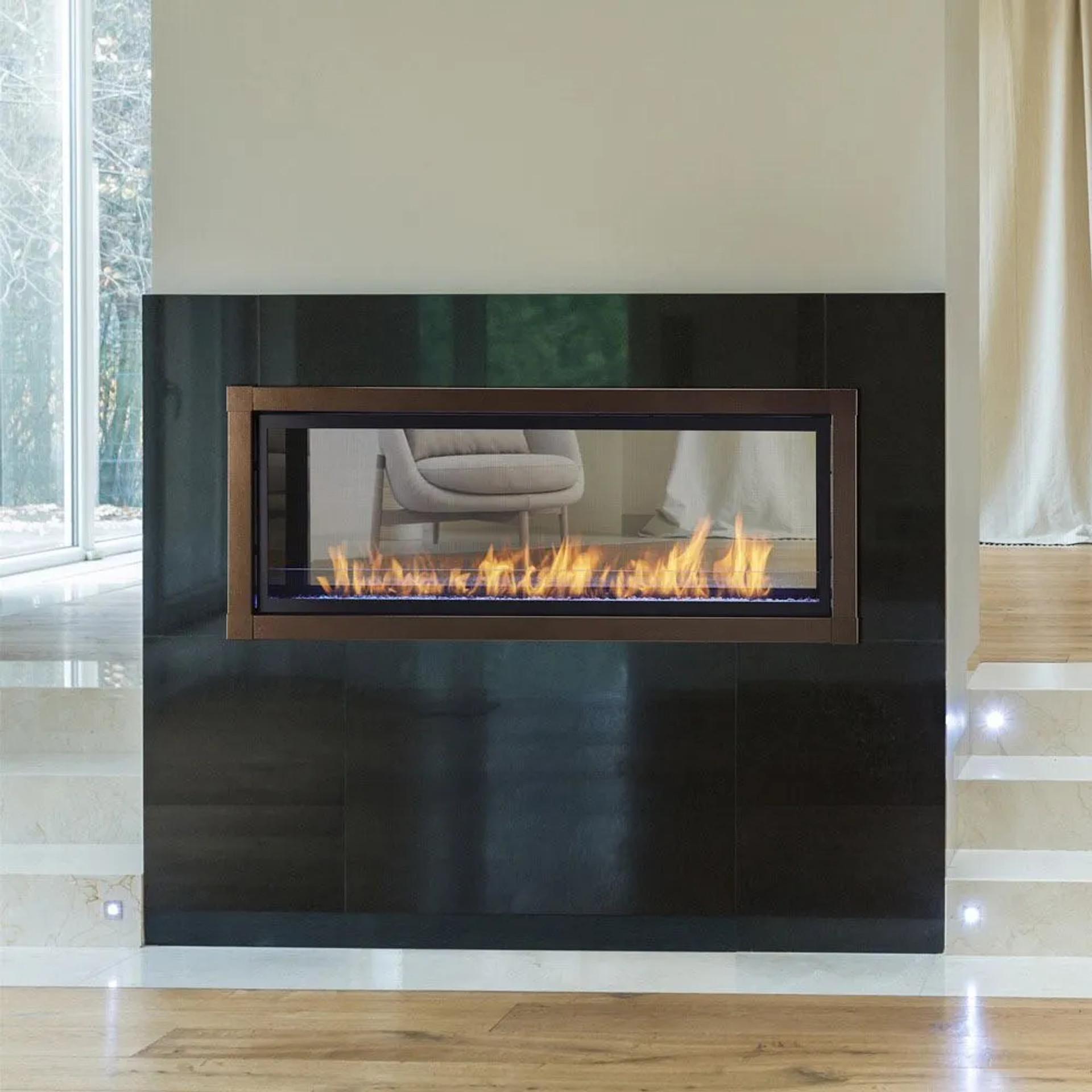

- Allows you to view the fireplace from two rooms at once and adds multiple design options.
- Heat output: Up to 39,000 BTU using IPI Plus Ignition
- Included accessories:
- Diamond Fireglass Media
- Reflective Black Glass
- RC300 Remote
- Multicolored LEDs
- Non-combustible materials
- LED lights controlled by an included wall switch
- Installation and design options:
- Can be finished up to the fireplace opening

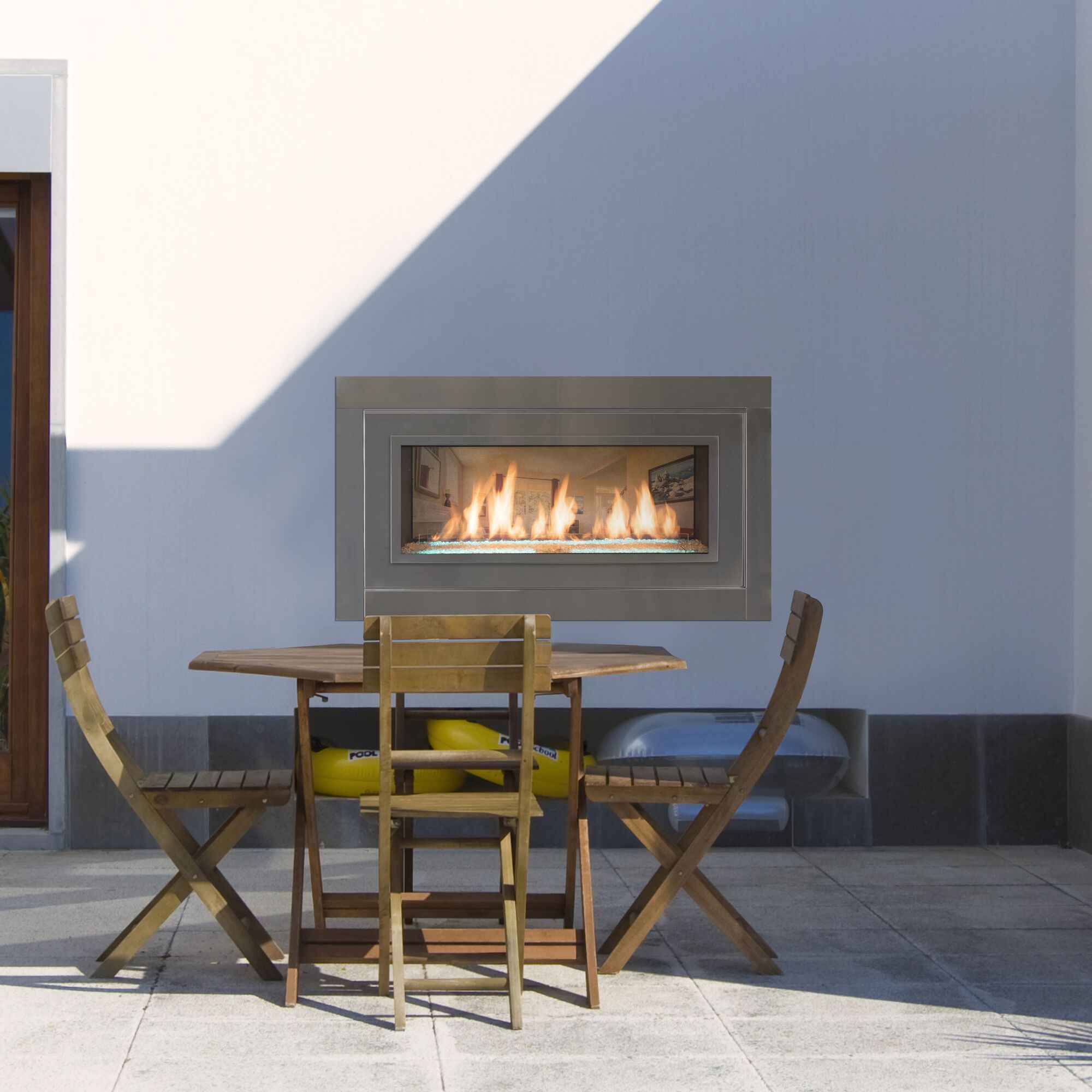

- Offers an outdoor kit for indoor/outdoor viewing through an exterior wall
- Optional accessories:

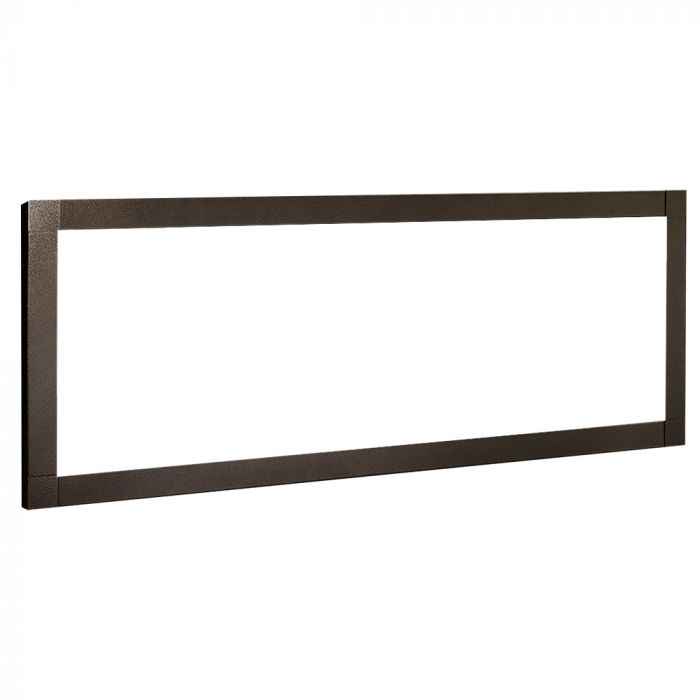

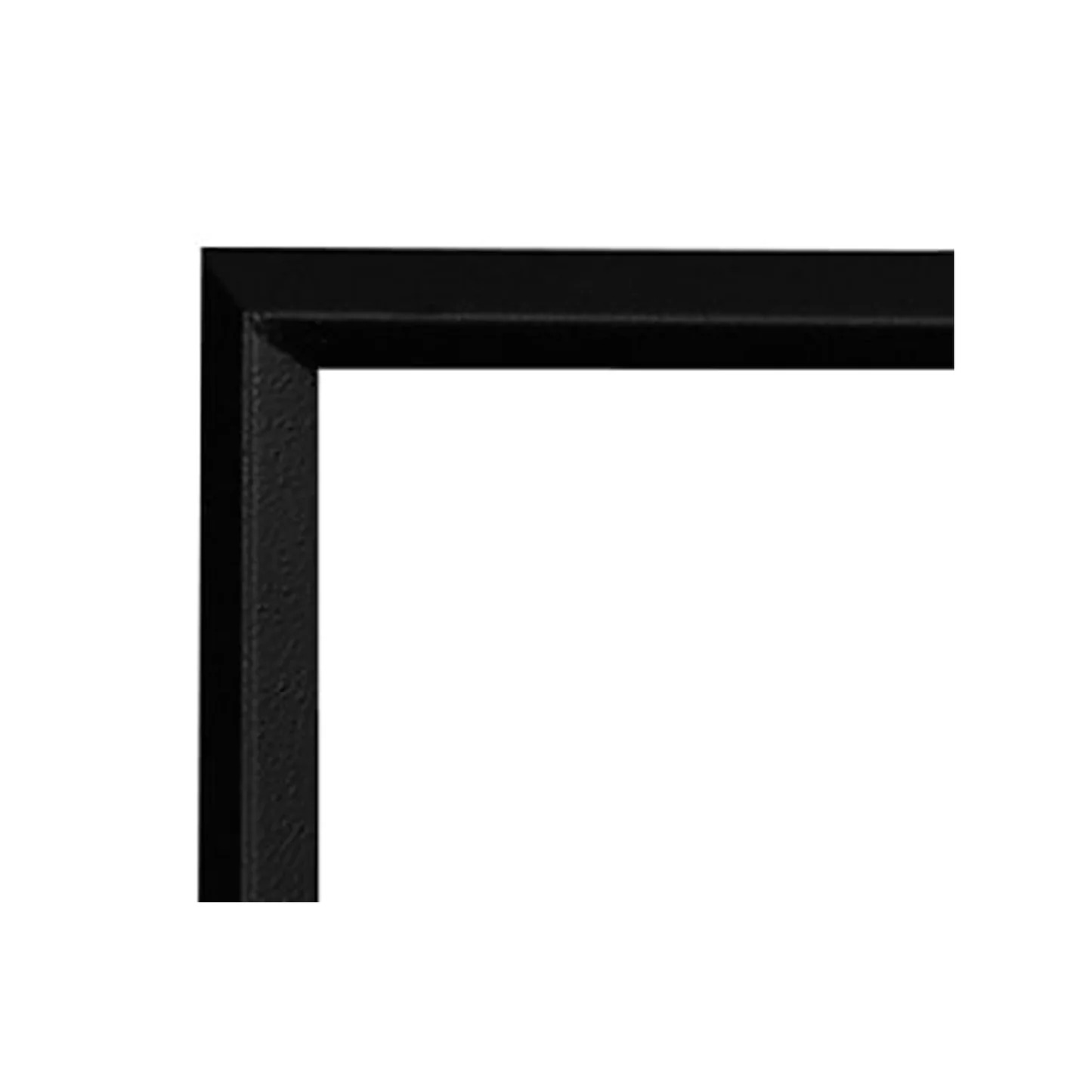

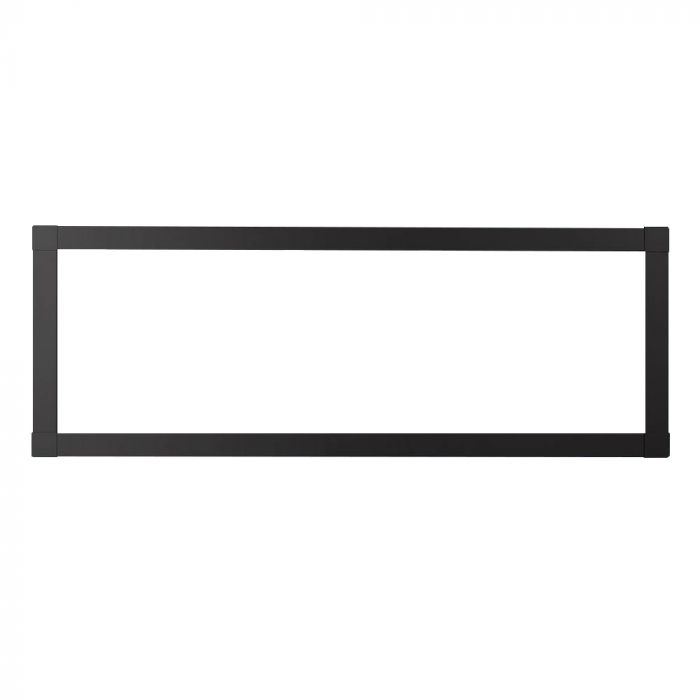

- Trim and fronts

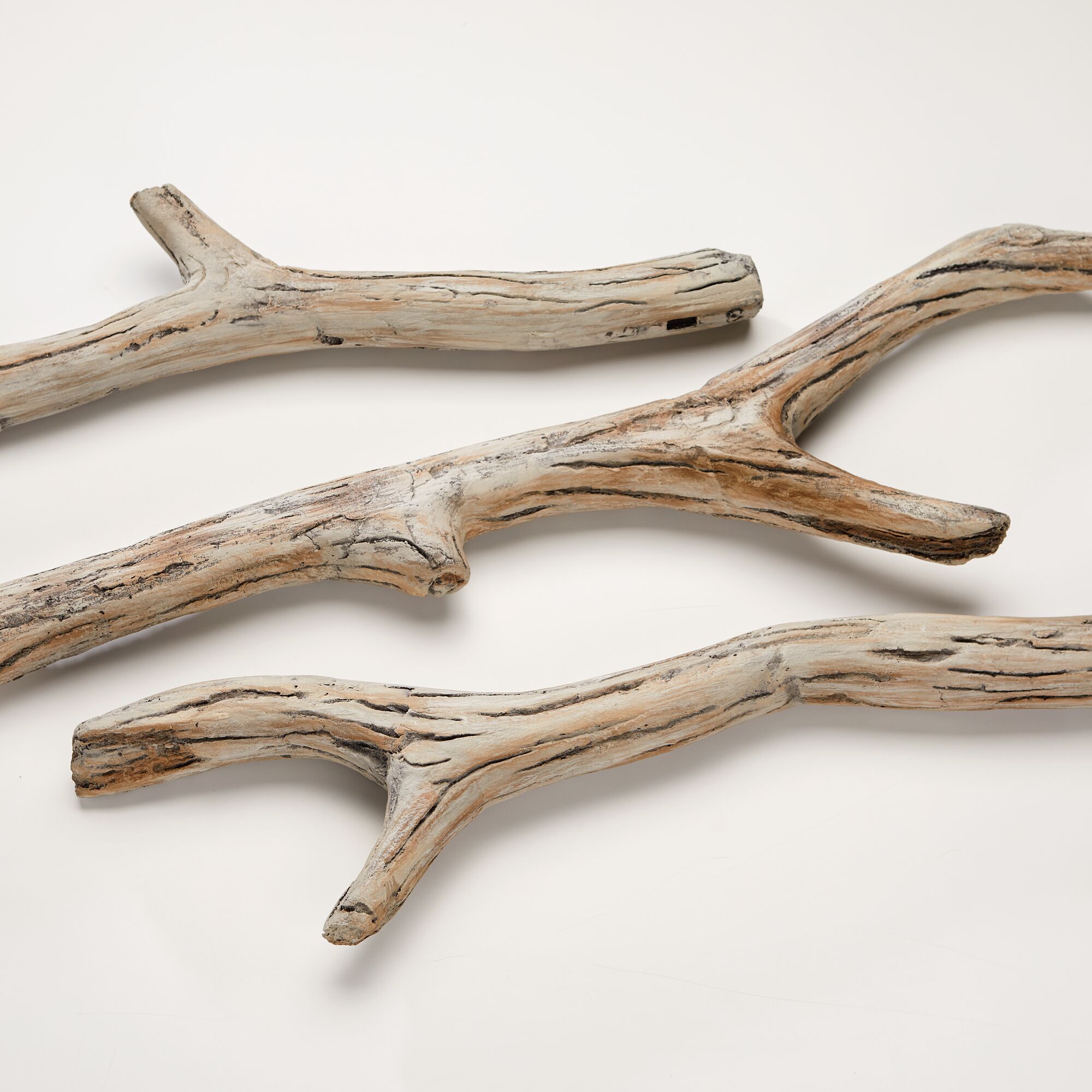

- Driftwood logs and stone kit
- Additional Fireglass Media

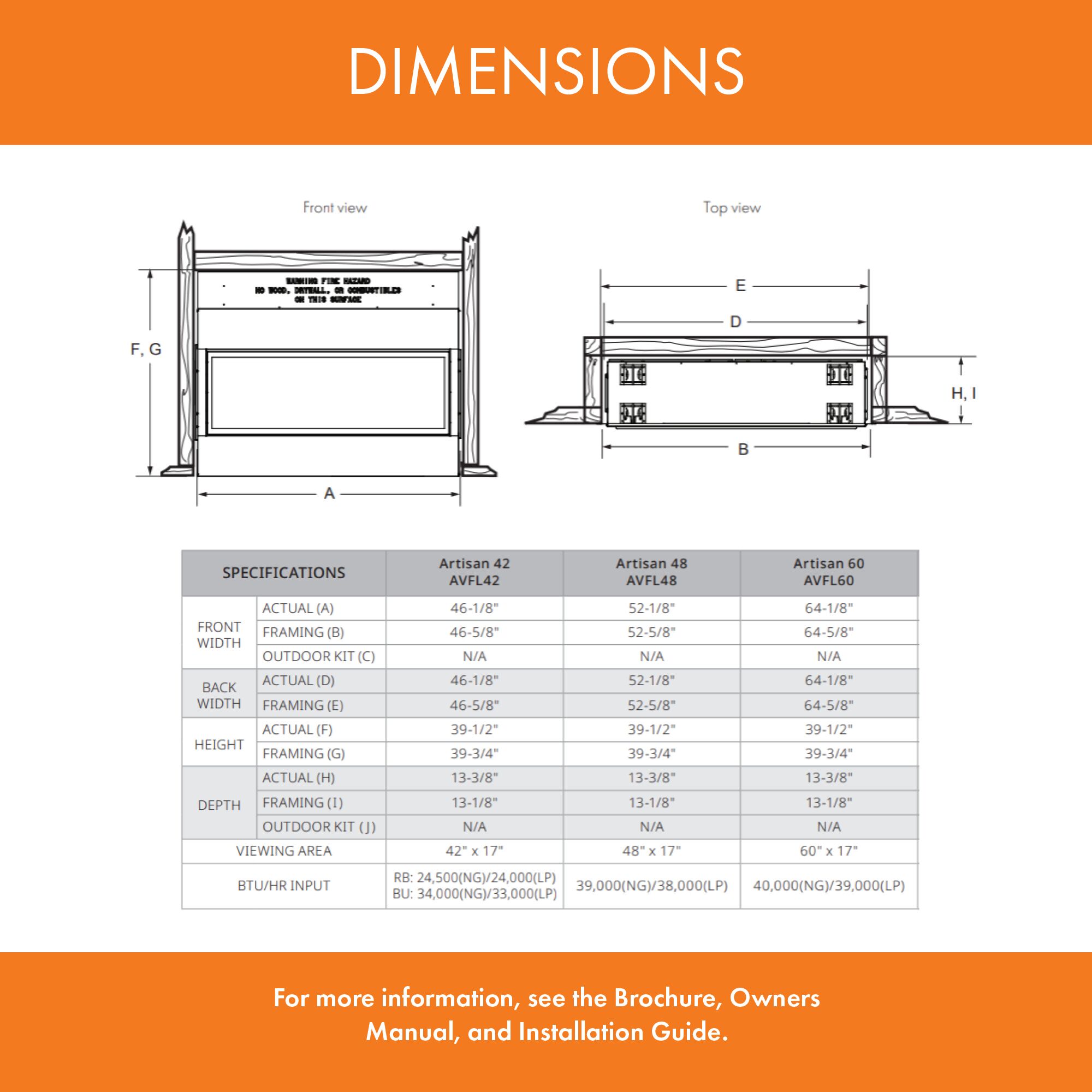

Specifications:
- Fuel Type: Natural Gas and Liquid Propane
- Framing Width: 52-5/8"
- Framing Depth: 13-1/8
- Framing Height: 39-3/4"
- BTU/hr Input: 39,000 NG / 38,000 LP
- Viewing Area: 48" x 17" (816 sq in) (each side)
- Size: 48 inches
**For more detailed specifications, please visit the Tech Specs tab.
**For detailed information and documents, please visit the Downloads tab where you'll find PDFs and additional resources available for download.
SOMETHING TO CONSIDER BEFORE YOU PURCHASE A VENT FREE APPLIANCE:
Vent-Free sets are supplemental zone heaters - They are not intended for continuous use or whole house heating.
Glass doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety controls. With adequate combustion and ventilation air, the damper may be closed for vent-free use. The damper may be opened slightly for reduced venting.
Check local codes and ordinances for permitted uses.
- In Most Cases, Vent Free Appliances Are NOT Approved For Bedrooms Or Bathrooms.
- Select States And/Or Counties Within States May Not Allow Installation Of Vent Free Products.
- This includes but is not limited to: California, Minnesota, Wisconsin.
- Other states may have local restrictions such as Arizona, Nevada, Idaho, Alaska, Wyoming, New Mexico, North Dakota and South Dakota. Please check local codes before purchasing a Vent Free Appliance.
- Vent free Products Are Not Suitable For People With Allergies Or Breathing Problems
Technical Specifications:
A. Appliance Certification
- Models:
- AVFL42NIP-BU, AVFL42PIP-BU, AVFL42NIP-RB, AVFL42PIP-RB, AVFL48NIP, AVFL48PIP, AVFLST48NIP, AVFLST48PIP, AVFL60NIP-B, AVFL60PIP-B
- Laboratory: Underwriters Laboratories, Inc. (UL)
- Type: Unvented Room Heaters
- Standard: ANSI Z21.11.2:19
- Notice:
- Tested to ANSI standards for "Unvented Room Heaters" and sections of "Gas Burning Heating Appliances for Manufactured Homes" and "Gas Fired Appliances for Use at High Altitude."
- Compliance with local codes required; if no local codes, follow the National Fuel Gas Code, ANSI Z223.1-latest edition (U.S.A.).
- Warning: Not for primary heat source use.
B. BTU Specifications
- AVFL42NIP-BU (NG):
- Minimum Input BTU: 31,000
- Maximum Input BTU: 23,500
- Orifice Size: .110 (#34)
- AVFL42PIP-BU (PROPANE):
- Minimum Input BTU: 33,000
- Maximum Input BTU: 26,000
- Orifice Size: .070 (#50)
- AVFL42NIP-RB (NG):
- Minimum Input BTU: 31,000
- Maximum Input BTU: 24,500
- Orifice Size: .110 (#34)
- AVFL42PIP-RB (PROPANE):
- Minimum Input BTU: 33,000
- Maximum Input BTU: 26,000
- Orifice Size: .070 (#50)
- AVFL48NIP (NG):
- Minimum Input BTU: 31,000
- Maximum Input BTU: 30,000
- Orifice Size: .110 (#34)
- AVFL48PIP (PROPANE):
- Minimum Input BTU: 31,000
- Maximum Input BTU: 31,000
- Orifice Size: .070 (#50)
- AVFLST48NIP (NG):
- Minimum Input BTU: 39,000
- Maximum Input BTU: 32,000
- Orifice Size: .110 (#34)
- AVFLST48PIP (PROPANE):
- Minimum Input BTU: 39,000
- Maximum Input BTU: 32,000
- Orifice Size: .070 (#50)
- AVFL60NIP-B (NG):
- Minimum Input BTU: 40,000
- Maximum Input BTU: 40,000
- Orifice Size: .106 (#35)
- AVFL60PIP-B (PROPANE):
- Minimum Input BTU: 40,000
- Maximum Input BTU: 40,000
- Orifice Size: .067 (#51)
Note: LP models require an external regulator for supply pressure reduction to 13" w.c.
C. Gas Pressures
- Natural Gas (NG):
- Inlet Minimum: 5.0" w.c.
- Inlet Maximum: 10.0" w.c.
- Regulator Pressure Setting: 3.5" w.c.
- Pilot Regulator: 3.5" w.c.
- Propane (LP):
- Inlet Minimum: 11.0" w.c.
- Inlet Maximum: 13.0" w.c.
- Regulator Pressure Setting: 10.0" w.c.
- Pilot Regulator: 3.5" w.c.
D. High Altitude Installations
- Notice:
- If the heating value of the gas is reduced, follow local jurisdiction rules.
- For elevations above 2000 feet, reduce input by 4% for every 1000 feet above 2000 feet.
E. Non-Combustible Materials Specification
- Materials:
- It must not ignite or burn.
- Includes materials like steel, iron, brick, tile, concrete, slate, glass, or plaster.
- Materials passing ASTM E 136 (Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750°C) will be considered non-combustible.
F. Combustible Materials Specification
- Materials:
- Must be capable of igniting or burning, such as wood, compressed paper, plant fibers, plastics, or other materials that can ignite and burn.
- Includes plastered or unplastered surfaces.
G. Electrical Codes
- Notice:
- Must be electrically wired and grounded according to local codes or, in the absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition or Canadian Electric Code CSA C22.1.
- Specific Requirements:
- A 110-120 VAC circuit should be used, protected with ground-fault circuit interrupter protection, especially when installed in bathrooms or near sinks.
H. Warning
- Warning:
- This product and the fuels used to operate it (liquid propane or natural gas), and the products of combustion of such fuels, may expose you to chemicals, including benzene, which is known to the State of California to cause cancer and reproductive harm.
- For more information, go to: www.P65Warnings.ca.gov.
Downloads:
- Monessen Artisan Series Gas Fireplace Brochure
- Artisan Series Gas Fireplace Manual
- Artisan Series Gas Fireplace Installation Manual
- Artisan Series Gas Fireplace Spec Sheet
- Product Warranty
Accessory Manuals
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
