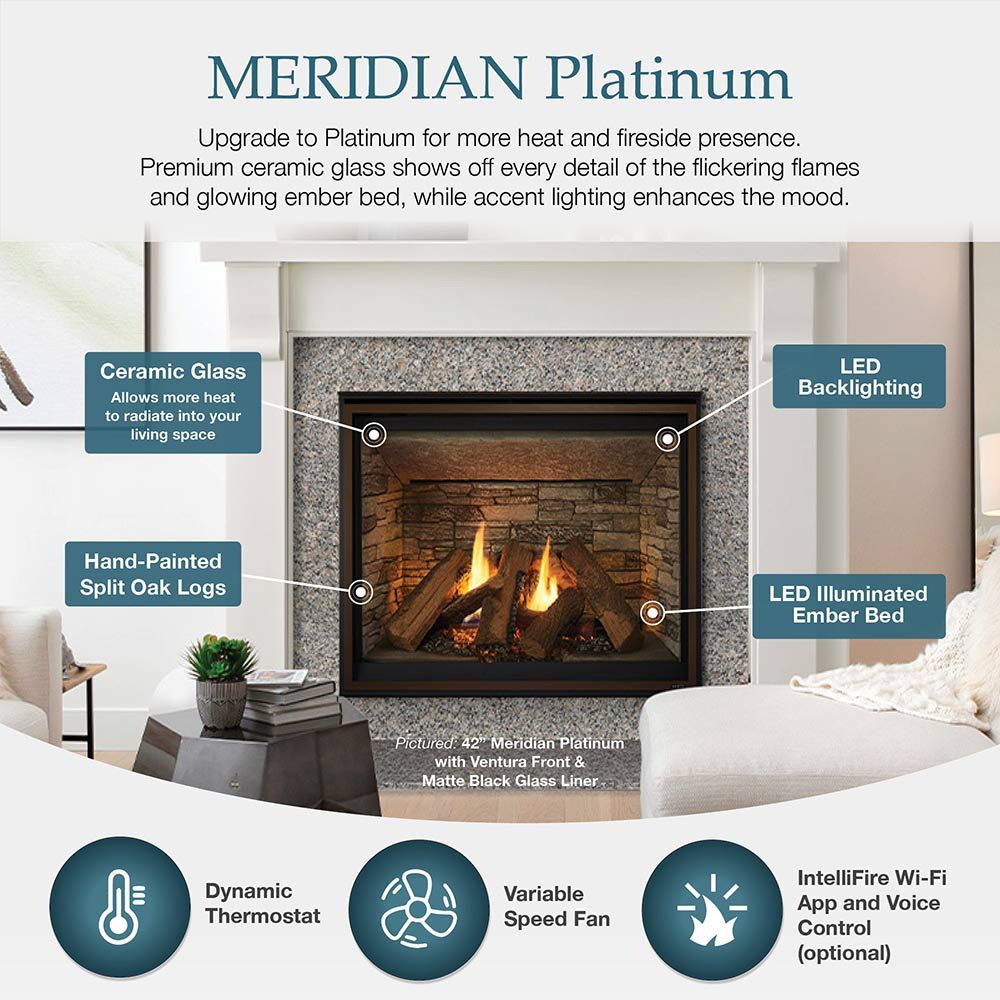

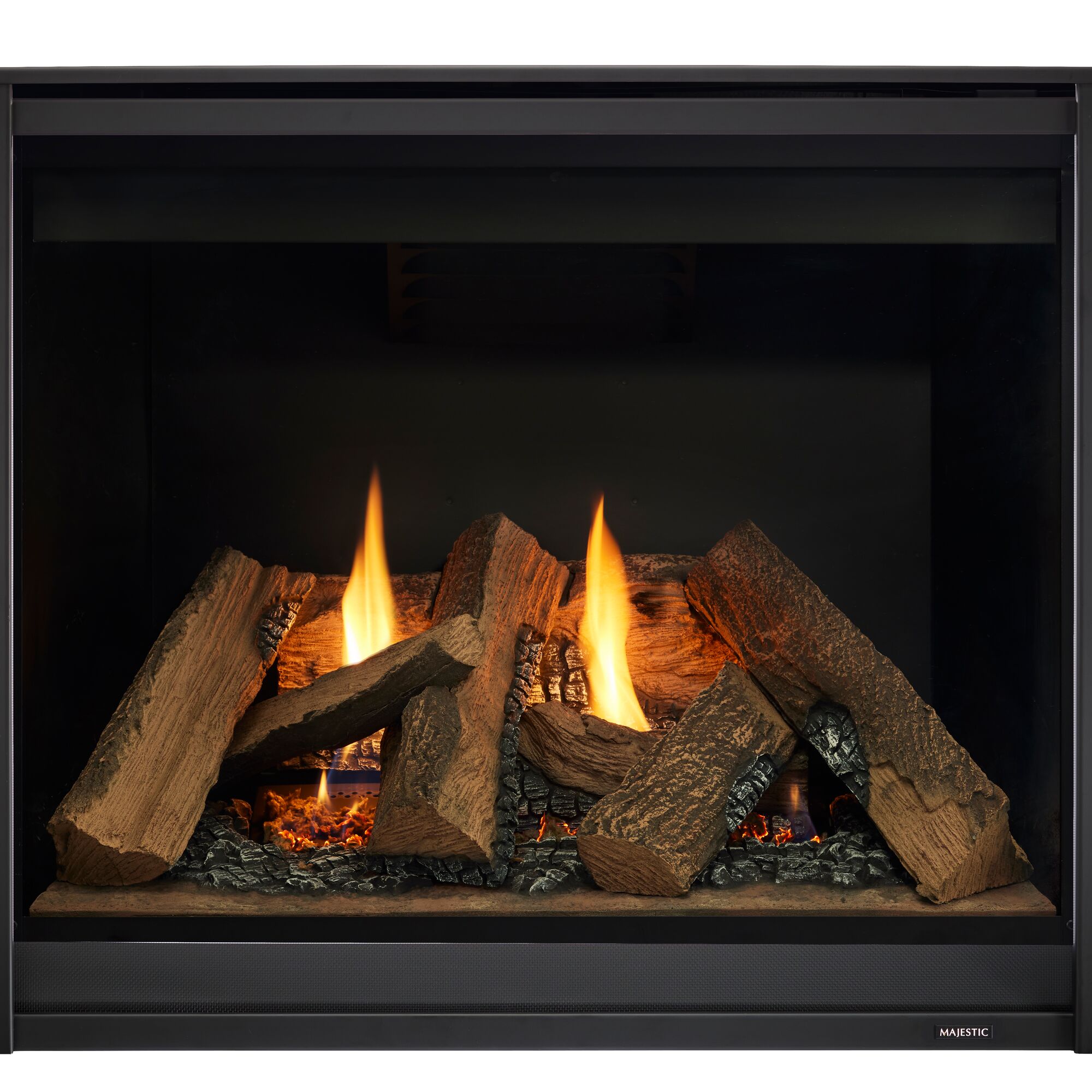

Majestic Meridian Platinum 42" Direct Vent Gas Fireplace

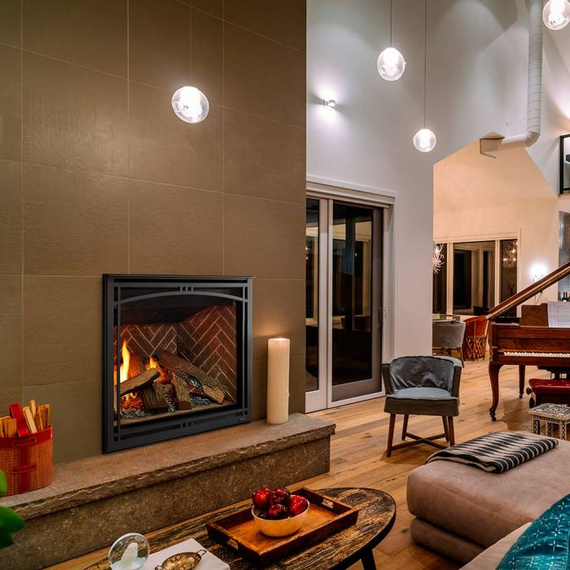

.jpg "Majestic Meridian Platinum 42\" Installed")
_eh6x-1n.jpg "Intellifire")
_hrvy-ux.jpg "Heat Management System for Majestic Meridian")
What makes the Majestic Meridian Platinum 42" Direct Vent Gas Fireplace a standout choice for efficient heating and versatile operation?
It's Direct vent technology ensures proper exhaust of combustion fumes, maintaining clean indoor air. The IntelliFire Touch® system provides multiple control options, including the IntelliFire app, smart speakers, a touchscreen remote, or a wireless wall switch.
The dynamic thermostat adjusts flame height as room temperatures increase, maintaining consistent warmth. Heat management technology allows control over heat distribution, making it adaptable to different spaces and preferences.

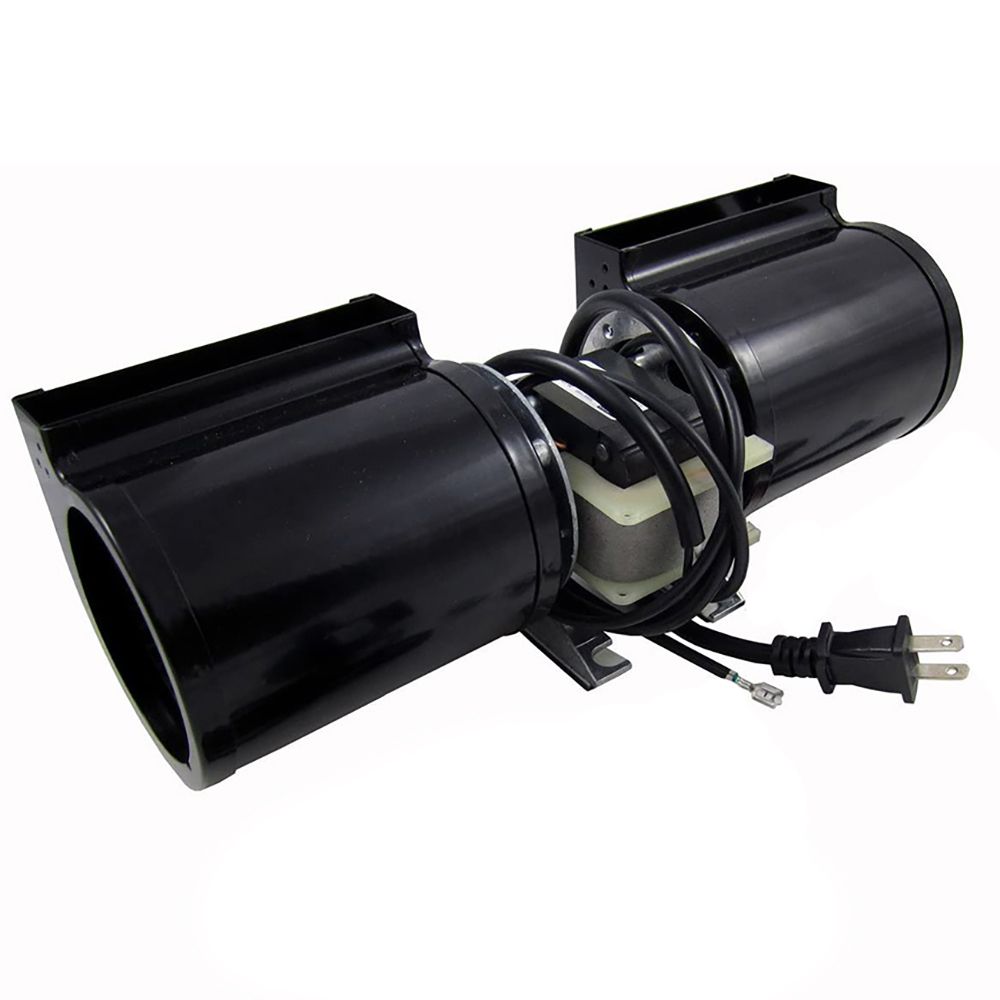

This unit produces between 23,000 and 45,000 BTU/hour with natural gas and between 23,000 and 44,000 BTU/hour with liquid propane. Standard features include a touchscreen remote control, IntelliFire Touch Ignition System, ceramic glass, six ceramic fiber logs, and a variable-speed fan for improved heat circulation. Additional details include LED accent lighting (not used with the black glass liner), LED-illuminated embers, and a battery backup.
Features:
- Control your fireplace with IntelliFire App, Smart Speaker, touchscreen remote control or wireless wall switch.
- Tapers flames with rising temps to maintain comfort level.
- Put the heat where you want it, when you want it.
- Removes any fumes or combustion exhaust efficiently and effectively from your home.
Specifications:
- Unit Dimensions: 48-1/16" W x 41-7/8" H x 21-1/2" D
- Framing Dimensions: 49" W x 42-1/8" H x 22" D
- Fuel Type: Natural Gas (45,000 BTU) or Liquid Propane (44,000 BTU)
- Heating Capacity: Up to 1,200 sq. ft.
- Viewing Area: 41-1/4" x 26-11/16"
**Venting Notes: Requires 8" DVP pipe. Approved for use with SLP pipe. Restrictions apply.
**Approved for use with PVLP-SLP, PVI-SLP-B and PVV-SLP with power vent wire harness (order separately) and IFT-RC400 remote.
Downloads:
Technical Specifications:
- Models: MER42PN, MER42PL

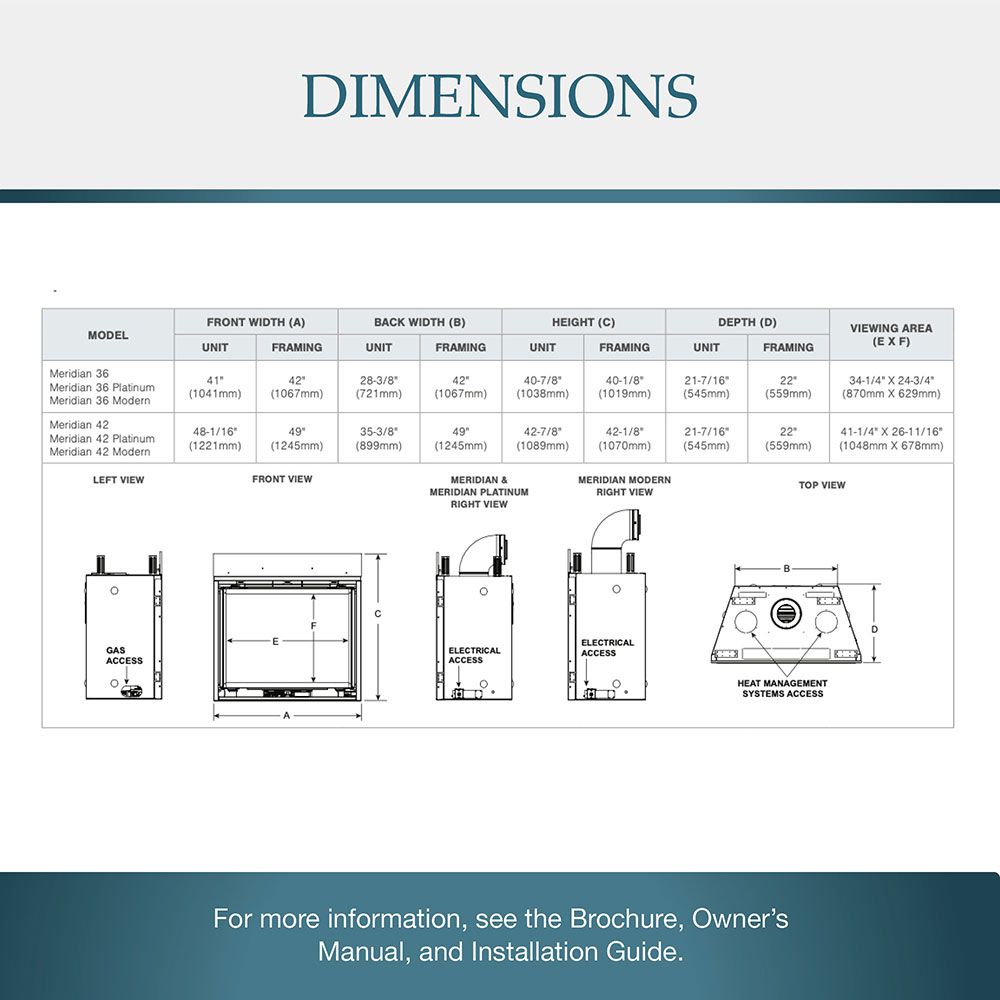

- Actual Dimensions:
- Front Width: 48-1/16" (1221 mm)
- Height: 42-7/8" (1089 mm)
- Depth: 21-7/16" (545 mm)
- Glass Size: 41-1/4" x 26-11/16" (1048 x 678 mm)
- Framing Dimensions:
- Front Width: 49" (1245 mm)
- Height: 42-1/8" (1070 mm)
- Depth: 22" (559 mm)
- Weight: 189 lbs (86 kg)
- Laboratory Certification: Underwriters Laboratories, Inc. (UL)
- Type: Direct Vent Heater
- Standards: CSA / ANSI Z21.88-2019 + CSA 2.33-2019
BTU Specifications:
- MER42PN (Natural Gas):
- Maximum Input BTU: 45,000
- Minimum Input BTU: 23,000
- Orifice Size (DMS): #30
- MER42PL (Propane):
- Maximum Input BTU: 44,000
- Minimum Input BTU: 23,000
- Orifice Size (DMS): #48
Glass Specifications:
- Equipped with ceramic glass. Replace only with ceramic glass.
Electrical Codes:
- Requirements:
- Must be wired and grounded as per ANSI/NFPA 70 (U.S.) or Canadian Code CSA C22.1.
- 110-120 VAC circuit must have ground-fault circuit interrupter protection.
High Altitude Installations:
- USA: Reduce input 4% per 1,000 feet above 2,000 feet.
- Canada: Certified for up to 4,500 feet (1,370 m). Local codes apply for higher altitudes.
- California Compliance: Warning regarding exposure to chemicals such as benzene, as required by Proposition 65 (P65Warnings.ca.gov).
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
