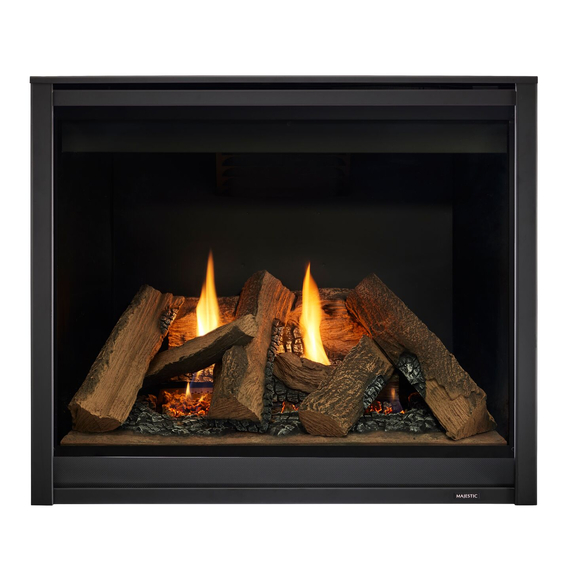

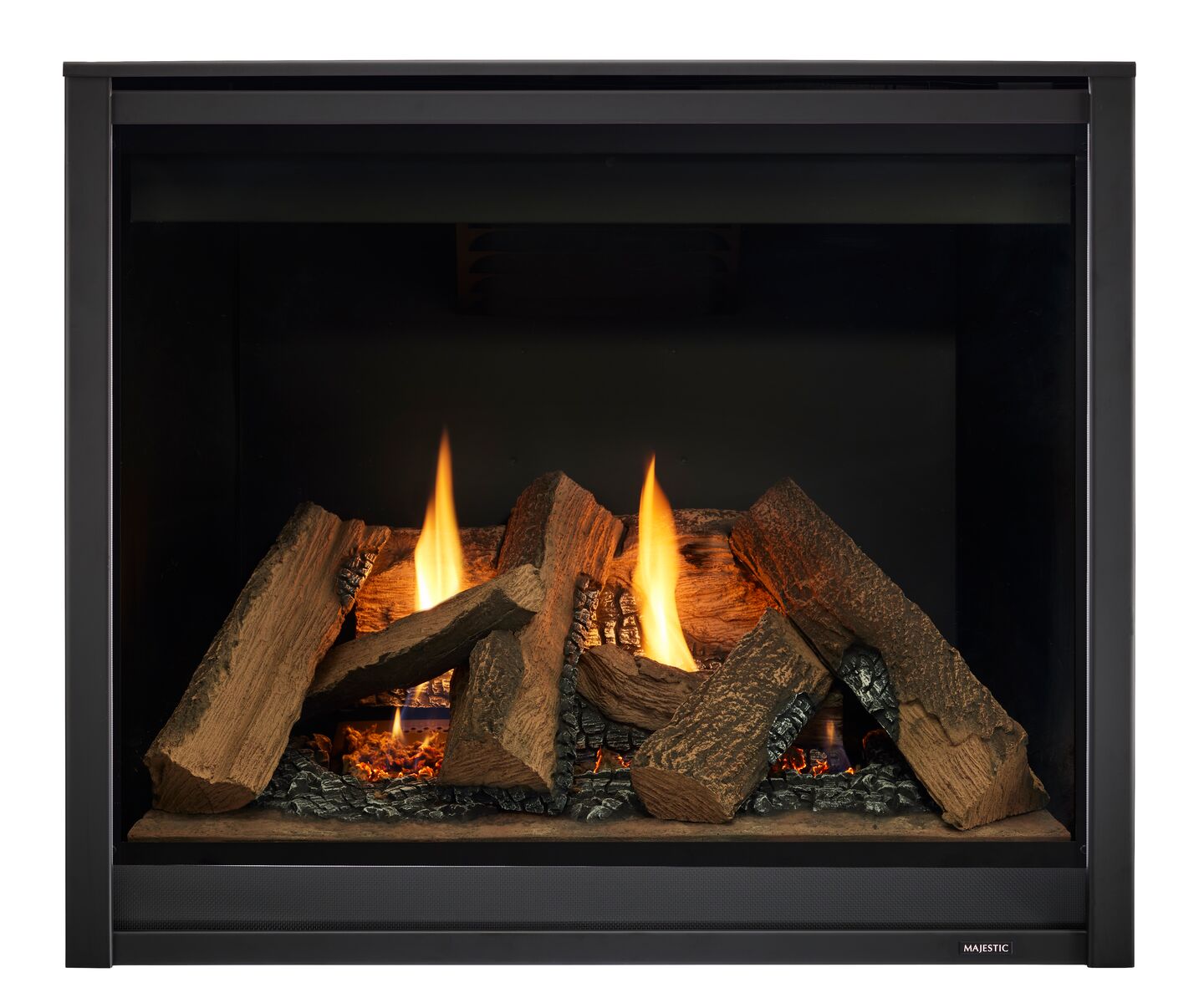

36 Inches Majestic Meridian Platinum Gas Fireplace
The Majestic Meridian Platinum 36" Direct Vent Gas Fireplace is designed to bring both warmth and modern convenience to your home. With a powerful 40,000 BTU/hr output, it provides reliable heat whether you choose natural gas or liquid propane. The large viewing area, measuring 34 1/4" x 24 3/4", offers a clear and captivating view of the flames, adding a touch of charm to any room.
This fireplace features Direct Vent Technology to keep your space clean and safe by efficiently removing combustion byproducts. The IntelliFire Touch® system makes controlling the fireplace simple, with options to use a touchscreen remote, a wall switch, or smart devices. A dynamic thermostat adjusts the flame automatically to maintain the perfect temperature, while advanced heat management ensures the warmth is directed exactly where you need it. It’s a seamless combination of style, comfort, and innovation.
Features:

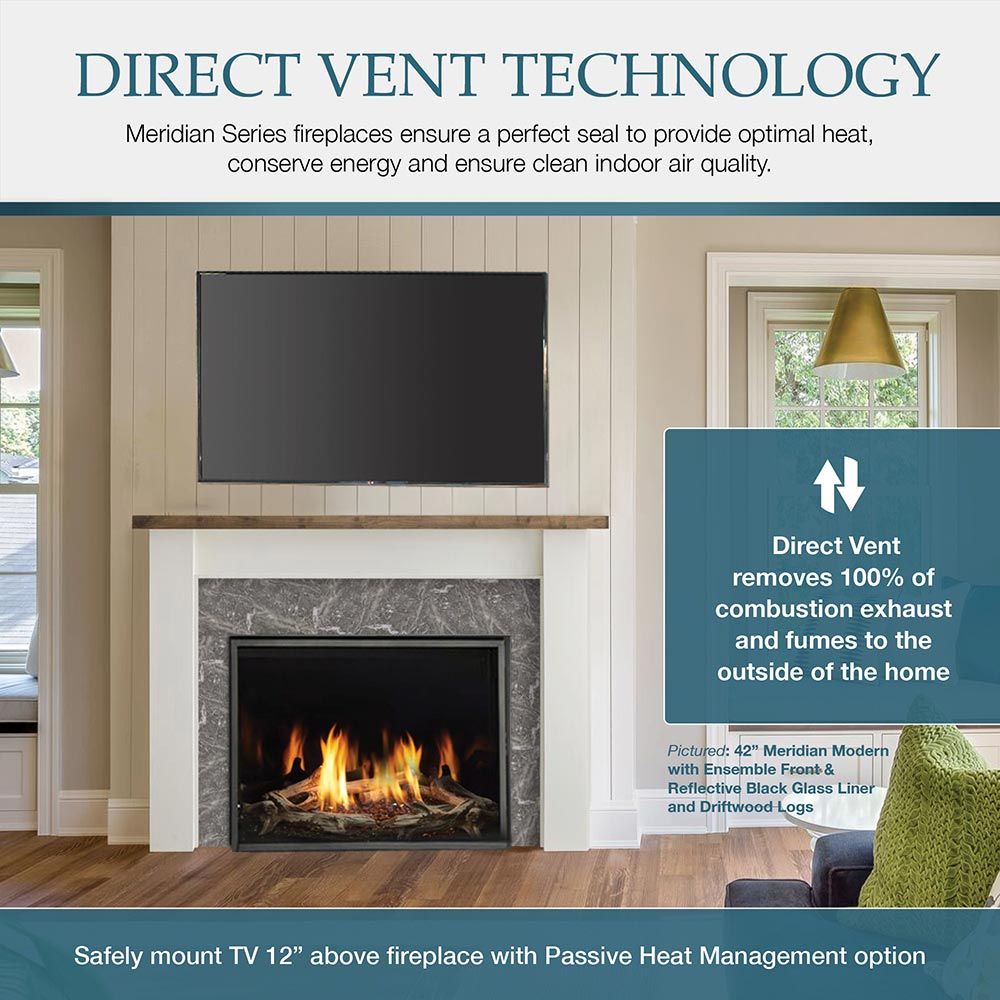

- Direct Vent Technology: Keeps your indoor air clean by efficiently venting combustion exhaust outside.

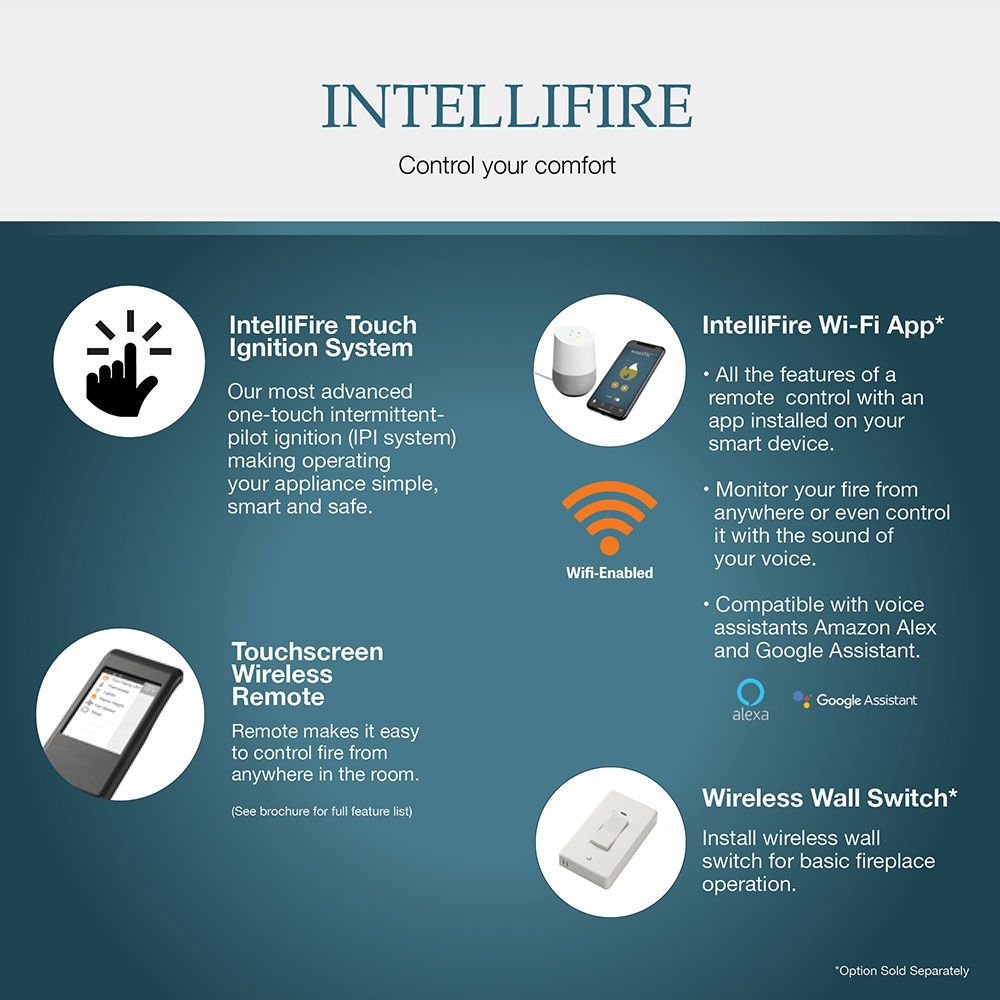

- IntelliFire Touch® System: Enjoy seamless control with options like a touchscreen remote, wireless wall switch, or smart speaker compatibility.
- Dynamic Thermostat: Automatically adjusts flame height to maintain your desired room temperature.
- Versatile Fuel Options: Works with natural gas or liquid propane, offering up to 30,000 BTU/hr.

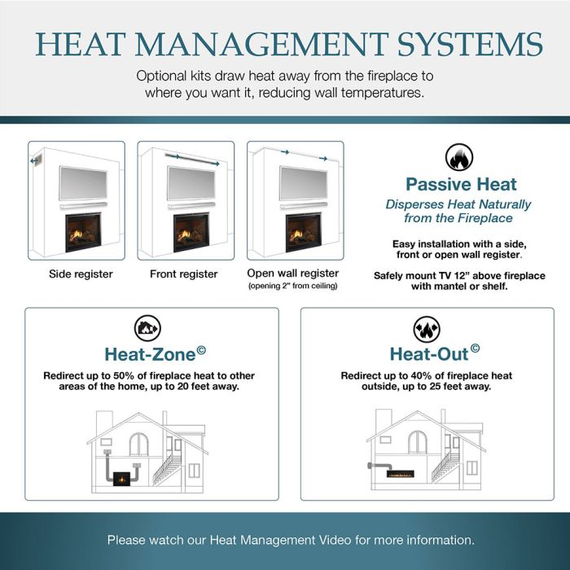

- Heat Management: Direct warmth where you need it most with advanced heat control features.
- Stylish Design: Blends modern aesthetics with timeless appeal to complement any room.
Specifications:
- Dimensions: 41" W x 39 7/8" H x 21 1/2" D
- Framing Requirements: 42" W x 40 1/8" H x 22" D
- Fuel Options: Natural Gas (NG) or Liquid Propane (LP)
- BTU Output: 40,000 BTU/hr
- Viewing Area: 34 1/4" x 24 3/4"
**Requires 8" DVP pipe. Approved for use with SLP pipe. Restrictions apply.
Approved for use with PVLP-SLP, PVI-SLP-B and PVV-SLP with power vent wire harness and IFT-RC400 remote (order separately).
Downloads:
Technical Specifications:
- Model: Meridian

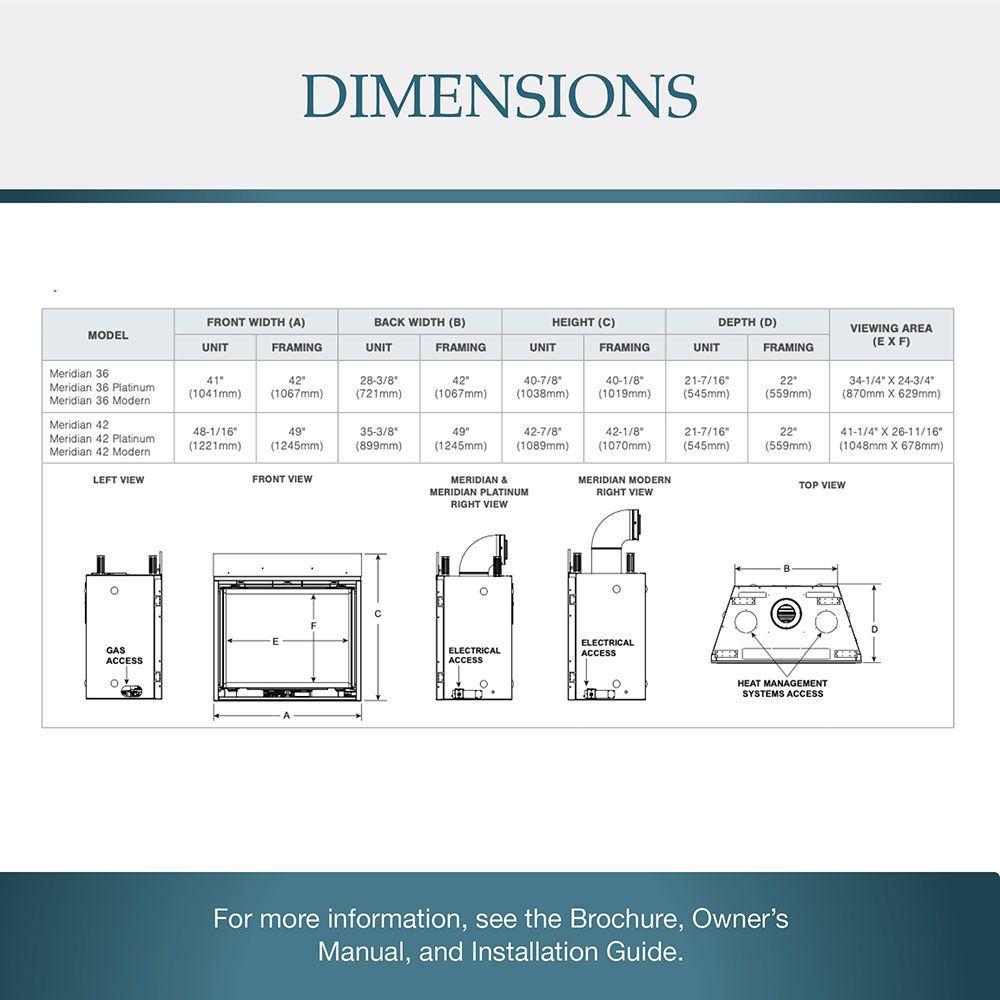

- Actual Dimensions:
- Front Width: 41" (1041 mm).
- Height: 40-7/8" (1038 mm).
- Depth: 21-7/16" (545 mm).
- Glass Size: 34-1/4" x 24-3/4" (870 mm x 629 mm).
- Weight: 159 lbs (72 kg).
- Framing Dimensions:
- Front Width: 42" (1067 mm).
- Height: 40-1/8" (1019 mm).
- Depth: 22" (559 mm).
- BTU Specifications
- MER36PN (Natural Gas): 40,000 BTU max, 22,000 BTU min.
- MER36PL (Propane): 40,000 BTU max, 21,000 BTU min.
- Type: Direct Vent Heater.
- Standards: CSA / ANSI Z21.88-2019, CSA 2.33-2019.
- Installation: Approved for bedrooms and bedsitting rooms.
- Note: Installation must conform to local codes, including ANSI Z223.1 or CAN/CGA B149 in the U.S. and Canada.
- Important: Not intended as a primary heat source—designed for supplemental or decorative heating only.
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
