Majestic Meridian 42" Direct Vent Gas Fireplace

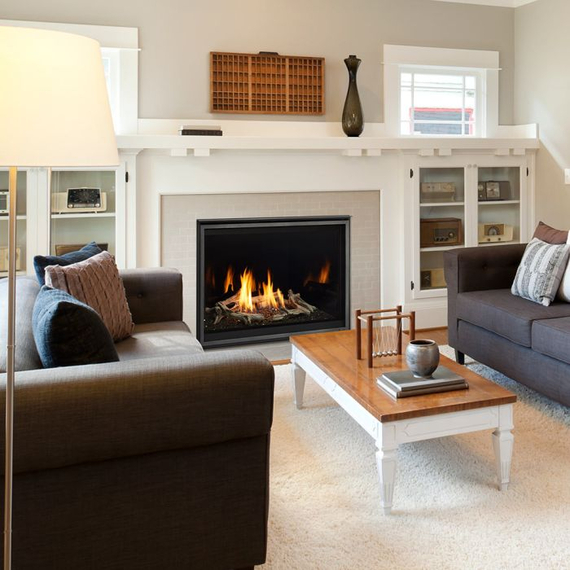

.jpg "Meridian Direct Vent")

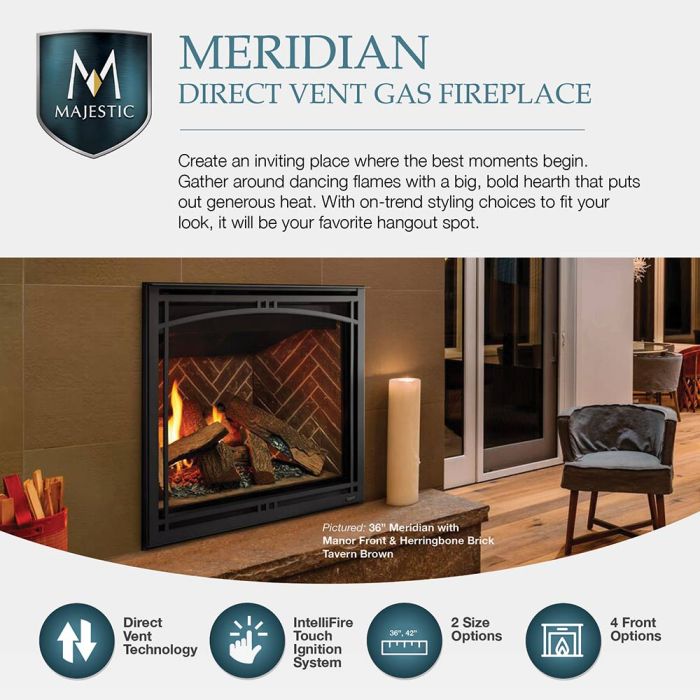

.jpg "Majestic Meridian Fireplace")

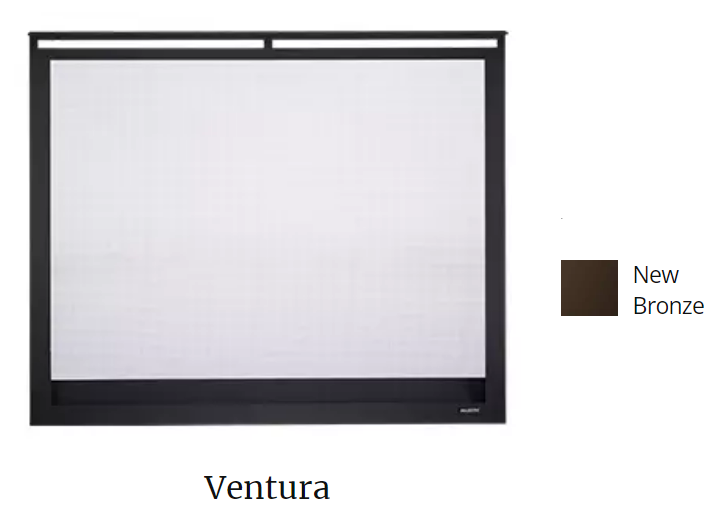

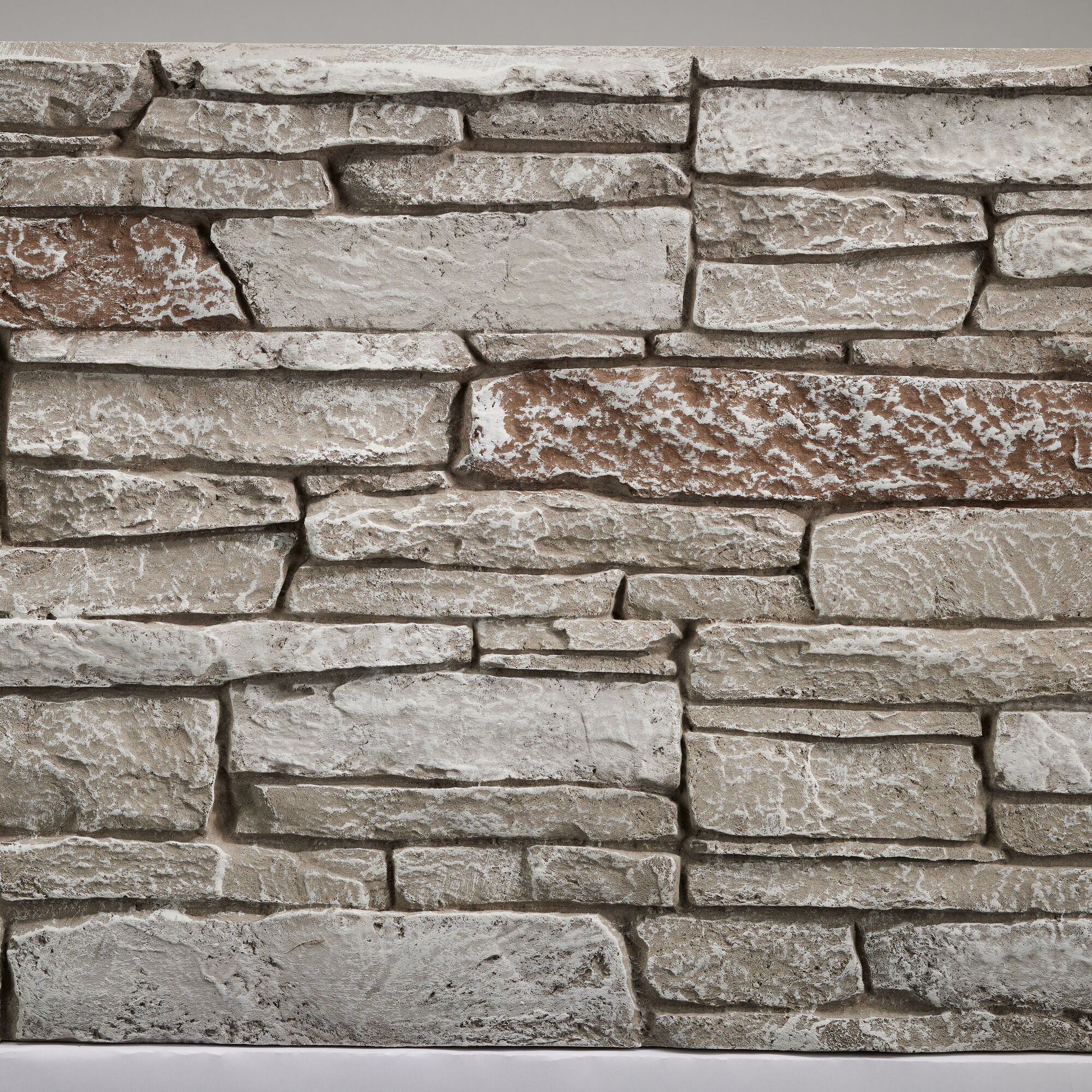

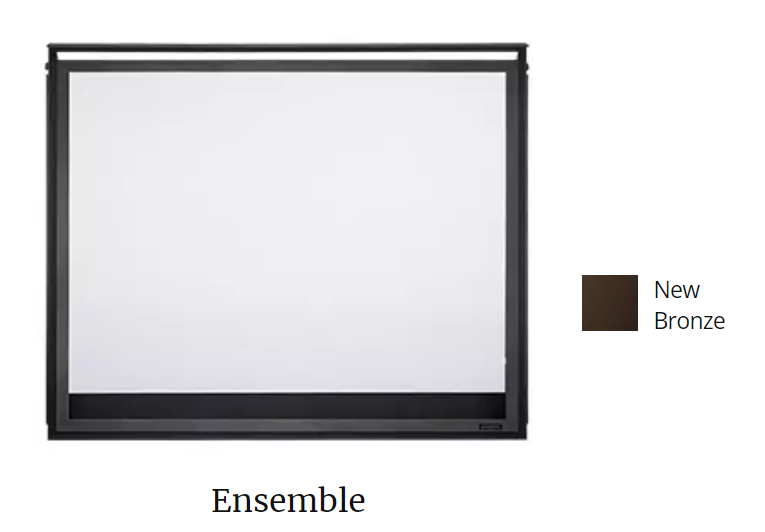

.jpg "Meridian Interior Options")

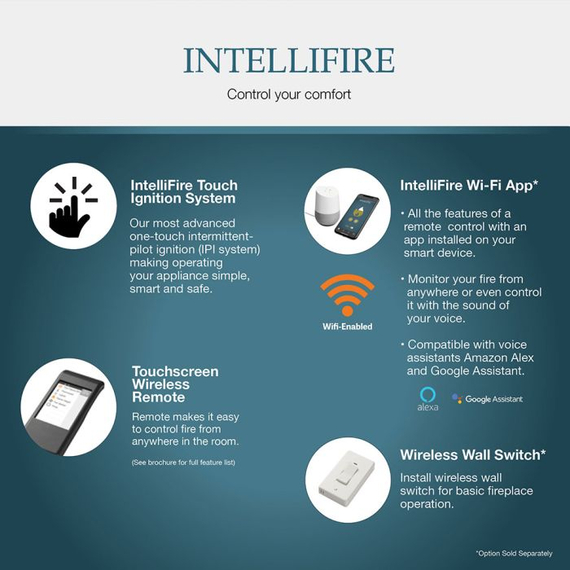

.jpg "Intellifire")

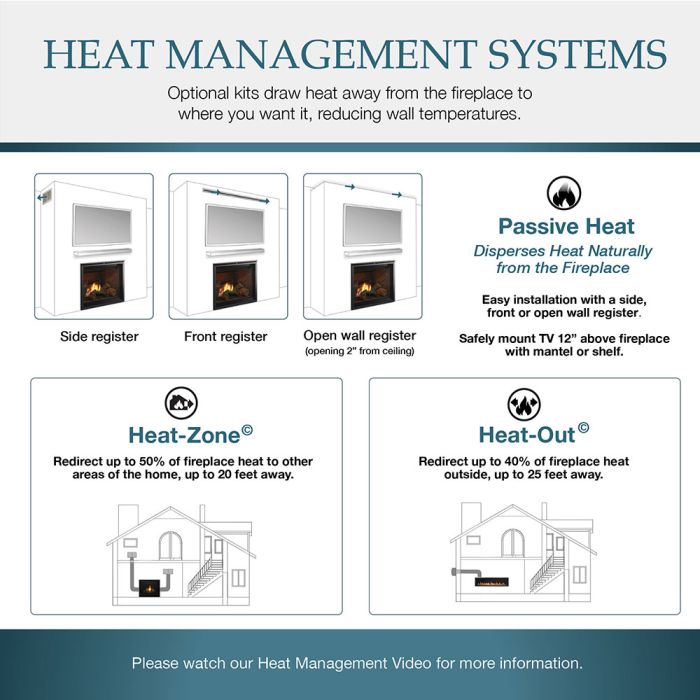

.jpg "Heat Management System for Majestic Meridian")
.jpg "Meridian Dimension")

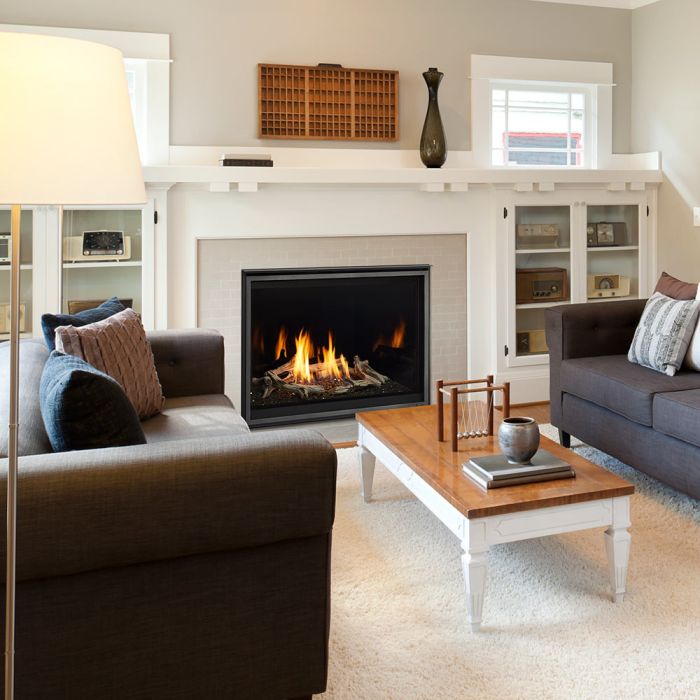

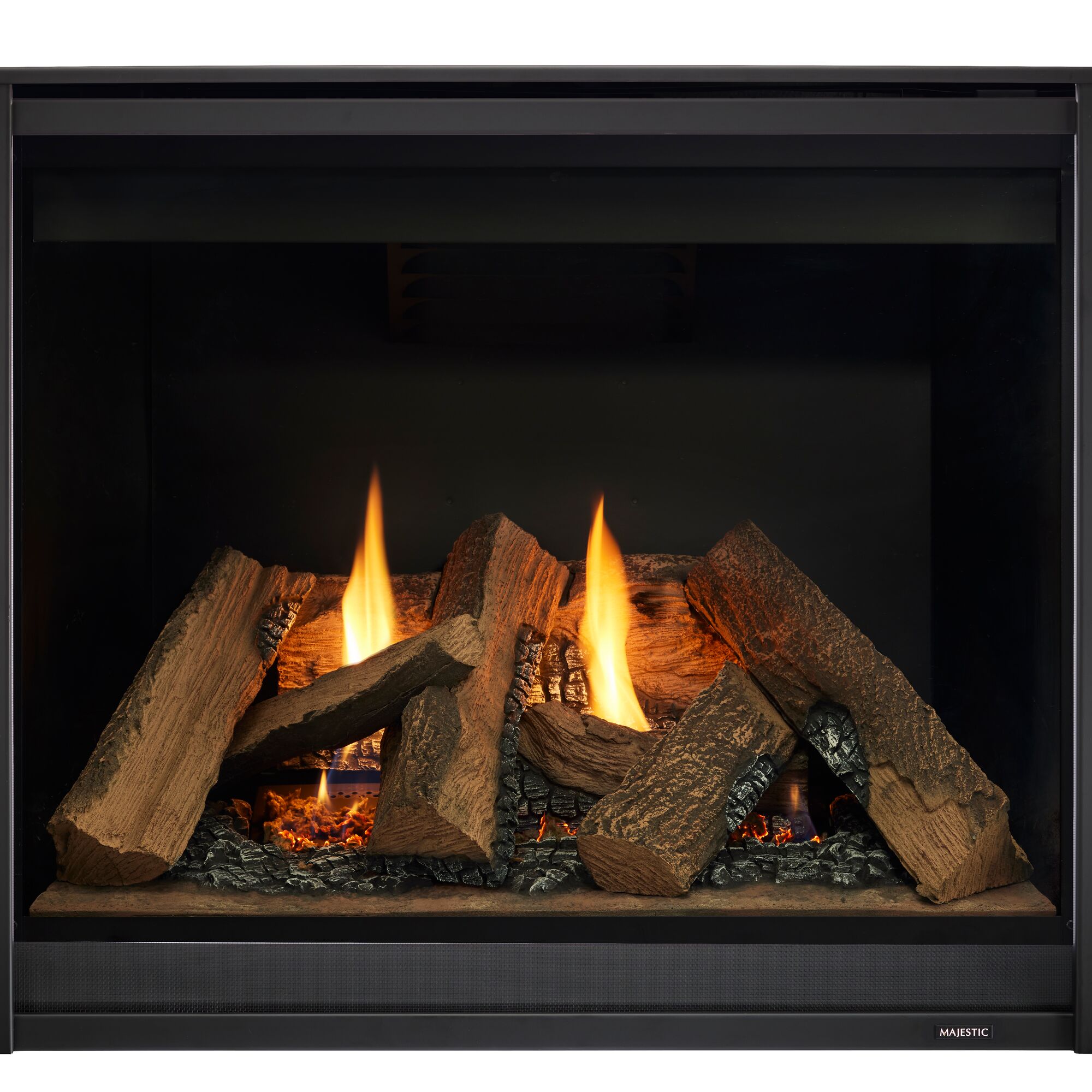

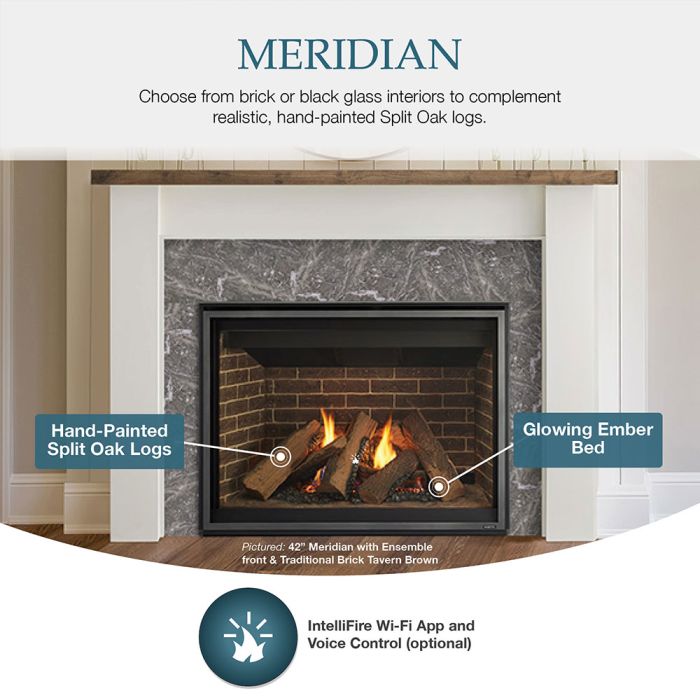

The Majestic Meridian 42" Direct Vent Gas Fireplace offers a balance of sleek design and efficient performance. This item has two fuel options: natural gas and propane. It delivers up to 30,000 BTUs, comfortably heating spaces up to 1,200 square feet. Its expansive viewing area, measuring 41 1/4" x 26 11/16", is framed by clean lines and showcases lifelike flames dancing over six ceramic fibre logs and glowing embers.
Direct Vent Technology ensures combustion exhaust is safely removed, while the IntelliFire Touch® system provides flexible control options, from smart devices to wall switches. The dynamic thermostat adjusts the flames as the room heats up, providing consistent comfort without constant tweaks.
You can manage the heat distribution, deciding where and when warmth is needed. Installation is easy with tempered glass and a 12-foot wall switch wire included in the package.
Features:
- Control your fireplace with IntelliFire App, Smart Speaker, touchscreen remote control or wireless wall switch.
- Tapers flames with rising temps to maintain comfort level.
- Put the heat where you want it, when you want it.
- Removes any fumes or combustion exhaust efficiently and effectively from your home.
- Fits your decor with clean lines and a sleek look that are on-trend with today’s contemporary home.
Specifications:
- Dimensions: 41" W x 40-7/8" H x 21" D
- Framing: 42" W x 40-1/8" H x 22" D
- Viewing Area: 41-1/4" x 26-11/16"
- Fuel: Natural Gas (30,000 BTU) or Propane (29,000 BTU)
- Heating: Up to 1,200 sq. ft.
**Requires 8" DVP pipe. Must have a 6" minimum vertical vent before attaching a 90 degree elbow to the fireplace.
**Approved for use with SLP pipe. Restrictions apply.
**Approved for use with PVLP-SLP, PVI-SLP-B and PVV-SLP with power vent wire harness and IFT-RC400 remote (order separately).
Downloads:
Technical Specifications:

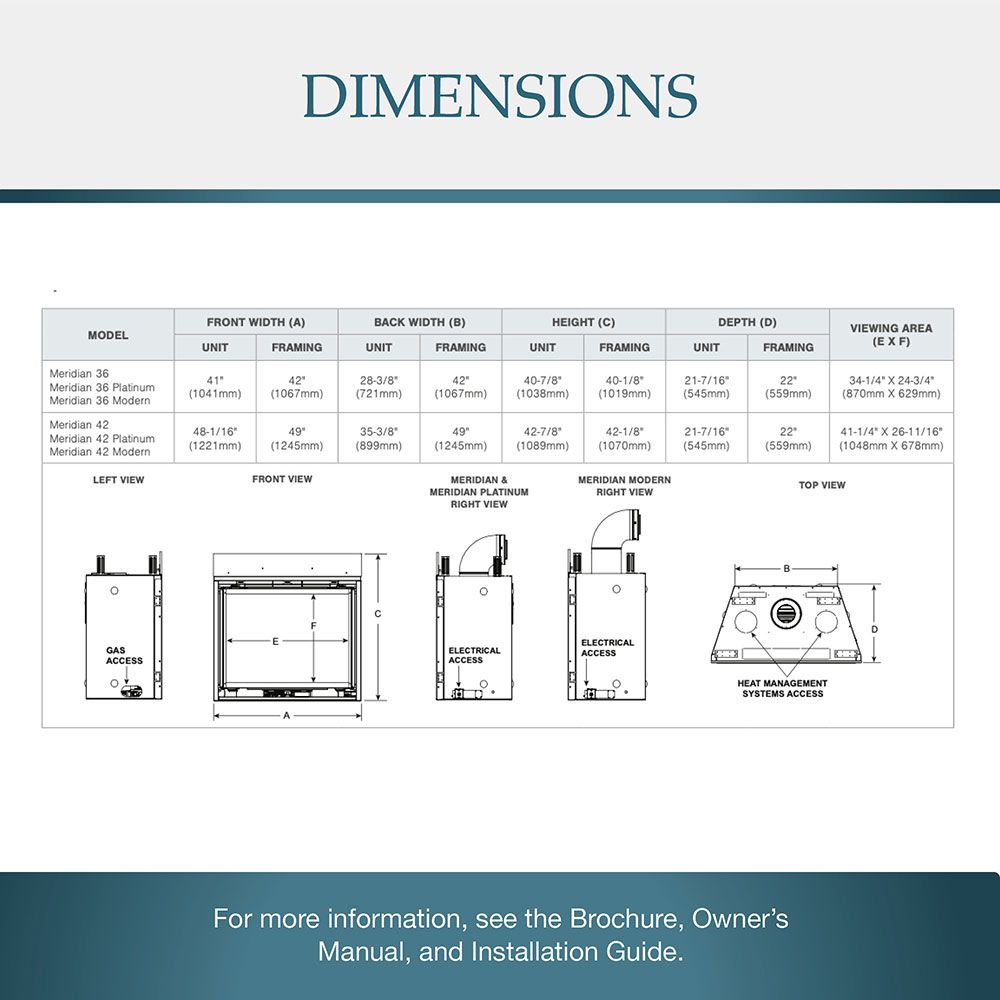

- Actual Dimensions
- Front Width: 48-1/16" (1221 mm)
- Height: 42-7/8" (1089 mm)
- Depth: 21-7/16" (545 mm)
- Glass Size: 41-1/4" × 26-11/16" (1048 mm × 678 mm)
- Framing Dimensions
- Front Width: 49" (1245 mm)
- Height: 42-1/8" (1070 mm)
- Depth: 22" (559 mm)
- Weight: 194 lbs (88 kgs)
- Appliance Certification
- Models: MER42N, MER42L
- Laboratory: Underwriters Laboratories, Inc. (UL)
- Type: Direct Vent Heater
- Standard: CSA / ANSI Z21.88-2019, CSA 2.33-2019
- Compliance:
- Certified to ANSI standards for "Vented Gas Fireplace Heaters."
- Complies with standards for "Gas Burning Heating Appliances for Manufactured Homes and Recreational Vehicles."
- Certified for "Gas Fired Appliances for Use at High Altitudes."
- Approved for installation in a bedroom or a bedding room.
- Notice:
- Installation must conform with local codes.
- In the absence of local codes, comply with:
- National Fuel Gas Code (ANSI Z223.1-latest edition) in the USA.
- CAN/CGA B149 Installation Codes in Canada.
- Not for Primary Heating:
- Approved as supplemental or decorative heat, not as a primary heat source..
Glass Specifications
- Tempered Glass Use:
- Certified for use in hazardous locations (e.g., bathtub enclosures).
- Meets safety standards per ANSI Z97.1 and CPSC 16 CFR 1202.
- Certified by Safety Glazing Certification Council (SGCC® 1595 and 1597).
- Tested by Architectural Testing Inc. (Reports: 02-31919.01, 02-31917.01).
Compliance:
- Meets CPSC 16 CFR Sec. 1201.5 labeling requirements.
- Certificates accompany the product per U.S. Code (USC) 2063.
- Local Codes:
- Some regions require tempered glass with permanent markings.
- Contact your dealer/distributor to order glass meeting this requirement.
BTU Specifications
- MER42N (NG):
- Max Input: 35,000 BTUh
- Min Input: 19,000 BTUh
- Orifice Size: #35
- MER42L (Propane):
- Max Input: 34,000 BTUh
- Min Input: 17,000 BTUh
- Orifice Size: #51
- D. High Altitude Installations
- Notice: Heating value reduction guidelines apply above 2000 feet elevation.
- USA:
- Reduce input rate by 4% for every 1000 feet above 2000 feet.
- Canada:
- Certified without reduction for elevations up to 4500 feet (1370 m).
- For elevations above 4500 feet, consult local authorities.
General Guidance:
- Check with your local gas utility to determine proper orifice size.
- BTU/Hour Input:
- Natural Gas (NG): 19,000 – 35,000 BTUs
- Liquid Propane (LP): 17,000 – 34,000 BTUs
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
