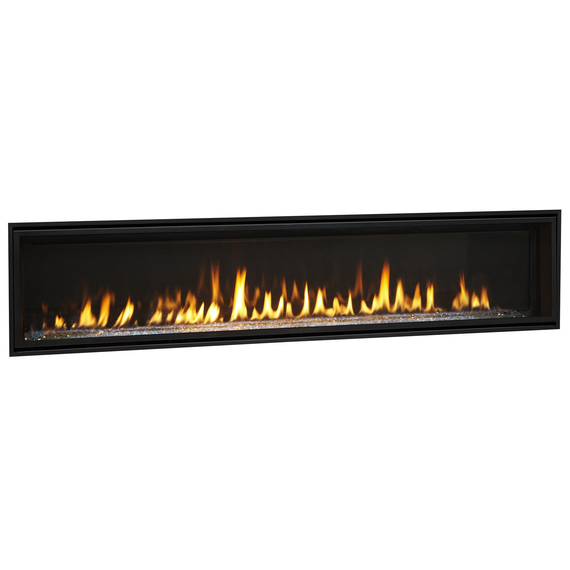

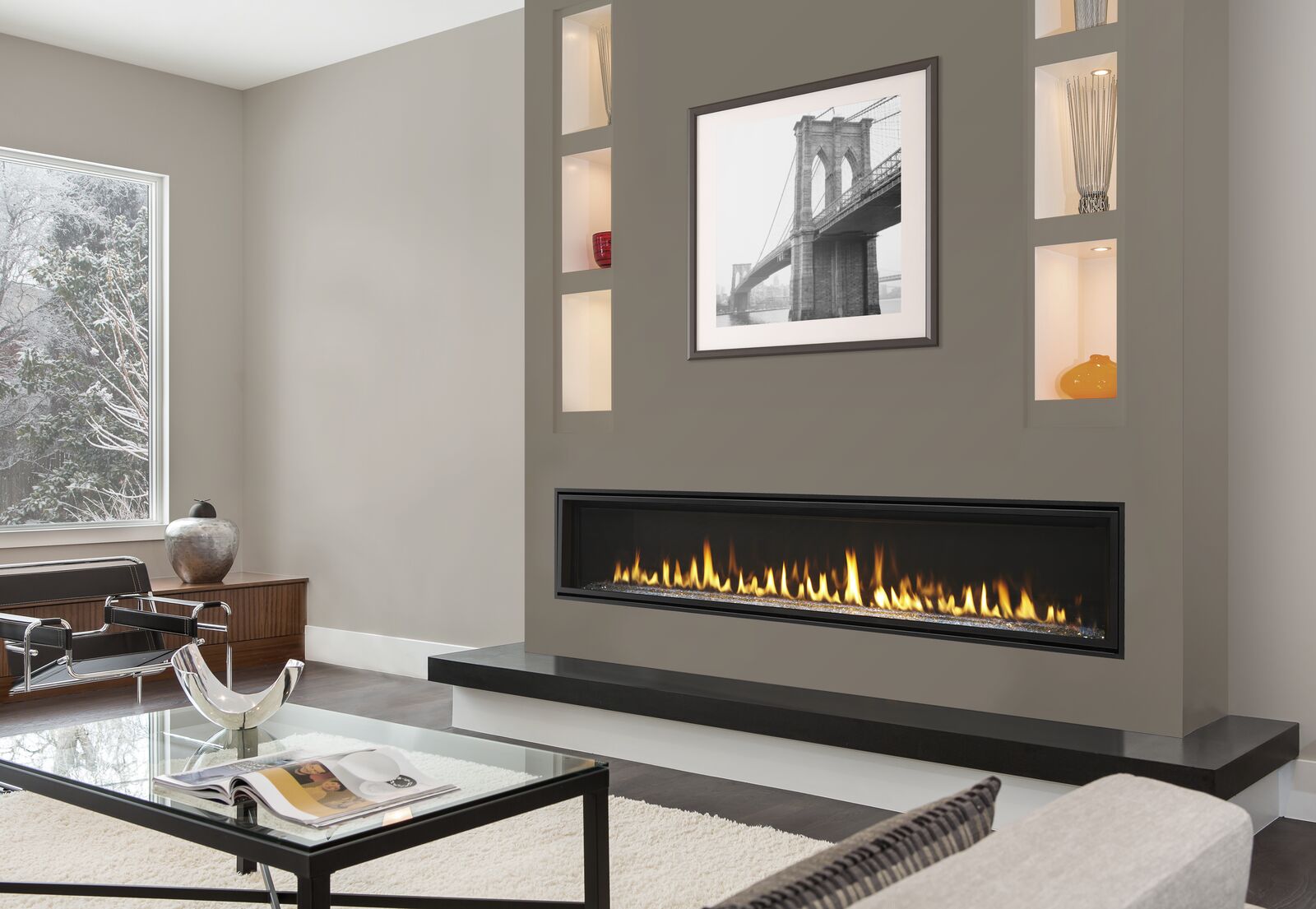

72 Inches Echelon II Linear Gas Fireplace by Majestic

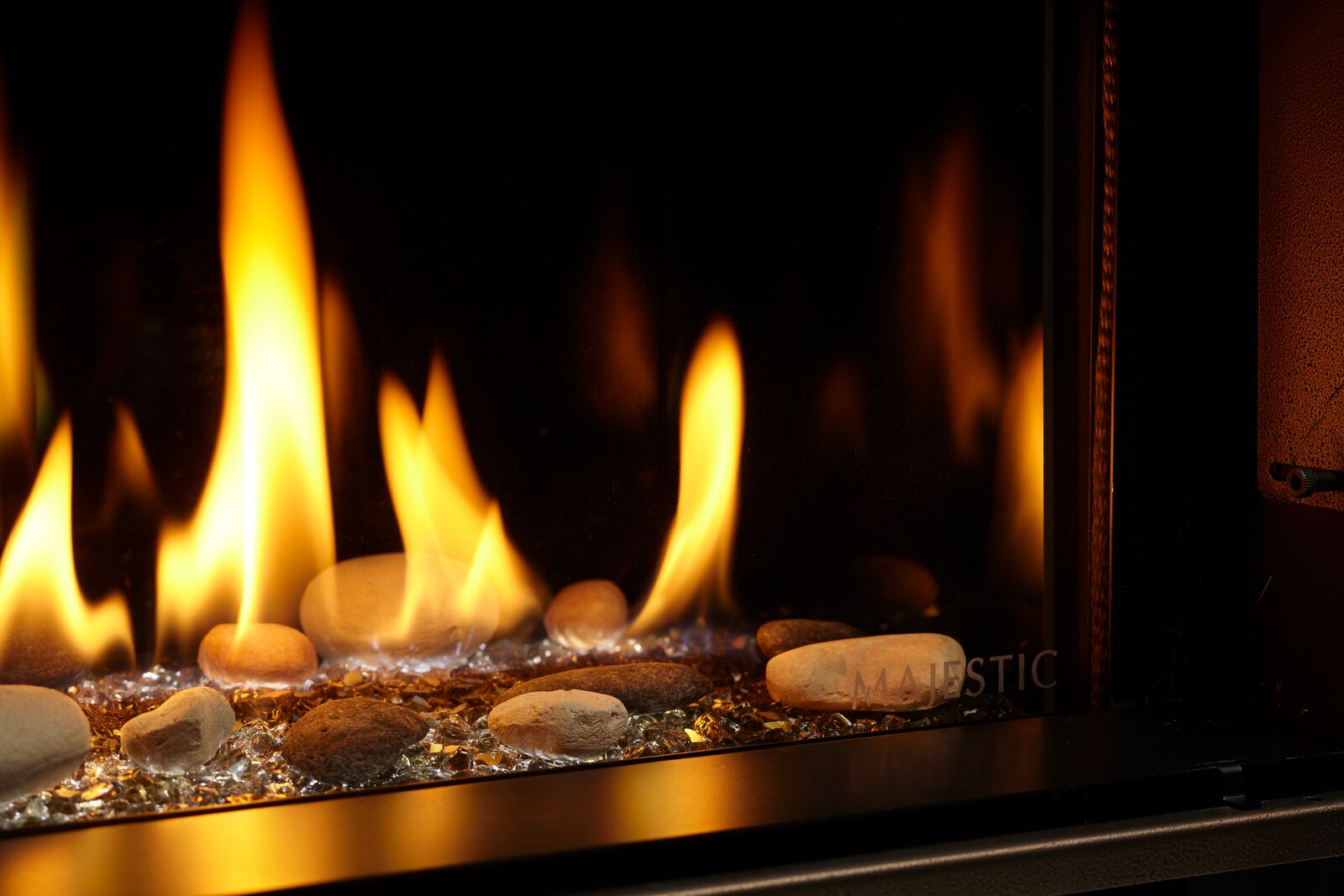

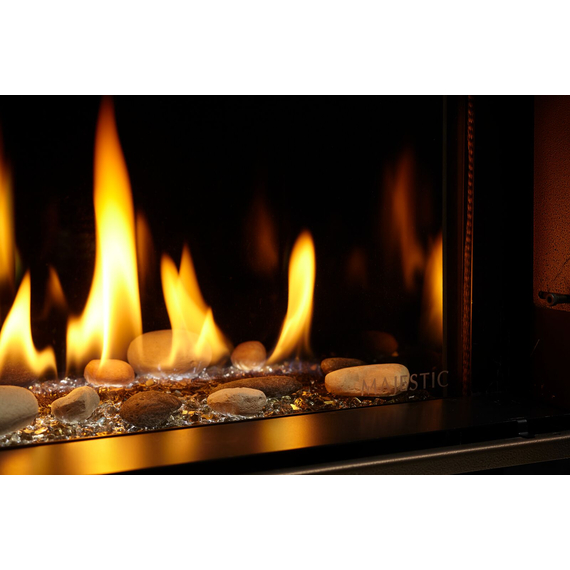

.jpg "Majestic Echelon II Detail Reflective Panels")
Discover the allure of the Majestic Echelon II 72" Direct Vent Gas Fireplace - ECHEL72IN-C, an exceptional creation that transcends mere functionality to become a defining feature of your living space. This elegant fireplace invites you to create and cherish the most priceless of moments; it is more than just a practical source of warmth.
Within the contours of its sleek design, the Echelon II series introduces a contemporary aesthetic that effortlessly marries simplicity with elegance. The allure of its active flames, gracefully dancing within, is complemented by a palette of interior options that allow you to tailor the fireplace to your unique style and preferences. It is a canvas awaiting your personal touch, a focal point that transforms any room into a sanctuary of comfort and visual splendor.
Engage with the mesmerizing interplay of fire and glass, heightened by the subtle brilliance of strategically placed lights. Choose between the intimate embrace of the single-sided configuration or opt for the captivating drama of the see-through variant. The Echelon II series, with its versatile options, invites you to curate your own haven of warmth and ambiance.
As you return home to the embrace of the Echelon II series gas fireplace, you open the door to a realm where relaxation and the art of living take center stage. It becomes not just a piece of furniture but an embodiment of the entertainment and romance you truly deserve. Elevate your living experience with the Majestic Echelon II 72" Direct Vent Gas Fireplace – a testament to the fusion of simplicity and sophistication, inviting you to celebrate life in all its radiant glory.
Features:

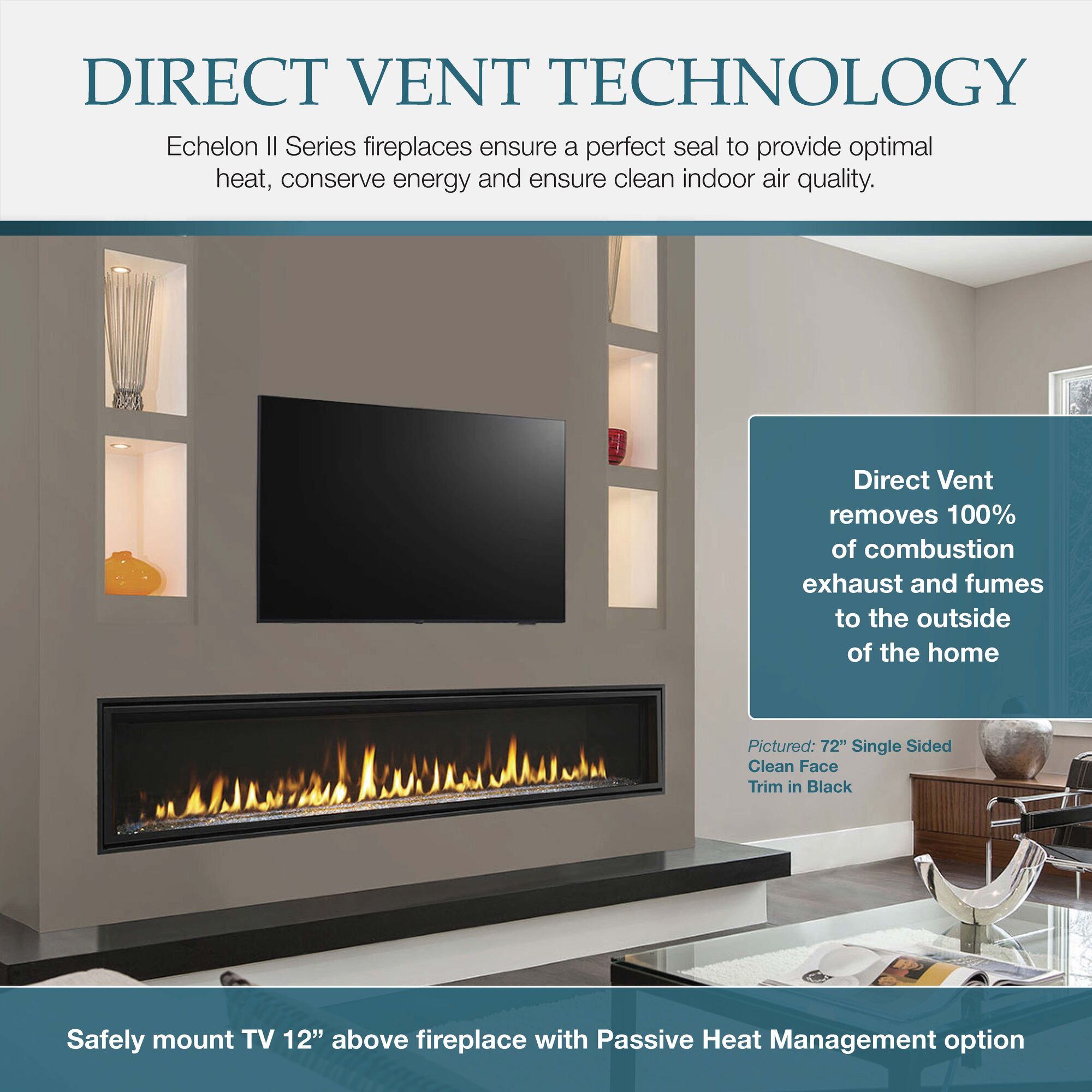

- Removes any fumes or combustion exhaust efficiently and effectively from your home.
- Offers you a touchscreen remote control or wireless wall switch to fit your life.
- Ensures you always have a reliable source of warmth even with a winter power outage.
- Adds brilliant LED sparkle to your hearth for an ambiant glow with or without a fire burning.
Specifications:
- Fuel Type: Natural Gas

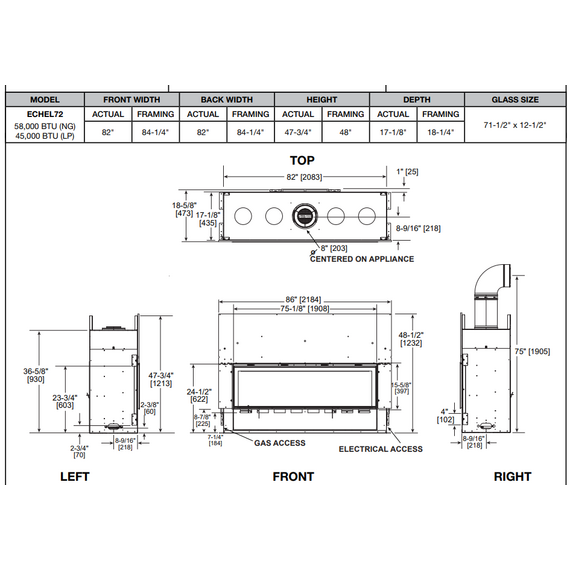

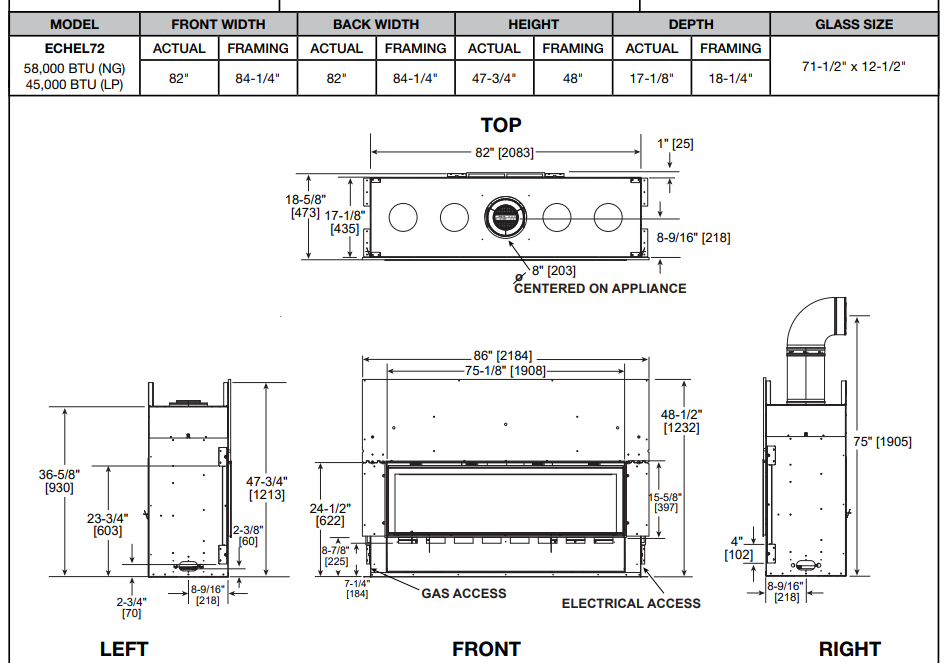

- Unit Dimensions: 82" W x 47-3/4" H x 17-1/8" D
- Framing Dimensions: 84-1/4" W x 48" H x 18-1/4" D
- BTU/hr Input: 58,000 (NG); 45,000 (LP)
- Heating Capacity: Up to 2,400 sq ft
- Viewing Area: 71-1/2" x 12-1/2"
*Venting Requirements: 8" DVP pipe. Must have a 18" minimum vertical vent before attaching a 90° elbow to unit. See venting section of manual.
**For more detailed specifications, please visit the Tech Specs tab.
**For detailed information and documents, please visit the Downloads tab where you'll find PDFs and additional resources available for download.
Technical Specifications:
A. Appliance Certification
- Models:
- ECHEL48IN-C
- ECHEL60IN-C
- ECHEL72IN-C
- Laboratory: Underwriters Laboratories, Inc. (UL)
- Type: Direct Vent Heater
- Standard: CSA / ANSI Z21.88-2019 • CSA 2.33-2019
- This product is tested to ANSI standards for "Vented Gas Fireplace Heaters" and sections of "Gas Burning Heating Appliances for Manufactured Homes and Recreational Vehicles" and "Gas Fired Appliances for Use at High Altitudes."
- Notice:
- Installations must comply with local codes.
- In the absence of local codes, installations must follow the National Fuel Gas Code (ANSI Z223.1-latest edition, U.S.) and the CAN/CGA B149 Installation Codes (Canada).
- Important Use Notes:
- Not intended for use as a primary heat source.
- Approved as supplemental room heat or as a decorative appliance.
- Should not be factored as primary heat in residential calculations.
- Models:
- ECHEL36IN-C
- ECHEL36STIN-C
- ECHEL48STIN-C
- Laboratory: Underwriters Laboratories, Inc. (UL)
- Type: Decorative Gas Appliances
- Standard: CSA / ANSI Z21.50-2019 • CSA 2.22-2019
- This product is tested to ANSI standards for "Vented Decorative Gas Appliances" and "Gas Fired Appliances for Use at High Altitudes."
- Important Use Notes:
- Not intended for use as a heat source.
- Decorative in nature and not intended to provide heat.
- Not for use with solid fuel.
- Not for use with a thermostat.
B. Glass Specifications
- This appliance includes 5 mm ceramic glass.
- Replace only with 5 mm ceramic glass.
- Contact your dealer for replacement glass.
C. BTU Specifications
Models and Specifications (U.S. or Canada):
- ECHEL36IN-C (NG):
- Maximum Input: 30,000 BTU/hr
- Minimum Input: 17,500 BTU/hr
- Orifice Size: #36
- ECHEL36IN-C (Propane):
- Maximum Input: 27,000 BTU/hr
- Minimum Input: 15,000 BTU/hr
- Orifice Size: #52
- ECHEL36STIN-C (NG):
- Maximum Input: 30,000 BTU/hr
- Minimum Input: 17,500 BTU/hr
- Orifice Size: #36
- ECHEL36STIN-C (Propane):
- Maximum Input: 27,000 BTU/hr
- Minimum Input: 15,000 BTU/hr
- Orifice Size: #52
- ECHEL48IN-C (NG):
- Maximum Input: 40,000 BTU/hr
- Minimum Input: 21,000 BTU/hr
- Orifice Size: #36
- ECHEL48IN-C (Propane):
- Maximum Input: 34,000 BTU/hr
- Minimum Input: 20,000 BTU/hr
- Orifice Size: #52
- ECHEL48STIN-C (NG):
- Maximum Input: 40,000 BTU/hr
- Minimum Input: 21,000 BTU/hr
- Orifice Size: #36
- ECHEL60IN-C (NG):
- Maximum Input: 50,000 BTU/hr
- Minimum Input: 28,000 BTU/hr
- Orifice Size: #36
- ECHEL60IN-C (Propane):
- Maximum Input: 43,000 BTU/hr
- Minimum Input: 25,000 BTU/hr
- Orifice Size: #52
- ECHEL72IN-C (NG):
- Maximum Input: 58,000 BTU/hr
- Minimum Input: 40,000 BTU/hr
- Orifice Size: #36
- ECHEL72IN-C (Propane):
- Maximum Input: 48,000 BTU/hr
- Minimum Input: 25,000 BTU/hr
- Orifice Size: #46
Downloads:
Manufacturer's Warranty
NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
