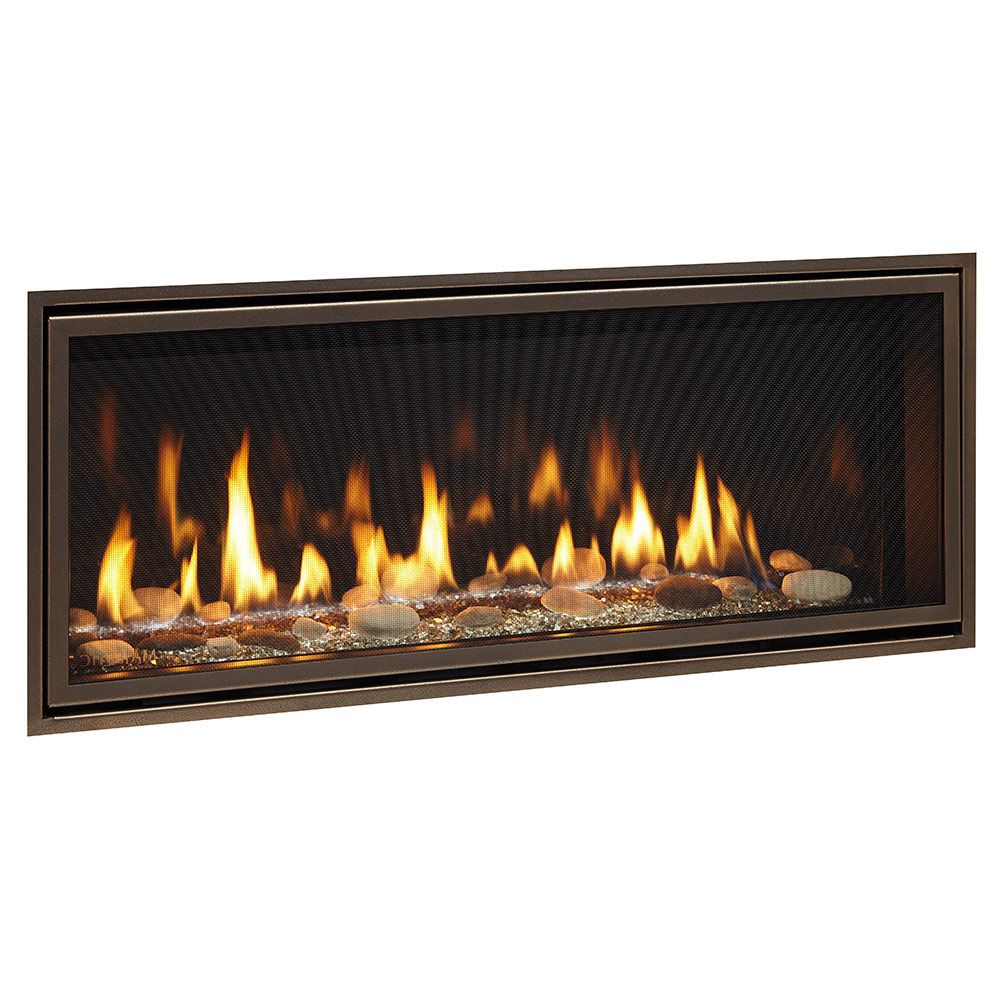

Majestic Echelon II 36 Inches Gas Fireplace

Discover the allure of the Majestic Echelon II 36" Direct Vent Gas Fireplace - ECHEL36IN-C, an exceptional creation that transcends mere functionality to become a defining feature of your living space. This elegant fireplace invites you to create and cherish the most priceless of moments; it is more than just a practical source of warmth.

Within the contours of its sleek design, the Echelon II series introduces a contemporary aesthetic that effortlessly marries simplicity with elegance. The allure of its active flames, gracefully dancing within, is complemented by a palette of interior options that allow you to tailor the fireplace to your unique style and preferences. It is a canvas awaiting your personal touch, a focal point that transforms any room into a sanctuary of comfort and visual splendor.

Engage with the mesmerizing interplay of fire and glass, heightened by the subtle brilliance of strategically placed lights. Choose between the intimate embrace of the single-sided configuration or opt for the captivating drama of the see-through variant. The Echelon II series, with its versatile options, invites you to curate your own haven of warmth and ambiance.

As you return home to the embrace of the Echelon II series direct vent gas fireplace, you open the door to a realm where relaxation and the art of living take center stage. It becomes not just a piece of furniture but an embodiment of the entertainment and romance you truly deserve. Elevate your living experience with the Majestic Echelon II 36" Gas Fireplace – a testament to the fusion of simplicity and sophistication, inviting you to celebrate life in all its radiant glory.

Features:

• Removes any fumes or combustion exhaust efficiently and effectively from your home.
• Offers you a touchscreen remote control or wireless wall switch to fit your life.
• Ensures you always have a reliable source of warmth even with a winter power outage.
• Adds brilliant LED sparkle to your hearth for an ambiant glow with or without a fire burning.

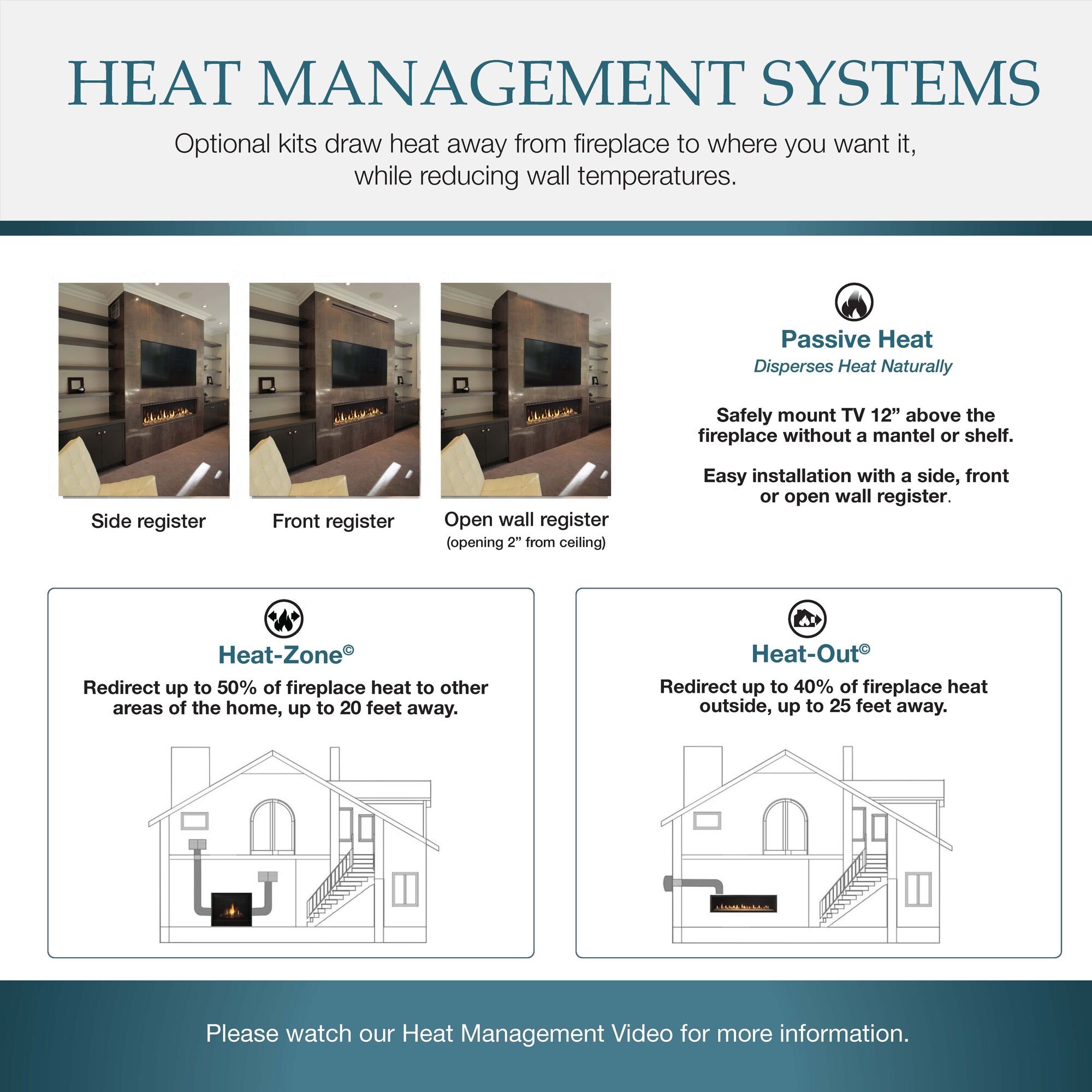

Heat Management

1. Passive Heat Side Discharge {PH-SIDETRIM + PH-MCE}

This bundle includes everything needed for a non-powered passive side venting setup.
Includes:

• PH-SIDETRIM: Trim kit with 2 side registers for clean installation
• PH-MCE: Required starting collars for air discharge
• Ideal for: Moving natural heat to adjacent areas from the sides of the fireplace without a fan.

2. Passive Heat Front Discharge {PH-FRTTRIM-36 + PH-MCE}

Designed for clean front-facing passive heat setups using natural convection.
Includes:

• PH-FRTTRIM-36: 36" front discharge vent trim
• PH-MCE: Required starting collars
• Ideal for: Homes that want warm air rising from the front of the fireplace using a minimalist, fanless design.

3. Ducted Passive Heat Front Discharge {PHFR-MCE-36 + PHTRIM-MCE-36}

A complete ducted passive system that channels heat from the fireplace to a front-facing location.
Includes:

• PHFR-MCE-36: Ducted Passive Heat kit
• PHTRIM-MCE-36: Matching front discharge trim
• Ideal for: Long-distance front heat venting without a fan — perfect when the fireplace is recessed or built-in.

4. Ducted Passive Heat Side Discharge {PHSI-MCE}

A ducted solution to passively move heat from the fireplace to side locations.
Includes:

• PHSI-MCE: Complete side duct kit with 2 side registers and ducting
• Ideal for: Spreading heat to other rooms or walls next to the fireplace without using electricity.

5. Heat Out Kit {HEAT-OUT-GAS}

A powered heat exhaust system to expel heat outdoors or to remote spaces using a fan.
Includes:

• Termination cap, 25' of 6" duct, fan (350 CFM), wall switch, damper, and adapters
• Ideal for: Keeping heat out of the room or venting excess heat away when using high-output fireplaces.

6. Heat Zone Kit {HEAT-ZONE-GAS + HZLIN-ADP}

Moves warm air to another room using a fan-powered duct system.
Includes:

• HEAT-ZONE-GAS: Fan, 20' duct, wall adapter, on/off control, vent
• HZLIN-ADP: Required adapter for installation
• Ideal for: Heating other rooms, upstairs areas, or basements using excess heat from the fireplace.

Specifications:

• Model: Echelon II 36
• Fuel Type: Natural Gas or Propane

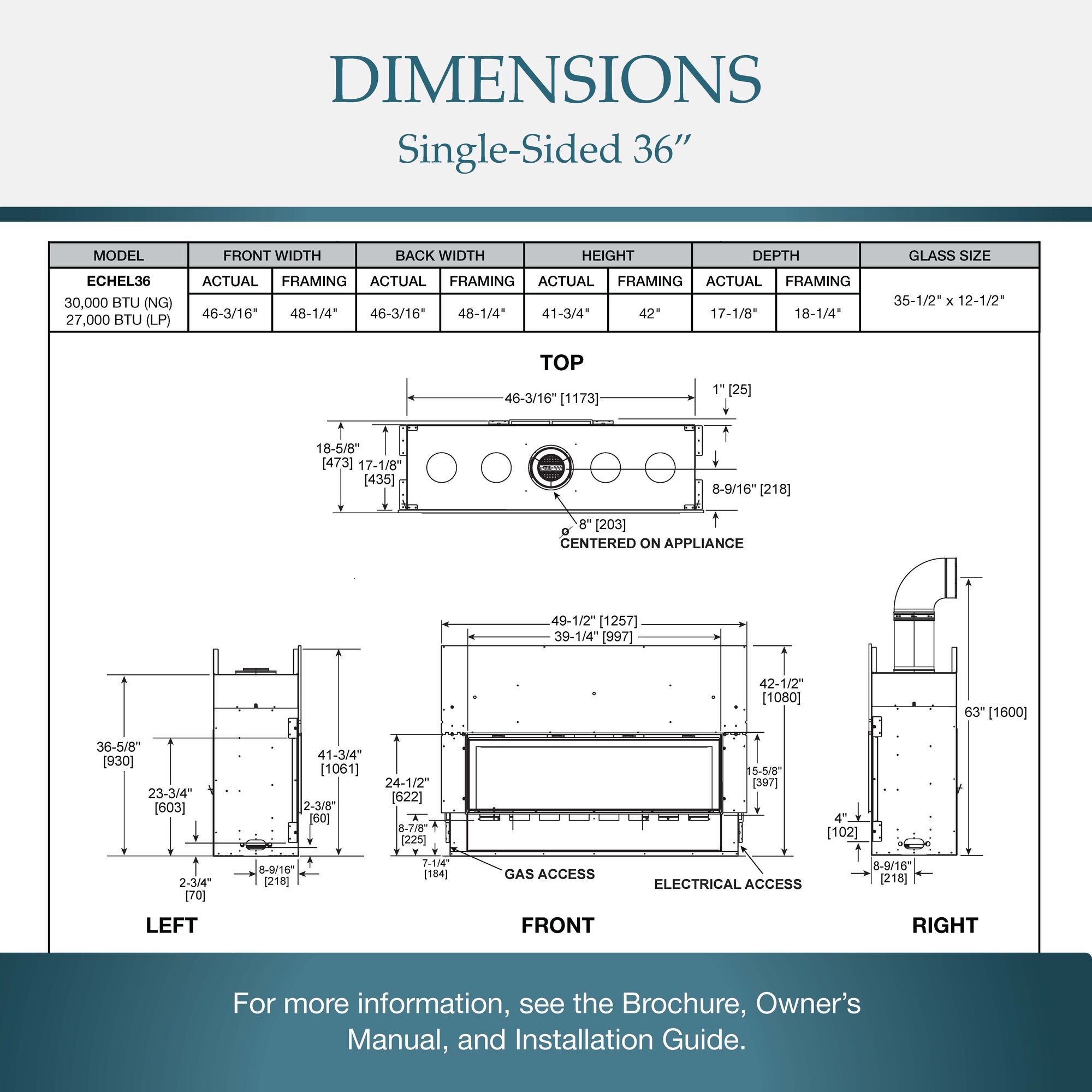

• Unit Dimensions: 46-3/16" W x 41-3/4" H x 17-1/8" D
• Framing Dimensions: 48-1/4" W x 42" H x 18-1/4" D
• Viewing Area: 35-1/2" x 12-1/2"
• BTU/hr Input: 30,000 (NG); 27,000 (LP)
• Heating Capacity: Up to 700 sq ft

*Venting Requirements: 8" DVP pipe. Must have an 18" minimum vertical vent before attaching a 90° elbow to the unit. See the venting section of the manual.

**For more detailed specifications, please visit the Tech Specs tab.
**For detailed information and documents, please visit the Downloads tab where you'll find PDFs and additional resources available for download.
