Biltmore 42 Inch Wood Fireplace by Majestic

$3,10473
Available
Click the image to enlarge for a closer, detailed view of the product.
Click the image to enlarge for a closer, detailed view of the product.
+
Compare



   Free Shipping on All Orders Continental United States!  Free Shipping | 1-3 Week Lead Time  Question | Why Buy From Us?

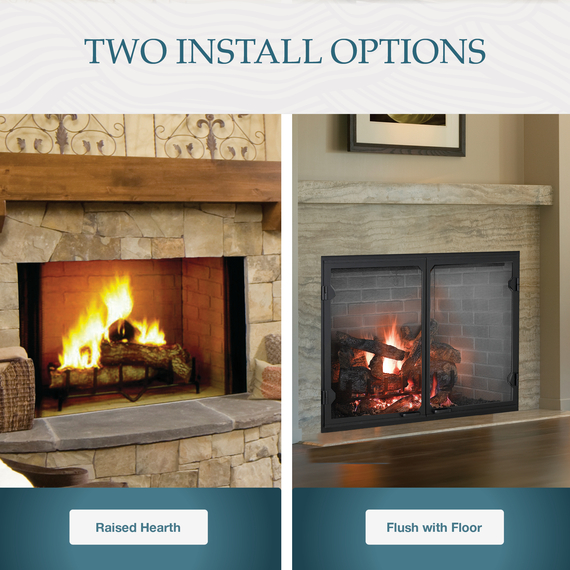

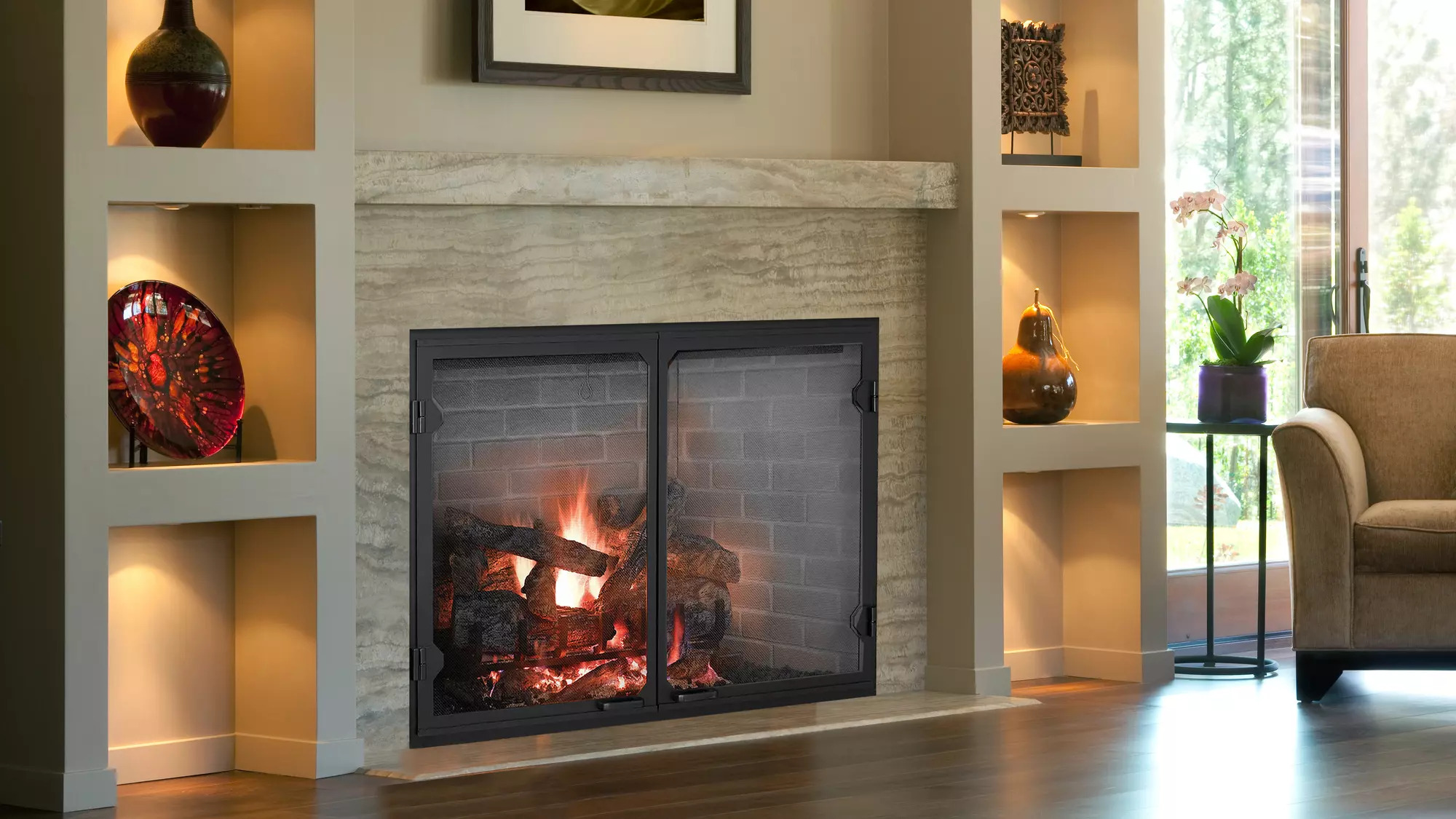

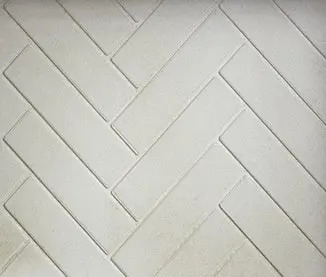

One of the largest indoor wood-burning fireplaces in the industry, the Majestic Biltmore 42 Inch Wood Fireplace will add charm and distinction to your home. The included Herringbone style brick liners complement any decor, while the flush-hearth design provides seamless finishing. Refractory brick panels not only soak up the heat and then radiate that heat back into the room, but they also act as an insulator to prevent heat loss through the back of the fireplace. The Biltmore is designed to be installed on the floor or on a raised hearth.

Included are two standard outside air kits for enhanced venting and gas line cutouts for a log lighter or conversion to a gas fireplace.  Also included is a durable steel fireplace grate to hold the firewood in place and a curtain-style mesh spark protector. The Majestic Biltmore indoor wood-burning fireplace has a larger-than-life style, classic masonry appeal, and an unbeatable viewing area!


Features:

  • Creates a traditional look where the fireplace floor is flush with the hearth or the room floor.

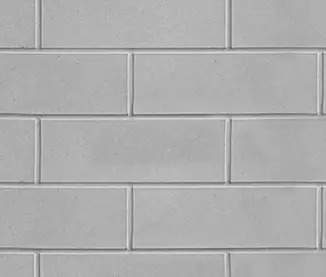

  • Creates an authentic masonry-type fireside experience with classic brick interior panels with a traditional look.
  • Creates an updated look for your firebox interior with an angled brick-and-mortar appearance.
  • Emits warmth passively, with no fan required.

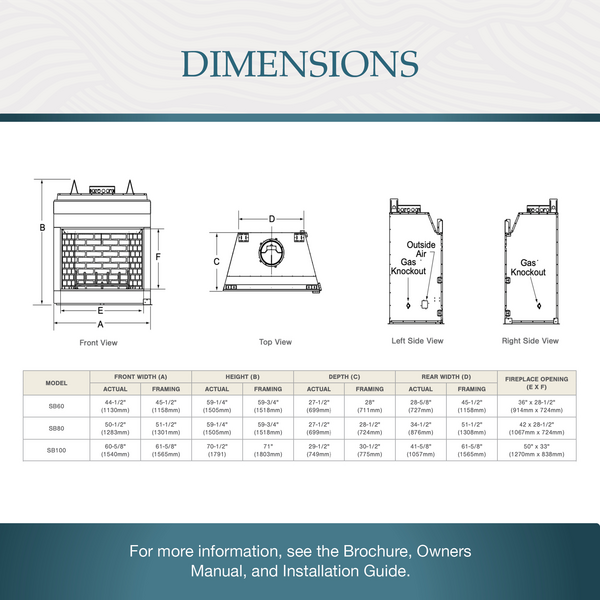

Specifications:

  •  Model: Biltmore 42"
  •  Vent Type: Vented
  •  Installation Type: Zero Clearance
  •  Overall Width: 50 1/2"
  •  Overall Height: 59 1/4"
  •  Overall Depth: 27 1/2"
  •  Framing Width: 51 1/2"
  •  Framing Height: 48 5/8"
  •  Framing Depth: 28 1/2"
  •  Opening Dimensions: 42" W x 28 1/2" H
  •  Mobile Home Installation: No
  •  Required Venting: SL1100 Chimney

Downloads:

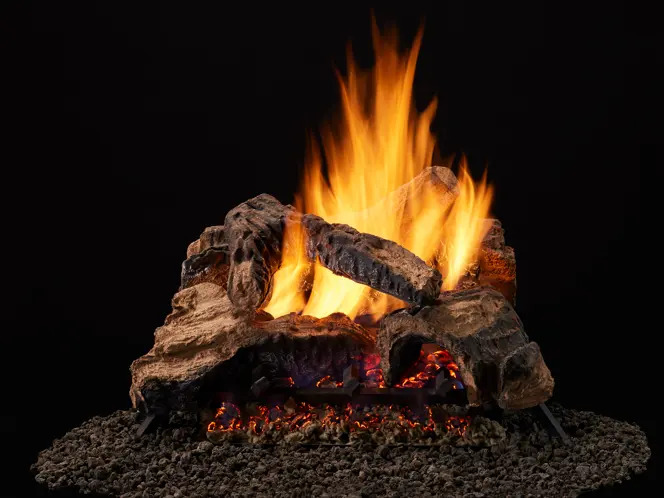

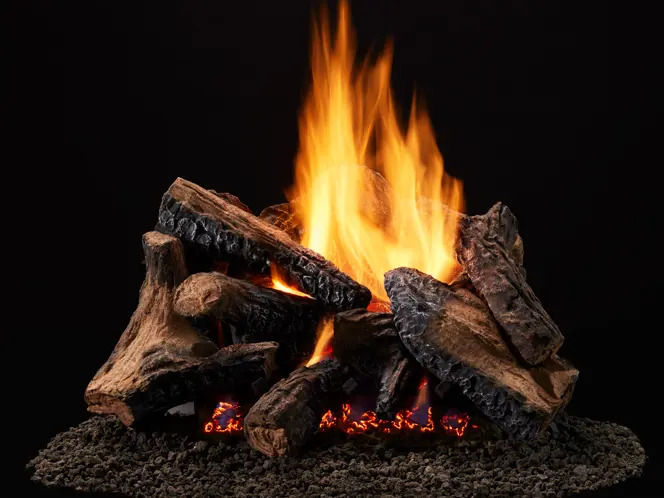

BTU Output Table:


BTUs

(Low to High)

Natural Gas  Liquid Propane
36  Inch Gas Log Set 120,000 90,000

42 Inch Gas Log Set

130,000 110,000
48 Inch Gas Log Set  145,000 115,000
60/72 Inch Gas Log Set  150,000 120,000






Fireplace Sizing Requirements:

Fireplace Dimensions

Front:

Rear Depth: Height:
36 Inch Gas Log Sets

46 Inches

40 Inches 16 Inches 17 Inches
42 Inch Gas Log Set

52 Inches

46 Inches 20 Inches  17 Inches
48 Inch Gas Log Set 60 Inches  50 Inches 20 Inches 17 Inches
60 Inch Gas Log Set 72 Inches  62 Inches 20 Inches 17 Inches
72 Inch Gas Log Set 84 Inches  74 Inches 20 Inches 17 Inches



*NOTE: For any other ignition system besides the SPK-26 manual safety pilot, ADD 2 inches to both the front and rear widths.

Chimney Height Requirements:
Factory Built Fireplace - Minimum Free Opening of Damper
(square inches)
Chimney Height 36 Inch Log Set  42 Inch Log Set  48 Inch Log Set  60 Inch Log Set  72 Inch Log Set
15 feet 62 square inches  66 square inches 74 square inches 76 square inches 86 square inches
20 feet 56 square inches  58 square inches 66 square inches 68 square inches 76 square inches
30 feet 45 square inches  49 square inches 57 square inches 59 square inches 69 square inches
Masonry Fireplace - Minimum Free Opening of Damper
(square inches)
Chimney Height 36 Inch Log Set  42 Inch Log Set 48 Inch Log Set  60 Inch Log Set  72 Inch Log Set
15 feet 70 square inches 76 square inches 84 square inches 86 square inches 98 square inches
20 feet 63 square inches 68 square inches 76 square inches  78 square inches 89 square inches
30 feet 57 square inches  59 square inches  67 square inches  69 square inches 77 square inches



Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
