Madrid Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



OVERLAP FIT (needs hearth to sit on)

When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth (where the door will sit) to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



INSIDE FIT (inside firebox opening)

When the fireplace door is smaller than the opening of the fireplace, and fits inside of the fireplace opening. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth/floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.



DO NOT make adjustments to sizes, we need the EXACT OPENING size

in
in
$2,825.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4-5 Weeks Question | Why Buy From Us?

INSIDE FIT - Generally, the clearance tolerance gaps can be filled from the backside of the frame using high temp silicone RTV. If the gaps become excessive (as in a stone fireplace), it may be necessary to mortar in the enclosure. Clearance tolerance gaps are determined by the manufacturer according to your opening size.
Available
+

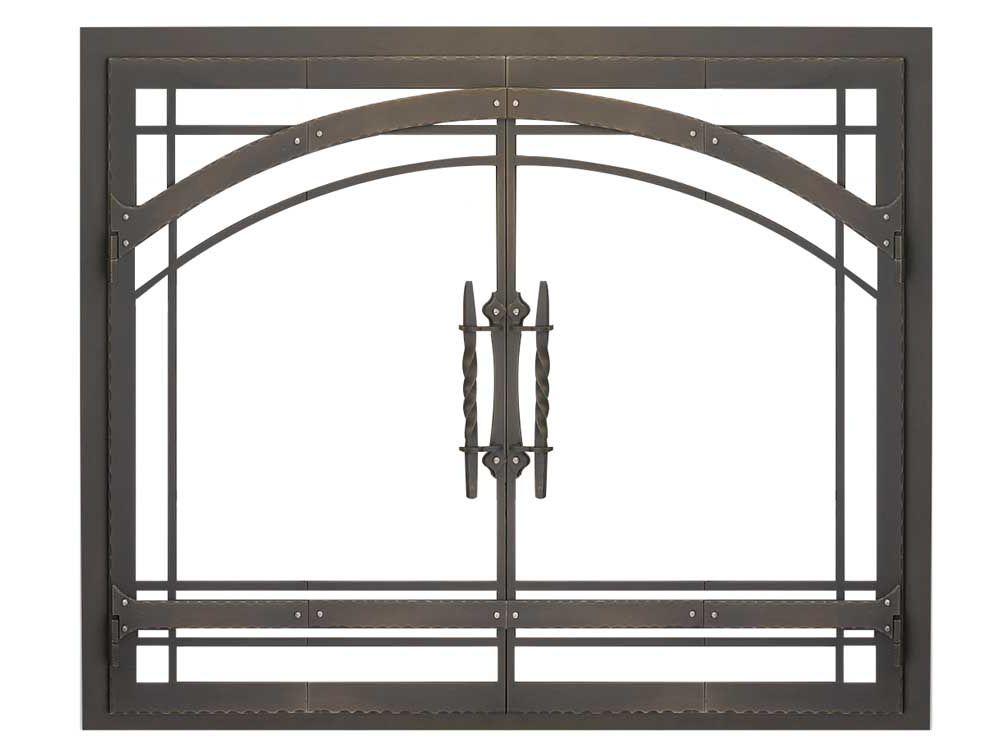

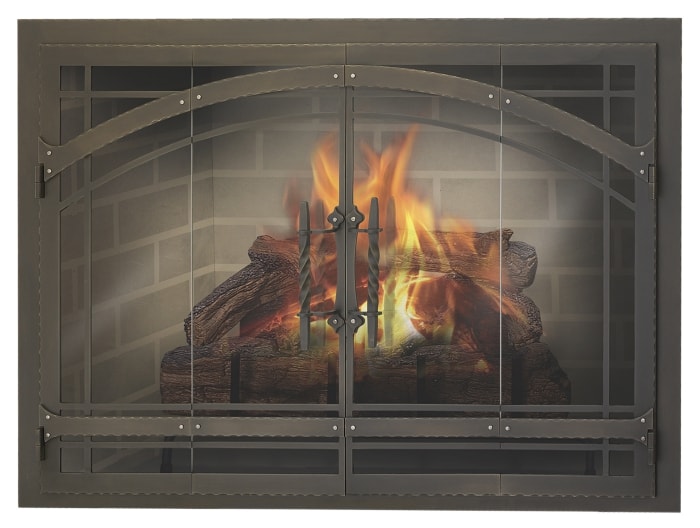

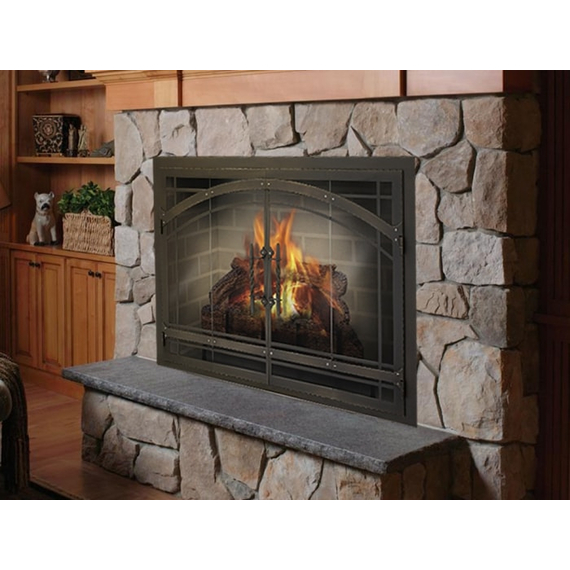

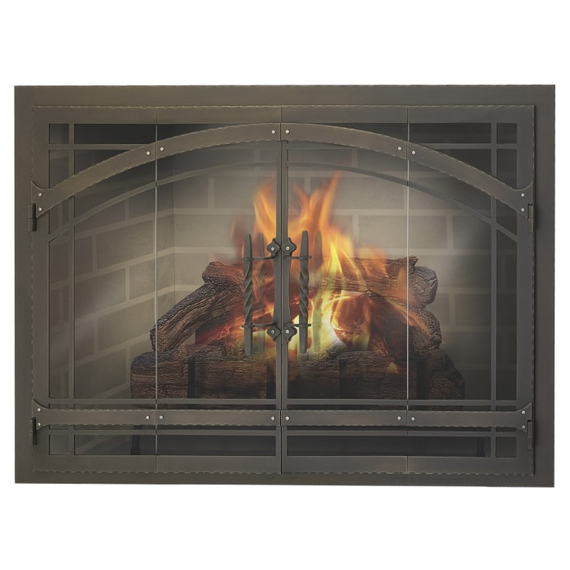

The Madrid custom fireplace door boasts a beautiful Spanish influence with stunning 8-inch twist handles. This Design Specialties enclosure offers many options that allow you to tailor it to your specifications. You can select an overlap or inside fit, as well as bi-fold or cabinet doors. You can also choose from clear, bronze, grey, or black tinted tempered glass. The frame comes in your choice of 28 luxurious finishes to truly make this rustic fireplace door a one of a kind masterpiece! Fireplace mesh protection is optional, and we recommend this upgrade to protect your loved ones and living space while you enjoy the wood burning fire. The beautiful Madrid door is an investment for your home that is built to last for years!

Please note: handcrafted finishes will add an additional 1 week to production and transit time.


Madrid Masonry Fireplace Door Features Product Features:

  • 1 year warranty on workmanship; 2 year warranty on metal work (excluding finish)
  • Lifetime warranty on tempered safety glass
  • Available as both an inside and overlap fit
  • Choose from cabinet and trackless bi-fold doors
  • The steel frame is 1 1/2 inches wide and 3/16 inch deep
  • Recesses 3/16 inch deep
  • Check out the videos for the available product finishes
  • 1/4 inch tempered glass is available in grey, bronze, clear, and black tints
  • Optional spark protection
  • Hidden damper option

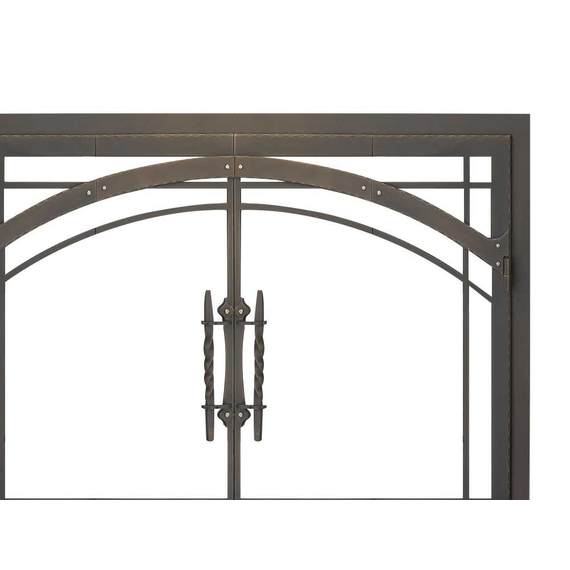

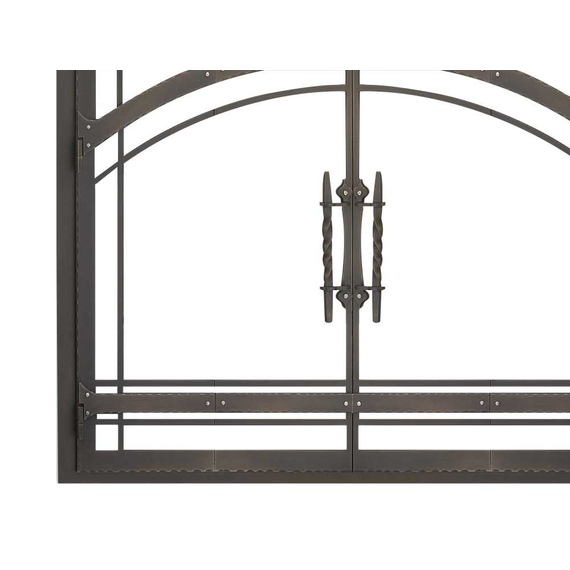

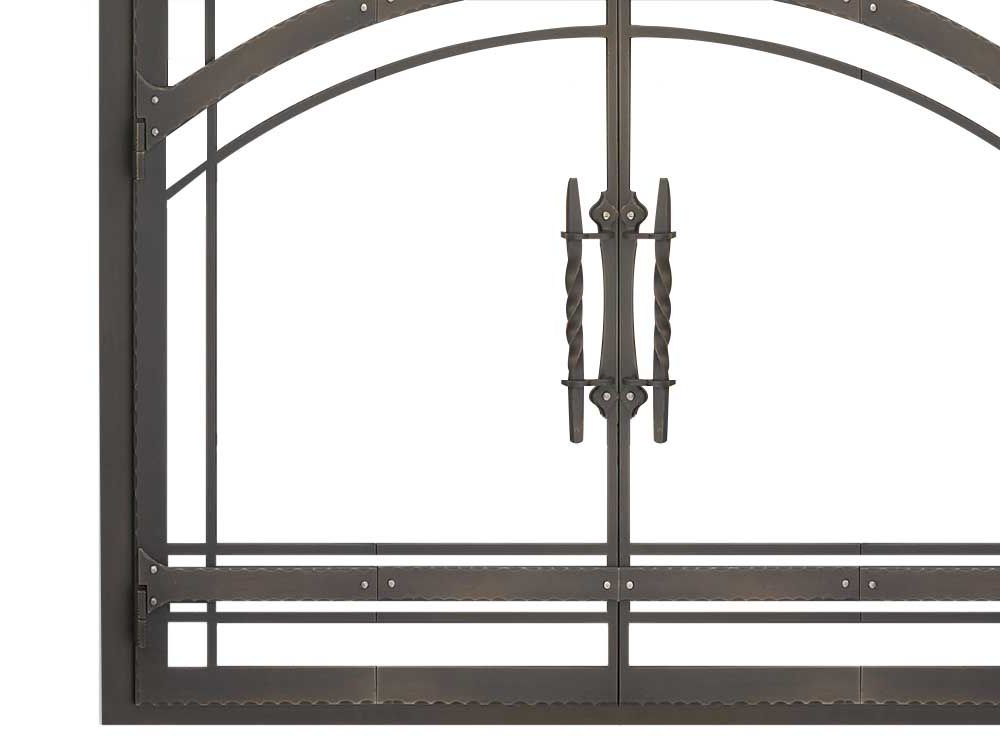

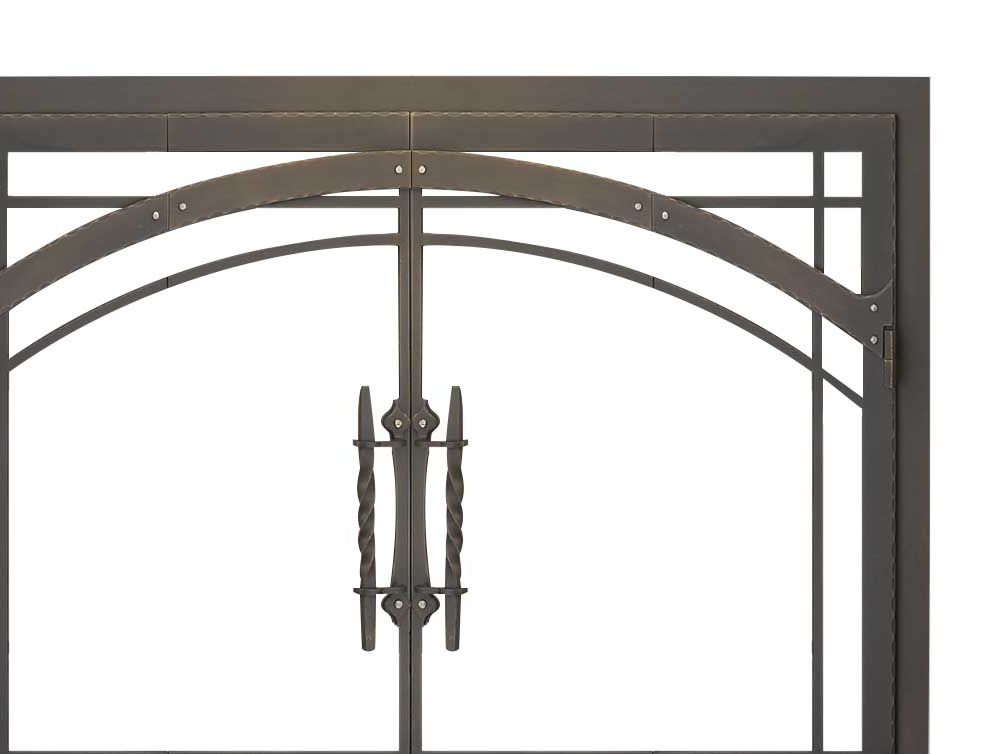

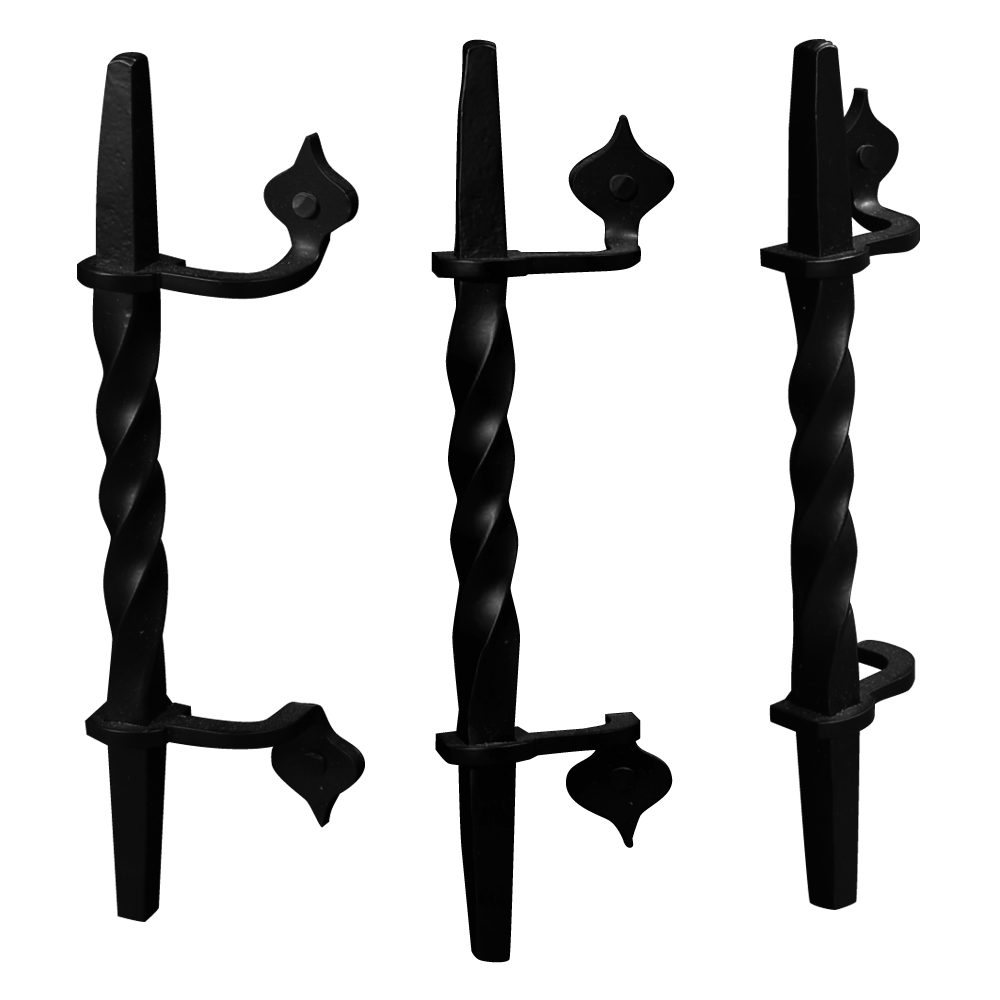

  • 8 inch Twist handle style
  • Door comes fully assembled with all mounting hardware included



Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Madrid Masonry Fireplace Door Specifications Product Specifications:

  • Door Fit: Overlap | Inside
  • Approximate Overlap: 1"
  • Door Type: Cabinet Doors | Trackless Bi-Fold Doors

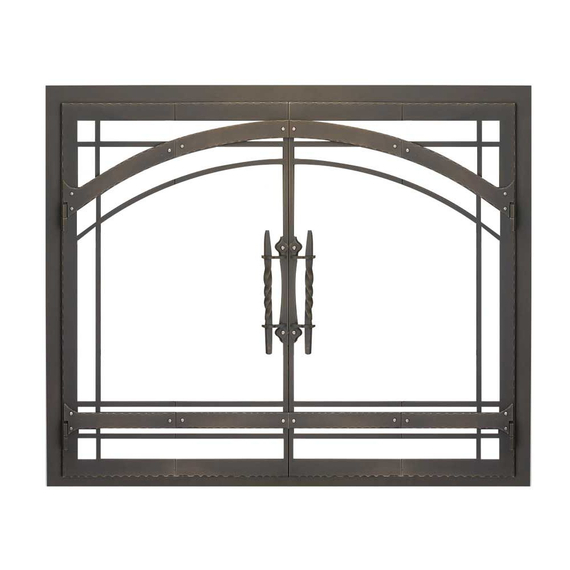

  • Material: 1-1/2" Wide x 3/16" Deep Flat Steel Frame
  • Recessed Depth: 3/16"
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Grey | Bronze | Clear | Black
  • Ceramic Glass: N/A
  • Mesh Screen: Not Included (Optional)
  • Damper: No Damper | Hidden Damper
  • Airtight Option: N/A
  • Assembly: Comes Fully Assembled
  • Handle: 8" Twist
  • Mounting: Hardware Included

Manufacturer's Warranty

NAPOLEON products are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certificate. NAPOLEON products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receives the quality product that you expect from NAPOLEON. The following materials and workmanship in your new NAPOLEON gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless steel burner, phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* Electrical (110V and millivolt) components and wearable parts are covered and NAPOLEON will provide replacement parts free of charge during the fi rst year of the limited warranty. This covers: blowers, gas valves, thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly.* Labour related to warranty repair is covered free of charge during the fi rst year. Repair work, however, requires the prior approval of an authorized company offi cial. Labour costs to the account of NAPOLEON are based on a predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer. * Construction of models vary. Warranty applies only to components included with your specifi c appliance. NAPOLEON GAS APPLIANCE PRESIDENT’S LIFETIME LIMITED WARRANTY
