Introducing the Invicta Gaya Feuille Leaf Cast Iron Wood Stove, a testament to the union of artistry and functionality, where each flame dances to the rhythm of a meticulously crafted masterpiece. This free-standing wood-burning stove not only provides a comforting warmth but also transforms your space with its nature-inspired aesthetic.
The Gaya Feuille transcends conventional stove designs, offering an unexpected yet refined approach that redefines the ambiance of any room. Its leaf-like contours, reminiscent of a gently fallen leaf, showcase delicate veins and elegantly weathered edges, evoking a sense of natural beauty that effortlessly harmonizes with the elements of your living space.
At Invicta, our commitment goes beyond design; it's about accessibility. For decades, we've dedicated ourselves to democratizing exceptional design and performance. As the unrivaled European leader in wood-burning stoves, we've curated a diverse range, ensuring that there's an INVICTA stove for every budget. This means that you'll not only find a source of warmth but also a piece of functional art that infuses your living space with daily inspiration.
The Gaya Feuille stands as a testament to our mission, inviting you to experience the perfect blend of form and function. From its intricate detailing to its unparalleled heat dispersion, every aspect is a testament to our unwavering dedication to craftsmanship. As you gather around the Gaya Feuille, you'll find yourself immersed in an atmosphere of timeless beauty and comforting warmth.
Elevate your home with the Gaya Feuille, where innovation meets artistry, and make every day a celebration of impeccable design. Let the flames of the Gaya Feuille serve as a beacon of sophistication and practicality, transforming your space into a sanctuary of style and comfort. Embrace the warmth, embrace the beauty, and let your living space become a canvas for the extraordinary.
Venting Requirements: Use a 7’’ black connector pipe. Use only a 7’’ insulated flue in compliance with the UL 103HT or ULC S629 standard
Model: | Gaya Feuille Leaf |
Optimal Power: | 12 kW |
Heating Volume: | 160 to 360 m³ |
Heating Surface: | 65 to 145 m² |
Environmental Label: | 7 stars |
Useful Efficiency: | 77 |
Seasonal Efficiency: | 67 |
CO (%): | 0,10 % |
CO (MG/NM³): | 1250 |
DUST (MG/NM³): | 30 mg/Nm³ |
GOC (MG/NM³): | 70 |
NOX (MG/NM³): | 160 |
Energy Efficiency Index: | 102 |
Flue Gas Mass Flow: | 10 |
Flue Gas Temperature: | 344 |
Loading: | Façade |
Flue exit: | Dessus |
Flue Diameter: | 180 mm |

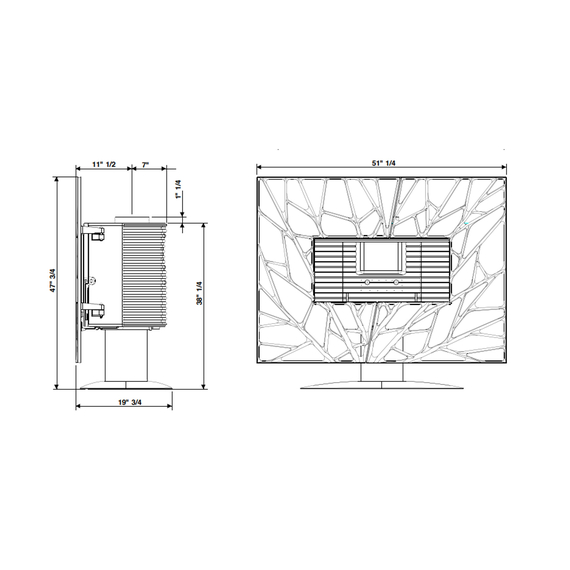

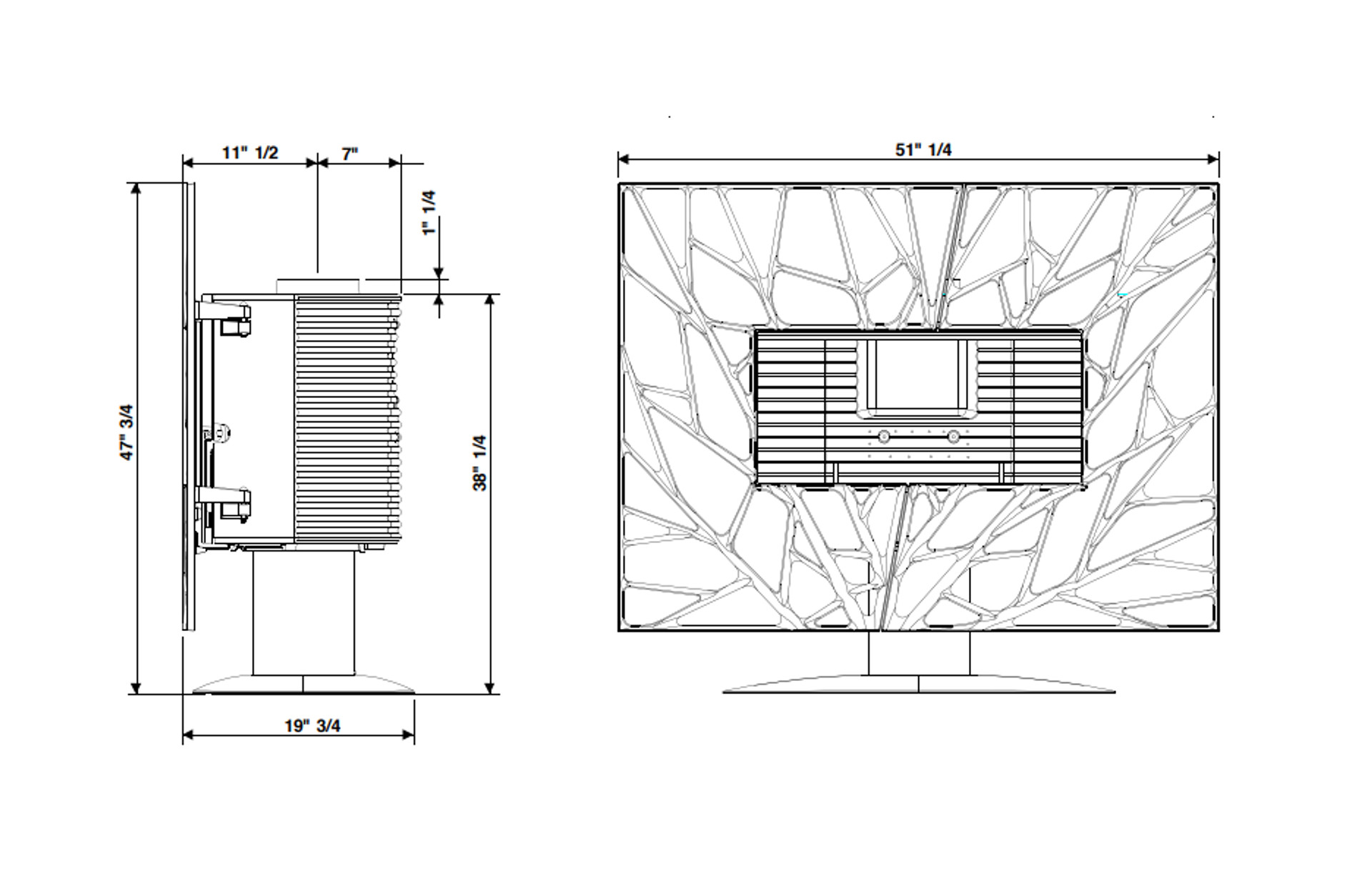

Dimensions - H * W * D (MM): | 1300 x 1213 x 500.5 |
Material: | Fonte |
Finish: | Anthracite |
Certification | EN 13240 |
Manufacturer Warranty
DURATION: The duration of our guarantee is 10 years on the firebox body and 3 years for all casting component having direct contact with the fire like the ashes grid, the shenet and the baffle, counting from the date of delivery by the installer or the date of point of sale. The guarantee applies during this period to all defects of parts or of manufacture. We are only responsible for the free replacement of parts found defective after verification by ourselves. If the replacement of these parts would prove too expensive, we reserve the right to replace the appliance.
VALIDITY: The purchaser designated hereunder, acknowledging having received the notice of installation and of use, agrees to conform for safety reasons. This guarantee is only valid if the appliance is used according to the rules and recommendations stated on the instructions for installation and used, supplied with the appliance. The appliance must be installed at the address on the certificate of guarantee. The other components are guaranteed for 1 year, such as: latch, screws and bolts, springs, fans, printed circuits, switch, electric thimbles, wire, electric sheaths, etc...
EXCLUSION: The glass is resistant to a temp of 750 C and the temperatures in the combustion chamber never reach this temperature, a breakage of glass cannot occur as a result of overheating. Therefore, the breakage of the glass due to a bad manipulation on installation or the handling of the applicane, is not covered by this guarantee. The joints are considered items which are subject to wear. The fuel used and the control of the apparatus, being outside out control, the parts of the stove in direct contact with the ignited fuel are not included in the cover of the guarantee, including: fireplate, fire grate, vent, log barrier, The cost of traveling, of transport, of workmanship, of packaging, of disassembly and the consequences of the immobilization of the appliance, resulting from the operations of the guarantee, are the sole responsibility of the customer. Any disorder caused on any part of the installation, by mechanical or electrical parts which we have not supplied and which are prohibited by the texts governing heating appliances. The damage caused by the use of any other fuel than wood
