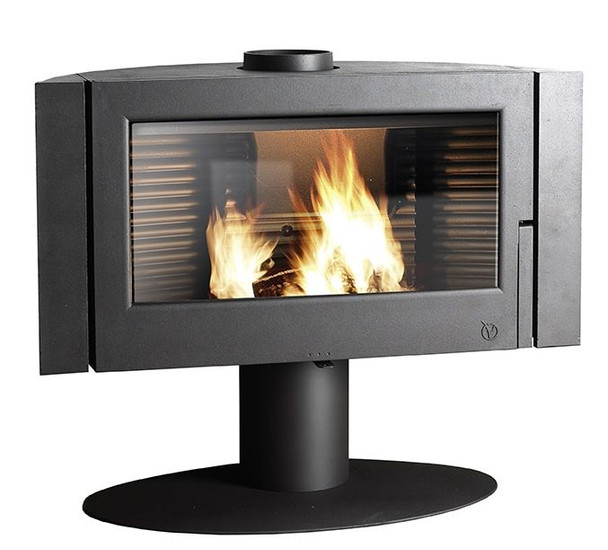

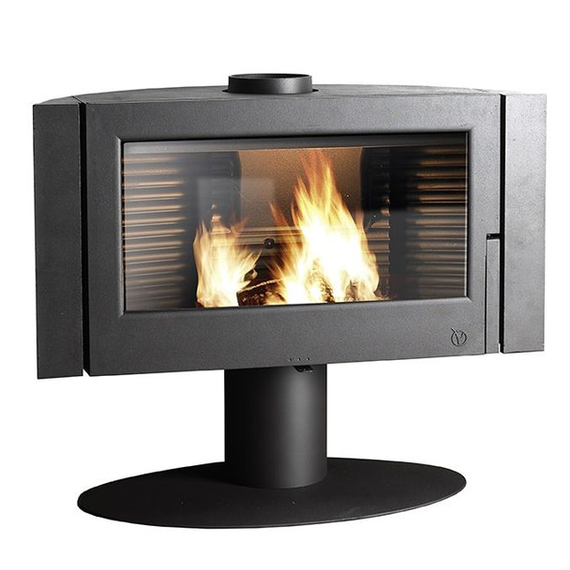

Experience the mesmerizing appeal of the Invicta Antaya Cast Iron Wood Stove, where functionality and charisma combine to create a breathtaking display of flames. This wide-view chimney furnace captivates not only with its impressive performance but also with its out-of-the-ordinary design.
The transparent pane air wash system provides a breath of fresh air, operating as a secondary air system that increases the efficiency of the appliance. It assures a more thorough combustion of gases within the stove, thereby optimizing both heat output and environmental friendliness.
The Antaya wood-burning furnace is a testament to Invicta's dedication to form and function, as it was meticulously crafted. It emits a magnificent flame image that will captivate and enliven your living space.
With a large burn chamber that can accommodate wood up to 71 cm in length, the Antaya is both beautiful and functional. Patterned heat tiles and a strategically designed baffle system produce a mesmerizing flame dance, transforming every moment into a work of art.
This burner is an exceptional option for those in search of a contemporary aesthetic that integrates seamlessly with a variety of design styles. It combines innovation and timeless beauty, making it a versatile and durable addition to your home.
Antaya's extraordinary 8-hour slow combustion mode provides uninterrupted warmth. After this period, you will find a bed of glowing embers waiting to be rekindled with new fuel.
Enjoy the advantages of the secondary air system, which protects the glass from smoke and grime and ensures the efficient combustion of volatile materials. Its adaptability to high draft conditions ensures optimal performance in every setting.
The spotless glass system for those with that condition. A stream of preheated air forms a protective curtain by igniting the combustion of gas and volatile substances, thereby preserving the crystal clarity of the glass.
Origine France Garantie is a certification that ensures the French provenance of the Invicta Antaya watch. This independent certification from Bureau Veritas demonstrates Invicta's unwavering commitment to quality and authenticity.
Embrace the future of comfort and elegance with the Invicta Antaya Cast Iron Wood Burning Stove – a symphony of innovation, craftsmanship, and eco-awareness. Elevate your space with Invicta alone.

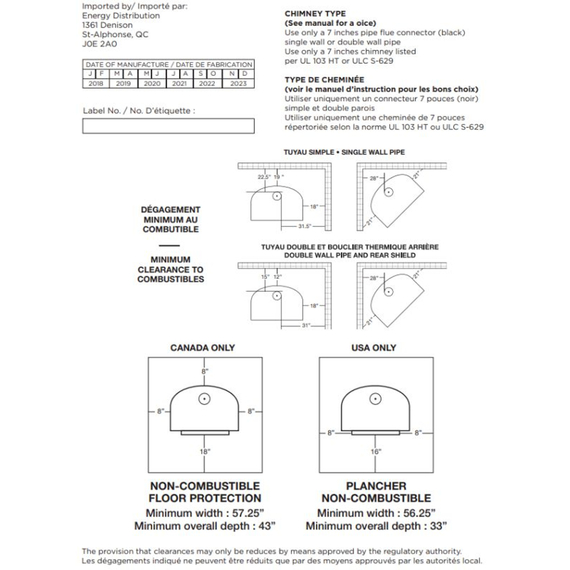

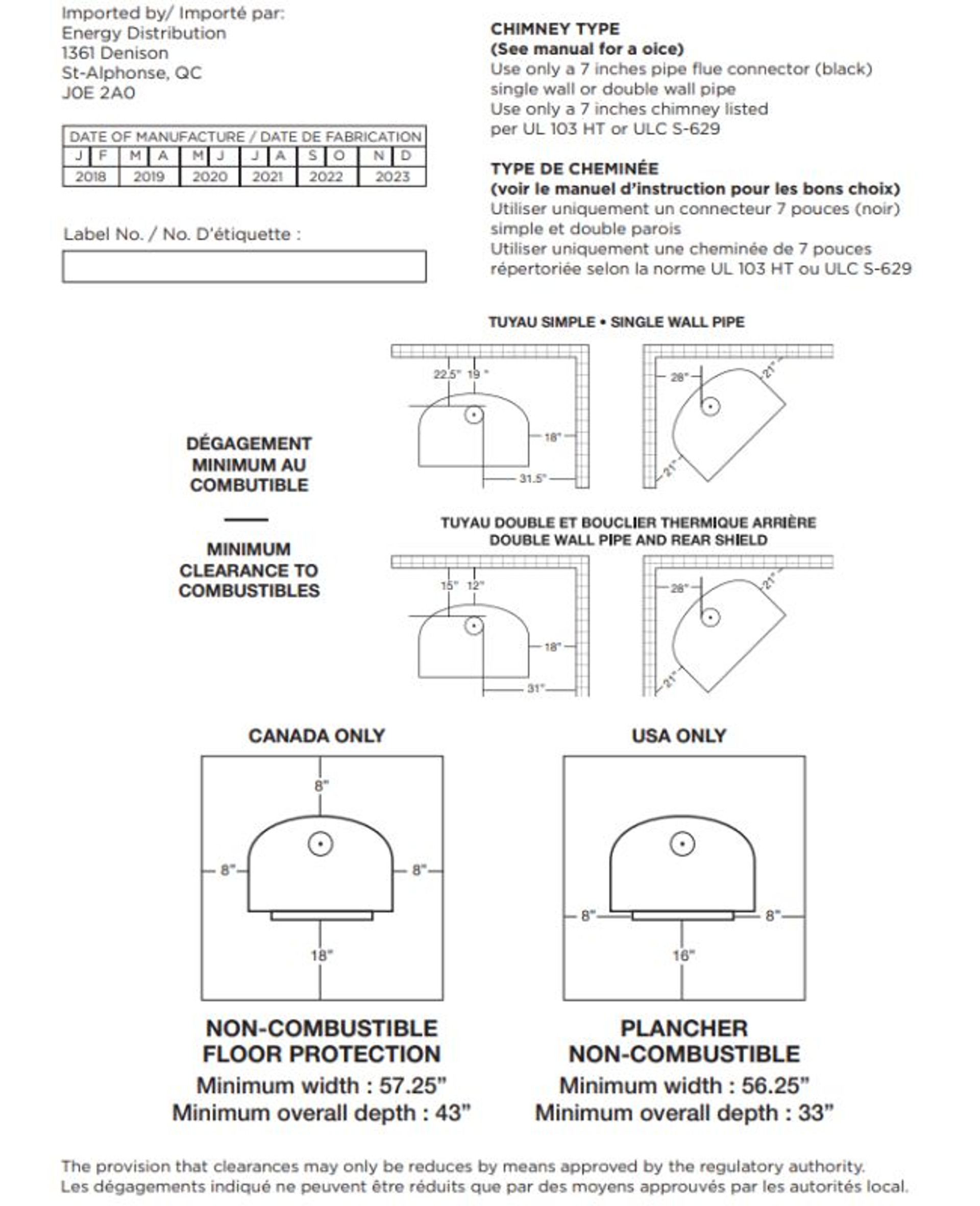

Venting Requirements: Use a 7’’ black single or double-wall connector pipe. Use only a 7’’ insulated flue in compliance with the UL 103HT or ULC S629 standard.
Model: | Antaya |
Optimal Power: | 12 kW |
Heating Volume: | 160 to 360 m³ |
Heating Surface: | 65 to 145 m² |
Environmental Label: | 7 stars |
Useful Efficiency: | 78 |
Seasonal Efficiency: | 68 |
CO (%) | 0,088% |
CO (MG/NM³) | 1100 |
DUST (MG/NM³) | 26 mg/Nm3 |
GOC (MG/NM³) | 66 |
NOX (MG/NM³) | 96 |
Energy Efficiency Index | 103 |
Flue Gas Mass Flow | 10 |
Flue Gas Temperature | 325 |
Loading | Two front sides |
Flue exit | Dessus |
Flue Diameter | 180 mm |

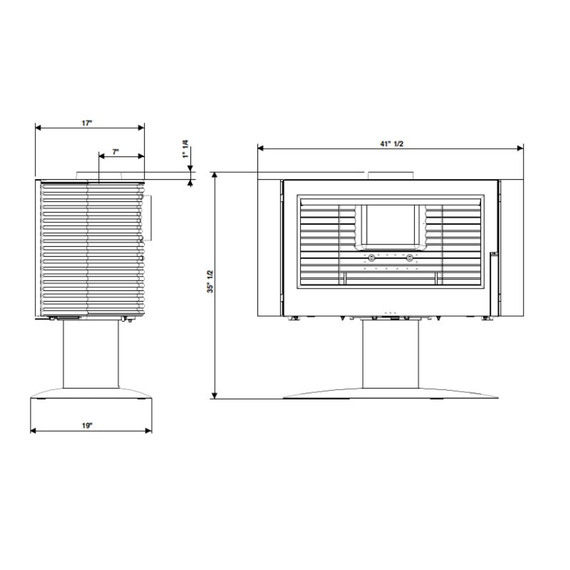

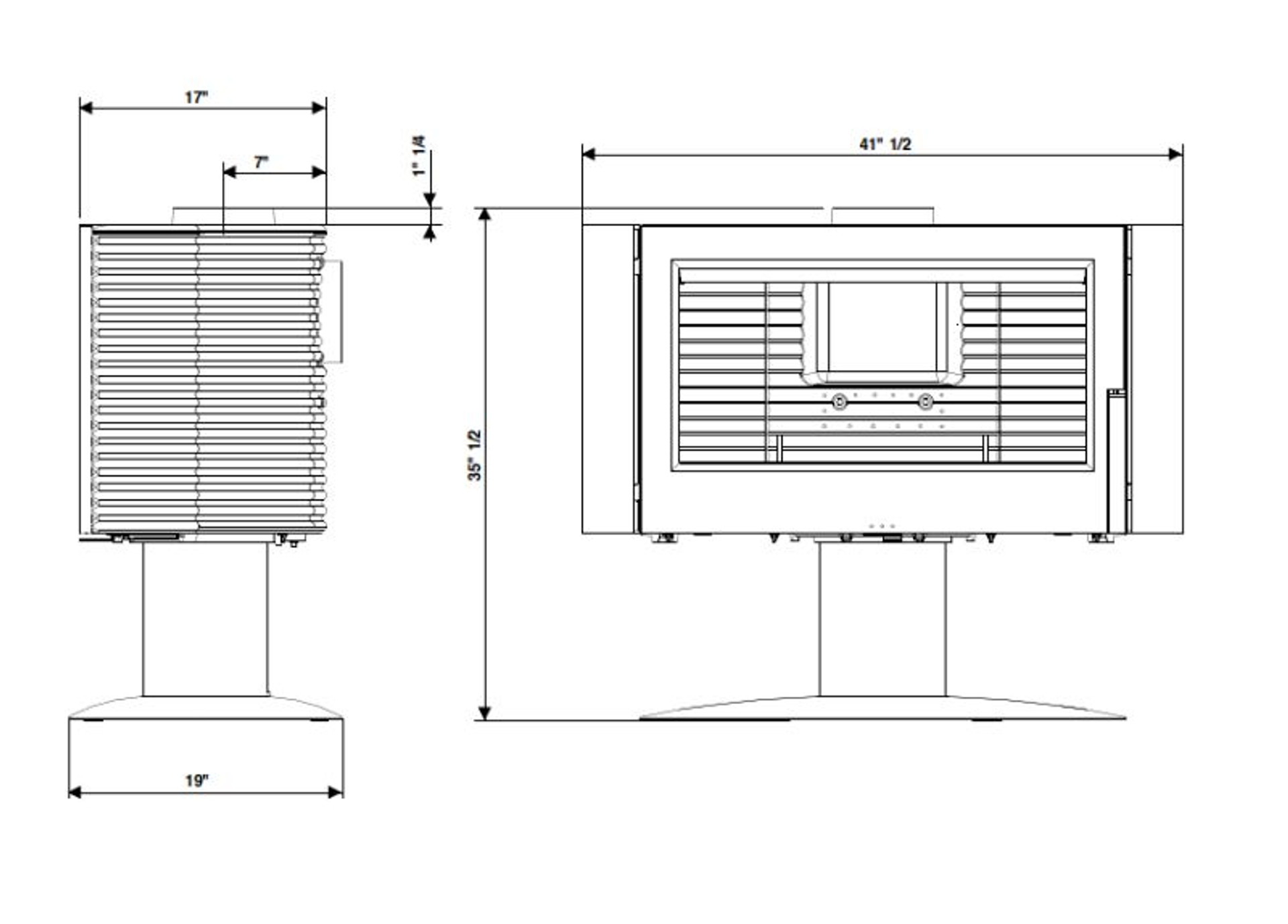

Dimensions - H * W * D (MM) | 868 x 1051 x 480 |
Material | Fonte |
Finish | Anthracite |
Certification | EN 13240 |
Manufacturer Warranty
DURATION: The duration of our guarantee is 10 years on the firebox body and 3 years for all casting component having direct contact with the fire like the ashes grid, the shenet and the baffle, counting from the date of delivery by the installer or the date of point of sale. The guarantee applies during this period to all defects of parts or of manufacture. We are only responsible for the free replacement of parts found defective after verification by ourselves. If the replacement of these parts would prove too expensive, we reserve the right to replace the appliance.
VALIDITY: The purchaser designated hereunder, acknowledging having received the notice of installation and of use, agrees to conform for safety reasons. This guarantee is only valid if the appliance is used according to the rules and recommendations stated on the instructions for installation and used, supplied with the appliance. The appliance must be installed at the address on the certificate of guarantee. The other components are guaranteed for 1 year, such as: latch, screws and bolts, springs, fans, printed circuits, switch, electric thimbles, wire, electric sheaths, etc...
EXCLUSION: The glass is resistant to a temp of 750 C and the temperatures in the combustion chamber never reach this temperature, a breakage of glass cannot occur as a result of overheating. Therefore, the breakage of the glass due to a bad manipulation on installation or the handling of the applicane, is not covered by this guarantee. The joints are considered items which are subject to wear. The fuel used and the control of the apparatus, being outside out control, the parts of the stove in direct contact with the ignited fuel are not included in the cover of the guarantee, including: fireplate, fire grate, vent, log barrier, The cost of traveling, of transport, of workmanship, of packaging, of disassembly and the consequences of the immobilization of the appliance, resulting from the operations of the guarantee, are the sole responsibility of the customer. Any disorder caused on any part of the installation, by mechanical or electrical parts which we have not supplied and which are prohibited by the texts governing heating appliances. The damage caused by the use of any other fuel than wood
