Huntress Masonry Fireplace Door

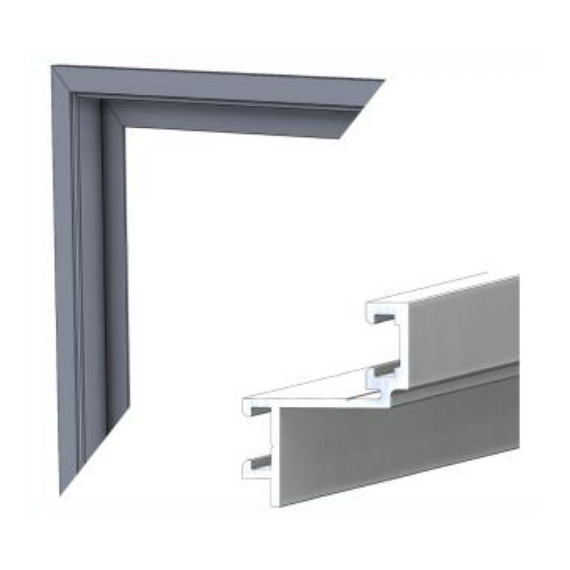

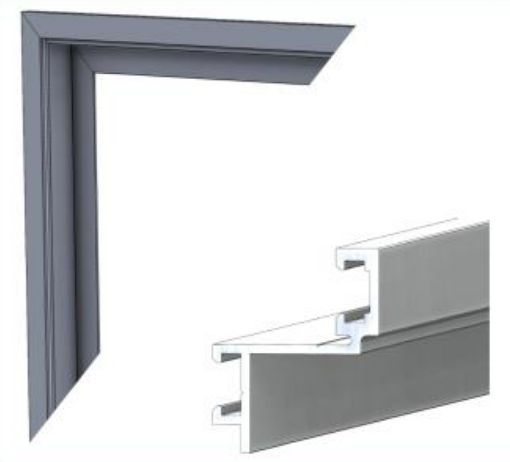

The Huntress Masonry Fireplace Glass Door is an elegant and versatile addition to any fireplace. It features a wide range of frame styles, including square, beveled, and round, ensuring a perfect fit for various aesthetic preferences. The frame is constructed from extruded aluminum, providing durability and strength, with the thickest aluminum extrusions in the industry and dual corner key construction for added stability.
Features:
- Frame Style: Square
- Hardware Options: Stainless steel hardware is available for both interior and exterior applications.
- Frame Material: Made from high-quality extruded aluminum.
- Dimensions: Approximate Overlap: 3/4” per side | Visible Frame Depth: 3/8” | Total Frame Depth (including recessed mounting frame): 1-11/16” | Frame Width: 1”
- Glass Color Options: Available in 1/8” thick Grey, Clear, or Bronze glass.

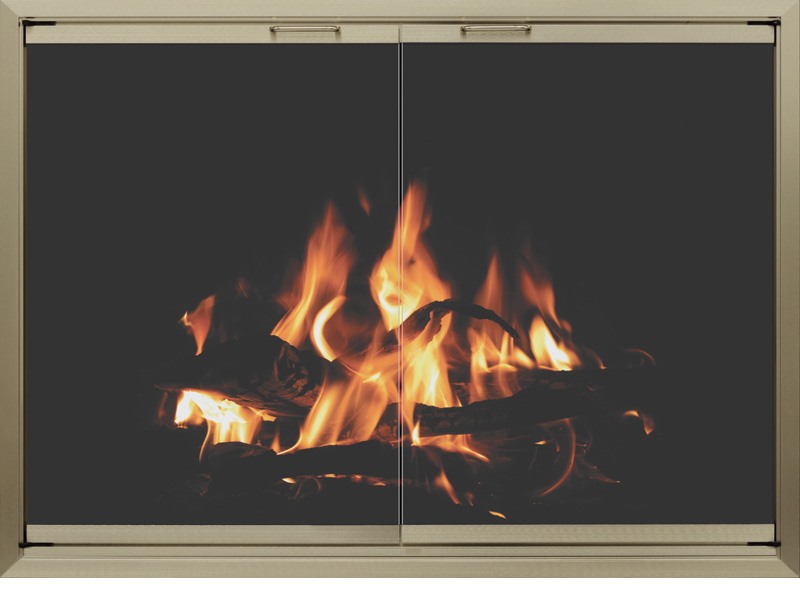

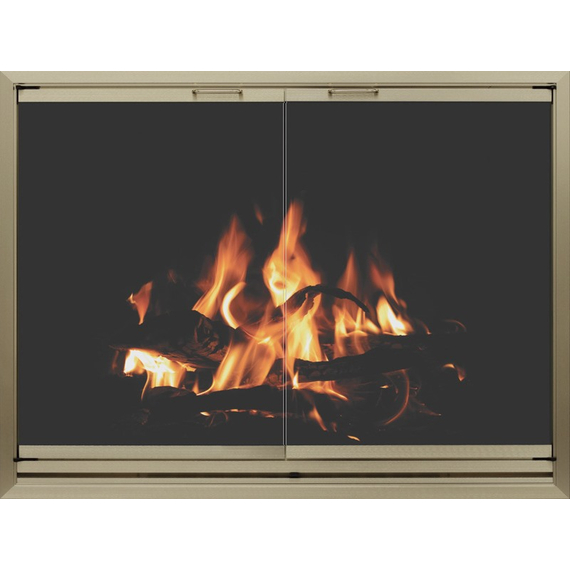

- Draft Assembly: Options include No Draft Assembly or Draft Assembly.
- Spark Protection: Choose from None, Cabinet, Curtain Rod with Hanging Mesh, or Stainless Curtain Rod with Hanging Mesh.
- Finish Options: Available in several attractive powder coat finishes.
- Warranty: 5-year warranty on workmanship; 1-year warranty on tempered glass.
Please Note:
- Sliding mesh will add 2 inches of depth (on top of the frame dimension) into your firebox.
- Cabinet mesh adds 3/4 inch.
The Huntress Masonry Fireplace Glass Door combines style, functionality, and competitive pricing, making it an ideal choice for enhancing the look and safety of your fireplace.
Specifications:
- Fireplace Type: Masonry

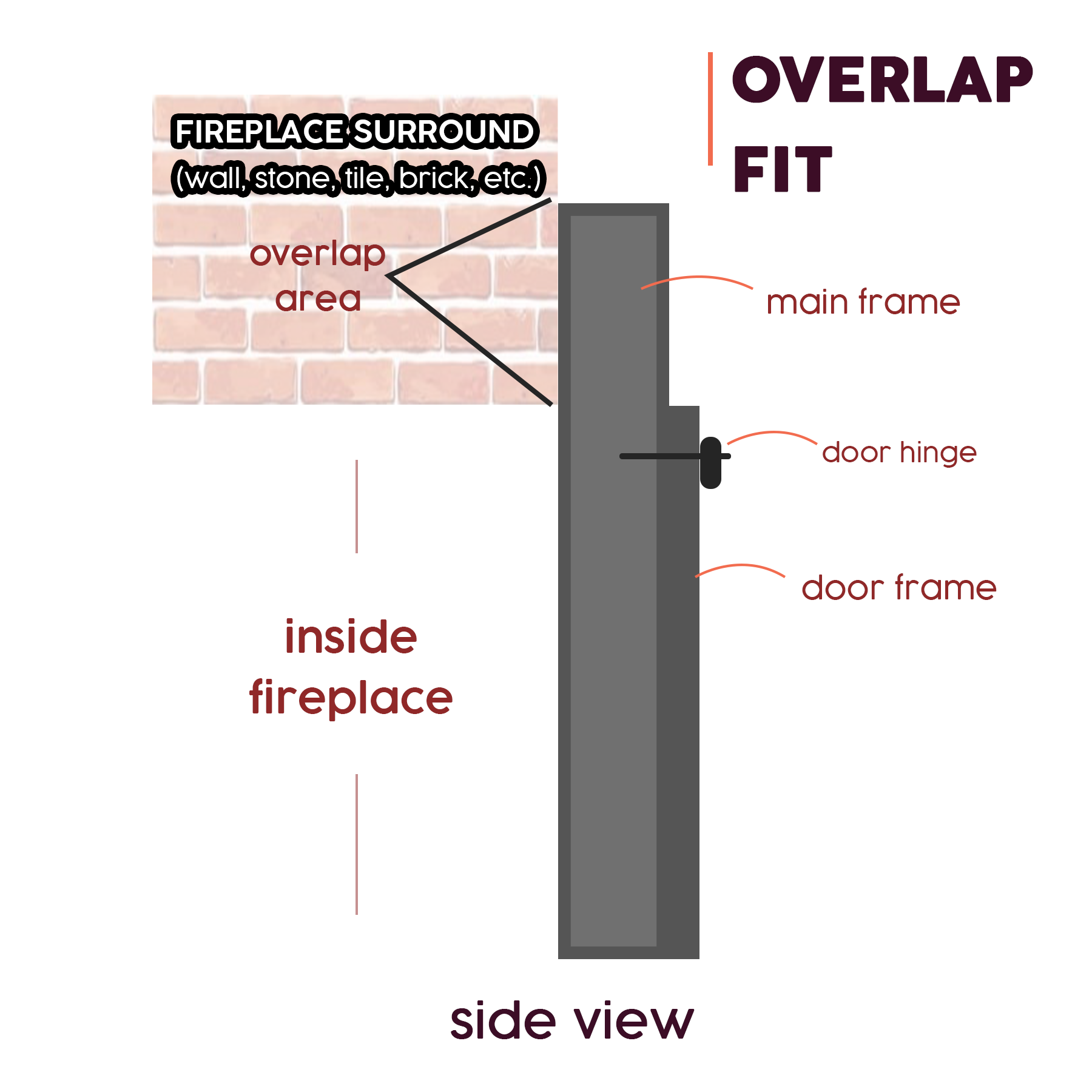

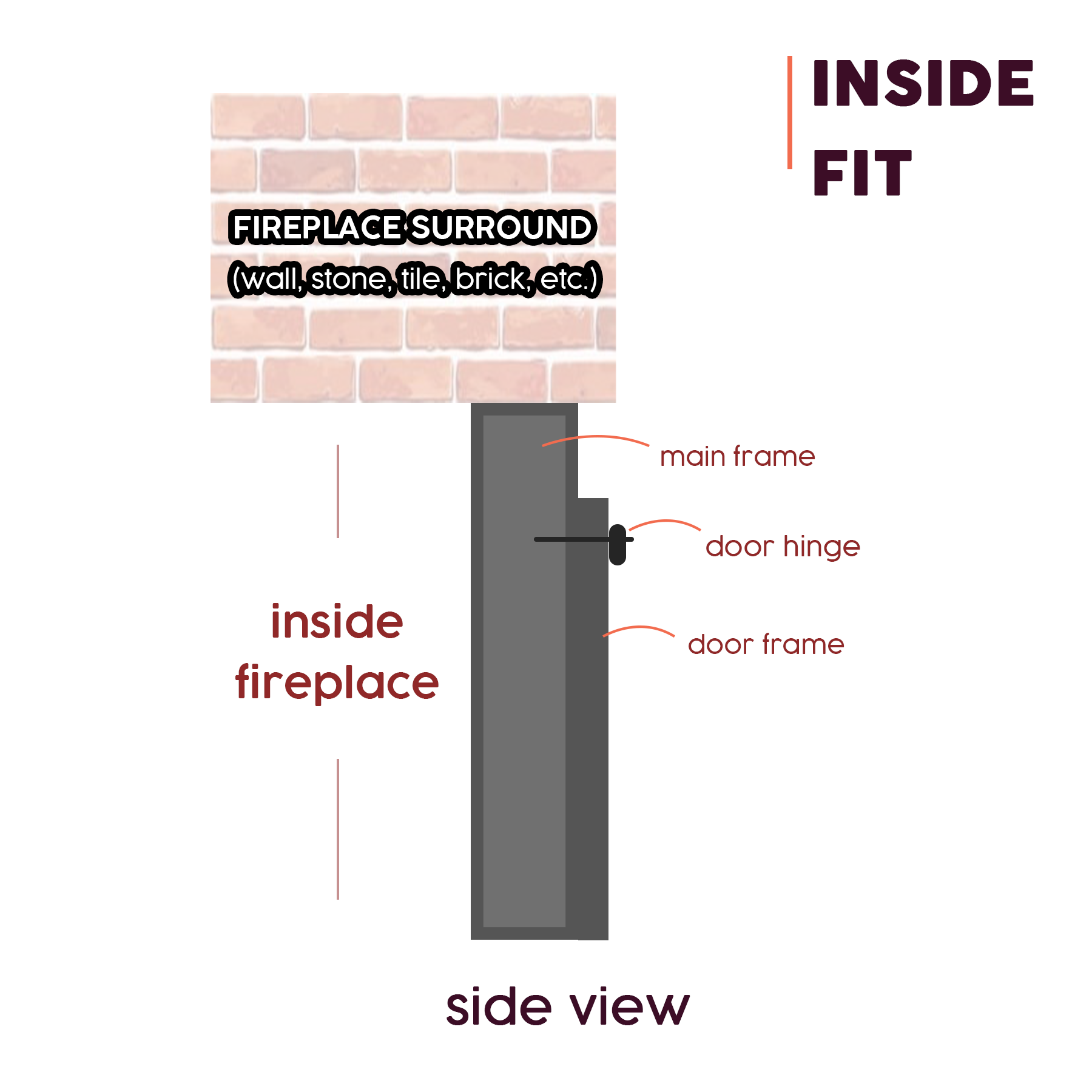

- Door Fit: Overlap | Inside Fit
- Material: 1" Wide x 3/8" Deep Extruded Aluminum Frame
- Approximate Overlap: 3/4"
- Recessed Depth: 1-1/4" - The portion of the door that fits inside the opening when installed as an overlap fit - Does NOT apply to Sliding Mesh And Gate Mesh Doors
- Door Type: Trackless Bi-Fold Doors | Cabinet Doors
- Glass: 1/8" Tempered Safety Glass (1 year warranty)
- Glass Tints: Grey | Bronze | Clear
- Ceramic Glass: N/A
- Spark Protection: Optional
- Handles: Square | Wire | Contemporary
- Draft Assembly: Optional
- Airtight Option: N/A
- Assembly: Comes Fully Assembled

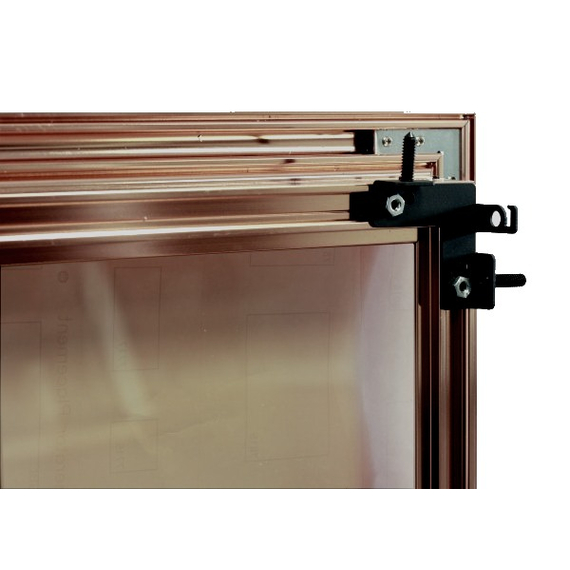

- Mounting: Hardware Included
- Please note: Curtain rod with mesh will add 2 inches of depth (on top of the frame dimension) into your firebox.
