Hudson Barn Door Masonry Fireplace Glass Door

Be sure to take all measurements to the nearest 1/16” using a steel tape measure. Note any irregularities around the opening of the fireplace, such as projecting or recessed brick, and advise us before you place an order. For complex custom applications, a photograph of the fireplace will prove very helpful.



When the fireplace door is larger than the opening of the fireplace. Measure the width of the opening at the top and again at the bottom. We need the exact minimum width. Next, measure the height of the opening from the hearth or firebox floor to either the bottom of the lintel bar or the bottom of the finishing material (brick, marble, etc). We need the exact minimum height.

Side Clearance Formula
To ensure everything fits correctly and you have enough space for the door rails use this formula below
Opening width divided by 2 = X
X minus 2-1/4" =  Clear Free Space needed PER SIDE!
You will also need 2-3/8" of clear space above the opening to install the tracks and rollers


DO NOT make adjustments to sizes, we need the EXACT OPENING size

Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 4 Weeks Question | Why Buy From Us?

Sliding mesh adds 2 1/2" of depth, Gate mesh adds 1 1/8" of depth. Please verify that you have enough opening depth before ordering (door depth + mesh depth).
I understand that, by checking this box, I am signing this document and agree to be legally bound by these terms and conditions listed on the website.
If no images are submitted with your order, it will be placed on hold until we receive a photo of your fireplace. Please send your image to [email protected].

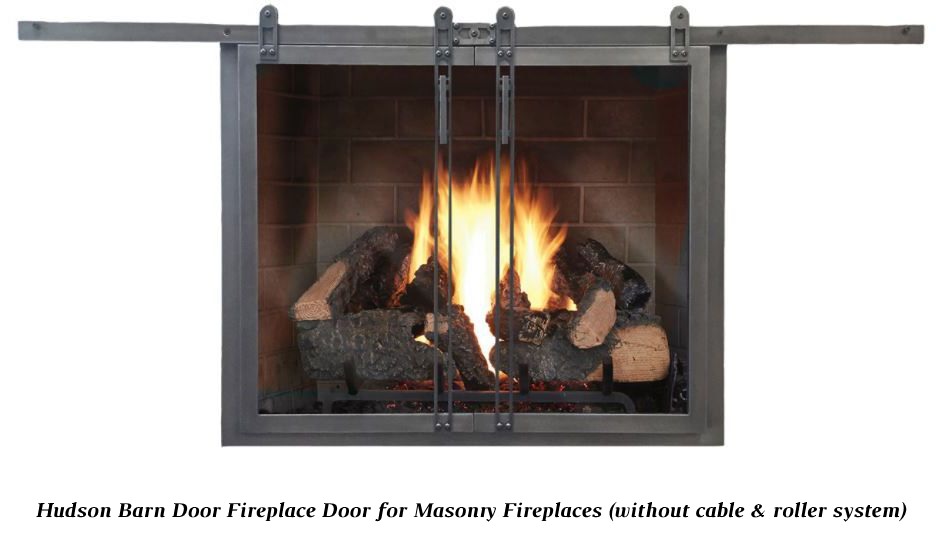

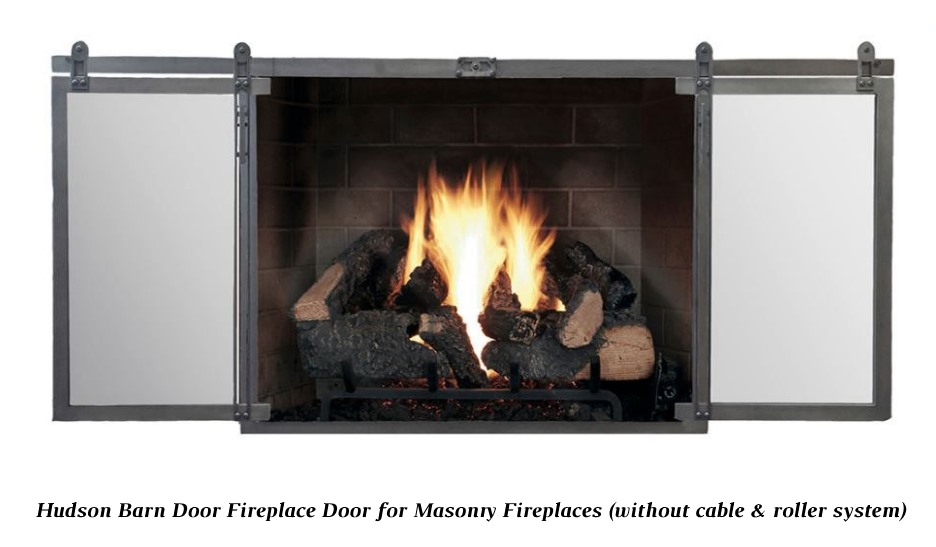

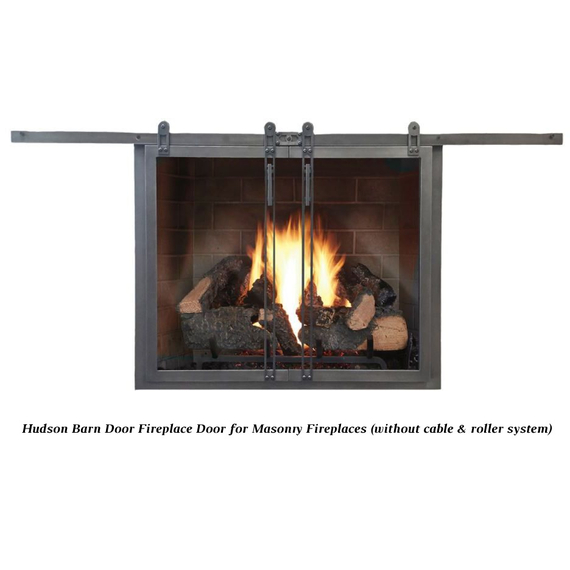

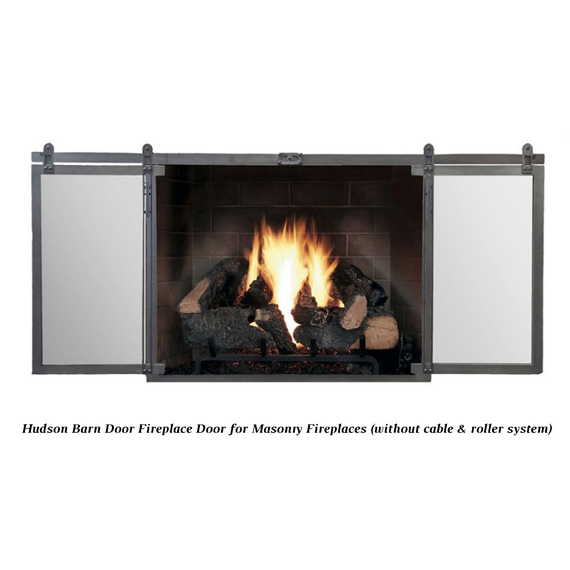

With rustic overtones and clean lines, The Hudson Glass Fireplace Barn door will all at once add old world charm with a modern sleek elegance to your home. Created for masonry fireplaces by Design Specialties, this barn door style glass and steel slide fireplace door will add style and ease of function to your home fireplace. Hanging from a single steel bar, the cabinet (twin) doors open up a window into the warmth of your fireplace, and slide open and closed as needed to keep your fire rolling. The custom color glass doors features 1/4 inch tempered glass and is available in grey, bronze, clear, and black tints. The handles are featured in the same matching colors of the frame and are thin and long, for ease of use and a clear view of the fireplace. This slide fireplace barn door is available in OVERLAP FIT ONLY, it will cover the opening on the top, left and right as the doors are slid open or closed. We also recommend the offered spark mesh protection for an added layer of fireplace safety. Featured in the timeless **Mahogany Powder Coat the Hudson Roller Fireplace Barn Door is also available in 23 different color finishes, including some of the other most popular custom colors of Candlelight Brass, Toffee, and Natural Iron. This custom made and designed by you for your ultimate living space, glass twin cabinet fireplace barn door will ship for free, and can be created and shipped in your color choices in 4 to 6 weeks from time of purchase. Please note: handcrafted finishes will add an additional 1 week to production and transit time.


Please note: handcrafted finishes will add an additional 1 week to production an transit time

Side Clearance Formula

To ensure everything fits correctly and you have enough space for the door rails, use this formula below.
Opening width divided by 2 = X
X minus 2-1/4" =  Clearance Free Space need PER SIDE!
You will also need 2-3/8" of clear space above the opening to install the tracks and rollers

  • NOTE: For doors with glass larger than 4 square feet, Fireplace Doors Online recommends using 4 fixed panels instead of 2 to prevent unwanted glass breakage due to uneven heat distribution within the individual panes.

Hudson Masonry Fireplace Door Features and Benefits Product Features and Benefits:

  • The Hudson Roller Fireplace Door is for masonry fireplaces only
  • Door ships for free; please allow 4 to 6 weeks for production (see Shipping tab for important information)
  • 1 year warranty on workmanship; 2 year warranty on metal work (excluding finish)
  • Lifetime warranty on tempered safety glass
  • Available as an overlap fit ONLY
  • Cabinet (twin) doors slide open and closed
  • The steel frame is 1 1/2 inches wide
  • Recesses 1 1/2 inches deep
  • 1/4 inch tempered glass is available in grey, bronze, clear, and black tints
  • Optional spark protection
  • Standard handle style
  • Door needs assembled; includes all mounting hardware


Color SwatchesThere are many different finishes that vary between manufacturers. You can order frame color samples here or if you just want a closer look you can watch one of our YouTube videos. Visit our color swatch page to see all of the different color variations up close.

Hudson Masonry Fireplace Door Specifications Product Specifications:

  • Door Fit:Overlap
  • Door Type: Barn Door
  • Material: 1-1/2" Wide Steel Frame
  • Approximate Overlap: 1"
  • Recessed Depth: 1-1/2"
  • Glass: 1/4" Tempered Safety Glass
  • Glass Tints: Grey | Bronze | Clear | Black
  • Ceramic Glass: NA
  • Mesh Screen: Not Included (Optional)
  • Damper: Not Available
  • Airtight Option: N/A
  • Handle Style: Simplicity | Square
  • Assembly: Needs Assembled
  • Handle Style: Standard
  • Mounting: Hardware Included

Manufacturer's Warranty

Manufacturer warrants the glass enclosures to be free from defects in material and workmanship for a period of one (1) year from the date of installation. Manufacturer warrants the metal work (exclusive of the finish) contained in the glass enclosures to be free from defects in the materials and workmanship for a period of two (2) years from the date of installation. Discoloration of any frame piece is caused by over firing and is considered abuse of the enclosure.

Manufacturer will, however, replace without cost any glass that breaks in normal use. Manufacturer will cover shipping cost for replacement glass for a period of one (1) year from the date of installation. Warranties also are not transferable to new owners.  The foregoing limited warranty is not transferable by the customer and does not include the eventual defects caused by improper use or operation of the glass enclosure or by normal wear and tear. Manufacturer agrees that if the glass enclosure is determined to be defective in manufacture within the applicable written guarantee period set forth above, and the customer provides a written notice of such defects within fourteen (14) days of the end of such period to the customer’s local dealer, Manufacturer is limited to defects in manufacture, and Manufacturer shall not be responsible if the glass enclosure has not been used at all times with reasonable care and in accordance with the instructions which accompany each glass enclosure, and/or if any attempt has been made by any person other than Manufacturer or its authorized agents to repair, alter or otherwise interfere with the foregoing undertaking of Manufacturer is limited to the replacement of any determined by Manufacturer to be defective.
Finally, the enforceability of this limited Warranty shall be further subject to compliance with the following requirements:
A. That the customer complies with the instruction set forth above and does not misuse, abuse, alter, or modify the glass enclosure.
B. That the customer does not use the glass enclosure for a purpose other than its intended use.

The limited warranty set forth above, is expressly in lieu of any other warranties, express or implied, including without limitation any warranty of merchantability or fitness for particular purpose, whether express or implied, and lieu of any other obligation or liability on the part of Manufacturer. Whether under theories of contract, tort or negligence, Manufacturer, shall have no liability for any consequential, incidental or special damages by reason of any act or omission, whether negligent or not, arising out of or in connection with the glass enclosure or its sale, delivery, installation, maintenance, operation, performance, or use, including without limitation any loss of use, damage to associated property or the facility, or any other similar and dissimilar losses, cost.

Fireplace doors are hand crafted to the specifications of each order. Due to the nature of the anodization process on aluminum doors, and the plating/powder coating process on steel doors, slight variations in color may occur and will not be considered a warranty issue.
