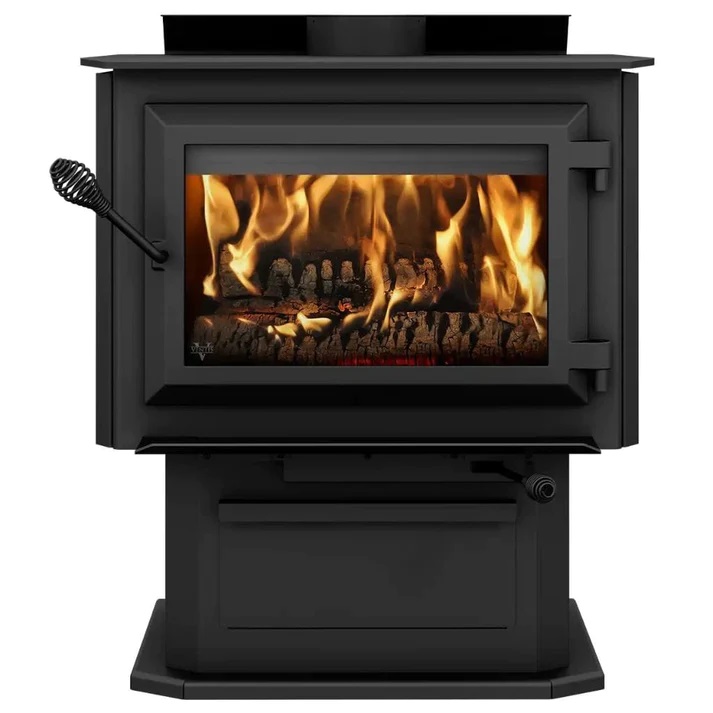

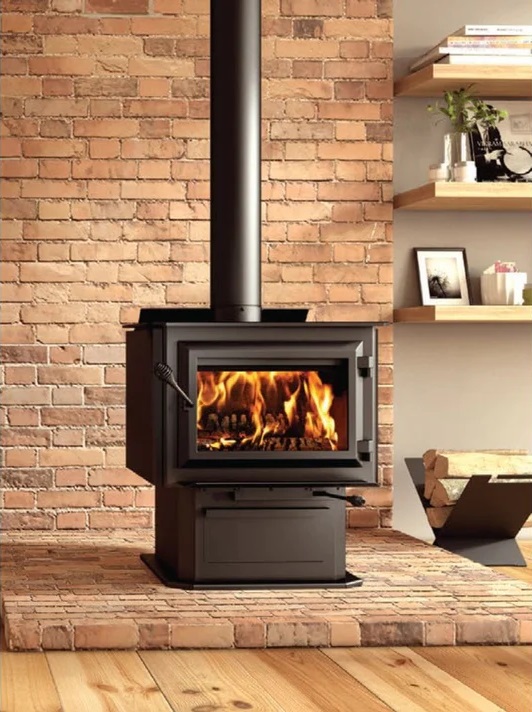

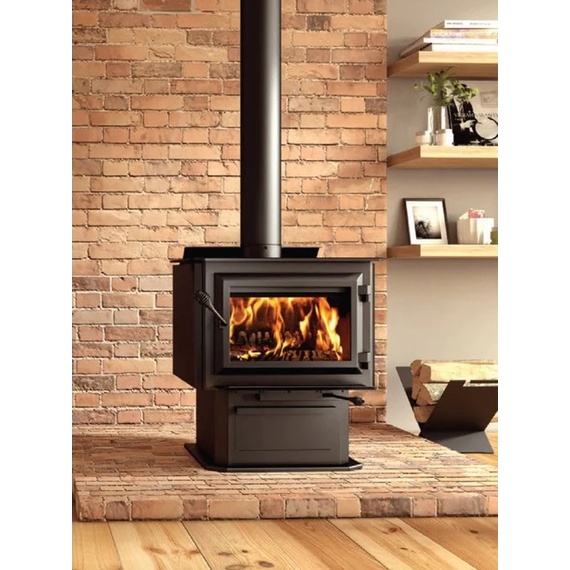

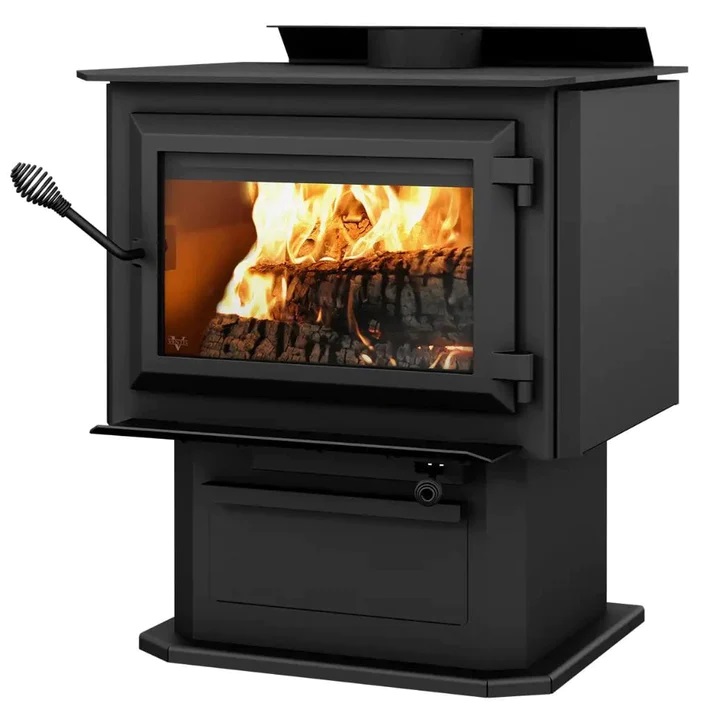

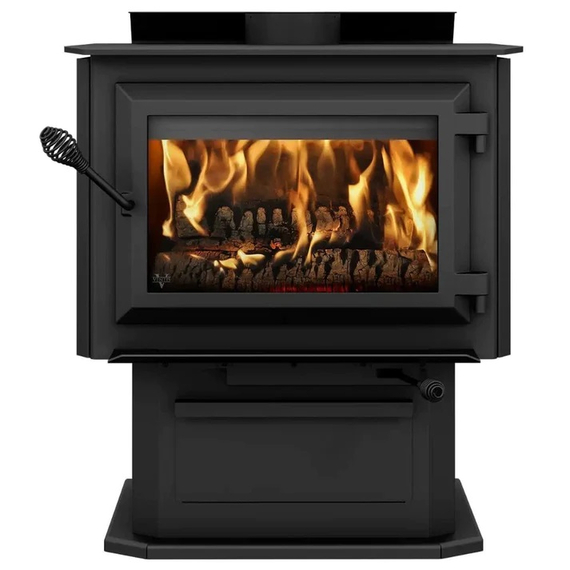

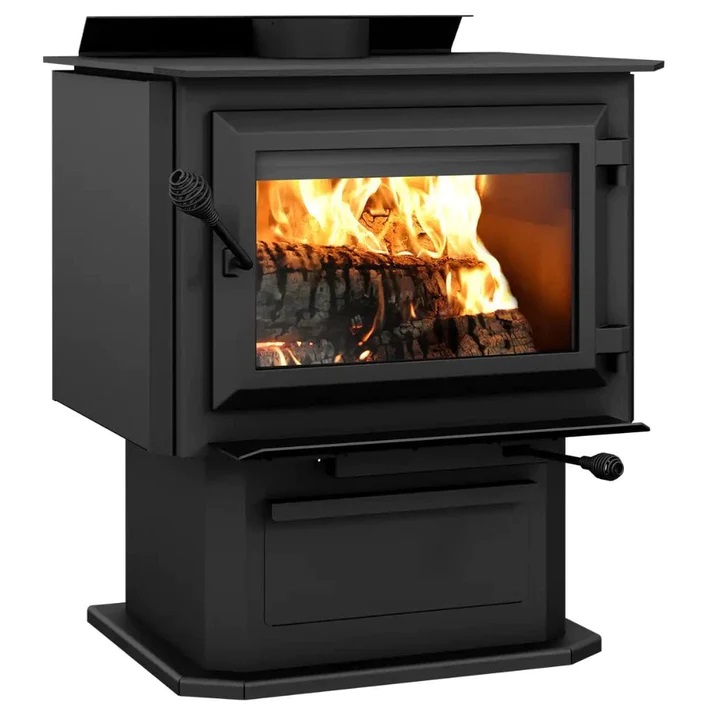

The Ventis 27 Inches HES240 Wood Burning Stove is a highly efficient heating solution for large spaces of up to 2,100 square feet. With a single cast iron door, this stove has a maximum output of 75,000 BTUs, making it perfect for keeping your home warm and cozy on chilly days. Featuring non-catalytic combustion technology and a top heat deflector and side panels, the HES240 is designed to provide efficient and clean heating performance.
This unit also boasts an impressive maximum burn time of 8 hours, allowing you to enjoy the warmth of the fire for extended periods without having to constantly refuel the stove. It can accommodate 20-inch logs, making it a great choice for those who prefer longer burn times. Additionally, the HES240 is EPA 2020 approved, ensuring that it meets the latest environmental standards for clean-burning wood stoves.
Color: | Black |
Fuel Type: | Dry cordwood (16" recommended) |
Combustion Technology: | Non-catalytic |
Recommended Heating Area: | 500 - 2,100 ft² |
Overall Firebox Volume: | 2.4 ft³ |
Maximum Burn Time: | 8 Hours |
EPA Loading Volume: | 2.02 ft³ |
Maximum Heat Output-Dry Cordwood: | 75,000 BTU/h |
Minimum Overall Heat Output Rate: | 14,800 BTU/h (4.34 kW) |
Maximum Overall Heat Output Rate: | 28,600 BTU/h (8.38 kW) |
Average Efficiency-Dry Cordwood (HHV): | 69 % |
Average Efficiency-Dry Cordwood (LHV): | 74 % |
Optimum Efficiency: | 77 % |
Optimum Heat Transfer Efficiency: | 75 % |
Average Particulate Emission Rate: | 1.54 g/h |
Average CO: | 89.4 g/h |
Maximum Log Length: | 20" |
Recommended Log Length: | 16" |
Log Positioning: | Over width |

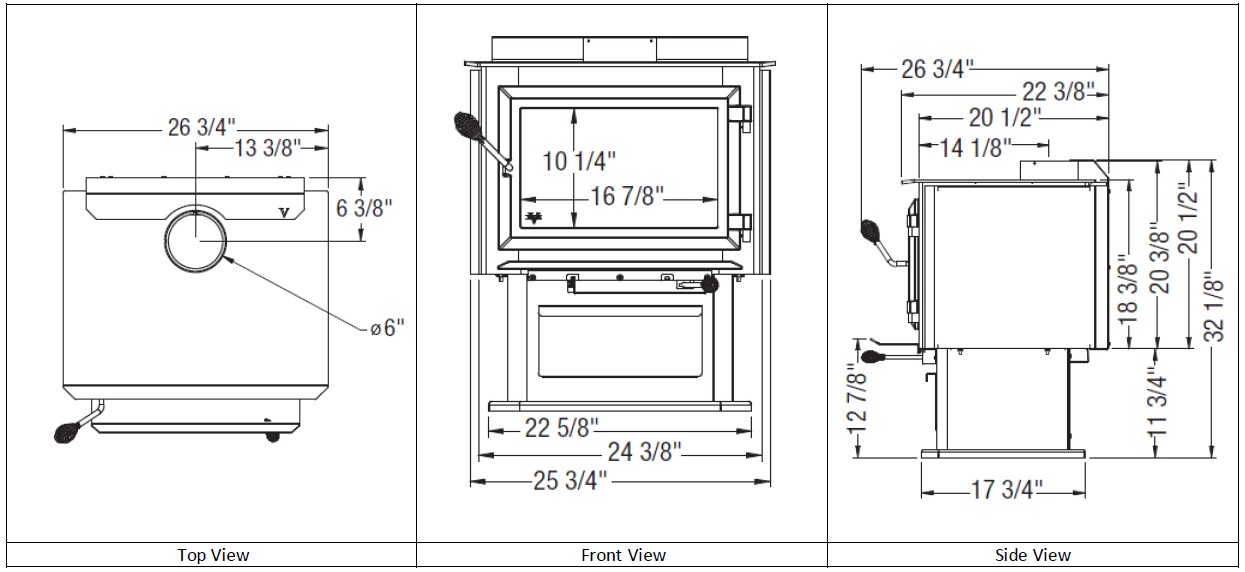

Flue Spigot Diameter: | 6" |
Door Opening Dimensions (W x H): | 17 1/2" x 9" |
Firebox Dimensions (W x D): | 21" x 17 1/8" |
Firebox Volume: | 2.4 ft³ |
Glass Viewing Area (W x H): | 16 7/8" x 10 1/4" |
Glass Type: | Ceramic glass |
Door Type: | Single, glass with cast iron frame |
The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. It applies to normal residential use only and is void if the unit is used to burn material other than cordwood or not operated according to the owner's manual.
Damages caused by misuse, abuse, improper installation, lack of maintenance, over ¬ring, negligence or accident during transportation, power failures, downdrafts, venting problems or underestimated heating area are not covered.
Any defect or damage caused by the use of unauthorized or other than the original parts voids this warranty.
This warranty requires defective products to be returned or sent to the manufacturer for investigation, with transportation fees paid by the manufacturer.
All parts and labour costs covered by this warranty are limited, and the manufacturer may decide to repair or replace any part or unit after inspection and investigation. A one-time replacement limit applies to all parts.
Warranty Application |
Description | Parts | Labour |
Combustion chamber (welds only) and cast iron door frame. | Lifetime | 3 Years |
Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), plating (defective manufacturer), and convector air-mate. | Lifetime | S.O. |
Removable stainless steel combustion chamber components, secondary air tubes, deflectors, and supports. | 7 Years | N/A |
Glass retainers, handle assembly, and air control mechanism. | 5 Years | 3 Years |
Carbon steel combustion chamber components, vermiculite baffle, and C-Cast baffle. | 5 Years | N/A |
Standard blower, heat sensors, switches, rheostat, wiring, and other controls. | 2 Years | 1 Years |
Optional blower, paint (peeling), ceramic glass (thermal breakage only), ceramic fibre blankets, gaskets, insulations and other options. | 1 Years | N/A |
Firebricks. | N/A | N/A |
All parts replaced under the warranty. | 90 Days | N/A |
Labour cost and repair work must not exceed wholesale price, contact VENTIS dealer if defective. Contact VENTIS dealer to expedite warranty claim processing.
