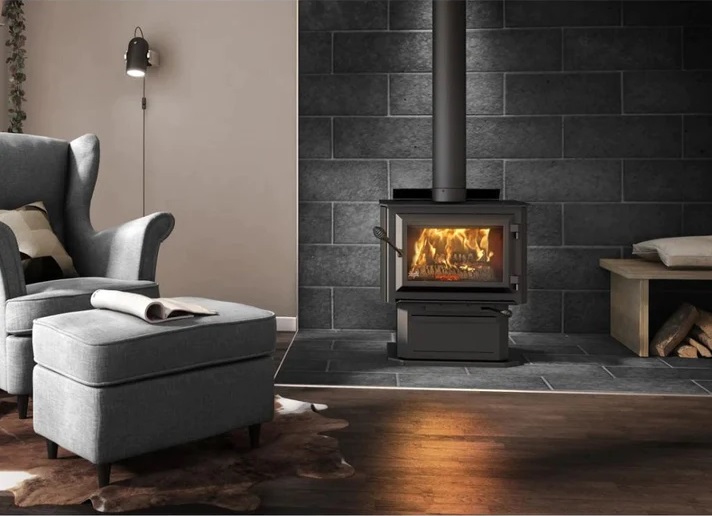

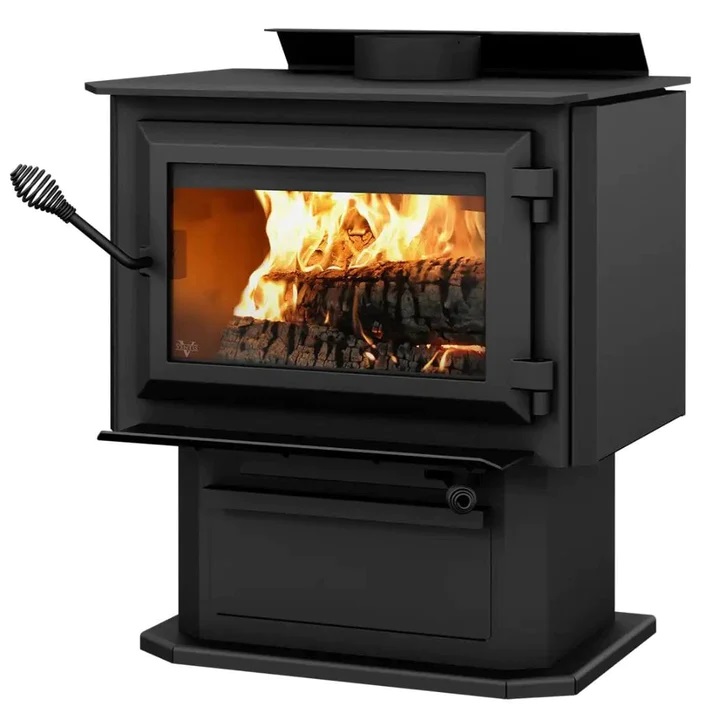

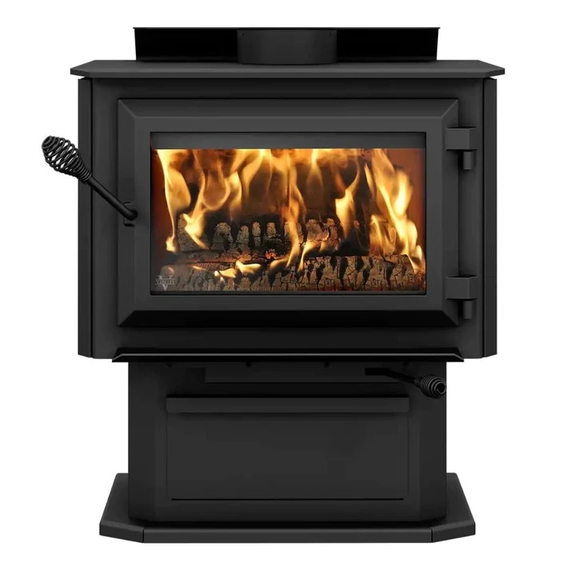

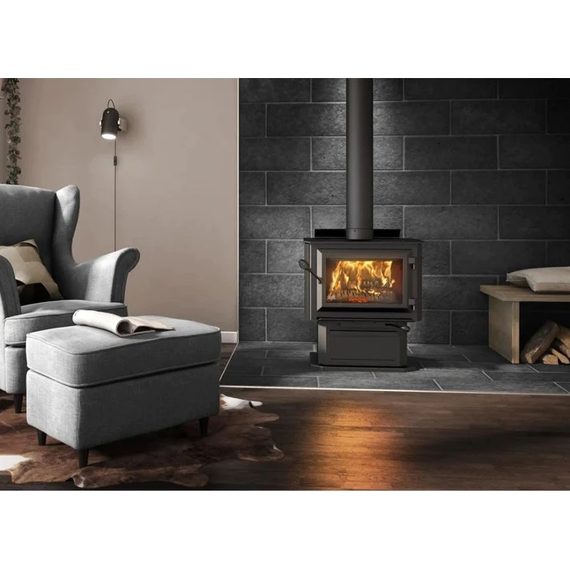

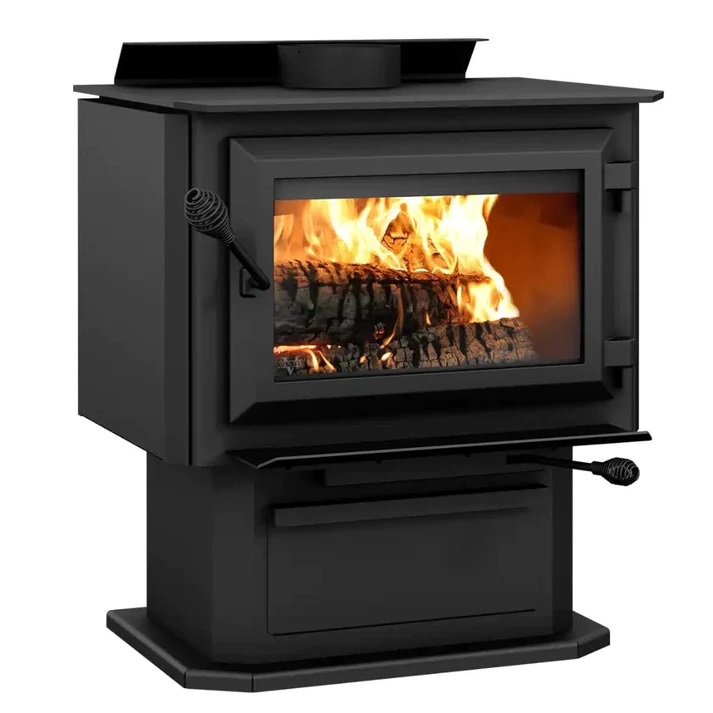

The Ventis 25 Inches HES170 Wood Burning Stove is a wood-burning stove that is medium-sized and designed to be placed on a pedestal. It can heat an area ranging from 500 to 1,800 square feet and can be used in mobile homes and alcoves. The stove's non-catalytic combustion technology allows for efficient and clean burning, and it is equipped with a top heat deflector and side panels to enhance heat output. With a maximum burn time of 6 hours, this stove can comfortably accommodate logs up to 18 inches in length. Furthermore, it is high-efficiency certified and meets the EPA's 2020 regulations for clean-burning stoves. With its sleek design and powerful performance, the Ventis HES170 is a great heating solution for any home. while also being mindful of the environment.

Medium size wood stove on pedestal
Suitable for smaller spaces
EPA certified at only 1.26 g/h
Solidity and manufacturing quality
Non-catalytic combustion technology
Installation authorized on the Island of Montreal
Cast iron door
Top heat deflector and side panels
Stainless steel heat shield added to the firestop

Product Specifications:

Color:	Black
Fuel Type:	Dry cordwood (16" recommended)
Combustion Technology:	Non-catalytic
Recommended Heating Area:	500 - 1,800 ft²
Overall Firebox Volume:	1.9 ft³
Maximum Burn Time:	6 Hours
Ash Drawer with Safety Lid:	Yes
Maximum Heat Output-Dry Cordwood:	65,000 BTU/h
Minimum Overall Heat Output Rate:	15,650 BTU/h (4.6 kW)
Maximum Overall Heat Output Rate:	23,300 BTU/h (6.83 kW)
Average Efficiency-Dry Cordwood (HHV):	70 %
Average Efficiency-Dry Cordwood (LHV):	75 %
Optimum Efficiency:	78 %
Optimum Heat Transfer Efficiency:	74 %
Average Particulate Emission Rate:	1.26 g/h
Average CO:	58 g/h
Maximum Log Length:	18"
Recommended Log Length:	16"
Log Positioning:	Over width
Flue Spigot Diameter:	6"

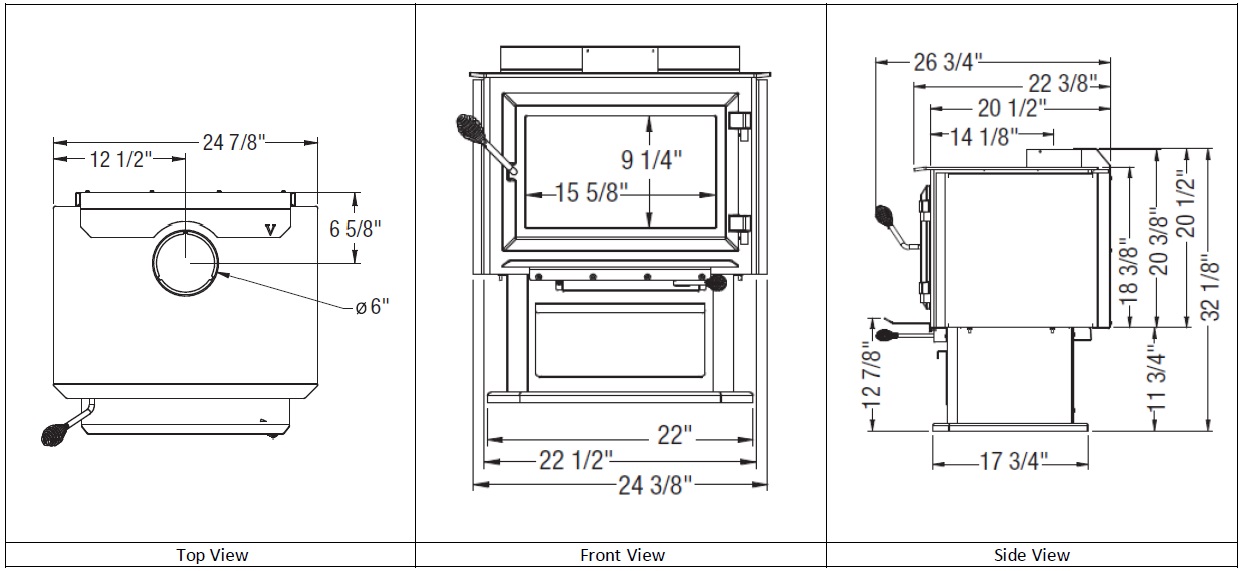

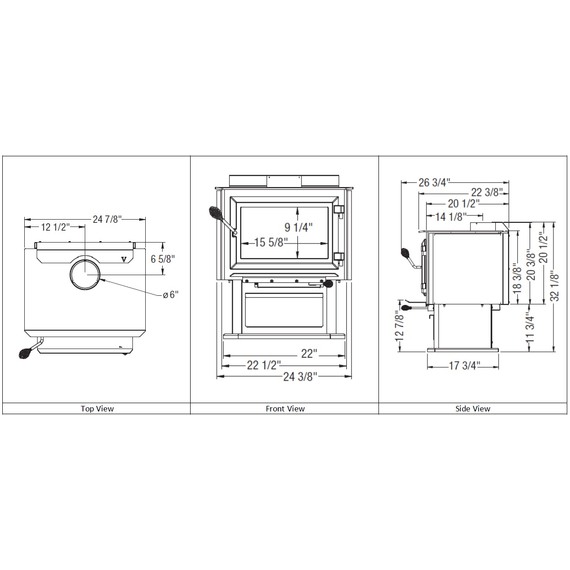

Door Opening Dimensions (W x H):	17 1/4" x 8"
Firebox Dimensions (W x D):	19 5/8" x 13 1/2"
Firebox Volume:	1.9 ft³
Glass Viewing Area (W x H):	15 5/8" x 9 1/4"
Glass Type:	Ceramic glass
Door Type:	Single, glass with cast iron frame

Downloads:

The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. It applies to normal residential use only and is void if the unit is used to burn material other than cordwood or not operated according to the owner's manual.

Damages caused by misuse, abuse, improper installation, lack of maintenance, over ¬ring, negligence or accident during transportation, power failures, downdrafts, venting problems or underestimated heating area are not covered.

Any defect or damage caused by the use of unauthorized or other than the original parts voids this warranty.

This warranty requires defective products to be returned or sent to the manufacturer for investigation, with transportation fees paid by the manufacturer.

All parts and labour costs covered by this warranty are limited, and the manufacturer may decide to repair or replace any part or unit after inspection and investigation. A one-time replacement limit applies to all parts.

Warranty Application

Description	Parts	Labour
Combustion chamber (welds only) and cast iron door frame.	Lifetime	3 Years
Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), plating (defective manufacturer), and convector air-mate.	Lifetime	S.O.
Removable stainless steel combustion chamber components, secondary air tubes, deflectors, and supports.	7 Years	N/A
Glass retainers, handle assembly, and air control mechanism.	5 Years	3 Years
Carbon steel combustion chamber components, vermiculite baffle, and C-Cast baffle.	5 Years	N/A
Standard blower, heat sensors, switches, rheostat, wiring, and other controls.	2 Years	1 Years
Optional blower, paint (peeling), ceramic glass (thermal breakage only), ceramic fibre blankets, gaskets, insulations and other options.	1 Years	N/A
Firebricks.	N/A	N/A
All parts replaced under the warranty.	90 Days	N/A

Labour cost and repair work must not exceed wholesale price, contact VENTIS dealer if defective. Contact VENTIS dealer to expedite warranty claim processing.
