Ventis HES140 Wood Burning Stove - 45,000 BTU

Starting at:
$1,739.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 2-4 Weeks What Does Lead Time Mean | Why Buy From Us?

Available
+

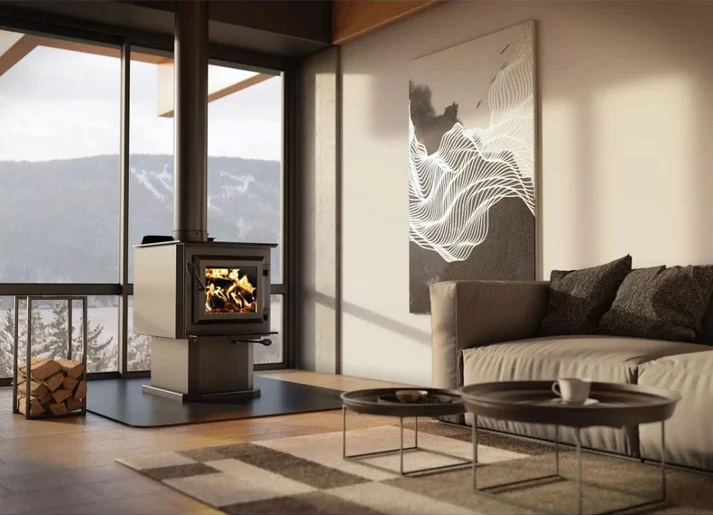

The Ventis 20 Inches HES140 Wood Burning Stove is an eco-friendly and energy-efficient non-catalytic stove that has been approved by the EPA. Its innovative design includes a stainless steel secondary air system that helps to improve gas combustion, reducing emissions and making it a cleaner option for your home. The stove's flue outlet diameter is 6 inches, and it comes equipped with a glass air-wash system that keeps the glass clean, ensuring an unobstructed view of the beautiful flames.

One of the standout features of the Ventis HES140 is its refractory brick-lined firebox, which helps to spread heat throughout the stove, ensuring maximum efficiency and reducing energy waste. This means that you can enjoy a warm and cozy home while also being mindful of your carbon footprint.

Not only is the Ventis HES140 an environmentally responsible choice, but it is also a stylish addition to any home. Its sleek design and clean lines give it a modern and sophisticated look that will complement any decor. With its efficient heating capabilities and elegant design, the Ventis HES140 is a perfect choice for homeowners who want to stay warm and comfortable while also being mindful of the environment.

  • Small wood stove on pedestal
  • EPA certified at only 1.8 g/h
  • Solidity and manufacturing quality
  • Non-catalytic combustion technology
  • Installation authorized on the Island of Montreal
  • Cast iron door
  • Top heat deflector and side panels
  • Stainless steel heat shield added to the firestop

Product Specifications:

 Color:  Black
 Fuel Type:  Dry cordwood (16" recommended)
 Combustion Technology:  Non-catalytic
 Recommended Heating Area:  250 - 1,200 ft²
 Overall Firebox Volume:  1.7 ft³
 Maximum Burn Time:  5 Hours
 Ash Drawer with Safety Lid:  No
 Maximum Heat Output-Dry Cordwood:  45,000 BTU/h
 Minimum Overall Heat Output Rate:  12,124 BTU/h (3.55 kW)
 Maximum Overall Heat Output Rate:  26,700 BTU/h (7.83 kW)
 Average Efficiency-Dry Cordwood (HHV):  74 %
 Average Efficiency-Dry Cordwood (LHV):  79 %
 Optimum Efficiency:  80 %
 Optimum Heat Transfer Efficiency:  79 %
 Average Particulate Emission Rate:  1.8 g/h
 Average CO:  74 g/h
 Maximum Log Length:  17"
 Recommended Log Length:  16"
 Log Positioning:  Over length
 Flue Spigot Diameter:  6"

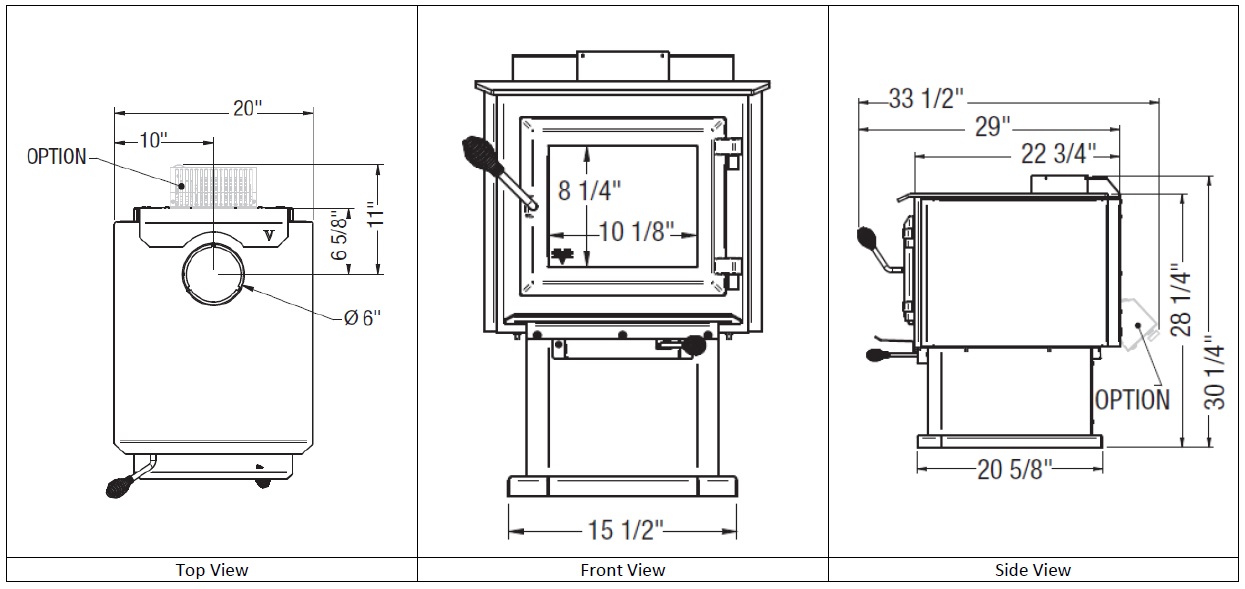

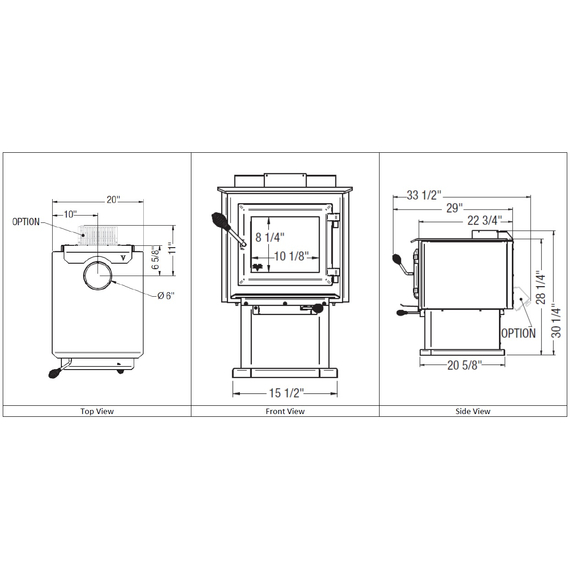

 Door Opening Dimensions (W x H):  12" x 7 5/8"
 Firebox Dimensions (W x D):  14 1/4" x 19 1/8"
 Firebox Volume:  1.7 ft³
 Glass Viewing Area (W x H):  10 1/8" x 8 1/4"
 Glass Type:  Ceramic glass
 Door Type:  Single, glass with cast iron frame

Eligible for the 30% Tax Credit Program:

    • Beginning in 2023 through December 31, 2032, consumers buying highly efficient wood or pellet stoves or larger residential biomass heating systems may be eligible to claim a 30% tax credit that is capped at $2,000 annually and is based on the full cost (purchase and installation) of the unit.
    • This new 30 percent tax credit is available for appliances installed between January 1, 2023, and December 31, 2032.
    • Customers will claim their tax credit when they file their taxes on IRS form 5695 under “Residential Energy Efficient Property Credit “. They will need their purchase receipt (showing the cost of the product and installation).
    • Customers will also need the manufacturer certificate stating that the stove qualifies for the credit and is at least 75 percent efficient HHV.
    • The credit applies to qualifying wood and pellet stoves and, unfortunately, not to gas stoves.
    • People who have zero tax liability may not qualify for the tax credit. It's recommended to consult a qualified tax professional to determine if the customer is eligible to take advantage of this tax credit.

Downloads:

The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. It applies to normal residential use only and is void if the unit is used to burn material other than cordwood or not operated according to the owner's manual.

Damages caused by misuse, abuse, improper installation, lack of maintenance, over ¬ring, negligence or accident during transportation, power failures, downdrafts, venting problems or underestimated heating area are not covered.

Any defect or damage caused by the use of unauthorized or other than the original parts voids this warranty.

This warranty requires defective products to be returned or sent to the manufacturer for investigation, with transportation fees paid by the manufacturer.

All parts and labour costs covered by this warranty are limited, and the manufacturer may decide to repair or replace any part or unit after inspection and investigation. A one-time replacement limit applies to all parts.



Warranty Application
Description Parts Labour
 Combustion chamber (welds only) and cast iron door frame.  Lifetime  3 Years
 Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), plating (defective manufacturer), and convector air-mate.  Lifetime  S.O.
 Removable stainless steel combustion chamber components, secondary air tubes, deflectors, and supports.  7 Years  N/A
 Glass retainers, handle assembly, and air control mechanism.  5 Years  3 Years
 Carbon steel combustion chamber components, vermiculite baffle, and C-Cast baffle.  5 Years  N/A
 Standard blower, heat sensors, switches, rheostat, wiring, and other controls.  2 Years  1 Years
 Optional blower, paint (peeling), ceramic glass (thermal breakage only), ceramic fibre blankets, gaskets, insulations and other options.  1 Years  N/A
 Firebricks.  N/A  N/A
 All parts replaced under the warranty.  90 Days  N/A



Labour cost and repair work must not exceed wholesale price, contact VENTIS dealer if defective. Contact VENTIS dealer to expedite warranty claim processing.
