Ventis HEI350 Wood Fireplace Insert - 110,000 BTU

Starting at:
$3,870.00
Short description:

   Free Shipping on All Orders Continental United States!  Free Shipping | Ships in 2-4 Weeks What Does Lead Time Mean | Why Buy From Us?

Available
+

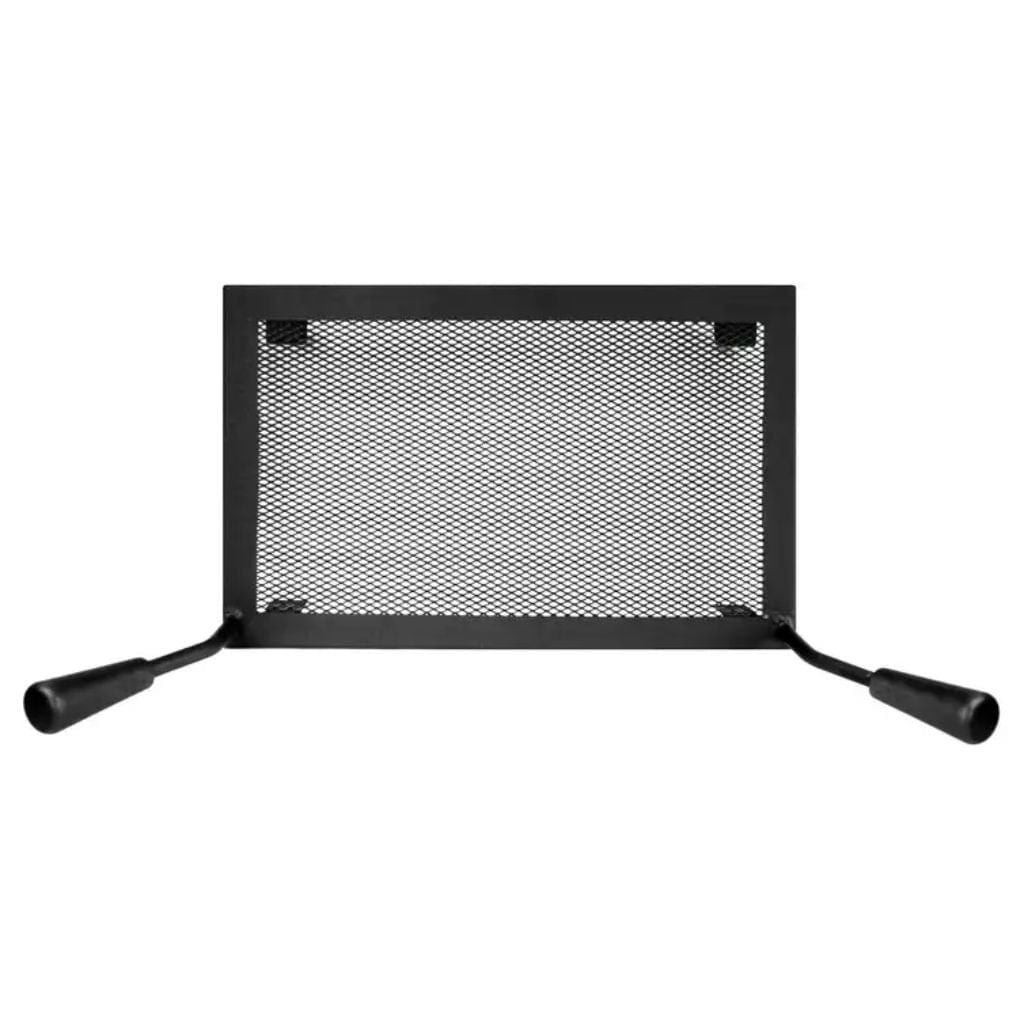

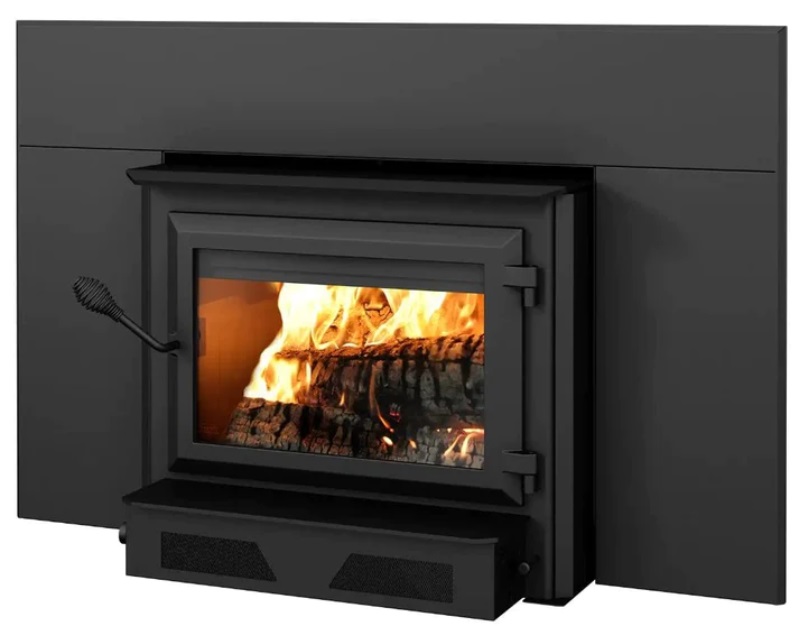

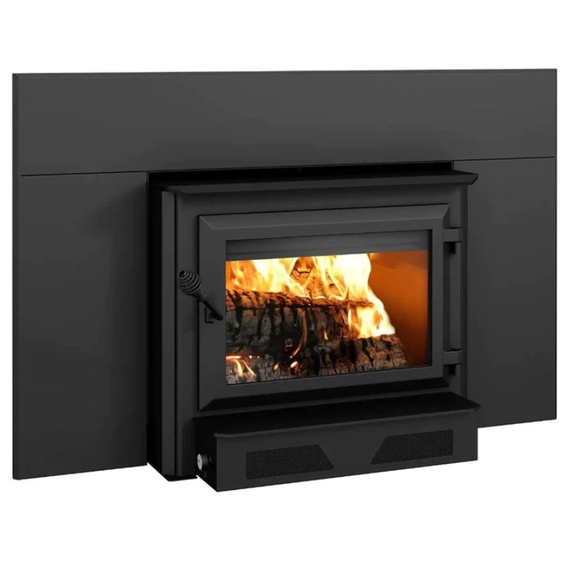

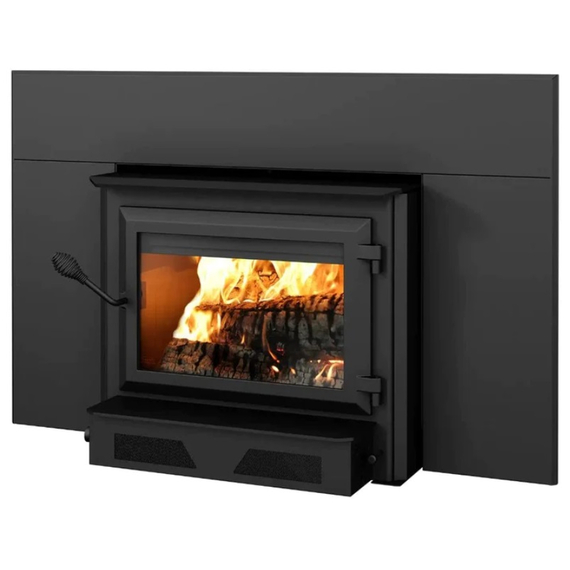

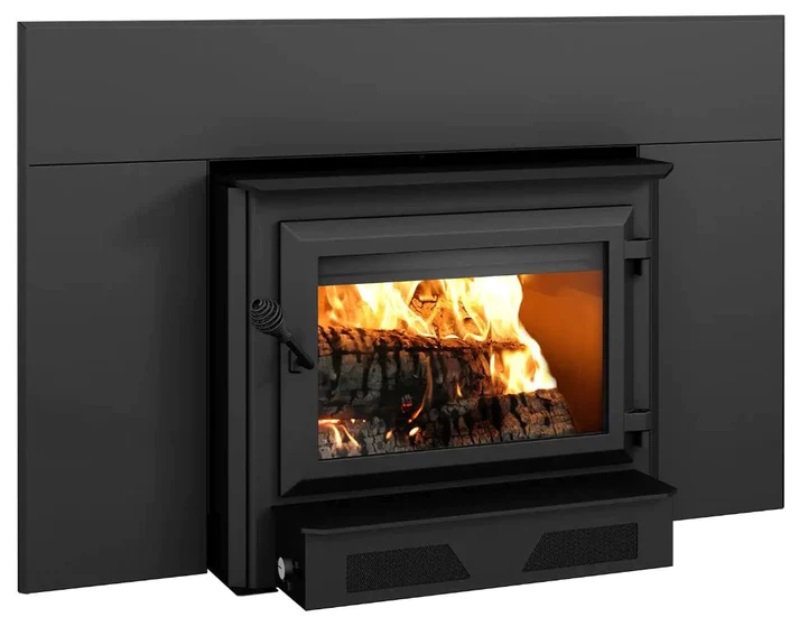

For those looking to heat larger spaces up to 2,700 square feet, the Ventis 30" HEI350 Wood Fireplace Insert is a great option. The unit's single cast iron door provides a sophisticated touch to its design, and the optional fire screen enhances the wood-burning experience with the sights and sounds of burning wood.

This wood-burning insert features non-catalytic combustion technology, which ensures efficient burning with minimal emissions. The stainless steel enhanced secondary air system promotes even more efficient burning. It's certified by EPA 2020, meeting the strictest environmental standards.

The HEI350 wood-burning insert has a maximum burn period of 10 hours and can deliver up to 110,000 BTU/H of heat. This makes it a practical and cost-effective heating solution for anyone looking to warm up their homes during the colder months. With its efficient technology, stylish design, and reliable heating capabilities, the Ventis HEI350 wood-burning insert is an excellent investment for any homeowner seeking an effective heating solution for their space.

  • Extra-large size wood insert
  • EPA certified at only 1.32 g/h
  • Solidity and manufacturing quality
  • C-Cast heat shield added to the firestop
  • Non-catalytic combustion technology
  • Installation authorized on the Island of Montreal
  • Cast iron door
  • 144 CFM blower

Required option:

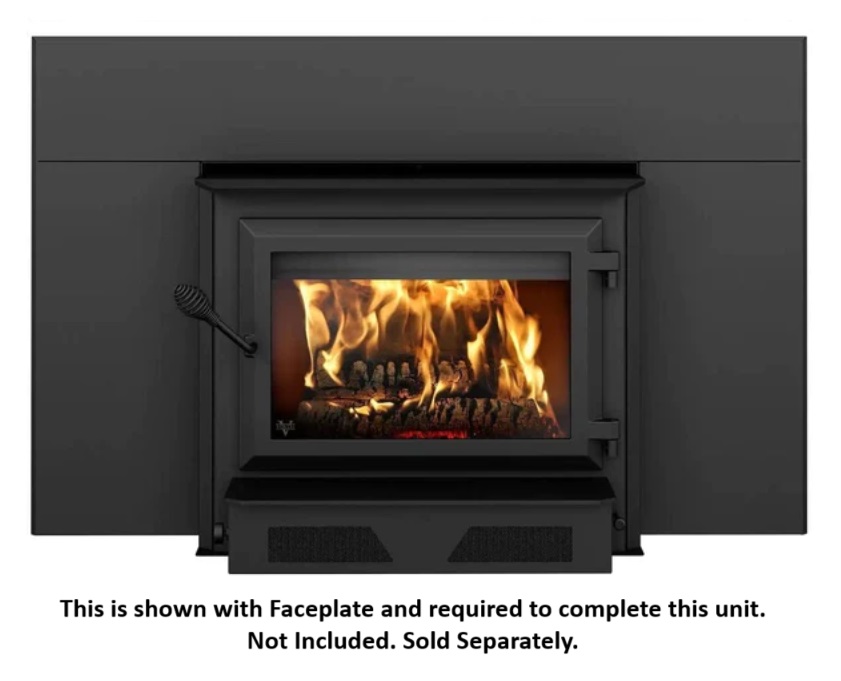

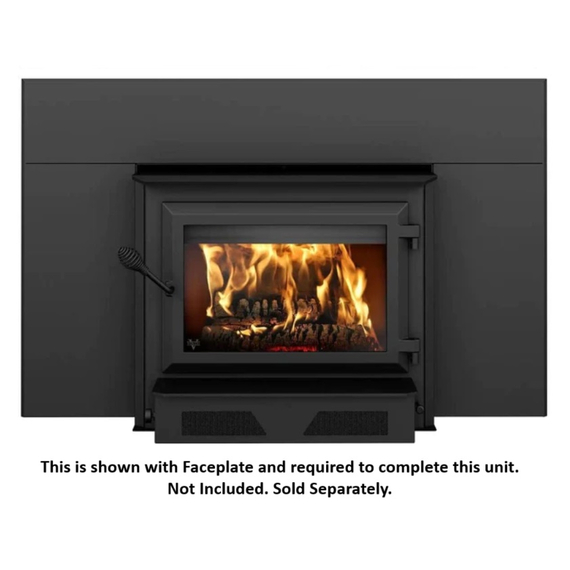

  • Choose one faceplate to complete this unit. Not Included, Sold Separately.

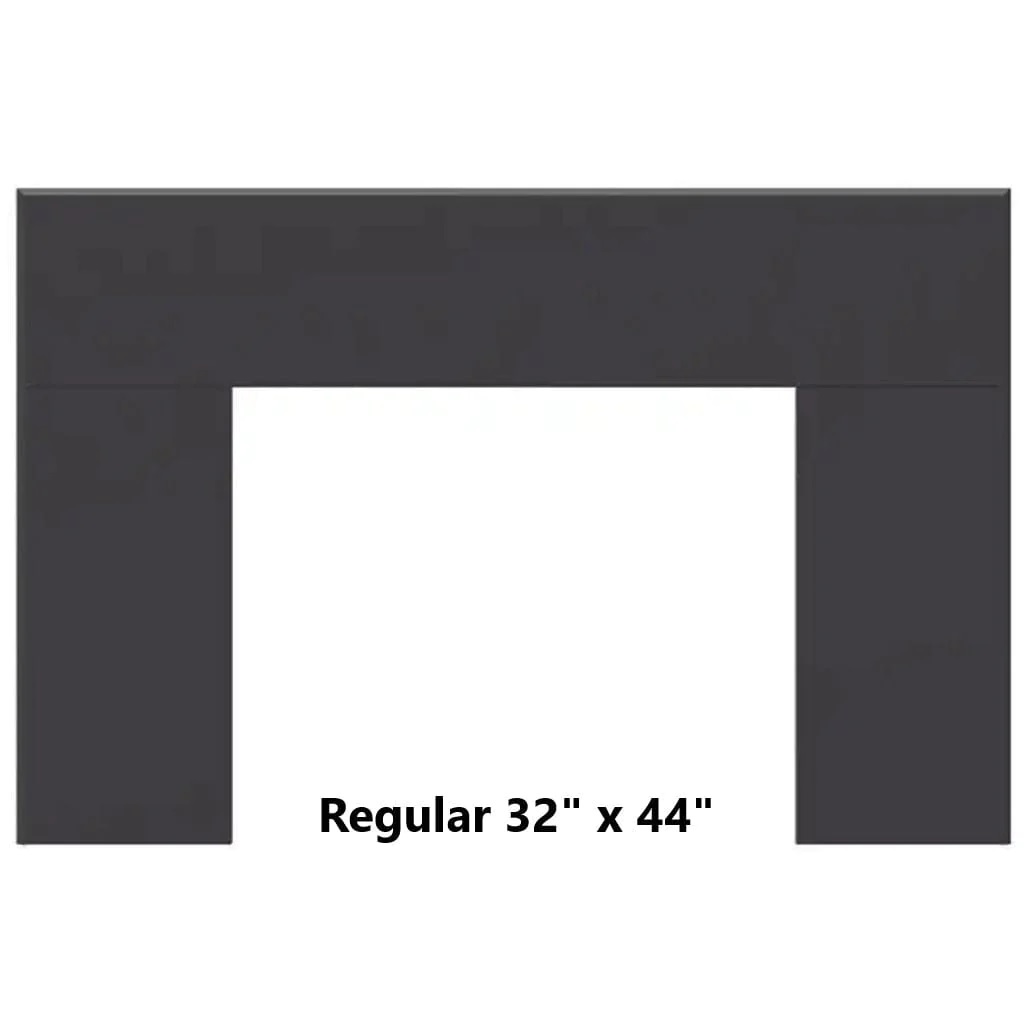

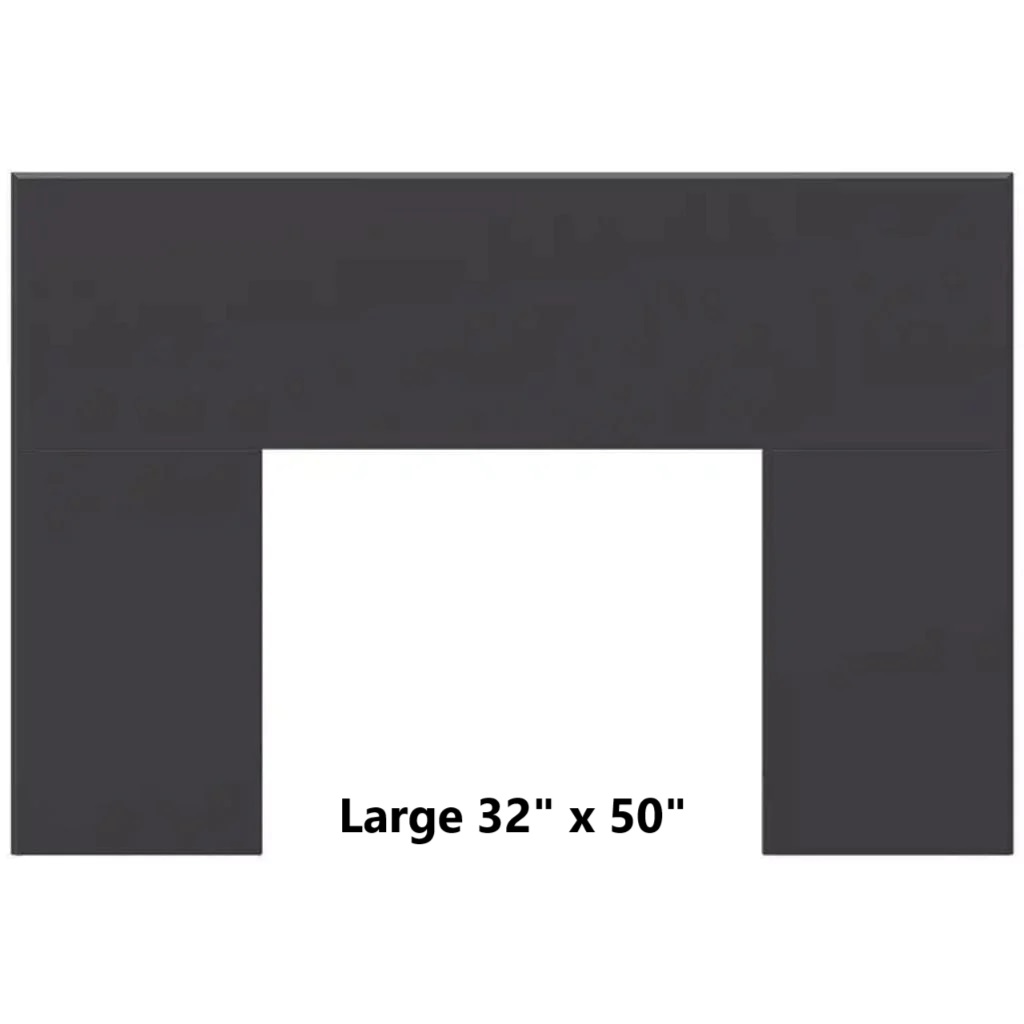

  • Regular faceplate (VBA1557) or Large faceplate (VBA1558).

Product Specifications:

 Color:  Black
 Fuel Type:  Dry cordwood (16" recommended)
 Combustion Technology:  Non-catalytic
 Recommended Heating Area: 1,000 - 2,700 ft²
 Overall Firebox Volume: 3.5 ft³
 Maximum Burn Time:  10 Hours
 EPA Loading Volume:  2.84 ft³
 Maximum Heat Output-Dry Cordwood:  110,000 BTU/h
 Minimum Overall Heat Output Rate:  18,100 BTU/h (5.3 kW)
 Maximum Overall Heat Output Rate:   9,500 BTU/h (14.5 kW)
 Average Efficiency-Dry Cordwood (HHV):  71 %
 Average Efficiency-Dry Cordwood (LHV):  76 %
 Optimum Efficiency:  77 %
 Optimum Heat Transfer Efficiency:  76 %
 Average Particulate Emission Rate:  1.32 g/h
 Average CO:  92 g/h
 Maximum Log Length:  22"
 Recommended Log Length:  16"
 Log Positioning:  Over width
 Flue Spigot Diameter:  6"

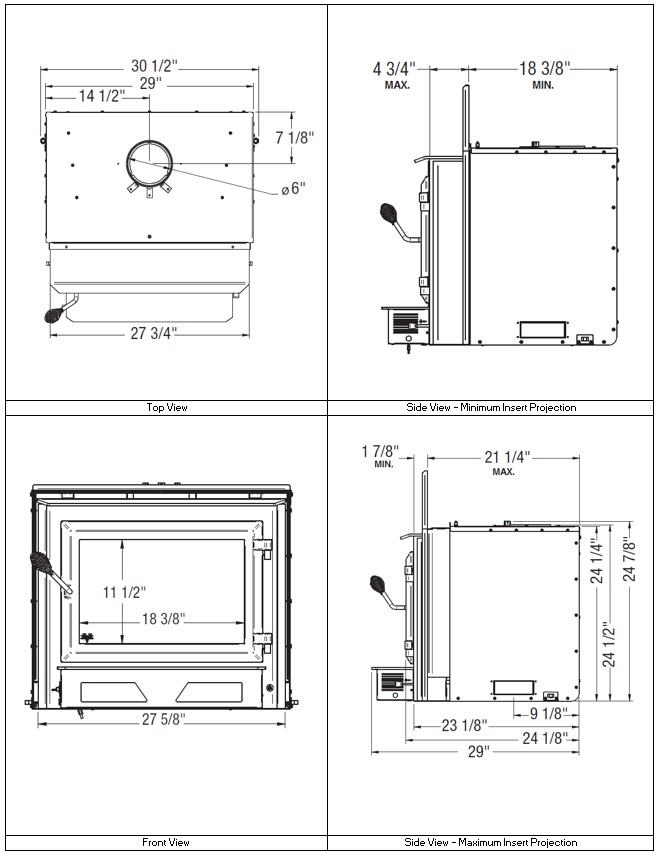

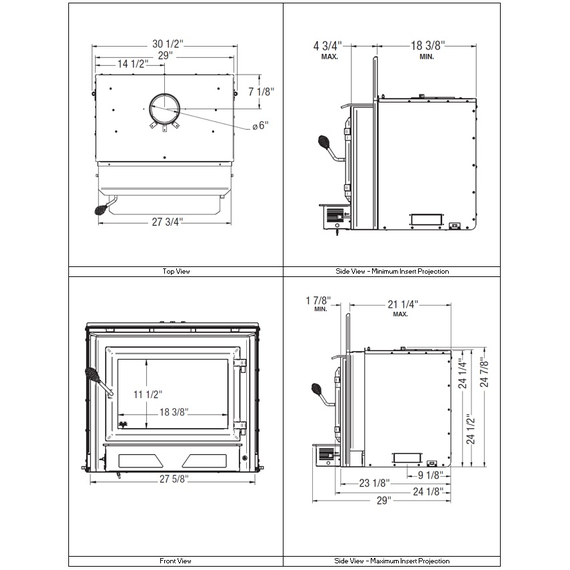

 Door Opening Dimensions (W x H):  19" x 9 7/8"
 Firebox Dimensions (W x D):  22 7/8" x 20 1/8"
 Firebox Volume:  3.5 pi³
 Glass Viewing Area (W x H):  18 3/8" x 11 1/2"
 Glass Type:  Ceramic glass
 Door Type:  Single, glass with cast iron frame

Eligible for the 30% Tax Credit Program:

    • Beginning in 2023 through December 31, 2032, consumers buying highly efficient wood or pellet stoves or larger residential biomass heating systems may be eligible to claim a 30% tax credit that is capped at $2,000 annually and is based on the full cost (purchase and installation) of the unit.
    • This new 30 percent tax credit is available for appliances installed between January 1, 2023, and December 31, 2032.
    • Customers will claim their tax credit when they file their taxes on IRS form 5695 under “Residential Energy Efficient Property Credit “. They will need their purchase receipt (showing the cost of the product and installation).
    • Customers will also need the manufacturer certificate stating that the stove qualifies for the credit and is at least 75 percent efficient HHV.
    • The credit applies to qualifying wood and pellet stoves and, unfortunately, not to gas stoves.
    • People who have zero tax liability may not qualify for the tax credit. It's recommended to consult a qualified tax professional to determine if the customer is eligible to take advantage of this tax credit.

Downloads:

The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. It applies to normal residential use only and is void if the unit is used to burn material other than cordwood or not operated according to the owner's manual.

Damages caused by misuse, abuse, improper installation, lack of maintenance, over ¬ring, negligence or accident during transportation, power failures, downdrafts, venting problems or underestimated heating area are not covered.

Any defect or damage caused by the use of unauthorized or other than the original parts voids this warranty.

This warranty requires defective products to be returned or sent to the manufacturer for investigation, with transportation fees paid by the manufacturer.

All parts and labour costs covered by this warranty are limited, and the manufacturer may decide to repair or replace any part or unit after inspection and investigation. A one-time replacement limit applies to all parts.



Warranty Application
Description Parts Labour
 Combustion chamber (welds only) and cast iron door frame.  Lifetime  3 Years
 Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), plating (defective manufacturer), and convector air-mate.  Lifetime  S.O.
 Removable stainless steel combustion chamber components, secondary air tubes, deflectors, and supports.  7 Years  N/A
 Glass retainers, handle assembly, and air control mechanism.  5 Years  3 Years
 Carbon steel combustion chamber components, vermiculite baffle, and C-Cast baffle.  5 Years  N/A
 Standard blower, heat sensors, switches, rheostat, wiring, and other controls.  2 Years  1 Years
 Optional blower, paint (peeling), ceramic glass (thermal breakage only), ceramic fibre blankets, gaskets, insulations and other options.  1 Years  N/A
 Firebricks.  N/A  N/A
 All parts replaced under the warranty.  90 Days  N/A



Labour cost and repair work must not exceed wholesale price, contact VENTIS dealer if defective. Contact VENTIS dealer to expedite warranty claim processing.
