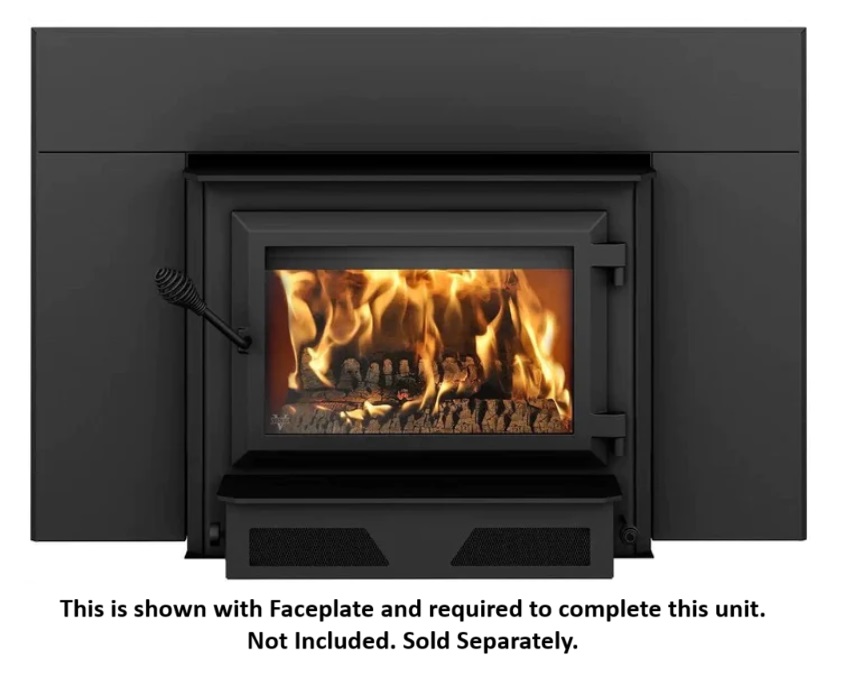

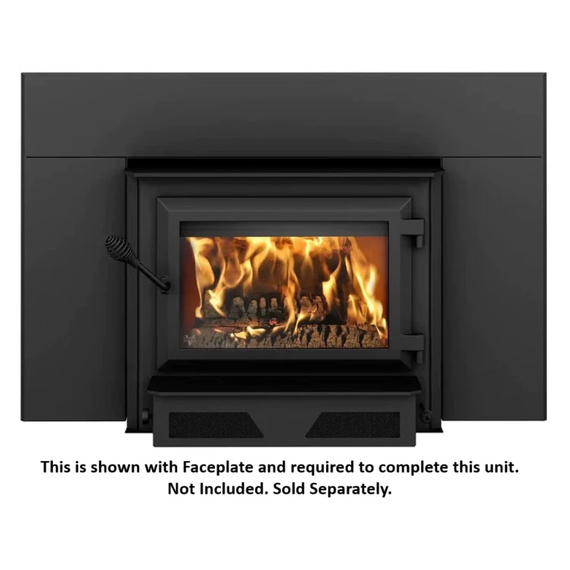

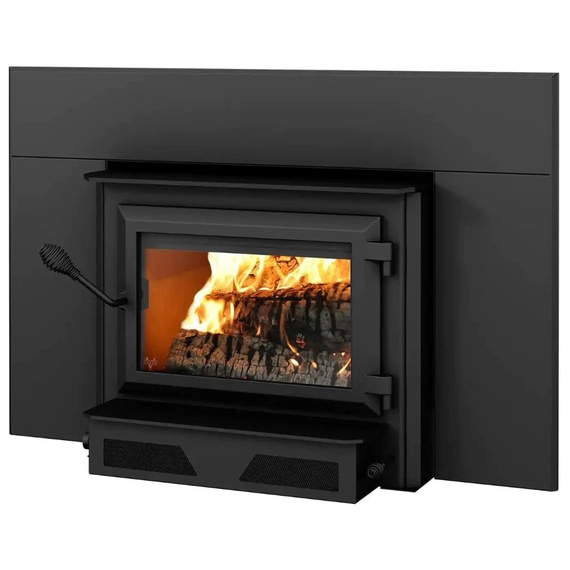

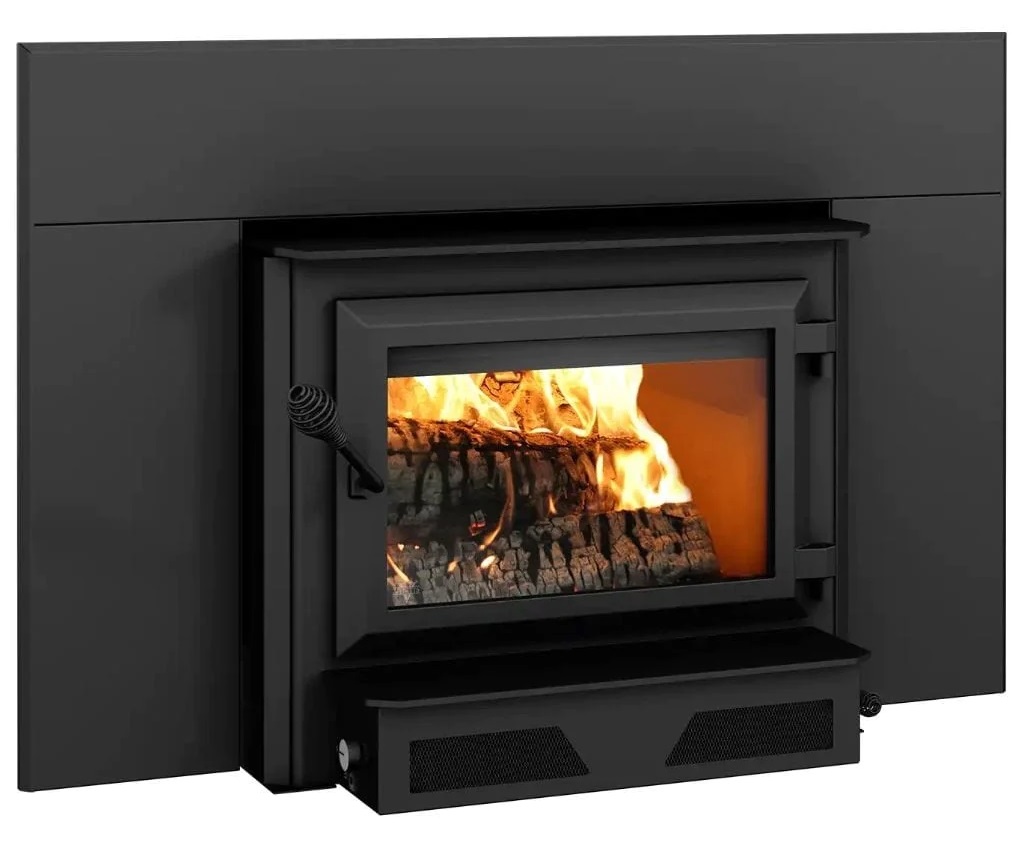

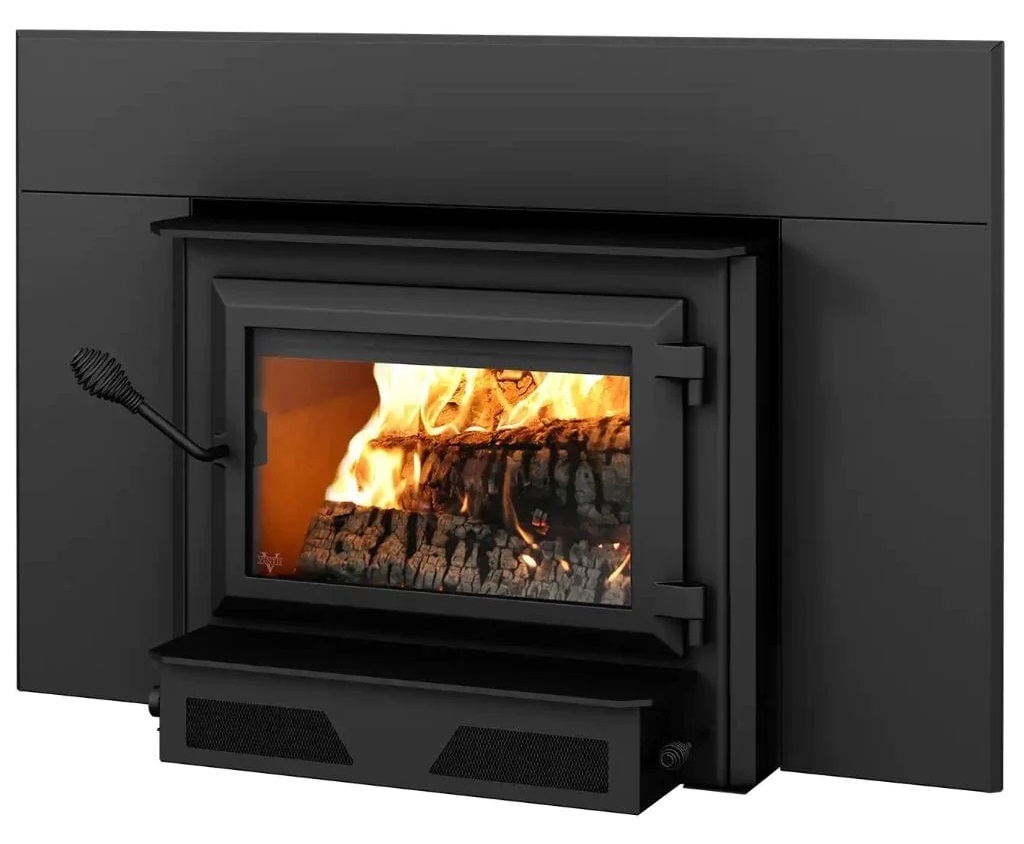

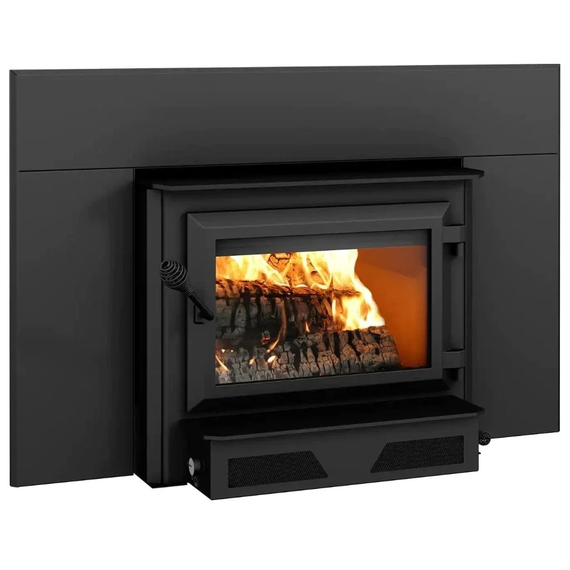

The Ventis 28" HEI240 Wood Fireplace Insert is a recommended solution for heating large spaces that measure between 500 and 2,100 square feet. The single cast iron door of this unit adds an element of sophistication to its overall design. The optional fire screen can be used to enhance the wood fire experience by providing you with the sound and sight of the burning wood.
The HEI240 wood burning insert is equipped with non-catalytic combustion technology that ensures the wood burns efficiently with minimal emissions. The enhanced secondary air system made of stainless steel facilitates even more efficient burning. This unit meets the strictest environmental standards and has been certified by EPA 2020.
With a maximum burn period of 8 hours and a maximum BTU/H capacity of 75,000, the HEI240 wood burning insert is powerful enough to heat even the largest rooms. This makes it a practical and cost-effective solution for those looking to heat their homes during the colder months. With its sleek design, efficient technology, and reliable heating capabilities, the Ventis HEI240 wood burning insert is a wise investment for any homeowner seeking a practical heating solution for their space.

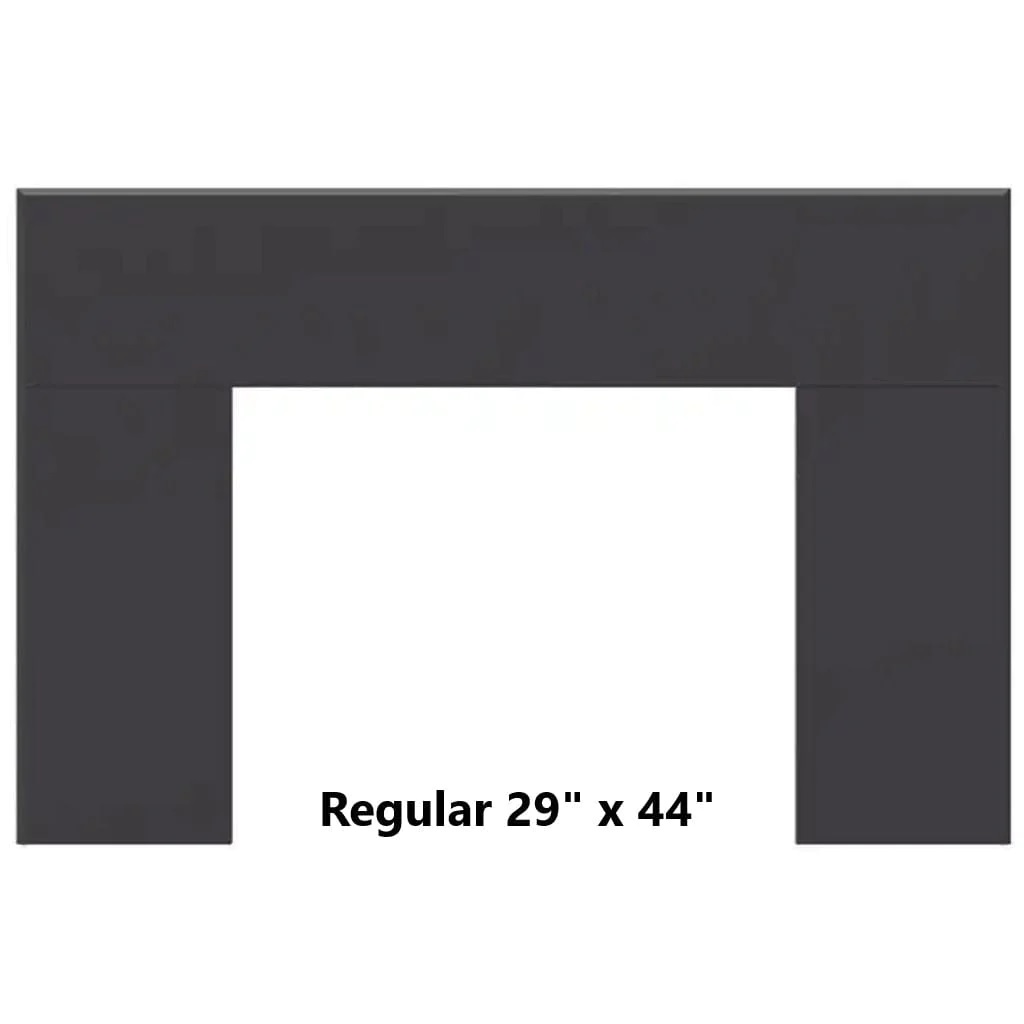

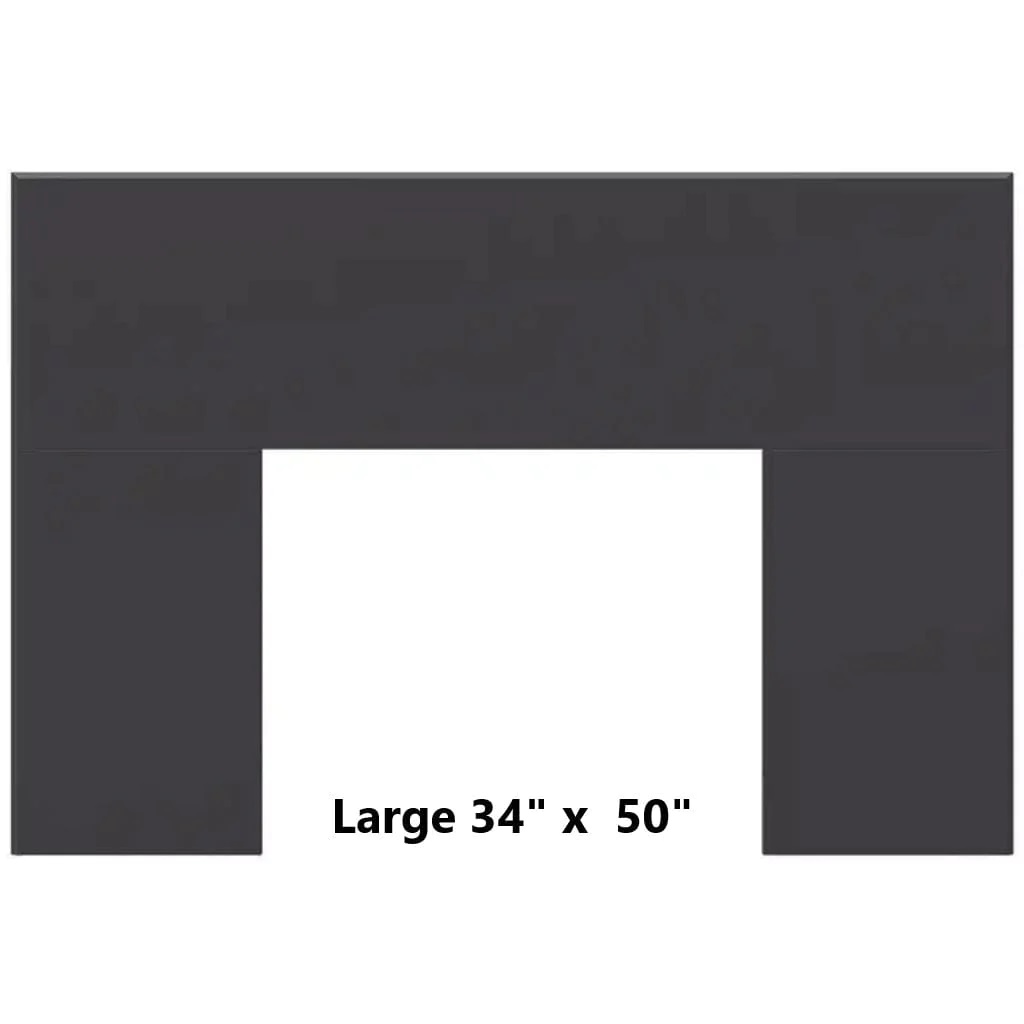

Required option:
Color: | Black |
Fuel Type: | Dry cordwood (16" recommended) |
Combustion Technology: | Non-catalytic |
Recommended Heating Area: | 500 - 2,100 ft² |
Overall Firebox Volume: | 2.4 ft³ |
Maximum Burn Time: | 8 Hours |
EPA Loading Volume: | 2.02 ft³ |
Maximum Heat Output-Dry Cordwood: | 75,000 BTU/h |
Minimum Overall Heat Output Rate: | 14,800 BTU/h (4.34 kW) |
Maximum Overall Heat Output Rate: | 28,600 BTU/h (8.38 kW) |
Average Efficiency-Dry Cordwood (HHV): | 69 % |
Average Efficiency-Dry Cordwood (LHV): | 74 % |
Optimum Efficiency: | 77 % |
Optimum Heat Transfer Efficiency: | 75 % |
Average Particulate Emission Rate: | 1.54 g/h |
Average CO: | 89.4 g/h |
Maximum Log Length: | 20" |
Recommended Log Length: | 16" |
Log Positioning: | Over width |
Flue Spigot Diameter: | 6" |

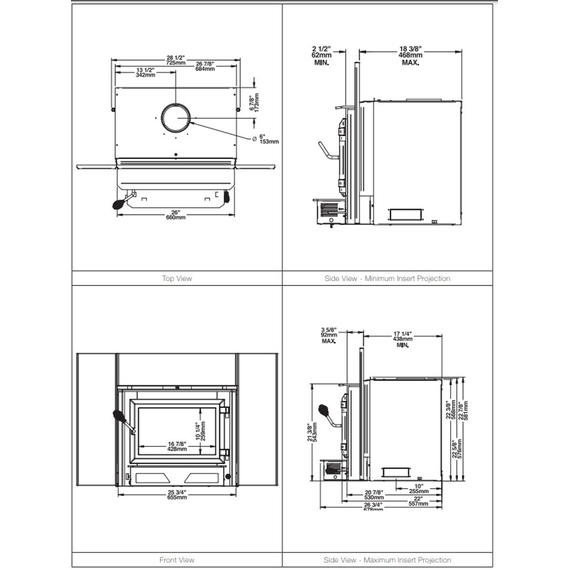

Door Opening Dimensions (W x H): | 17 1/2" x 9" |
Firebox Dimensions (W x D): | 21" x 16 3/4" |
Firebox Volume: | 2.4 ft³ |
Glass Viewing Area (W x H): | 16 7/8" x 10 1/4" |
Glass Type: | Ceramic glass |
Door Type: | Single, glass with cast iron frame |
The warranty of the manufacturer extends only to the original retail purchaser and is not transferable. It applies to normal residential use only and is void if the unit is used to burn material other than cordwood or not operated according to the owner's manual.
Damages caused by misuse, abuse, improper installation, lack of maintenance, over ¬ring, negligence or accident during transportation, power failures, downdrafts, venting problems or underestimated heating area are not covered.
Any defect or damage caused by the use of unauthorized or other than the original parts voids this warranty.
This warranty requires defective products to be returned or sent to the manufacturer for investigation, with transportation fees paid by the manufacturer.
All parts and labour costs covered by this warranty are limited, and the manufacturer may decide to repair or replace any part or unit after inspection and investigation. A one-time replacement limit applies to all parts.
Warranty Application |
Description | Parts | Labour |
Combustion chamber (welds only) and cast iron door frame. | Lifetime | 3 Years |
Surrounds, heat shields, ash drawer, steel legs, pedestal, trims (aluminum extrusions), plating (defective manufacturer), and convector air-mate. | Lifetime | S.O. |
Removable stainless steel combustion chamber components, secondary air tubes, deflectors, and supports. | 7 Years | N/A |
Glass retainers, handle assembly, and air control mechanism. | 5 Years | 3 Years |
Carbon steel combustion chamber components, vermiculite baffle, and C-Cast baffle. | 5 Years | N/A |
Standard blower, heat sensors, switches, rheostat, wiring, and other controls. | 2 Years | 1 Years |
Optional blower, paint (peeling), ceramic glass (thermal breakage only), ceramic fibre blankets, gaskets, insulations and other options. | 1 Years | N/A |
Firebricks. | N/A | N/A |
All parts replaced under the warranty. | 90 Days | N/A |
Labour cost and repair work must not exceed wholesale price, contact VENTIS dealer if defective. Contact VENTIS dealer to expedite warranty claim processing.
